Olympic 4PHDXL-33 Big-Rig 33,000 lb Heavy-Duty 4-Post Maintenance Lift

Original price $44,728.00 - Original price $44,728.00
Original price
$44,728.00
$44,728.00 - $44,728.00
Current price $44,728.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

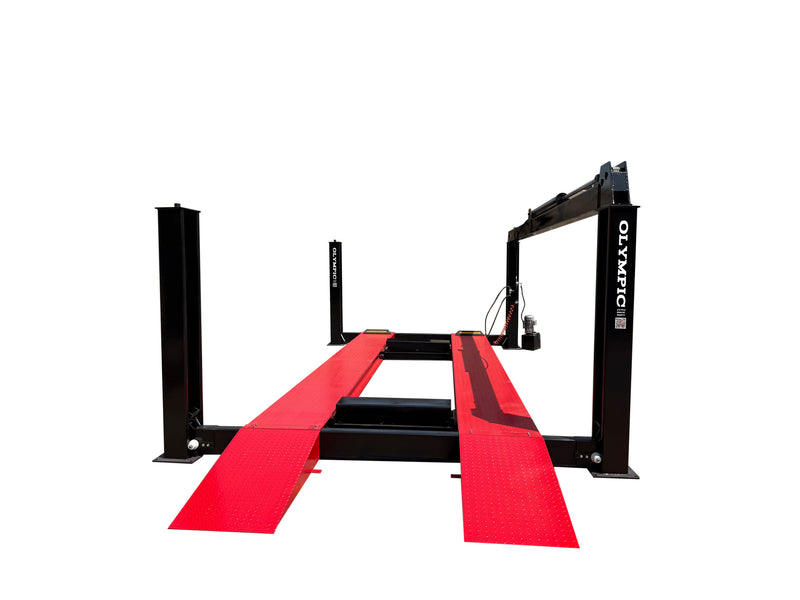

The Olympic 4PHDXL-33 Big-Rig is a 33,000 lb heavy-duty four-post maintenance lift with 289.4 in runways. It lifts to 67 in, comes with a 9,000 lb rolling bridge jack, and runs on a 3 kW, 3-phase, 220/380V power unit.

Shipping information

A forklift is required on site.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Rated capacity
33,000 lb
Power
220/380V, 3 kW, 60 Hz, 3-phase
Overall height
94.9 in
Overall width
152.4 in
Lifting height
67 in

Why Choose the Olympic 4PHDXL-33

  • Rated capacity

    The 33,000 lb rated capacity is the highest in Olympic's Big-Rig four-post maintenance line.

  • Long runways

    The 289.4 in runways are 27.6 in wide, for long-wheelbase vehicles.

  • Rolling bridge jack included

    A 9,000 lb rolling bridge jack is included for raising an axle off the runways.

  • Lifting height

    The lift reaches 67 in lifting height from a 7.88 in minimum.

  • Post and track spacing

    There are 129 in between posts and 47.24 in between tracks.

  • Three-phase power unit

    The 3 kW, 60 Hz, 3-phase power unit is rated 220/380V.

Product Overview

The 33,000 Lb Big-Rig

The 4PHDXL-33 is the top-capacity lift in Olympic's Big-Rig heavy-duty four-post maintenance range. It is meant for shops whose heaviest vehicles need more than the 22,000 lb or 27,000 lb Big-Rig models offer.

Runways and Posts

The runways are 289.4 in long, 27.6 in wide and 7.9 in high, with 47.24 in between tracks. The posts are 129 in apart, and the lift is 152.4 in wide and 94.9 in high overall.

Lifting

The runways rise from 7.88 in to a 67 in lifting height in approx. 60 seconds and lower in about the same time.

Bridge Jack Included

One 9,000 lb rolling bridge jack comes with the lift, so you can take the weight off an axle for brake, tire and suspension work while the vehicle stays on the runways.

Specifications

SpecificationValue
Model4PHDXL-33 Big-Rig
Lift type4-post heavy-duty maintenance lift
Rated capacity33,000 lb
Included bridge jackOne 9,000 lb rolling bridge jack
Minimum lift height7.88 in
Lifting height67 in
Rise / lowering timeApprox. 60 seconds
Overall width152.4 in
Overall height94.9 in
Width between posts129 in
Runway length289.4 in
Runway width27.6 in
Runway height7.9 in
Width between tracks47.24 in
Power220/380V, 3 kW, 60 Hz, 3-phase
Amperage15 / 8.8 A

What's Included

  • 4PHDXL-33 four-post lift
  • One 9,000 lb rolling bridge jack

Not included: Installation.

Best For

  • Fleet and heavy-truck shops whose vehicles exceed the smaller Big-Rig ratings, within 33,000 lb
  • Municipal and equipment maintenance yards that need full-length runway support
  • Shops that want a rolling bridge jack on the lift for wheels-free work

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Ceiling
The lift is 94.9 in tall. Add the height of your tallest vehicle to the 67 in lifting height and measure to the lowest obstruction.
Floor
152.4 in wide. The runways alone are 289.4 in long; confirm the overall length with Garage Lift Depot before planning the bay, and allow approach room for long vehicles.
Concrete
No concrete or anchoring specification is provided for this model. Confirm the requirements with Garage Lift Depot and have the slab verified by a qualified installer.
Electrical
3 kW, 60 Hz, 3-phase power unit, rated 220/380V at 15 / 8.8 A. 380V is not a standard US service, so confirm the supply voltage for your site before ordering.
Electrical
A licensed electrician should install the three-phase circuit.

Warranty

Olympic warranty: 10 years on major structural components; 3 years on electric and pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves and bushings; 1 year on wear parts such as pads, slide blocks and rubber components. Coverage begins on the date of shipment, applies to the original purchaser, requires professional installation, and does not include labor.

Frequently Asked Questions

33,000 lb.

Yes, one 9,000 lb rolling bridge jack.

Three-phase power: the 3 kW, 60 Hz unit is rated 220/380V. Confirm your shop's supply voltage with Garage Lift Depot before ordering.

289.4 in long and 27.6 in wide.

Choose by the weight of your heaviest vehicle: the Big-Rig maintenance lifts are rated 22,000 lb, 27,000 lb and 33,000 lb.
