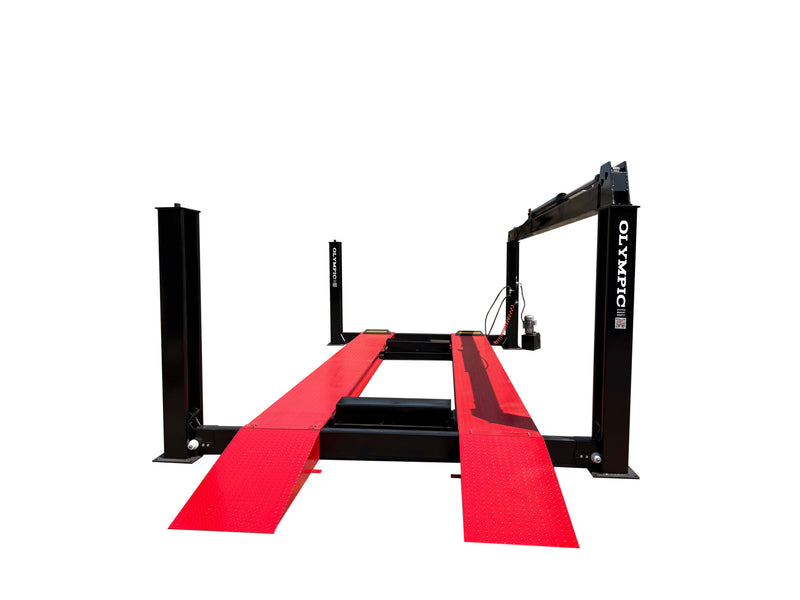

The Big-Rig 33,000-lb. 4-Post Heavy-Duty Alignment Lift / 10-Year Warranty / 150″ W X 312″ L
Specifications
"The Big-Rig" 33,000-lb. 4-Post Heavy-Duty Alignment Lift
Heavy-Duty Commercial-Grade Alignment lift for Trucks, Heavy Equipment and Cars.
"The Big-Rig" 33,000 Lbs. Capacity Alignment Lift is designed for maximum durability, strength and performance. Perfect for servicing and aligning large trucks, dump trucks, and semi-tractors, yet versatile enough to accommodate light-duty vehicles and cars. This lift handles anything you load on it, with precision and stability.
Its advanced design supports a wide range of service operations — inspections, repairs, maintenance, alignment — making it the ultimate shop investment. Includes one 9,000 lb. rolling bridge jack.
Capacity: 33,000 lbs | Overall Height: 94.9″ | Overall Length 312" | Runway Width: 25.6″
*Special Order: Contact us for a freight quote or to order.
Key Features
- 10-Year limited structural warranty — see the written warranty for component-specific coverage and exclusions
- 33,000 lb. load capacity
- High-quality Q235 spec structural steel
- Includes one 9,000 lb. rolling bridge jack (4PRJ-9)
- Built-in turntables and slip plates for alignments
- Aircraft-quality stainless steel hydraulic cylinders
- Movable runways for versatility
- Slip-resistant extra-long runways (275.6″)
- Heavy-duty galvanized aircraft-grade cables
- Secondary locking system guards against cable failure
- Spring-loaded safety locks engage automatically
- Adjustable ladder locks for precision leveling
- Built-in grease fittings for easy lubrication
- Chain drive prevents over-extension
- Acceptable for outdoor use (protect power unit)
- Optional 9,000 lb. Rolling Bridge Jack (Part No. 4HRJ-9)
- Maintenance-free 380V 3-phase hydraulic power unit
- Olympic states this model is load-tested at 150% of rated capacity; ask for current model-specific certification documentation
Specifications
| Style | 4-Post Alignment Lift |
|---|---|
| Weight Capacity | 33,000 lbs |
| Overall Lift Length | 289.3″ |
| Overall Width | 152.3″ |
| Overall Height | 94.9″ |
| Minimum Lift Height | 7.88″ |
| Lifting Height | 67″ |
| Runway Width | 27.6″ |
| Runway Length | 275.6″ |
| Runway Height | 7.9″ |
| Width Between Runways | 43.3″ |
| Width Between Posts | 129″ |
| Speed of Rise | 60 seconds |
| Speed of Lowering | 60 seconds |
| Bridge Jack Capacity | 9,000 lbs |
| Voltage | 220/380V, 3KW, 60Hz, 3-phase |
| Amps | 15 / 8.8 |
Why Choose an Olympic Lift?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. Compare the exact model's specifications, installation requirements, written warranty and current certification documentation before purchase. Olympic states that this model is load-tested at 150% of rated capacity. Ask for current model-specific certification and test documentation.
4-Post Lift Installation Video
Shipping information
Free standard curbside freight shipping is available on most orders within the contiguous United States. Most orders are processed within 1–5 business days, with typical transit times of 5–8 business days after shipment.
