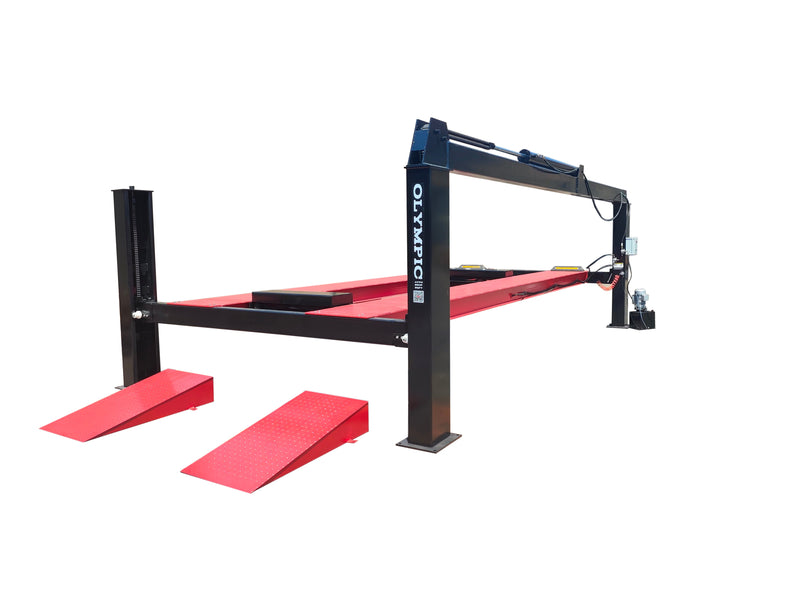

Olympic 4PHDXL-22 Big-Rig 22,000 lb Heavy-Duty 4-Post Truck Lift

Original price $27,728.00 - Original price $27,728.00
Original price
$27,728.00
$27,728.00 - $27,728.00
Current price $27,728.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

The Olympic 4PHDXL-22 Big-Rig is a 22,000 lb four-post maintenance lift for trucks, dump trucks, semi-tractors and heavy equipment. It has 275.6" runways, lifts to 67", and comes with a 9,000 lb rolling bridge jack.

Shipping information

A forklift is required on site.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Rated capacity
22,000 lbs
Power
3 kW, 60Hz, 3-phase; 220/380V (15/8.8 A)
Overall height
94.9"
Overall width
152.4"
Overall length
289.4"

Why Choose the Olympic 4PHDXL-22

  • Rated capacity

    The 22,000 lb rated capacity covers trucks, dump trucks and semi-tractors within the rating.

  • Long runways

    The 275.6" × 25.6" runways suit long-wheelbase trucks.

  • Rolling bridge jack included

    A 9,000 lb rolling bridge jack is included for wheels-free work.

  • Lock systems

    It has three lock systems adjustable ladder locks, spring-loaded auto-engaging locks and a secondary cable-failure lock.

  • Stainless-steel cylinders

    The stainless-steel hydraulic cylinders work with a chain drive that prevents over-extension.

  • Three-phase power unit

    The 3 kW, 3-phase power unit is rated 220/380V.

Product Overview

A Maintenance Lift for Heavy Trucks

The 4PHDXL-22 is the 22,000 lb model in Olympic's Big-Rig four-post range. It is built for trucks, dump trucks, semi-tractors and heavy equipment, as well as cars. Its runways are 275.6" long and 25.6" wide, with 47.24" between them.

Lifting and Locking

The runways lift from a minimum of 7.88" to 67" in about 60 seconds. Stainless-steel cylinders drive the lift, a chain drive prevents over-extension, and galvanized aircraft-grade cables carry the load. Adjustable ladder locks, spring-loaded auto-engaging locks and a secondary cable-failure lock hold the runways at height.

Bridge Jack Included

A 9,000 lb rolling bridge jack comes with the lift, so you can raise an axle off the runways for brake, tire and suspension work. The lift is load-tested at 150% of its rated capacity.

Specifications

SpecificationValue
Model4PHDXL-22 Big-Rig
Lift typeHeavy-duty 4-post truck maintenance lift
Rated capacity22,000 lbs
Included bridge jack9,000 lb rolling bridge jack
Minimum lift height7.88"
Lifting height67"
Rise / lowering timeApprox. 60 seconds
Overall length289.4"
Overall width152.4"
Overall height94.9"
Width between posts129"
Runway length275.6"
Runway width25.6"
Runway height7.9"
Width between runways47.24"
LocksAdjustable ladder locks, spring-loaded auto-engaging locks, secondary cable-failure lock
Power3 kW, 60Hz, 3-phase; 220/380V (15/8.8 A)

What's Included

  • 4PHDXL-22 four-post lift
  • 9,000 lb rolling bridge jack

Not included: Installation.

Best For

  • Fleet shops servicing box trucks, dump trucks and semi-tractors
  • Municipal and heavy-equipment maintenance yards
  • Truck repair shops that need full-length runway support

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Ceiling
The lift is 94.9" tall. Add the height of your tallest vehicle to the 67" lifting height and measure to the lowest obstruction.
Floor
289.4" long and 152.4" wide, plus approach room for long trucks.
Concrete
Follow the current Olympic installation manual and have the slab verified.
Electrical
3 kW, 60Hz, three-phase power unit rated 220/380V, drawing 15 A or 8.8 A. Confirm the supply voltage with your order.
Electrical
A licensed electrician should install the three-phase circuit.
Hydraulic
Hydraulic: stainless-steel cylinders, chain drive to prevent over-extension, galvanized aircraft-grade cables.

Warranty

Olympic warranty: 10 years on major structural components; 3 years on electric and pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves and bushings; 1 year on wear parts such as pads, slide blocks and rubber components. Coverage begins on the date of shipment, applies to the original purchaser, requires professional installation, and does not include labor.

Frequently Asked Questions

Up to 22,000 lb, covering trucks, dump trucks, semi-tractors, heavy equipment and cars.

Yes, one 9,000 lb rolling bridge jack.

Three-phase power. The 3 kW unit is rated 220/380V (15/8.8 A). Confirm your shop's supply voltage when you order.

From 7.88" to 67", in about 60 seconds.

Both have the same dimensions. Choose the 27,000 lb model if your heaviest vehicle is over 22,000 lb or you want more capacity margin.
