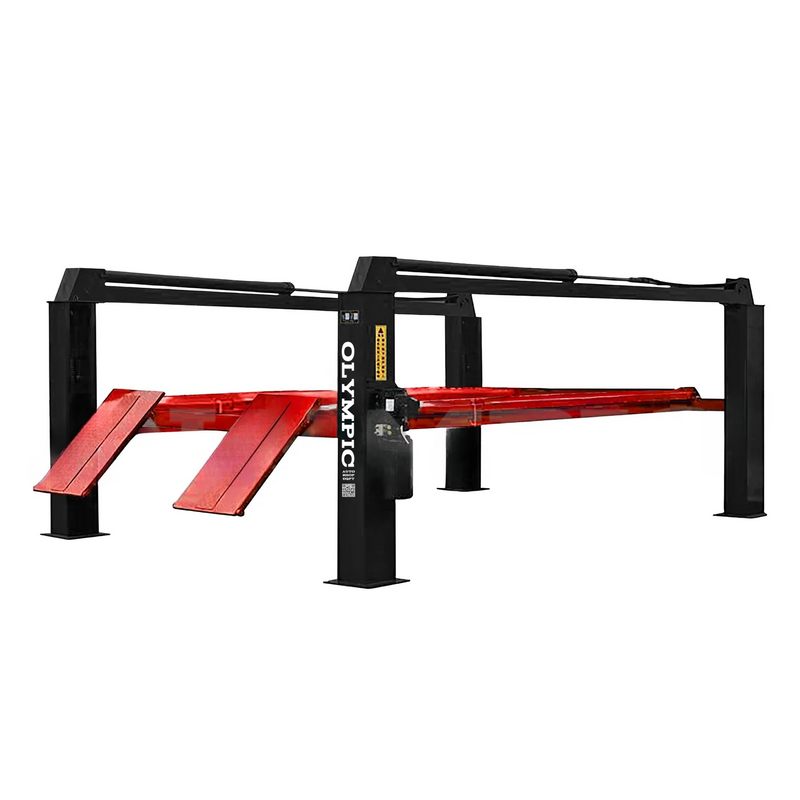

Olympic "The Big-Rig" 27,000 lb Heavy-Duty 4-Post Truck & Vehicle Maintenance Lift
Specifications
The Olympic "The Big-Rig" 27,000 lb Heavy-Duty 4-Post Maintenance Lift is engineered for demanding commercial vehicle service, inspection, repair, and maintenance applications. With a massive 27,000 lb lifting capacity, this heavy-duty vehicle lift is designed to service large trucks, dump trucks, semi-tractors, heavy equipment, and light-duty vehicles.
Its 275.6" slip-resistant runways provide substantial length for long-wheelbase vehicles, while the movable runways add versatility for different service applications. The lift also includes a 9,000 lb rolling bridge jack, providing additional lifting capability for professional maintenance work.
Built with Q235 structural steel, heavy-duty aircraft-grade cables, hydraulic cylinders, automatic safety locks, and a 380V three-phase hydraulic power unit, "The Big-Rig" is designed for professional automotive and commercial service environments.
KEY FEATURES
- 27,000 lb heavy-duty lifting capacity
- 4-post maintenance lift configuration
- Designed for trucks, dump trucks, semi-tractors, heavy equipment, and cars
- Includes one 9,000 lb rolling bridge jack
- 275.6" extra-long slip-resistant runways
- 25.6" runway width
- 129" width between posts
- High-quality Q235 structural steel
- Aircraft-quality stainless steel hydraulic cylinders
- Movable runways for increased versatility
- Heavy-duty galvanized, abrasion-resistant aircraft-grade cables
- Secondary locking system for added protection against cable failure
- Spring-loaded safety locks engage automatically
- Adjustable ladder locks for precise runway leveling
- Built-in grease fittings for easier maintenance
- Special chain drive helps prevent over-extension
- Maintenance-free 380V 3-phase hydraulic power unit
- Outdoor-use capable when the power unit is properly protected
- 10-year limited structural warranty
- Olympic states this model is load-tested at 150% of rated capacity; ask for current model-specific certification documentation
SPECIFICATIONS
| Specification | Details |
|---|---|
| Lift Style | 4-Post Maintenance Lift |
| Weight Capacity | 27,000 lbs |
| Overall Lift Length | 289.4" |
| Overall Width | 152.4" |
| Overall Height | 94.9" |
| Minimum Lift Height | 7.88" |
| Lifting Height | 67" |
| Runway Width | 25.6" |
| Runway Length | 275.6" |
| Runway Height | 7.9" |
| Width Between Tracks | 47.24" |
| Width Between Posts | 129" |
| Speed of Rise | 60 seconds |
| Speed of Lowering | 60 seconds |
| Bridge Jack Capacity | 9,000 lbs |
| Voltage | 220/380V |
| Power | 3KW, 60Hz, 3-Phase |
| Amps | 15 / 8.8 |
| Structural Steel | Q235 |
| Warranty | 10-Year Limited Structural Warranty |
BENEFITS
- 27,000 lb lifting capacity: Provides substantial lifting capability for heavy commercial vehicles and equipment.
- Long vehicle coverage: The 275.6" runways are designed to accommodate long-wheelbase trucks and other large vehicles.
- Professional service capability: Suitable for inspections, maintenance, repairs, and servicing in demanding commercial environments.
- Additional lifting support: The included 9,000 lb rolling bridge jack adds versatility for maintenance operations.
- Heavy-duty construction: Q235 structural steel, aircraft-grade cables, hydraulic cylinders, and safety systems are built for demanding service applications.
- Flexible servicing: Movable runways allow greater versatility when positioning vehicles for different maintenance tasks.
- Commercial-grade power: The maintenance-free 380V 3-phase hydraulic power unit is designed for professional service environments.
IDEAL FOR
- Commercial truck repair facilities
- Heavy-duty vehicle service shops
- Professional mechanic workshops
- Semi-tractor maintenance facilities
- Dump truck service operations
- Heavy equipment service facilities
- Commercial garages
- Automotive repair facilities
- Vehicle inspection and maintenance operations
- Shops servicing both heavy-duty and light-duty vehicles
WHY CHOOSE THIS PRODUCT
Olympic "The Big-Rig" combines a 27,000 lb capacity with a heavy-duty 4-post configuration, extra-long runways, movable runway design, and an included 9,000 lb rolling bridge jack. This makes it a substantial vehicle lifting solution for professional shops that service large commercial vehicles and heavy equipment.
Before purchase, compare the exact model's specifications, installation requirements, written warranty, and current certification documentation. Olympic states that this model is load-tested at 150% of rated capacity; ask for current model-specific certification and test documentation.
Equip your commercial garage or heavy-duty service facility with the Olympic "The Big-Rig" 27,000 lb 4-Post Maintenance Lift. This model is a special-order product. Contact us for a freight quote or to place an order.
