How To Choose: Motorcycle & ATV Lifts
Full-platform lifting vs. compact under-bike lifting
A motorcycle lift table supports the vehicle on a full-length platform and uses a loading ramp so you can roll the bike into position. Smaller under-bike lifting equipment supports the motorcycle from beneath and is intended for a different type of service setup. Every lift in this collection is a full-platform lift. The Daytona LMATV can also use the optional LPYON-057 1,100 lb mini lifting accessory.
Table size and capacity
Match rated capacity and platform size to the vehicle you plan to service. The Katool KT-MOTO100LT is rated at 1,000 lb and uses a 78.7 × 24.0 in table. The Katool KT-MOTO150LT is rated at 1,500 lb with a 78.7 × 28.0 in table. The Olympic HDML-15 is rated at 1,500 lb with an 87.4 × 28.8 in table.

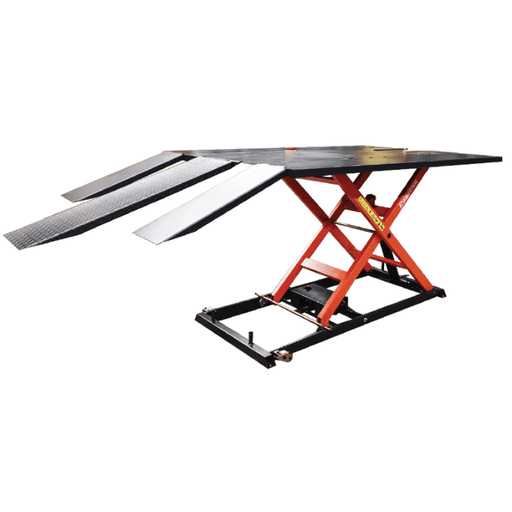

The Daytona LMATV is rated at 2,200 lb. Daytona lists an 86.5 in center platform with a 29.5 in center width and removable extensions that increase total width to 56.5 in.
Lifting height
Working height varies substantially by model. The Katool KT-MOTO150LT raises from 7.5 to 33.5 in, and the KT-MOTO100LT is listed from approximately 7.3 to 33.5 in. Daytona lists the LMATV from 8 to 48 in. The Olympic HDML-15 has a 6 in minimum height and a listed maximum of 67 in, plus 13.4 in with its adapter. Consider the type of service you perform and whether you prefer to work seated or standing.
Wheel chocks and clamps
Front-wheel support varies by model. The Daytona LMATV includes a front wheel chock, while its LPYON-056 front wheel vise is optional. The Olympic HDML-15 has a pneumatic front-wheel clamp. For the Katool KT-MOTO150LT and KT-MOTO100LT, confirm the wheel-retention equipment included with the specific unit before ordering.
Drop-out panels
Removable wheel-access sections make tire and wheel service easier while the motorcycle stays on the platform. The Daytona LMATV includes center front and rear wheel drop-outs. Confirm wheel-access features on the other models individually.
Side extensions for ATV use
A wider work surface is useful when servicing four-wheel powersports vehicles. The Daytona LMATV includes removable side platform extensions and adjustable side ramps for ATV service. The Katool KT-MOTO150LT has removable side extensions and is described by Katool for motorcycle and ATV applications. The Olympic HDML-15 is sold as a motorcycle and ATV model with side tables.
Hydraulic, electric and air requirements
Operating requirements differ between models. The Daytona LMATV requires 120V, 1 HP, 8 A, single-phase, 60 Hz power and uses a two-button pendant.
The Olympic HDML-15 is described by Olympic as using an air-hydraulic system. Olympic lists both standard 220V operation and a required air supply of 6–8 bar, so confirm the complete installation requirements for the exact unit before ordering.
The Katool KT-MOTO150LT and KT-MOTO100LT use hydraulic lifting systems. Confirm the pump configuration and any external power requirements for those models before purchase.
Motorcycle and ATV compatibility
The Daytona LMATV, Olympic HDML-15 and Katool KT-MOTO150LT are described for motorcycle and ATV service. The Katool KT-MOTO100LT is intended primarily for motorcycles. Vehicle width, wheelbase and weight still need to fit the specific platform, so check the product specifications before ordering.
Tie-downs and ramps
Secure the vehicle according to the manufacturer's instructions before raising the platform. The Olympic HDML-15 lists tie-down straps as included. Daytona includes a 45.5 × 15 in center ramp with the LMATV, along with adjustable 29.5 × 10.5 in side ramps. The Katool KT-MOTO150LT uses a 28.0 × 21.7 in loading ramp, and the KT-MOTO100LT is listed with a 24.0 × 21.7 in ramp.
Home garage vs. professional shop
For a home garage, consider floor space, available power, how often the lift needs to be moved and the height at which you prefer to work. The Daytona LMATV uses 120V power and includes a wheel mobility kit. The Olympic HDML-15 offers substantially greater working height and uses a pneumatic front-wheel clamp, which may suit shops already equipped with compressed air.
Floor space and setup
Allow room for the platform, loading ramp and safe movement around the vehicle. The Daytona LMATV uses an 86.5 in center platform and reaches 56.5 in total width with its side extensions installed. The Katool and Olympic models have different platform dimensions, so compare your bay space with the specific product before ordering. Follow the manufacturer's operating and setup instructions for the exact model.
Tire and wheel service
If you also service motorcycle tires and wheels, see our tire changers and wheel balancers, including models designed for motorcycle applications.
Frequently Asked Questions
Choose a capacity above the weight of the motorcycle or ATV you plan to service, and check platform dimensions as well as rated capacity. The models in this collection range from 1,000 to 2,200 lb.
Only on models designed for it. The Daytona LMATV, Olympic HDML-15 and Katool KT-MOTO150LT are described for ATV service.
It depends on the model. The Daytona LMATV requires 120V power. Olympic lists the HDML-15 as air-hydraulic and specifies both 220V operation and 6–8 bar air. Confirm the exact requirements before installation.
None of the four models in this collection is manufacturer-documented for UTV use. Confirm a purpose-built option before attempting to service one.
Yes. Tell us the motorcycle or ATV, its weight, your available floor space and your available power or air supply, and we'll help you compare suitable models.
