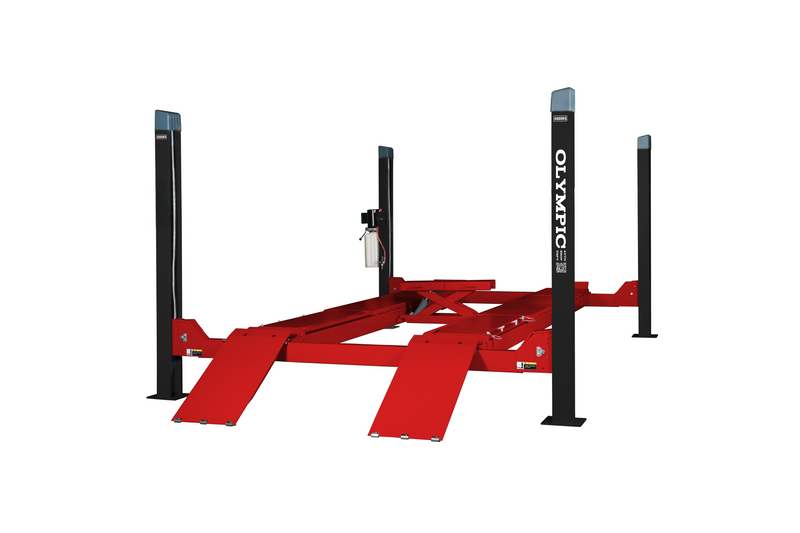

Olympic 4PHDXLA-12 12,000 lb. Heavy-Duty 4-Post Alignment Lift with Turntables & Slip Plates
Specifications
The Olympic 4PHDXLA-12 Heavy-Duty Alignment Lift is a professional-grade 12,000 lb. 4-post vehicle lift designed for automotive repair shops, dealerships, restoration facilities, and commercial service operations.
Built for demanding daily use, this heavy-duty alignment lift accommodates passenger vehicles, SUVs, long-bed trucks, dually trucks, and commercial service vehicles within its rated capacity. The integrated front turntables and rear slip plates provide the platform needed for professional wheel alignment work, while adjustable runway spacing helps accommodate a range of vehicle widths.
Constructed from high-strength Q235 structural steel and finished with a durable powder coating, the 4PHDXLA-12 delivers dependable lifting performance for professional automotive service environments.
KEY FEATURES
- 12,000 lb. lifting capacity
- Professional 4-post alignment lift configuration
- Front turntables for wheel alignment service
- Rear slip plates for precision alignment adjustments
- Adjustable runway spacing
- 21.6" wide runways
- Heavy-duty Q235 structural steel construction
- Cable-driven lifting system
- Precision hydraulic lifting operation
- Multi-position mechanical safety locking system
- Air-operated lock release system
- Cable anti-failure safety protection
- Maximum lifting height of 70.86"
- Durable powder-coated finish
- Premium Italian hydraulic oil seals
- 220V / 230V, 3HP, 3.0KW power system
- Optional 7,000 lb. rolling bridge jack compatibility
- Olympic 10-Year Warranty

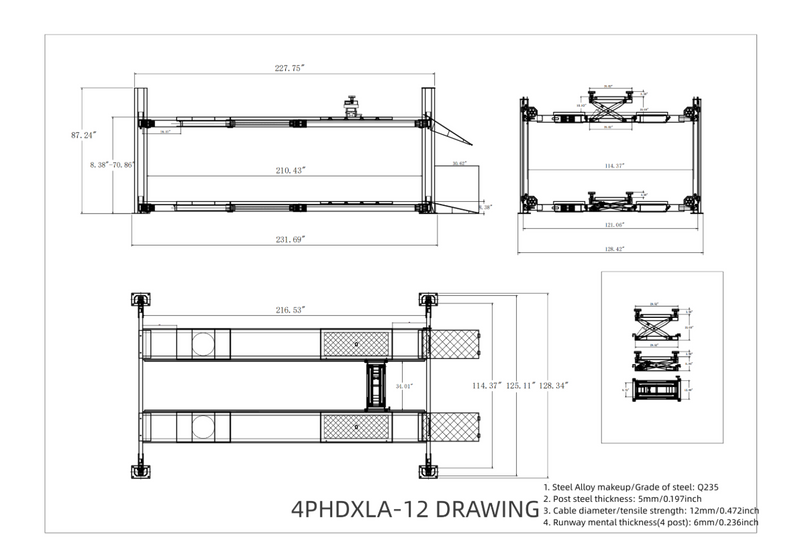

SPECIFICATIONS
| Model | Olympic 4PHDXLA-12 |
|---|---|
| Product Type | Heavy-Duty 4-Post Alignment Lift |
| Lifting Capacity | 12,000 lbs. |
| Lift System | Cable-Driven Hydraulic System |
| Maximum Lifting Height | 70.86" |
| Overall Height | 87.40" |
| Overall Length | 245.47" |
| Overall Width | 132.40" |
| Runway Length | 196.85" |
| Platform / Approach Length | 211.96" |
| Runway Width | 21.6" |
| Runway Sections | 45.27" / 64.96" / 40.15" |
| Width Between Columns | 2,880 mm |
| Wheelbase Range | 2,445 mm–2,945 mm |
| Motor | AC 220/230V, 50Hz, 3.0KW, 3HP |
| Lift Time | Approximately 60 seconds |
| Lowering Time | Approximately 50 seconds |
| Lift Weight | 1,400 kg |
| Safety System | Multi-Position Mechanical Locks and Cable Anti-Failure Protection |
| Lock Release | Air-Operated |
| Alignment Equipment | Front Turntables and Rear Slip Plates |
| Warranty | 10-Year Warranty |
BENEFITS
The Olympic 4PHDXLA-12 provides a stable and spacious platform for vehicle maintenance and professional wheel alignment service. Its 12,000 lb. lifting capacity makes it suitable for a broad range of cars, SUVs, trucks, and commercial service vehicles.
Integrated alignment components help technicians perform wheel alignment procedures while adjustable runway spacing increases vehicle compatibility. The wide runways and heavy-duty construction support efficient daily operation in commercial automotive environments.
The cable-driven lifting system, hydraulic operation, multi-position mechanical locks, and cable anti-failure protection provide dependable support for demanding vehicle service applications.
IDEAL FOR
- Automotive repair shops
- Commercial garages
- Professional alignment centers
- Dealership service departments
- Truck and SUV service facilities
- Tire and wheel shops
- Fleet maintenance facilities
- Vehicle restoration shops
- High-volume automotive service centers
WHY CHOOSE THIS PRODUCT
The Olympic 4PHDXLA-12 combines heavy-duty vehicle lifting capability with professional alignment functionality in one commercial-grade platform. With a 12,000 lb. capacity, adjustable runways, front turntables, rear slip plates, and advanced safety features, it is designed to support demanding automotive service operations.
Built from Q235 structural steel and backed by an Olympic 10-Year Warranty, this lift provides a durable solution for shops performing vehicle maintenance and wheel alignment services.
Upgrade your professional automotive shop with the Olympic 4PHDXLA-12 12,000 lb. Heavy-Duty 4-Post Alignment Lift and add dependable lifting and alignment capability for cars, SUVs, trucks, and commercial service vehicles.
