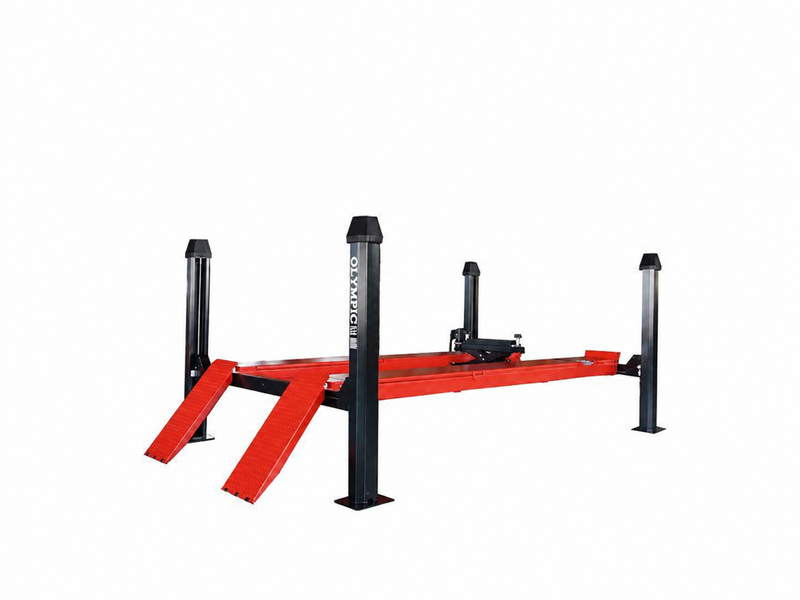

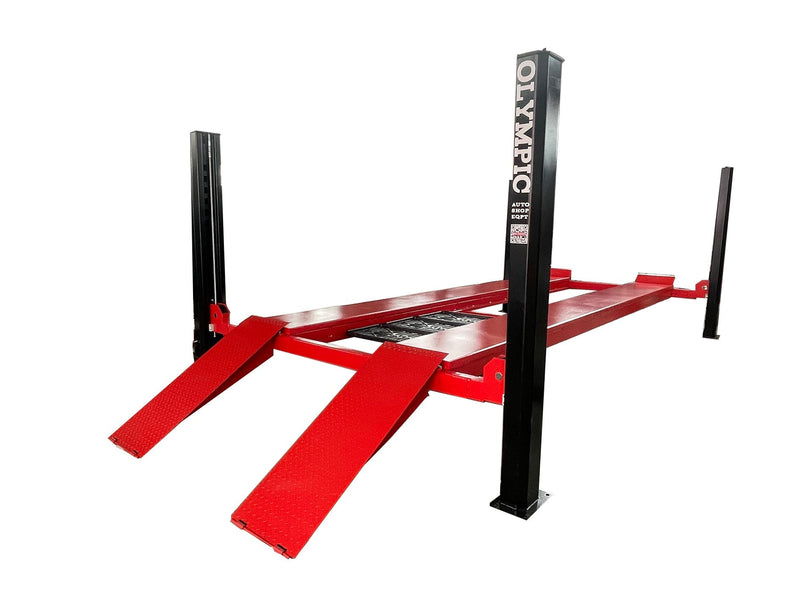

Olympic 4PHDXL-12 12,000 lb Heavy-Duty 4-Post Car & Truck Storage Lift – Extra-Wide Maintenance Lift
Specifications
The Olympic 4PHDXL-12 is a heavy-duty 12,000 lb 4-post car and truck storage and maintenance lift designed for garages, workshops, and professional automotive service environments.
Built with extra-wide 21.65″ runways, a 111.79″ space between posts, and a 70.87″ lifting height, this vehicle lift provides the capacity and working clearance needed for compatible trucks, vans, and low-clearance cars.
The cable-driven lifting system uses heavy-duty aircraft cables, cable sheaves, ladder locks, and a cable anti-failure safety system. The lift is powered by a 220V 2.2KW or 3KW single-phase power unit and features a manual lock release system with locks designed to engage at adjustable heights.
KEY FEATURES
- 12,000 lb lifting capacity
- Heavy-duty 4-post vehicle lift configuration
- Designed for cars, trucks, vans, and compatible low-clearance vehicles
- 21.65″ wide runways
- 70.87″ maximum lifting height
- 66.93″ maximum clearance under runways
- 111.79″ width between posts
- 40.94″ width between tracks
- 196.85″ runway length
- Cable-driven lifting system
- Manual lock release system
- Adjustable locking system
- Heavy-duty cable sheaves and ladder lock system
- Aircraft cables rated at 16,000 lbs
- Cable anti-failure safety system
- Q235 structural steel construction
- Italian oil seals and hydraulic components
- Durable powder-coated finish
- 220V 2.2KW or 3KW, 1-phase power unit
- Optional 6,000 lb bridge jack
- 10-year warranty
- Olympic states this model is load-tested at 150% of rated capacity; ask for current model-specific certification documentation

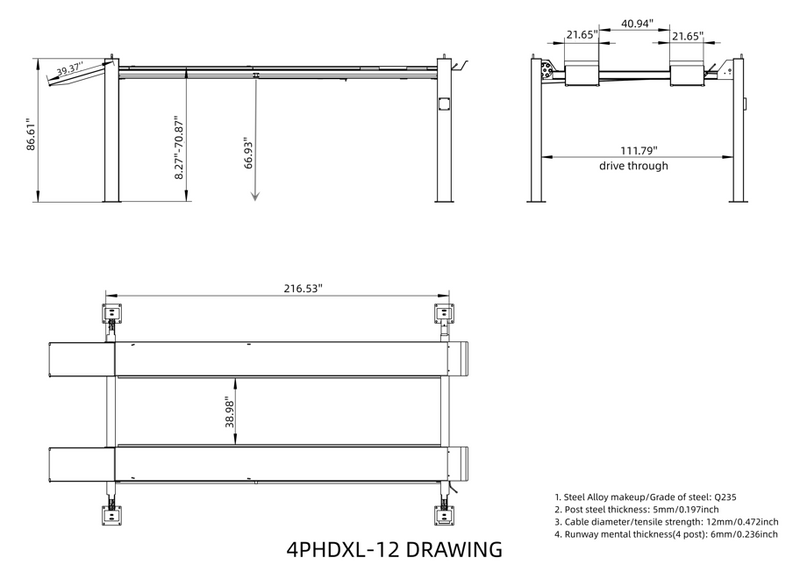

SPECIFICATIONS
| Specification | Details |
|---|---|
| Model | Olympic 4PHDXL-12 |
| Lift Type | 4-Post Car & Truck Storage & Maintenance Lift |
| Capacity | 12,000 lbs |
| Overall Height | 86.61″ |
| Overall Width | 132.40″ |
| Width Between Posts | 111.79″ |
| Runway Width | 21.65″ |
| Width Between Tracks | 40.94″ |
| Lifting Height | 70.87″ |
| Maximum Clearance Under Runways | 66.93″ |
| Overall Length Without Ramps | 216.53″ |
| Overall Length With Ramps | 255.9″ |
| Runway Length | 196.85″ |
| Shipping Weight | 3,880 lbs |
| Power Unit | 220V, 3KW, 4HP, 1Ph |
| Power Requirement | 220V, 60Hz, 2.2KW or 3KW, 1-phase |
| Operating Temperature | 5°C to 40°C |
| Ambient Humidity | 30% to 95% at 40°C |
| Installation Altitude | Up to 5,500 ft / 1,675 m |
| Storage/Transport Temperature | -25°C to 55°C |
| Warranty | 10-year warranty |
| Construction | Q235 structural steel |
| Cable Rating | 16,000 lbs |
BENEFITS
High 12,000 lb Capacity
The 12,000 lb capacity provides substantial lifting capability for compatible cars, trucks, vans, and other heavy vehicles requiring a professional-grade 4-post lift.

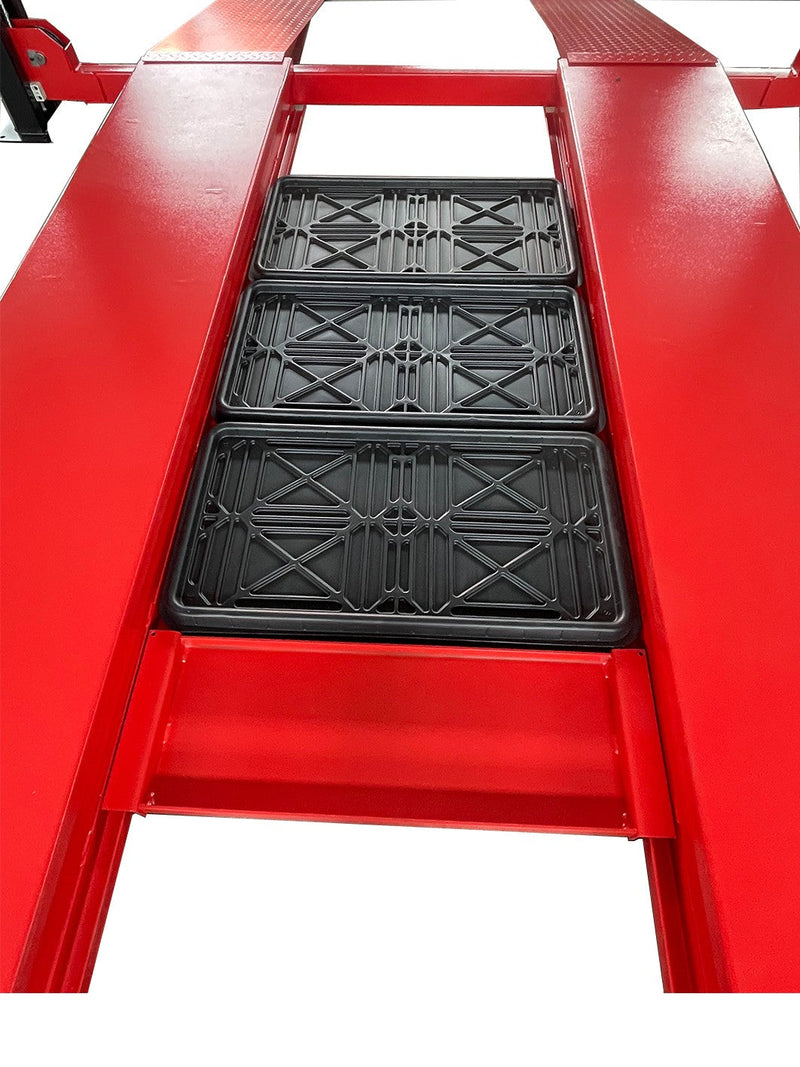

Extra-Wide Runways
The 21.65″ wide runways provide a broad platform for supported vehicles, while the 111.79″ space between posts accommodates larger vehicle configurations.
High Working Clearance
With up to 70.87″ of lifting height and 66.93″ maximum clearance beneath the runways, the lift provides useful space for storage and maintenance applications.
Heavy-Duty Safety Components
The cable-driven system incorporates 16,000 lb-rated aircraft cables, heavy-duty sheaves, ladder locks, and a cable anti-failure safety system for added protection during lifting operations.
Professional Power System
The included 220V power unit is available in 2.2KW or 3KW single-phase configurations for reliable operation in suitable garage and workshop installations.
Built for Storage and Maintenance
The 4-post configuration makes this lift suitable for both vehicle storage and maintenance applications where increased capacity and platform width are important.
IDEAL FOR
- Professional automotive garages
- Automotive repair workshops
- Commercial vehicle service facilities
- Truck and van maintenance
- Heavy-duty vehicle storage
- Professional mechanics
- Automotive service businesses
- Garage vehicle storage
- Fleet maintenance facilities
- Compatible low-clearance vehicles
WHY CHOOSE THIS PRODUCT
The Olympic 4PHDXL-12 combines a 12,000 lb capacity with an extra-wide 4-post configuration for demanding vehicle storage and maintenance applications. Its wide runways, substantial clearance, heavy-duty cable system, adjustable locking system, and 220V power unit make it a strong choice for professional garages and workshops that require high-capacity vehicle lifting equipment.
Olympic states that this model is load-tested at 150% of rated capacity. Buyers should request current model-specific certification and test documentation and review the exact product drawing, identification plate, installation requirements, and written warranty before installation or operation.
Equip your garage or professional workshop with the Olympic 4PHDXL-12 12,000 lb Heavy-Duty 4-Post Car & Truck Storage and Maintenance Lift. Review the complete specifications, power requirements, installation requirements, and warranty details to confirm compatibility with your vehicle and facility.
