Olympic 4PHDXLA-15 15,000 lb Open-Front 4-Post Alignment Lift

Original price $16,961.00 - Original price $16,961.00
Original price
$16,961.00
$16,961.00 - $16,961.00
Current price $16,961.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

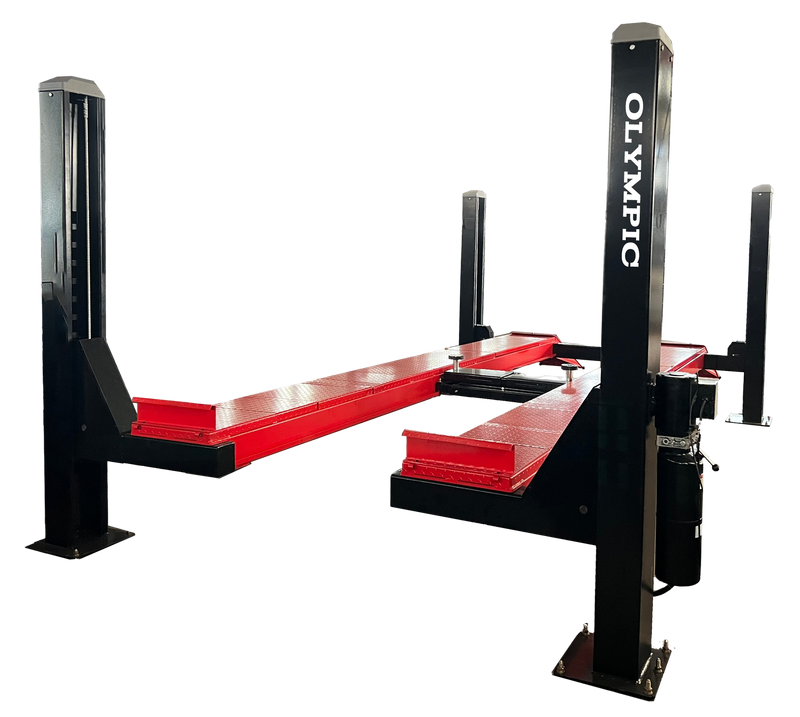

The Olympic 4PHDXLA-15 is a 15,000 lb open-front 4-post alignment lift for shops that regularly align larger trucks. Turntables and slip plates are built into the runways, the lift locks at any height up to 70.86 in, and a 220V, 3 kW power unit is included.

Shipping information

A forklift is required on site.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Rated capacity
15,000 lb
Overall height
87.40 in
Overall width
137.8 in
Overall length
246.06 in
Lifting height
70.86 in

Why Choose the Olympic 4PHDXLA-15

  • Rated capacity

    The 15,000 lb capacity handles large trucks as well as cars and SUVs, within the rating.

  • Open-front design

    The open-front design gives access for alignment and front-end work.

  • Integrated turntables and slip plates

    Turntables and slip plates are integrated into the runways, plus approach ramps.

  • Adjustable lock system

    The adjustable lock system locks at any height, with air lock release.

  • Shared frame dimensions

    The lift shares its frame dimensions with the 4PHDXLA-11.

  • Power unit included

    A 220V, 3 kW (4 HP) HPU2204 power unit is included.

Product Overview

More Capacity for Truck Alignment

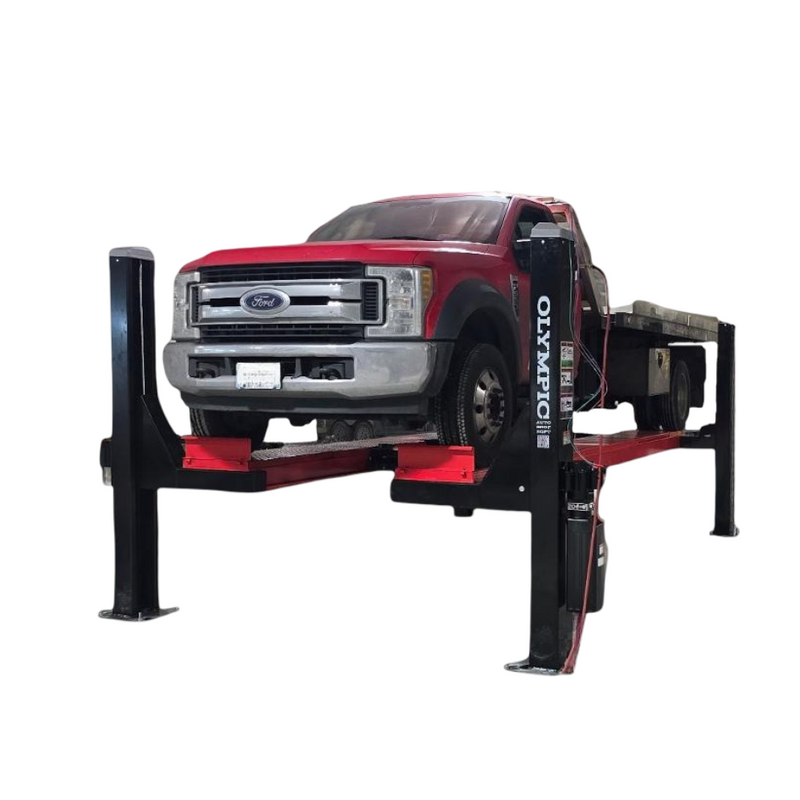

The 4PHDXLA-15 takes the open-front alignment layout to 15,000 lb. It is built for shops that service large trucks, and it handles cars and SUVs as well, within the rated capacity.

Same Footprint as the 11,000 Lb Model

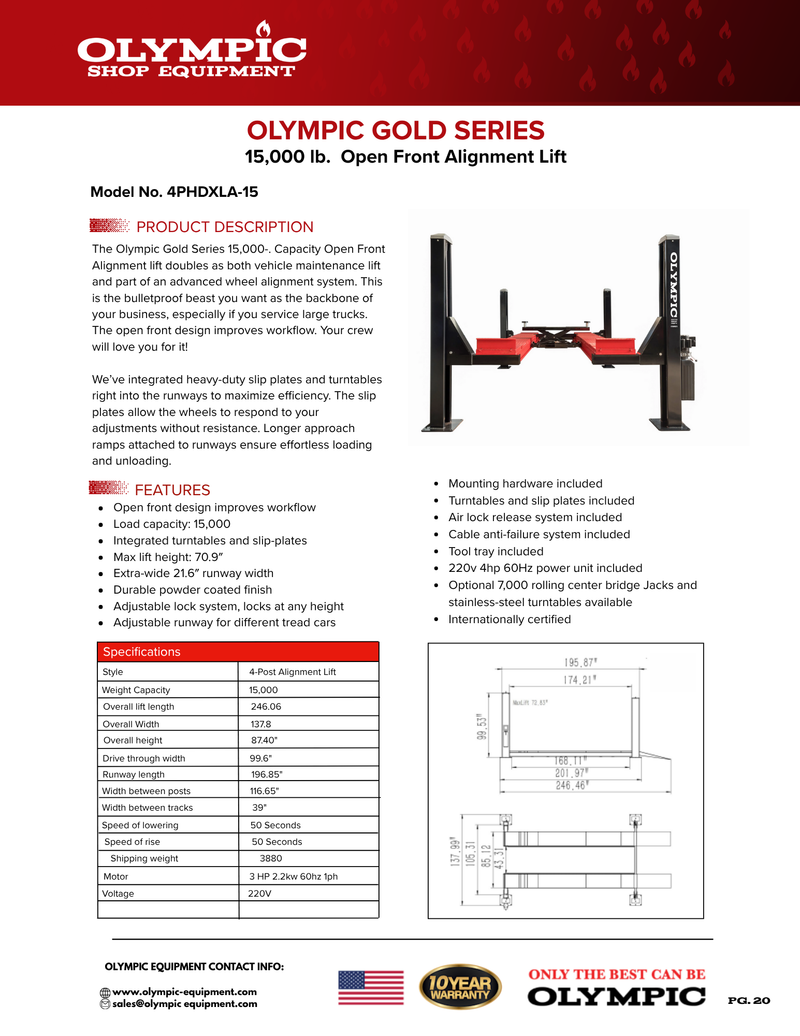

The 4PHDXLA-11 and 4PHDXLA-15 share the same overall size: 137.8 in wide, 246.06 in long and 87.40 in high. Moving up to 15,000 lb does not change the bay you need to plan for. Check the layout drawing before ordering.

Alignment-Ready Runways

Turntables and slip plates are built into the 196.85 in runways, which are 21.65 in wide with 39 in between tracks. Approach ramps are included.

Lifting and Locking

The cable-driven hydraulic lift uses Italian oil seals and rises to 70.86 in. The adjustable lock system can lock at any height, with air lock release. The lift is load-tested at 150% of its rated capacity.

Specifications

SpecificationValue
Model4PHDXLA-15
Lift typeOpen-front 4-post alignment lift
Rated capacity15,000 lb
Lifting height70.86 in
Overall width137.8 in
Overall length246.06 in
Overall height87.40 in
Width between posts116.65 in
Drive-through width99.60 in
Runway length196.85 in
Runway width21.65 in
Width between tracks39 in
LockingAdjustable lock system, locks at any height
Lock releaseAir
DriveCable-driven hydraulic
Alignment equipmentTurntables and slip plates, integrated in runways
Power unit (included)HPU2204: 220V, 4 HP, 3 kW, 60 Hz, single-phase
Operating temperature41–104°F (5–40°C)
Operating humidity30–95% (at 40°C)

What's Included

  • 4PHDXLA-15 lift
  • Turntables and slip plates (integrated in runways)
  • Approach ramps
  • HPU2204 220V power unit

Not included: Installation, electrical work, air supply. Optional: Olympic 4PHDA-RJ 7,000 lb bridge jack.

Best For

  • Alignment shops servicing large trucks alongside cars
  • Fleet shops that want open-front access at 15,000 lb
  • Shops upgrading from a smaller lift without enlarging the bay plan

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Floor
A 137.8 in by 246.06 in footprint, plus room for approach and the aligner. Check the layout drawing before ordering.
Concrete
Follow the current Olympic installation manual and have the slab verified.
Air
Shop air is needed for the air lock release. No operating pressure is specified, so confirm the requirement with Garage Lift Depot.
Ceiling
Add the tallest vehicle's height to the 70.86 in lifting height and measure to the lowest obstruction.
Electrical
Included HPU2204 power unit: 220V, 4 HP, 3 kW, 60 Hz, single-phase. A licensed electrician should confirm the circuit.
Electrical
Cable-driven hydraulic lift with Italian oil seals.
Electrical
Operating conditions: 41–104°F (5–40°C), 30–95% humidity (at 40°C), an installation altitude of 5,500 ft (1,675 m), and storage/transport temperatures of −13 to 131°F (−25 to 55°C).

Warranty

Olympic warranty: 10 years on major structural components; 3 years on electric and pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves and bushings; 1 year on wear parts such as pads, slide blocks and rubber components. Coverage begins on the date of shipment, applies to the original purchaser, requires professional installation, and does not include labor.

Frequently Asked Questions

Capacity. Olympic documents the two together and lists the same dimensions; the -15 is rated at 15,000 lb and the -11 at 11,000 lb.

No. The Olympic 4PHDA-RJ 7,000 lb bridge jack is available as an option.

The included HPU2204 power unit runs on 220V, single-phase, 60 Hz, at 3 kW (4 HP).

70.86 in, with locks available at any height.

No concrete figure is specified for this model. Follow the installation manual supplied with the lift and have the slab verified.
