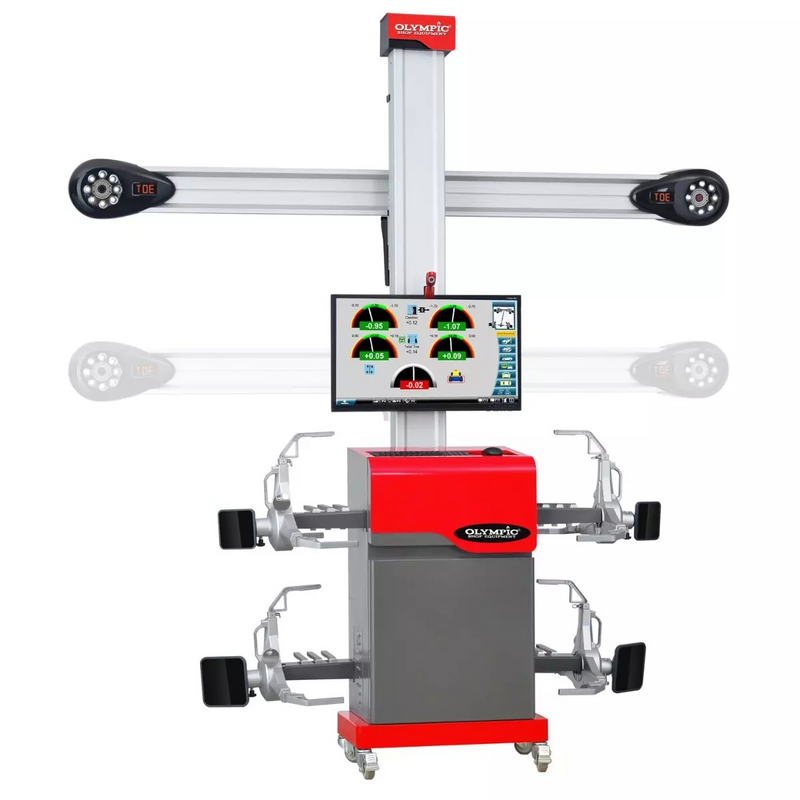

Olympic AS800 True 3D Touchless Wheel Alignment Machine

Original price $16,795.00 - Original price $16,795.00
Original price
$16,795.00
$16,795.00 - $16,795.00
Current price $16,795.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

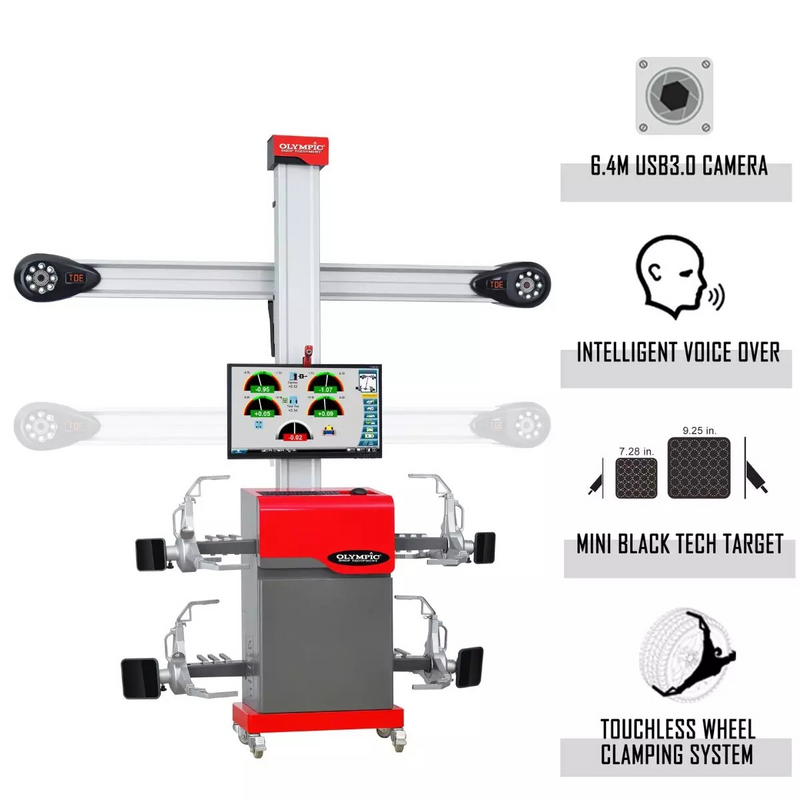

The Olympic AS800 is a 3D wheel alignment machine with touchless wheel clamps and a power-raised camera beam. It measures camber, toe, caster and SAI to ±0.01°, works with tire diameters from 18" to 43.5", and runs on 110V single-phase power.

Shipping information

A forklift is required on site.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Power
110V, 60Hz, single phase; dedicated grounded circuit
Measuring accuracy
±0.01°

Why Choose the Olympic AS800

  • Measuring accuracy

    Measuring accuracy is ±0.01° across camber, toe, caster and SAI, each with a ±45° range.

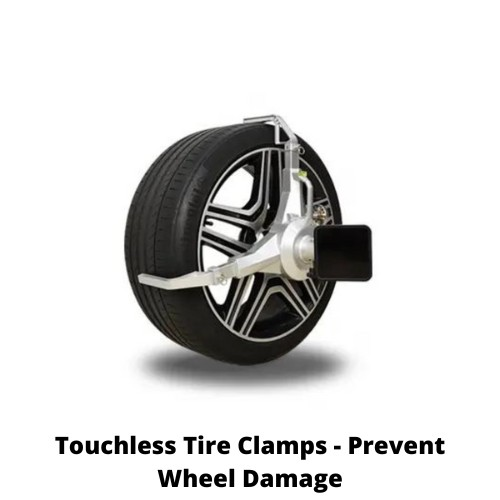

  • Touchless wheel clamps

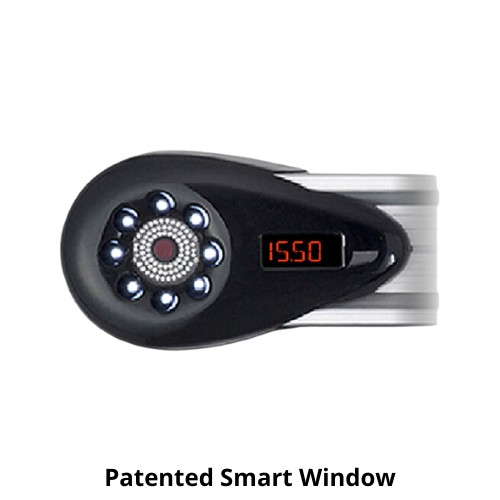

    The system uses touchless wheel clamps and a smart window.

  • Tire diameter range

    The workable tire diameter is 18"–43.5".

  • Power-raised beam

    The power-raised beam has a beam lift switch to follow the vehicle's height on the lift.

  • Rolling cart with screen

    A rolling cart with screen lets you move the display around the bay.

  • Power requirements

    It runs on 110V single-phase power on a dedicated, grounded circuit.

Product Overview

How the AS800 Measures

The AS800 is a 3D camera-based aligner. Cameras on a column-mounted beam read targets held by touchless wheel clamps, and the software reports camber, toe, caster and SAI with ±0.01° accuracy over a ±45° range. The manual lists chassis measurements under 4,000 mm (approx. 157") to ±1 mm.

Beam Height and Workflow

The camera beam is power-raised by a beam lift switch, and the manual describes a "smart lift" function. That matters on an alignment lift, where the vehicle is set at different heights during the job.

Planning the Bay

Plan a working area at least 7 m long, 4 m wide and 3 m high (approx. 23 ft × 13.1 ft × 9.8 ft). The column sits 1,500–3,000 mm (approx. 59"–118") from the turntable centers, with 2,500 mm (approx. 98") recommended, and at least 250 mm (approx. 9.8") from the back wall. The column is anchored to the floor, and professional installation is required.

Specifications

SpecificationValue
ModelAS800
Type3D touchless wheel alignment machine
MeasurementsCamber, toe, caster, SAI
Measuring range±45°
Measuring accuracy±0.01°
Chassis measuring rangeUnder 4,000 mm (approx. 157"), ±1 mm
Workable tire diameter18"–43.5"
BeamPower-raised (beam lift switch)
Power110V, 60Hz, single phase; dedicated grounded circuit
Power outputApprox. 0.4 kW
Workspace requiredAt least 7 m L × 4 m W × 3 m H (approx. 23 ft × 13.1 ft × 9.8 ft)
Column to turntable center1,500–3,000 mm (approx. 59"–118"); 2,500 mm (approx. 98") recommended
Column to back wallAt least 250 mm (approx. 9.8")
ShippingShips in 3 crates, approx. 640 lb total

What's Included

  • AS800 alignment system
  • Rolling cart with screen
  • Touchless wheel clamps
  • Smart window
  • 3D training videos

Not included: ACB-1 calibration tool (sold separately); alignment lift; installation.

Best For

  • Shops adding wheel alignment to tire and suspension work
  • Alignment bays with a 4-post alignment lift already in place
  • Shops replacing an older aligner with a touchless clamp system

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Location
A working area at least 7 m × 4 m × 3 m (approx. 23 ft × 13.1 ft × 9.8 ft).
Layout
Column 1,500–3,000 mm (approx. 59"–118") from the turntable centers, 2,500 mm (approx. 98") recommended, and at least 250 mm (approx. 9.8") from the back wall.
Concrete
The column is anchored to the floor; follow the current Olympic installation manual and have the slab verified.
Installation
Professional installation is required.
Electrical
110V, 60Hz, single phase, on a dedicated grounded circuit. Do not share it with a lift, tire changer or compressor.
Electrical
The manual lists a neutral-to-ground voltage of 3V or less and a power output of about 0.4 kW.

Warranty

This product is covered by Olympic's warranty. Contact Garage Lift Depot to confirm the current warranty term for the AS800 before ordering.

Shipment

Crate
3 crates, approx. 640 lb total.

Freight pricing, delivery options and timing are listed under Shipping information.

Frequently Asked Questions

Camber, toe, caster and SAI, with a ±45° range and ±0.01° accuracy.

Workable tire diameter is 18"–43.5".

110V, 60Hz, single phase, on a dedicated grounded circuit not shared with a lift, tire changer or compressor.

The manual calls for at least 7 m × 4 m × 3 m (approx. 23 ft × 13.1 ft × 9.8 ft).

No. The ACB-1 is sold separately.

The AS800 is the measuring system only. Pair it with an alignment lift, or see the Essential Alignment Package, which includes the 4PXLA-10.
