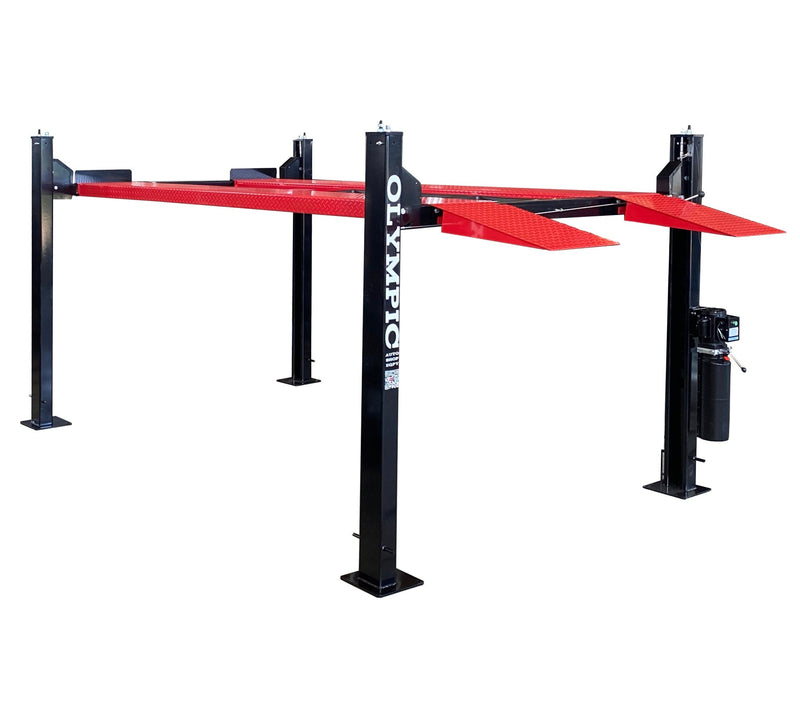

Olympic 4PML-9 9,000 lb Portable Car Storage & Maintenance Lift – 108″ W x 198″ L
Specifications

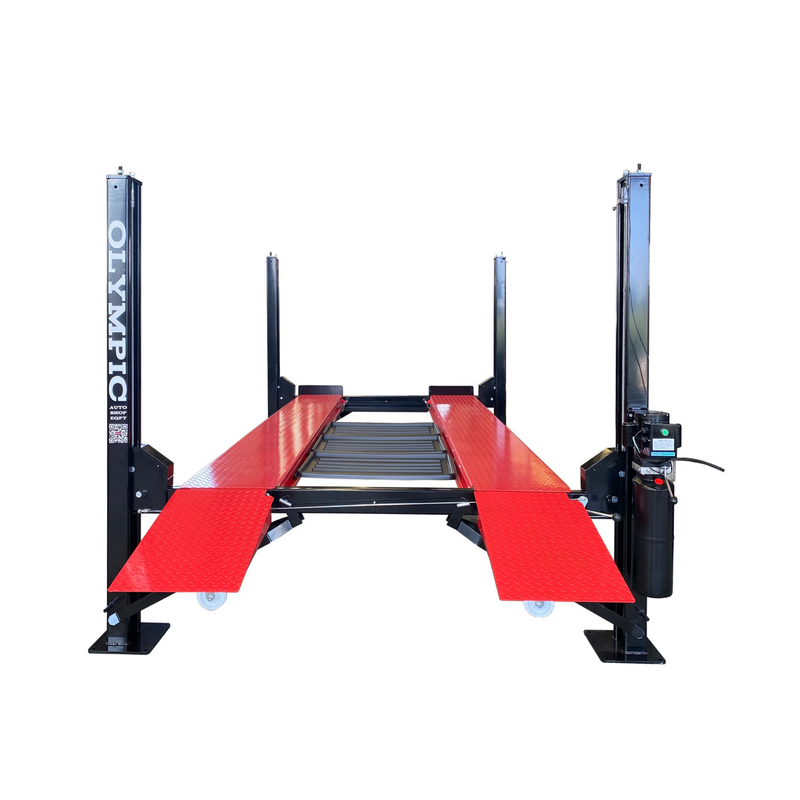

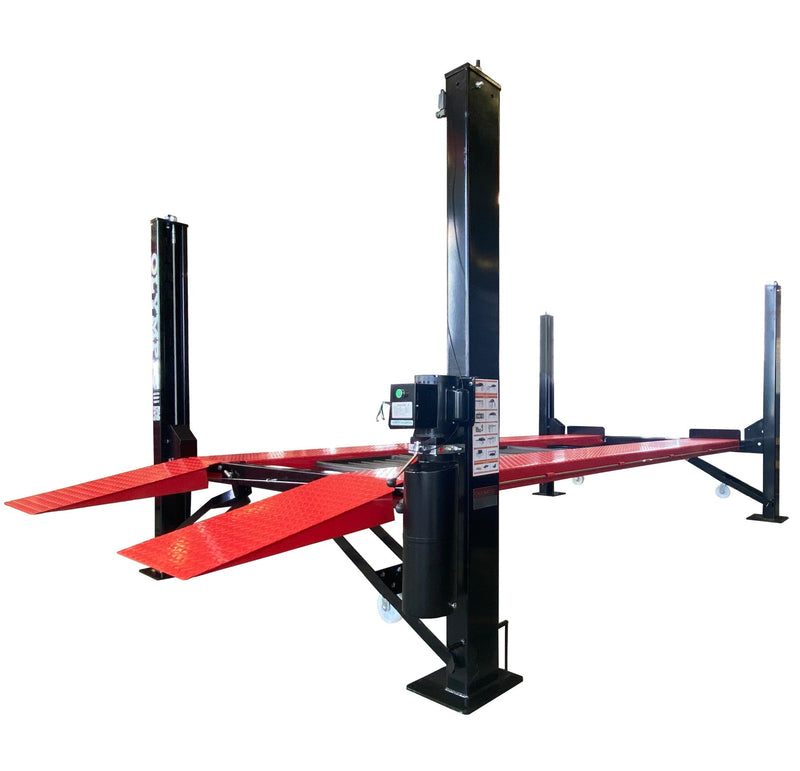

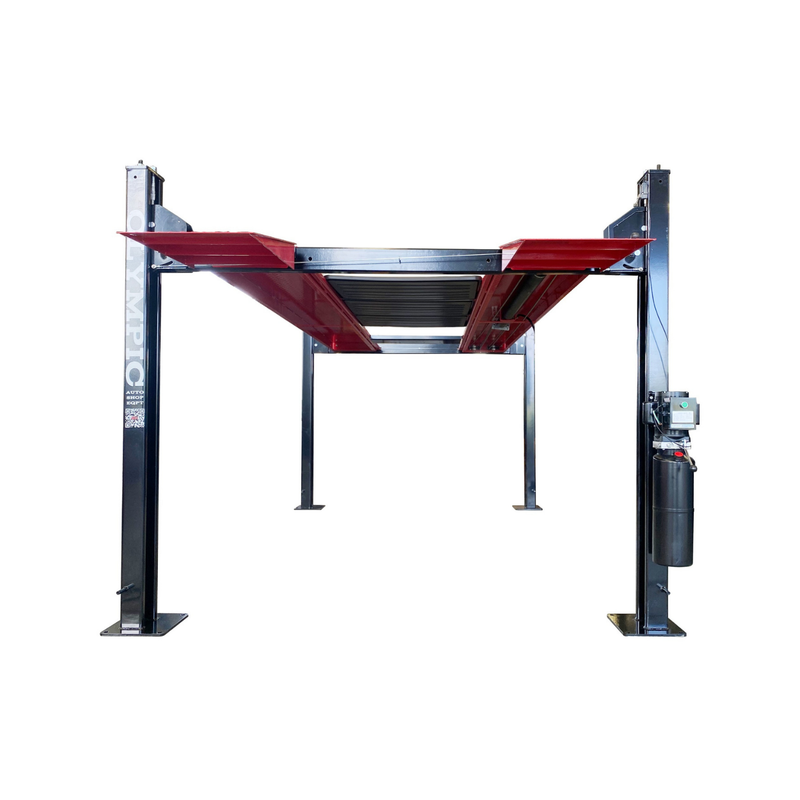

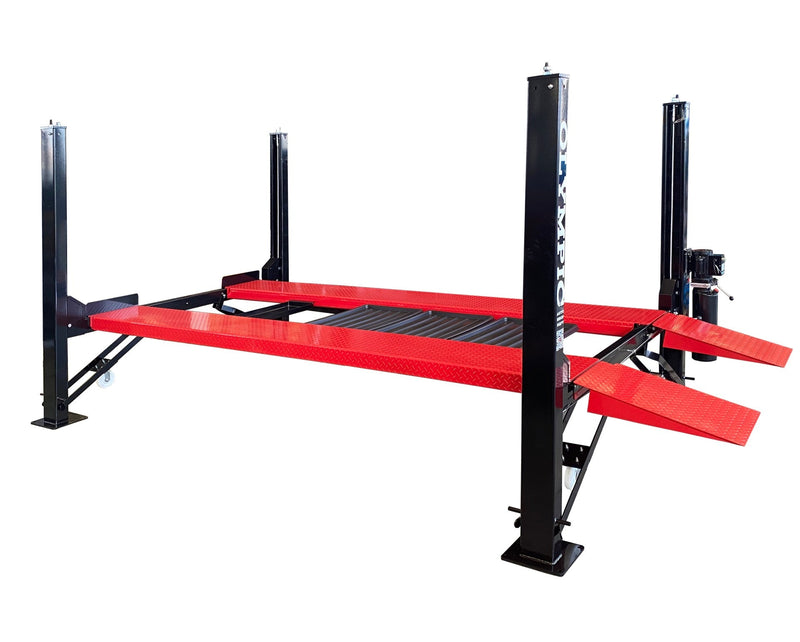

Olympic 4PML-9 9,000 lb Portable 4-Post Lift
The Olympic 4PML-9 is a 9,000 lb portable 4-post car lift designed for vehicle storage, maintenance, and service applications. Its portable configuration provides flexibility for professional garages, service centers, automotive workshops, car collectors, and race teams that need dependable lifting and storage capability.
With a drive-through design, 81.85″ drive-through width, and a lift range of 4.72″ to 67.7″, the 4PML-9 provides convenient vehicle access while maximizing usable space. The lift is rated for vehicles up to 9,000 lbs.
Key Features
- 9,000 lb lifting capacity
- Portable 4-post lift configuration
- Designed for vehicle maintenance and storage
- Drive-through design for convenient vehicle access
- Q235 specification structural steel

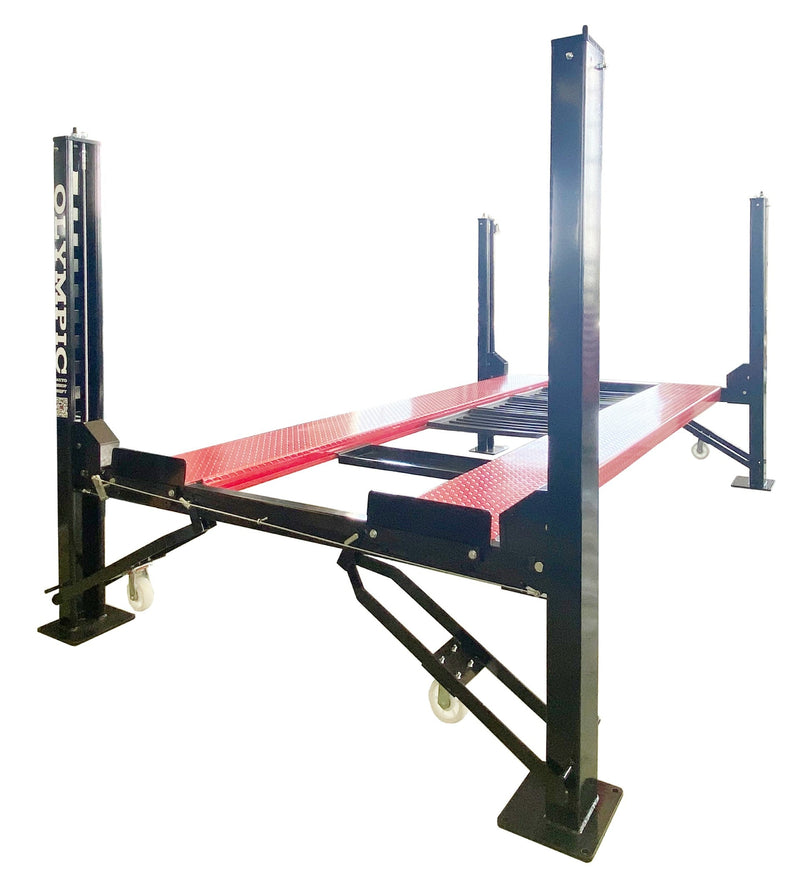

- Pin-on caster arms for portability
- Large-diameter heavy-duty hydraulic cylinder
- Single-point lock release

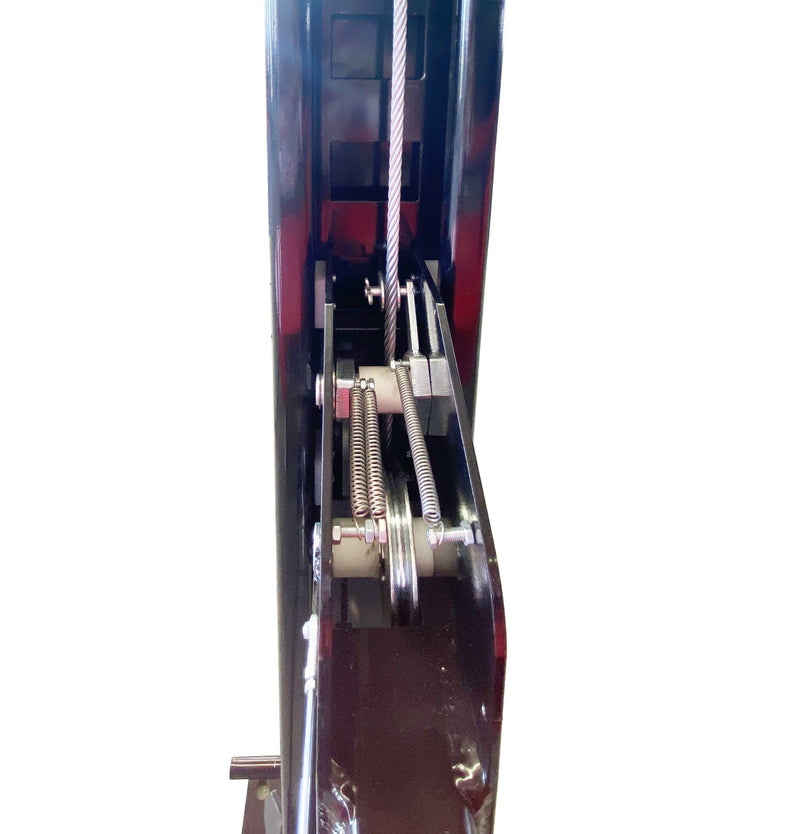

- Large slider blocks for added stability
- 10 locking positions
- Aircraft-quality cables rated at 14,000 lbs.

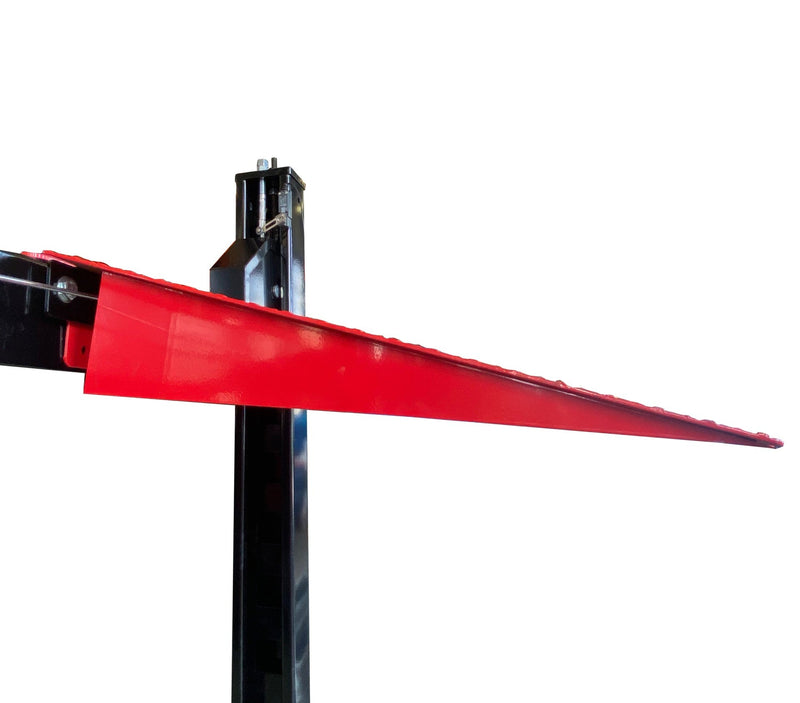

- 31″ detachable steel ramps included
- Detachable stops included
- Portability package included
- Drip trays included
- Available with 110V or 220V power
- 10-year limited structural warranty, subject to written warranty terms and exclusions

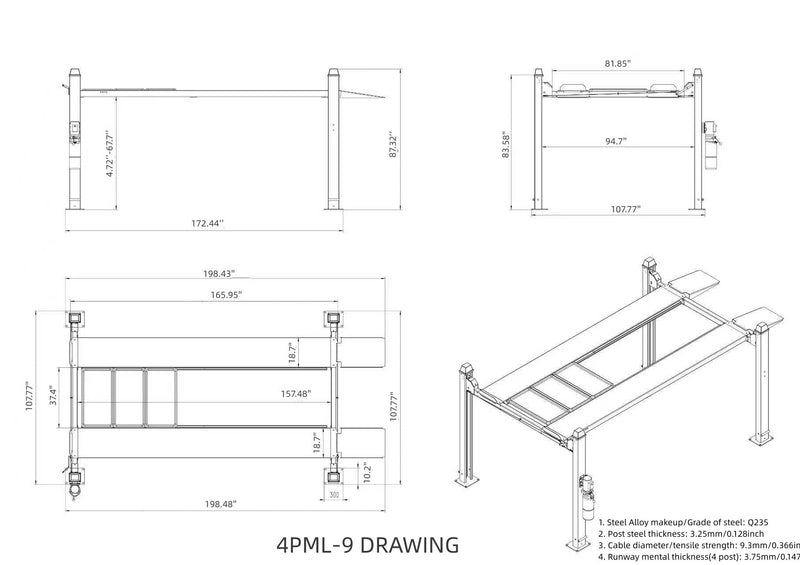

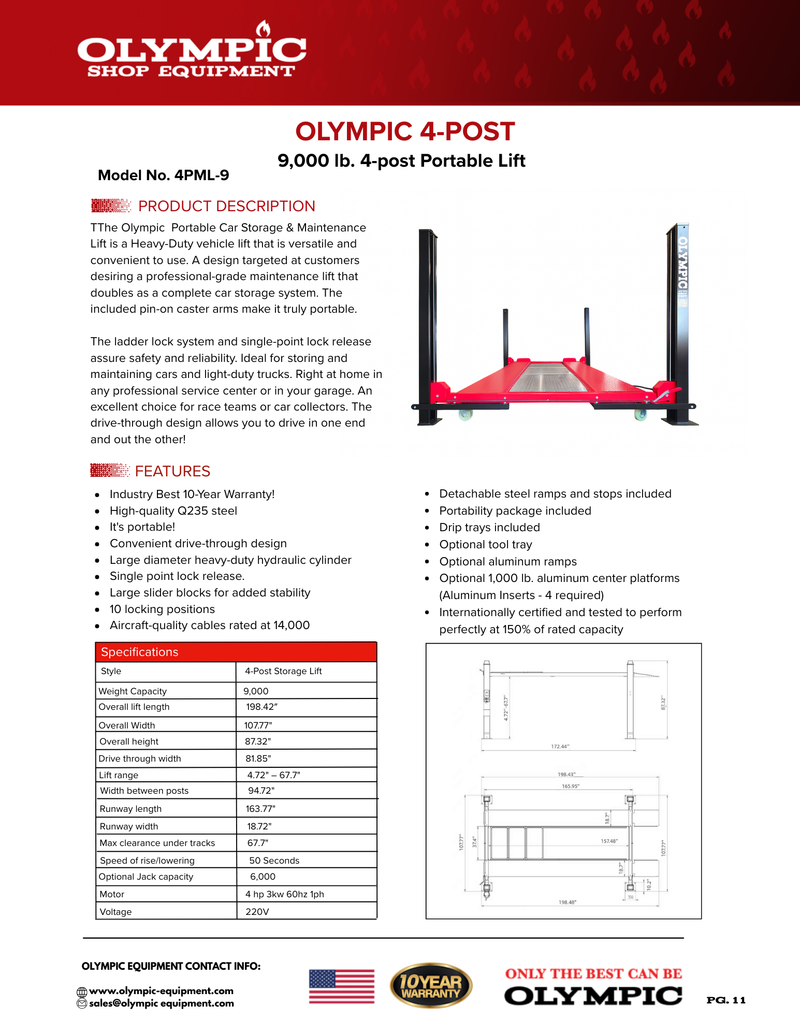

Specifications
| Model | Olympic 4PML-9 |
|---|---|
| Lift Type | Portable 4-Post Maintenance / Storage Lift |
| Capacity | 9,000 lbs. |
| Overall Length Without Ramps | 172.44″ |
| Overall Length With Ramps | 198.48″ |
| Overall Width | 107.77″ |
| Overall Height | 87.32″ |
| Drive-Through Width | 81.85″ |
| Width Between Posts | 94.7″ |
| Runway Length | 165.95″ |
| Runway Width | 18.72″ |
| Lift Range | 4.72″ – 67.7″ |
| Maximum Clearance Under Tracks | 67.7″ |
| Rise / Lowering Speed | Approximately 50 seconds |
| Cable Rating | 14,000 lbs. |
| Optional Bridge Jack Capacity | 6,000 lbs. |
| Power Options | 110V / 220V |
| Ramp Length | 31″ detachable steel ramps |
| Structural Steel | Q235 specification steel |
| Warranty | 10-year limited structural warranty |
Benefits
The Olympic 4PML-9 combines vehicle lifting, maintenance access, and storage capability in one portable 4-post design. Its caster system allows the unloaded lift to be repositioned as shop needs change.
A 67.7″ maximum clearance under the tracks and ten locking positions provide useful working room and flexible storage heights.
Optional accessories—including a tool tray, aluminum ramps, aluminum center platforms, and a 6,000 lb bridge jack—allow the lift to be configured for a wider range of service and storage applications.
Ideal For
- Professional automotive garages
- Automotive service centers
- Vehicle maintenance shops
- Independent mechanics
- Car collectors
- Race teams
- Vehicle storage applications
- Workshops requiring portable lifting equipment
Optional Accessories
- Tool tray
- Aluminum ramps
- 1,000 lb aluminum center platforms, 4 inserts
- 6,000 lb bridge jack, HLCJ-6 or JVCJ-6
Why Choose This Product
The 4PML-9 offers a practical combination of 9,000 lb capacity, portability, vehicle storage, and maintenance access for garages and workshops that need flexible use of floor space.
Olympic states that its lifts are load-tested at 150% of rated capacity. Buyers should request and review current model-specific certification or test documentation, installation requirements, and warranty terms before purchase and use.
Upgrade your garage or workshop with the Olympic 4PML-9 9,000 lb Portable Car Storage & Maintenance Lift. Review the specifications, warranty terms, installation requirements, and available accessories to determine whether this heavy-duty vehicle lift is right for your application.
Official 4PML-9 Resources
- Download the 4PML-9 Owner’s / Installation Manual (PDF)
- Installation Requirements and Information
- Replacement Parts
- Warranty Information
- Schedule Service
Always review the current model-specific manual, installation requirements, and warranty terms before installation or use.
