Olympic 4PXL-10 “The Dually” 10,000 lb Portable 4-Post Car & Truck Lift – Adjustable Width
Specifications
The Olympic 4PXL-10 “The Dually” is a 10,000 lb portable 4-post vehicle lift designed for dual-wheel trucks, trailers, service vehicles, and super-wide cars. Its extra-large drive-through configuration provides 112″ of drive-through width, 125″ between posts, and 195″ extra-long runways for applications requiring additional width and length.
With up to 84.13″ of clearance under the runways, this heavy-duty vehicle lift can provide substantial storage and working space beneath a raised vehicle. The adjustable runway spacing accommodates track widths from 46″ to 68.98″.
Its portable design, removable ramps and stops, and included caster-arm portability package provide flexibility for suitable garage and workshop applications.
KEY FEATURES
- 10,000 lb. lifting capacity
- Extra-large 4-post vehicle lift
- Designed for dual-wheel trucks, trailers, service vehicles, and super-wide cars
- Portable drive-through design
- 112″ drive-through width
- 125″ width between posts
- Extra-long 195″ runways
- Adjustable runway spacing
- 46″–68.98″ adjustable width between tracks
- Up to 84.13″ clearance under the runways
- Q235 specification structural steel
- 4 mm / 0.157″ post steel thickness
- 5 mm / 0.196″ runway metal thickness
- 9.53 mm / 0.375″ cable diameter
- Durable powder-coated finish
- Portability package with caster arms included
- Removable ramps included
- Removable stops included
- Drip trays included
SPECIFICATIONS
| Specification | Details |
|---|---|
| Model | Olympic 4PXL-10 “The Dually” |
| Lift Style | 4-Post Dually Lift |
| Capacity | 10,000 lbs. |

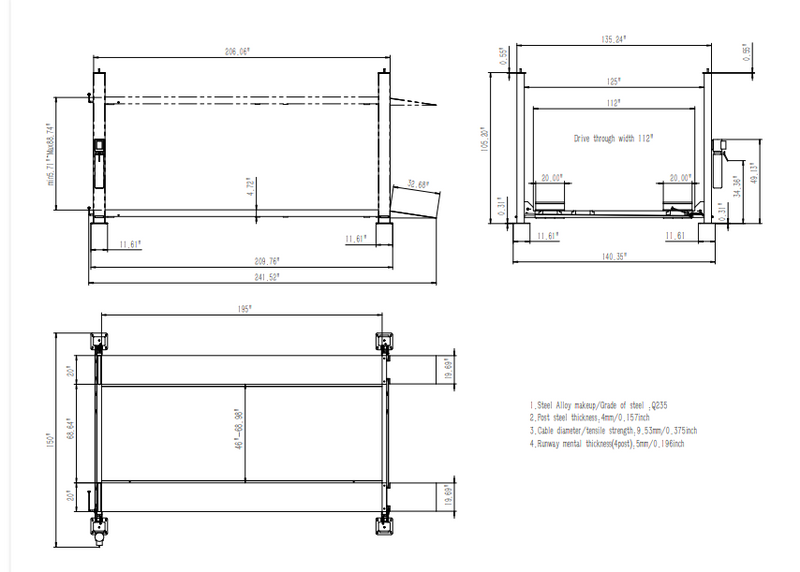

| Overall Lift Length | 241.52″ |
| Overall Width | 140.35″ |
| Overall Height | 105.20″ |
| Drive-Through Width | 112″ |
| Width Between Posts | 125″ |
| Platform / Runway Length | 195″ |
| Maximum Clearance Under Runways | 84.13″ |
| Adjustable Width Between Tracks | 46.00″ – 68.98″ |
| Minimum Height | 4.72″ |
| Steel Grade | Q235 |
| Post Steel Thickness | 4 mm / 0.157″ |
| Cable Diameter | 9.53 mm / 0.375″ |
| Runway Metal Thickness | 5 mm / 0.196″ |
| Configuration | Portable 4-Post |
| Warranty | 10-year warranty |
BENEFITS
The Olympic 4PXL-10 is built for customers who need a wider and longer lifting platform than a standard vehicle lift can provide. Its 112″ drive-through width and 125″ space between posts make it particularly suited to compatible dual-wheel trucks, trailers, service vehicles, and wide vehicles.
The adjustable runway configuration provides additional flexibility when positioning vehicles with different track widths. The 195″ runway length also provides the platform dimensions needed for larger vehicles within the manufacturer's specifications.
With 84.13″ maximum clearance beneath the runways, the lift can also support vehicle storage applications while providing access underneath a raised vehicle for suitable maintenance tasks.
IDEAL FOR
- Dual-wheel truck storage and maintenance
- Trailers
- Service vehicles
- Super-wide cars
- Professional automotive workshops
- Commercial garages
- Vehicle storage facilities
- Heavy-duty vehicle service applications
- Automotive equipment facilities
- Garages requiring an extra-wide portable vehicle lift
INCLUDED FEATURES
- Portability package with caster arms
- Removable ramps
- Removable stops
- Drip trays
- Adjustable runway spacing
WHY CHOOSE THIS PRODUCT
The Olympic 4PXL-10 “The Dually” combines a 10,000 lb. capacity with an extra-wide, extra-long four-post configuration. Its 112″ drive-through width, 125″ space between posts, 195″ runways, and adjustable track width make it a purpose-built solution for larger and wider vehicles.
The portable design provides flexibility for appropriate garage and workshop layouts, while the heavy-duty Q235 structural steel construction supports demanding vehicle lifting and storage applications.
Before installation or operation, compare the exact lift's identification plate, current product drawing, installation requirements, written warranty, and supplied manual.
Choose the Olympic 4PXL-10 “The Dually” 10,000 lb Portable 4-Post Vehicle Lift for extra-wide trucks, trailers, service vehicles, and compatible super-wide cars. Review the dimensions, capacity, adjustable runway range, and installation requirements to confirm suitability for your vehicle and facility.
