Olympic 2PCFXL-10 10,000 lb 2-Post Clear Floor Lift – 3-Stage Arms
The Olympic 2PCFXL-10 is a professional-grade 10,000 lb 2-post clear floor vehicle lift designed for demanding automotive garages, repair shops, and professional service facilities. With a 10,000 lb lifting capacity, extended three-stage symmetrical arms, and a generous 100.39-inch drive-through width, this lift provides dependable vehicle access for automotive service and repair applications.
Built with high-quality Q235 structural steel and a durable powder-coated finish, the Olympic 2PCFXL-10 is designed for long-term professional use. Its clear floor configuration provides an open working area, while the synchronized hydraulic system and single-point lock release support efficient daily operation.
With a maximum lifting height of 70.87 inches and a required ceiling height of 12 feet 9 inches, this commercial 2-post lift is a strong choice for properly equipped professional workshops and garages.
KEY FEATURES
- 10,000 lb lifting capacity
- 2-post clear floor lift configuration
- High-quality Q235 structural steel construction
- Single-point lock release
- Deluxe pin-on carriage
- Large-diameter hydraulic cylinder in each column
- Three-stage symmetrical long-reach extension arms
- Three-stage screw-on adjustable height foot adapters
- Synchronized hydraulic system
- Automatic stop at maximum lifting height
- Durable powder-coated finish
- Door anti-crush rubber protection
- Swing arm supports with high-quality pads
- 15 locking positions
- Independent mounting hardware included
- Includes four 3.5-inch truck adapters
- 110V power unit included with 220V option
- 3HP, 2.2KW, single-phase power configuration
- Certified and tested at 150% of rated capacity
- Olympic 10-Year Warranty
SPECIFICATIONS
| Specification | Details |
|---|---|
| Model | Olympic 2PCFXL-10 |
| Lift Style | 2-Post Clear Floor Lift |
| Lifting Capacity | 10,000 lbs |

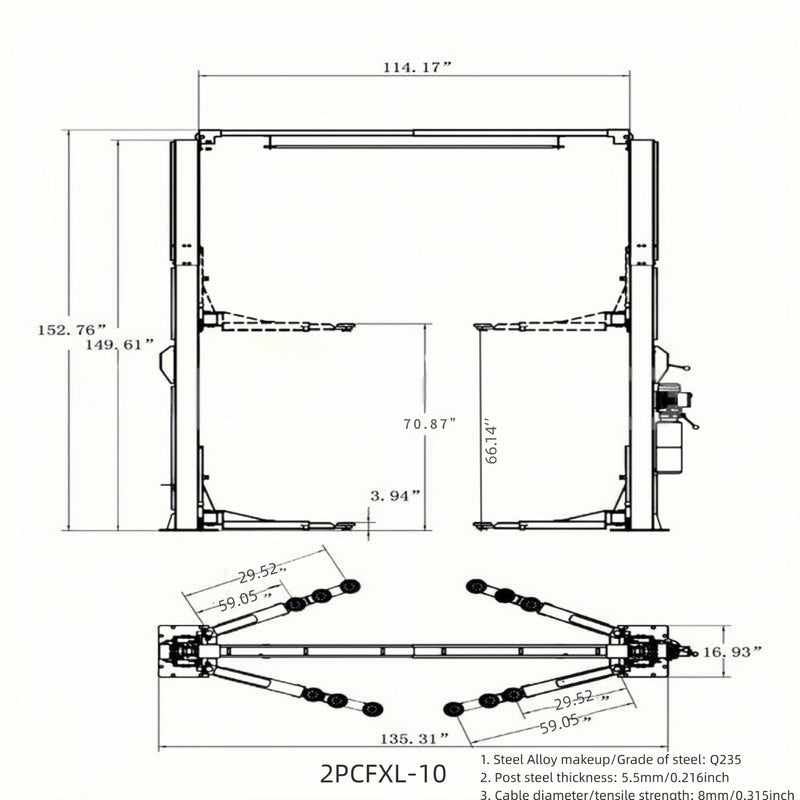

| Overall Height | 153 inches |
| Overall Width | 135.31 inches |
| Drive-Through Width | 100.39 inches |
| Width Between Posts | 114.17 inches |
| Minimum Lift Height | 3.94 inches |
| Maximum Lift Height | 70.87 inches |
| Front Arm Reach | 29.52–59.05 inches |
| Rear Arm Reach | 29.52–59.05 inches |
| Arm Configuration | Three-Stage Symmetrical Arms |
| Foot Adapters | Three-Stage Adjustable Screw-On Adapters |
| Lock Release | Single Point |
| Locking Positions | 15 |
| Speed of Rise | 50 seconds |
| Speed of Lowering | 50 seconds |
| Power Options | 110V / 220V |
| Minimum Ceiling Height | 12 ft 9 in |
BENEFITS
The Olympic 2PCFXL-10 provides professional automotive shops with a powerful and versatile vehicle lifting solution for routine maintenance, inspections, and repair work.
The clear floor design helps keep the workspace open beneath the vehicle, while the three-stage symmetrical arms provide extended reach for accommodating a range of vehicle lifting points. The included truck adapters add additional versatility for compatible vehicle service applications.
Its synchronized hydraulic system, adjustable foot adapters, and multiple locking positions support controlled lifting and positioning during daily workshop operations.
IDEAL FOR
- Professional automotive repair shops
- Commercial garages
- Vehicle maintenance facilities
- Professional mechanics
- Automotive service centers
- Car and truck repair applications
- Multi-vehicle service operations
- Heavy-duty automotive workshop environments
WHY CHOOSE THIS PRODUCT
The Olympic 2PCFXL-10 combines a 10,000 lb lifting capacity with a clear floor configuration, long-reach three-stage arms, hydraulic lifting performance, and professional-grade construction.
Designed for demanding garages and workshops, it includes practical features such as a single-point lock release, adjustable foot adapters, truck adapters, synchronized hydraulic operation, and a durable powder-coated finish. The Olympic 10-Year Warranty adds long-term confidence for professional equipment investment.
Upgrade your professional garage or automotive workshop with the Olympic 2PCFXL-10 10,000 lb 2-post clear floor lift. Order today and add a powerful, professional-grade vehicle lifting solution to your service operation.
Official 2PCFXL-10 Resources
- Download the 2PCFXL-10 operating and installation manual
- Professional installation
- Replacement parts
- Warranty details and exclusions
- Schedule service or request technical support
Before installation or operation, compare the identification plate and current product drawing with the manual supplied with the exact lift.
2-Post Lift Installation Videos
Installation and setup references. Follow the installation manual for your specific lift model.
