Olympic 2PCF-9 9,000 lb 2-Post Clear Floor Car Lift

Original price $4,648.00 - Original price $4,648.00
Original price
$4,648.00
$4,648.00 - $4,648.00
Current price $4,648.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

The Olympic 2PCF-9 is a 9,000 lb two-post clear-floor lift with long-reach arms that can be set up symmetrically or asymmetrically. It lifts from 4.3" to 74.8", has 15 locking positions with dual-point lock release, and comes with a 110V 3 HP / 2.2 kW single-phase power unit (220V option available) and four 3.5" truck adapters.

Shipping information

A forklift is required on site.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Rated capacity
9,000 lb
Power
110V, 2.2 kW / 3 HP, 60 Hz, single-phase (included); 220V option available
Overall height
141.73"
Overall width
128.74"
Maximum lifting height
74.8"

Why Choose the Olympic 2PCF-9

  • Clear floor between the posts

    There is no plate to drive over or roll equipment across.

  • Lift height range

    The lift reaches a 74.8" maximum lift height from a 4.3" minimum lift height.

  • Long-reach arms

    The arms are usable in symmetric or asymmetric positioning, to center a vehicle or set it back for more door room.

  • Locking positions

    The lift has 15 locking positions with dual-point lock release.

  • Power unit

    A 110V power unit is included (3 HP / 2.2 kW, single-phase), with a 220V option available.

Product Overview

A 9,000 Lb Clear-Floor Two-Post Lift

The 2PCF-9 is Olympic's 9,000 lb clear-floor two-post lift. The columns are tied together overhead rather than across the floor, which leaves the floor between the posts open for jacks, drain pans and rolling stools. The trade-off is height: the lift stands 141.73" tall, so the bay needs room for the overhead beam plus the raised vehicle.

Arms and Positioning

Front arm reach is 30"–41.3" and rear arm reach is 30"–47.2". The long-reach arms can be positioned symmetrically, centering the vehicle between the posts, or asymmetrically, setting it farther back so the front doors open with more room. Four 3.5" truck adapters are included.

Lifting Range and Locks

The lift raises from a 4.3" minimum lift height to 74.8". There are 15 locking positions, and the lock release is dual-point, meaning each column's lock is released at that column.

Footprint

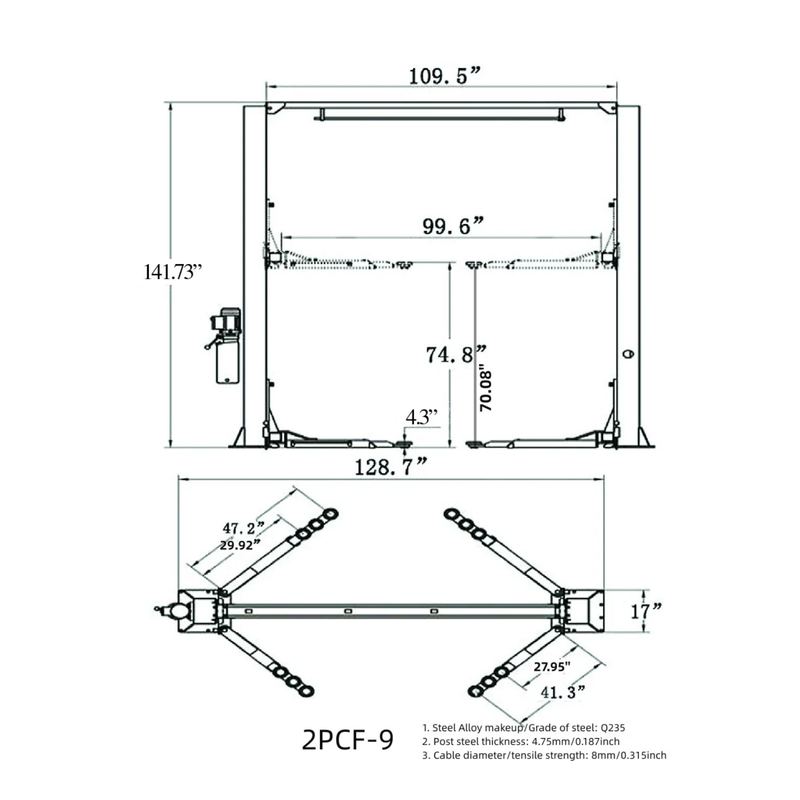

Overall width is 128.74", with 109.5" between posts and 99.6" of drive-through width.

Specifications

SpecificationValue
ModelOlympic 2PCF-9
Lift type2-post clear-floor lift
Rated capacity9,000 lb
Maximum lifting height74.8"
Minimum lift height4.3"
Locking positions15
Lock releaseDual-point
ArmsLong-reach, usable in symmetric or asymmetric positioning
Front arm reach30"–41.3"
Rear arm reach30"–47.2"
Overall height141.73"
Overall width128.74"
Width between posts109.5"
Drive-through width99.6"
Power110V, 2.2 kW / 3 HP, 60 Hz, single-phase (included); 220V option available

What's Included

  • Olympic 2PCF-9 two-post clear-floor lift
  • 110V 2.2 kW / 3 HP power unit
  • Four 3.5" truck adapters

Not included: Installation.

Best For

  • Shops and garages that want an open floor between the columns
  • Owners who want to switch between symmetric and asymmetric vehicle positioning
  • Bays with enough height for a 141.73" lift plus the raised vehicle

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Ceiling
The lift is 141.73" tall. Allow additional ceiling clearance for the raised vehicle, overhead beam, garage-door tracks, lighting and other obstructions.
Electrical
Power unit: 110V, 2.2 kW / 3 HP, 60 Hz, single-phase, included; a 220V option is available.
Electrical
Olympic currently lists the 110V power unit as included with a 220V option. The installer should check voltage, amperage and circuit requirements on the data plate of the power unit actually supplied before wiring, and wiring should be done by a licensed electrician.

Warranty

Olympic warranty: 10 years on major structural components; 3 years on electric and pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves and bushings; 1 year on wear parts such as pads, slide blocks and rubber components. Coverage begins on the date of shipment, applies to the original purchaser, requires professional installation, and does not include labor.

Frequently Asked Questions

141.73" overall. Allow additional clearance for the raised vehicle, the overhead beam and anything else overhead.

74.8" maximum, from a 4.3" minimum lift height, with 15 locking positions.

The long-reach arms can be used in either symmetric or asymmetric positioning. Front reach is 30"–41.3" and rear reach is 30"–47.2".

Yes. Olympic currently lists a 110V, 2.2 kW / 3 HP single-phase power unit as included, with a 220V option. Confirm circuit requirements from the data plate on the unit you receive.

Dual-point: each column's lock is released at that column.
