Olympic 2PCFHD-12 12,000 lb Heavy-Duty Clear Floor 2-Post Lift

Original price $7,393.00 - Original price $7,393.00
Original price
$7,393.00
$7,393.00 - $7,393.00
Current price $7,393.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

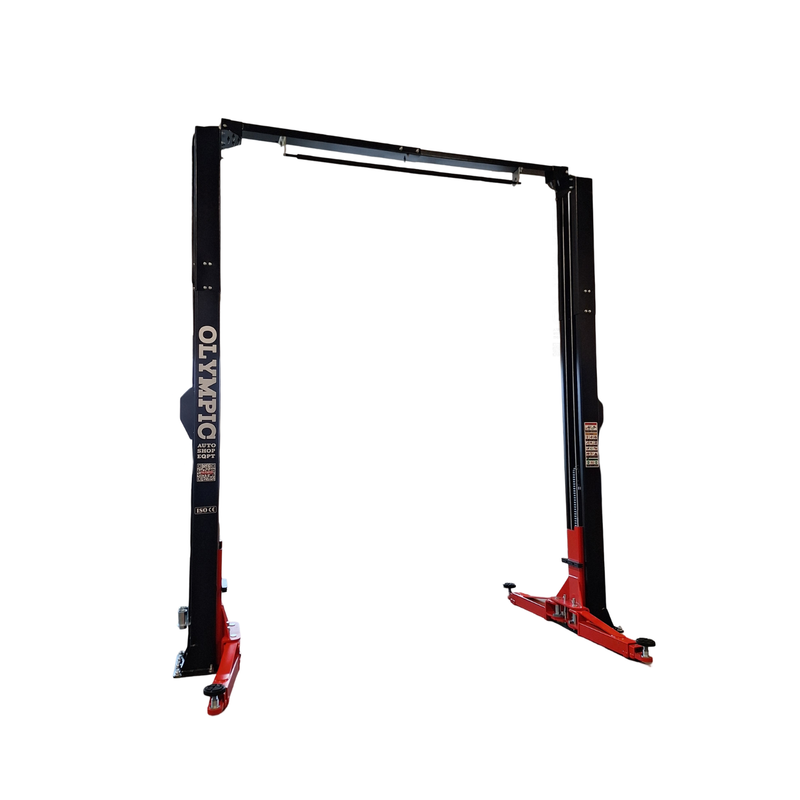

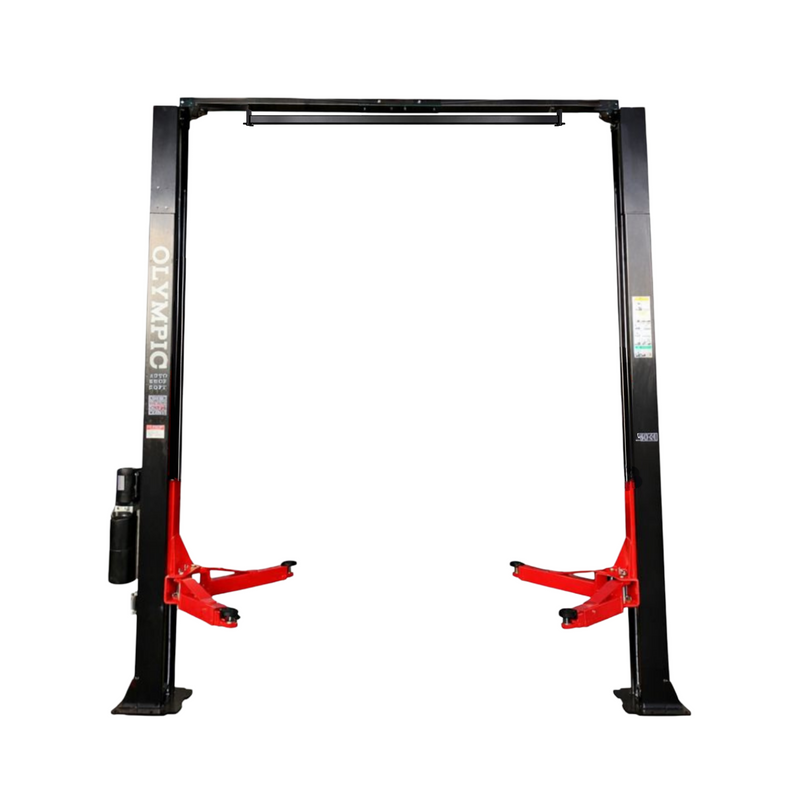

The Olympic 2PCFHD-12 is a 12,000 lb heavy-duty clear floor two-post lift with an extra-wide, extra-tall frame. It offers approx. 120" of drive-through width, lifts to 70.87", and uses three-stage symmetric arms for trucks, vans and larger vehicles.

Shipping information

A forklift is required on site.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Rated capacity
12,000 lbs
Power
220V, single phase
Overall height
174" (14 ft 6 in)
Overall width
Approx. 156"
Maximum lifting height
70.87"

Why Choose the Olympic 2PCFHD-12

  • Rated capacity

    It has a 12,000 lb rated capacity for full-size trucks and vans within the rating.

  • Drive-through width

    It offers approx. 120" drive-through width and approx. 134" between columns for wide vehicles.

  • Clear floor design

    The clear floor design leaves nothing across the floor between the columns.

  • Three-stage symmetric arms

    The three-stage symmetric arms reach 34.65" to 70.87".

  • Locking positions

    It has 12 locking positions from 4.3" to 70.87".

  • Truck adapters

    Four 3.5" truck adapters are included.

Product Overview

A Wide, Tall Two-Post Lift

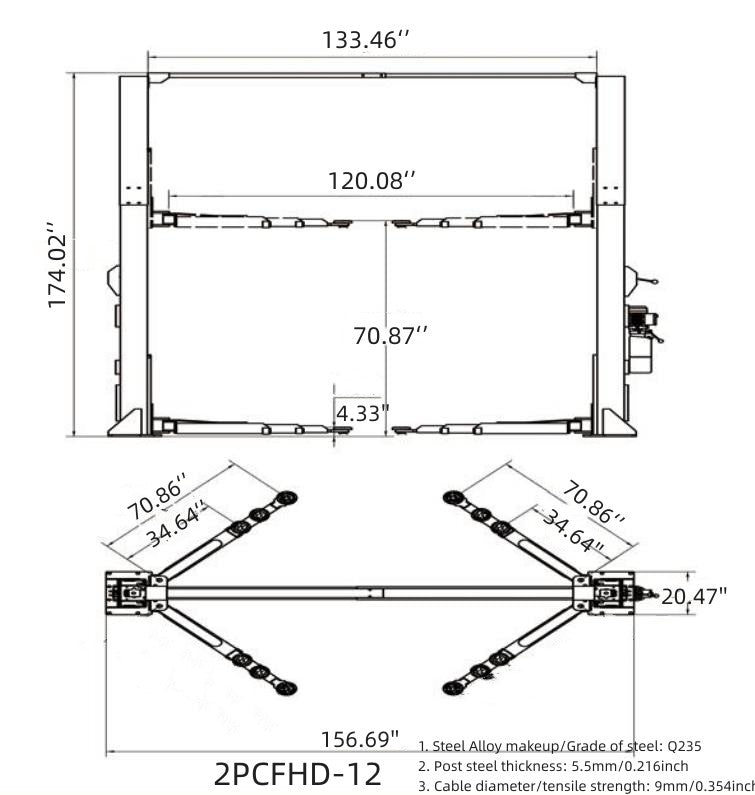

The 2PCFHD-12 is built for larger vehicles. It stands 174" tall (14 ft 6 in) and about 156" wide, with approx. 134" between columns and approx. 120" of drive-through width. That opening suits wide trucks and vans.

Clear Floor Between the Columns

As a clear floor lift, the 2PCFHD-12 leaves the floor between the columns open for creepers, drain pans and transmission jacks.

Three-Stage Symmetric Arms

All four arms are three-stage and symmetric, reaching from 34.65" to 70.87" at the front and 34.65" to 70.86" at the rear. Four 3.5" truck adapters come with the lift for higher frame points.

Lifting and Locking

Large-diameter cylinders with synchronized hydraulics raise the carriages to 70.87" in approx. 55 seconds. Twelve locking positions give you a choice of working heights. The lift is load-tested at 150% of its rated capacity.

Specifications

SpecificationValue
Model2PCFHD-12
Lift typeHeavy-duty clear floor 2-post lift, symmetric
Rated capacity12,000 lbs
Maximum lifting height70.87"
Minimum height4.3"
Locking positions12
Rise timeApprox. 55 seconds
Overall height174" (14 ft 6 in)
Overall widthApprox. 156"
Width between columnsApprox. 134"
Drive-through widthApprox. 120"
Arm reach (front)34.65"–70.87"
Arm reach (rear)34.65"–70.86"
ArmsThree-stage symmetric
Truck adaptersFour 3.5" adapters included
Power220V, single phase

What's Included

  • 2PCFHD-12 two-post lift
  • Four 3.5" truck adapters
  • Mounting hardware

Available as options: 6" truck adapter set, frame cradle set, APU utility station and anchoring epoxy.

Not included: Installation.

Best For

  • Shops servicing full-size trucks and vans
  • Garages with the ceiling height for a 174" two-post lift
  • Fleet and commercial bays that want an open floor between columns

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Ceiling
The lift is 174" (14 ft 6 in) tall overall. Allow clearance above for the vehicle on the lift and for any obstructions.
Floor
About 156" wide across the columns, plus working room front and rear. Olympic's general two-post installation guidance calls for a level floor without cracks or expansion seams (maximum 3° slope).
Concrete
Olympic's general two-post installation guidance calls for at least 6.3 in of 3,000 psi concrete. Verify the current requirements for the 2PCFHD-12 before installation.
Electrical
220V single-phase power. Olympic's general two-post installation guidance calls for 208–230V single-phase service with a 25A time-delay breaker. Verify the current requirements for the 2PCFHD-12 before installation.
Hydraulic
Hydraulic: large-diameter cylinders with synchronized hydraulics.

Warranty

Olympic warranty: 10 years on major structural components; 3 years on electric and pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves and bushings; 1 year on wear parts such as pads, slide blocks and rubber components. Coverage begins on the date of shipment, applies to the original purchaser, requires professional installation, and does not include labor.

Frequently Asked Questions

174" (14 ft 6 in) overall. Allow extra clearance above for the vehicle and any obstructions.

Approx. 120", with approx. 134" between columns.

220V single phase. Olympic's general two-post installation guidance calls for 208–230V single-phase service with a 25A time-delay breaker; verify the current requirements for the 2PCFHD-12 before installation.

Yes, four 3.5" adapters. A 6" truck adapter set is available as an option.

Olympic's general two-post installation guidance calls for at least 6.3 in of 3,000 psi concrete. Verify the current requirements for the 2PCFHD-12 before installation.
