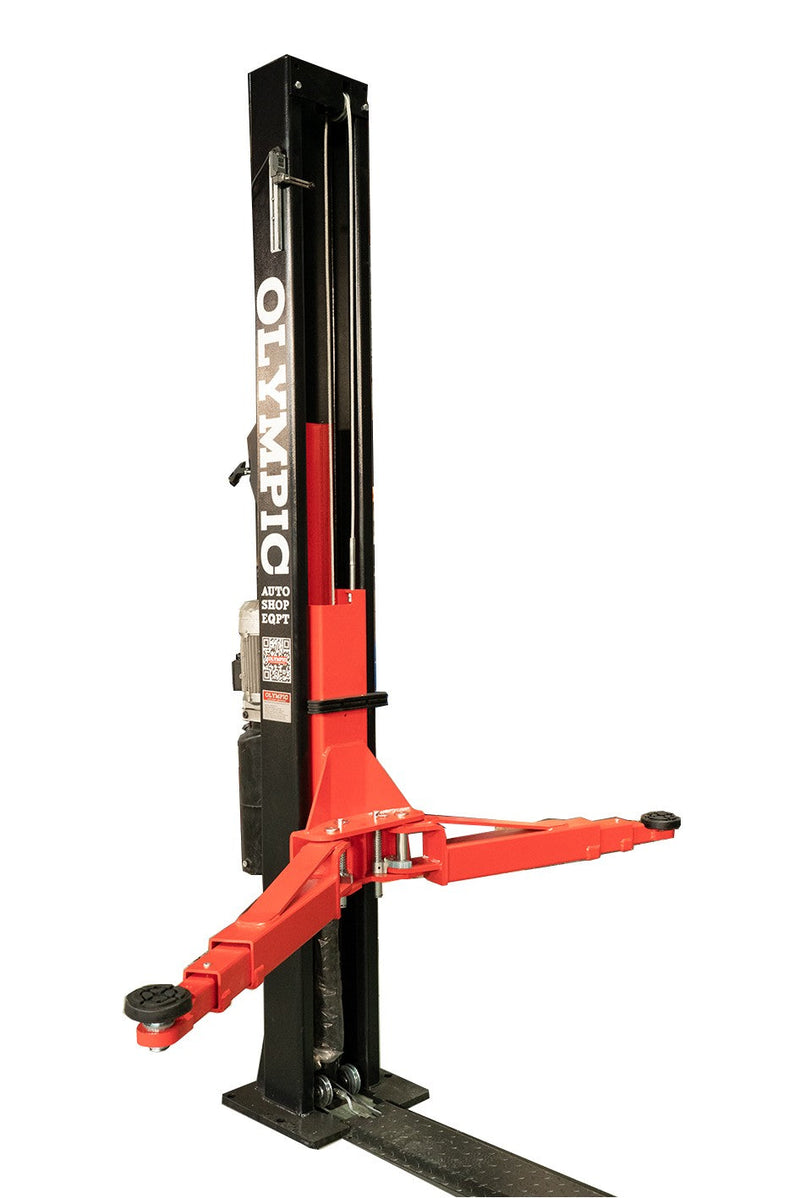

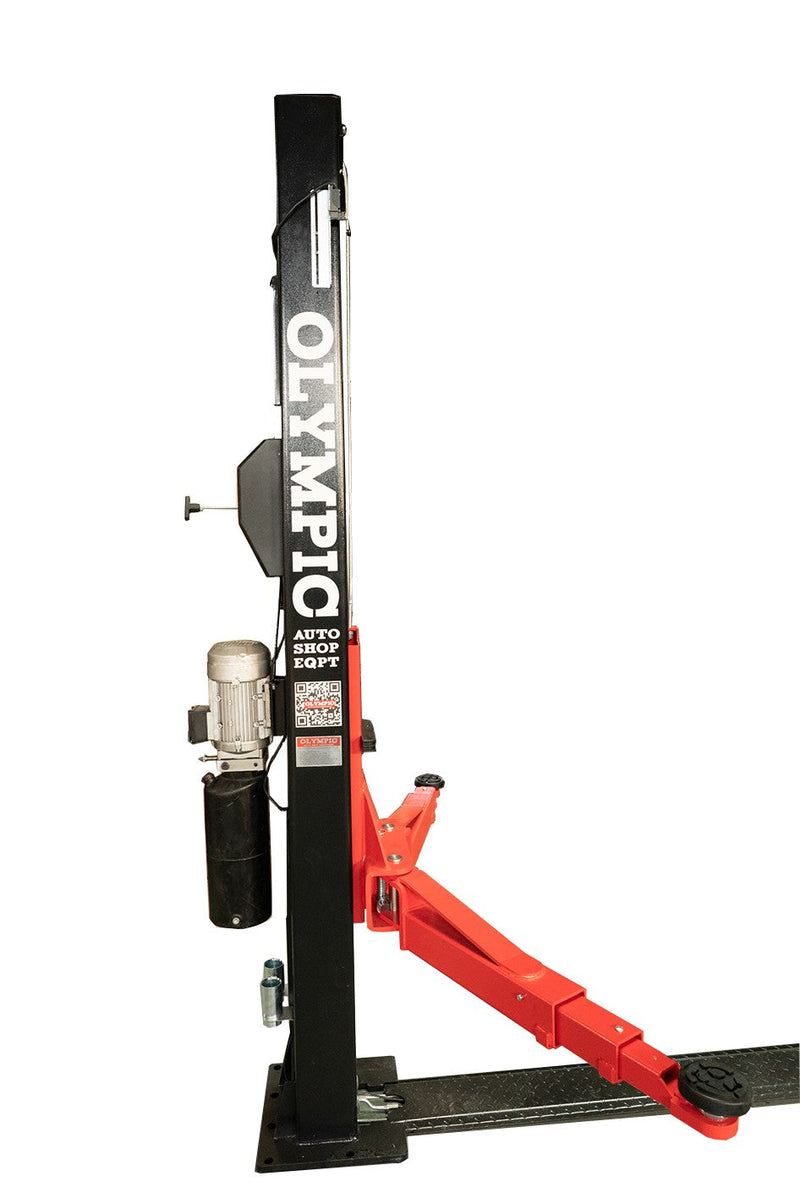

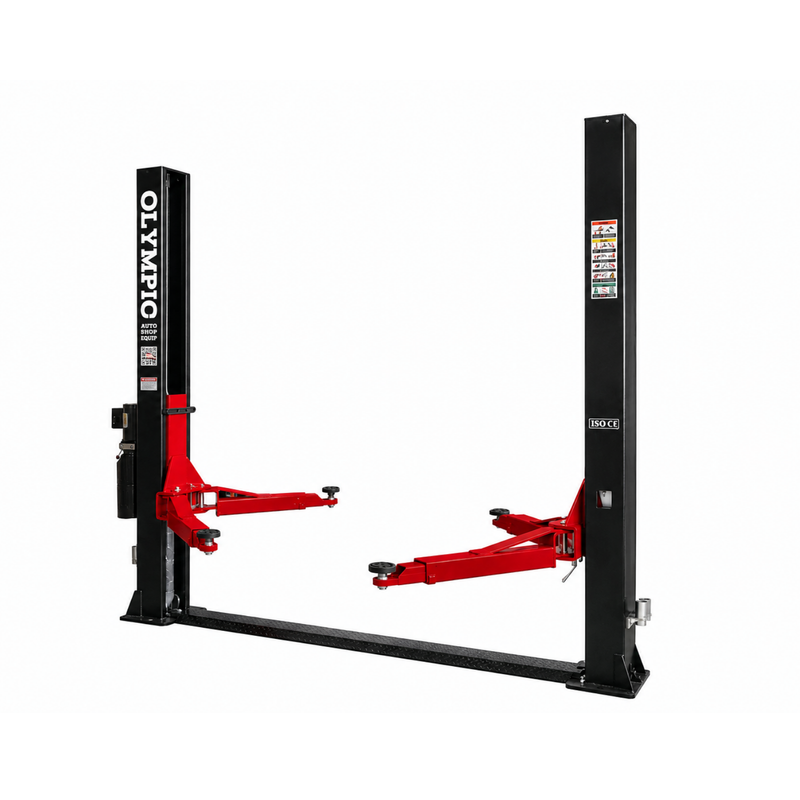

Olympic 2PBP-8 8,000 lb 2-Post Baseplate Car Lift
Specifications
The Olympic 2PBP-8 8,000 lb 2-Post Baseplate Car Lift is a professional-grade vehicle lift designed for garages, repair shops, and automotive service facilities. With an 8,000 lb. lifting capacity, this hydraulic 2-post lift is built to service cars, trucks, vans, and taller vehicles.
Its baseplate configuration, symmetric long-reach extension arms, adjustable foot adapters, synchronized hydraulic system, and dual-point lock release provide a practical setup for everyday vehicle repair and maintenance.
The lift reaches a maximum height of 71 inches and fits under ceilings as low as 9′2″, making it suitable for many professional garage environments
KEY FEATURES
- 8,000 lb. lifting capacity
- 2-post baseplate configuration
- Symmetric long-reach extension arms
- Two-stage adjustable foot adapters
- Dual-point lock release
- Large-diameter dual hydraulic cylinders
- Synchronized hydraulic system
- 15 locking positions
- Automatic stop at maximum lifting height
- Includes four 3.5″ truck adapters
- High-quality Q235 structural steel
- Durable powder-coated finish

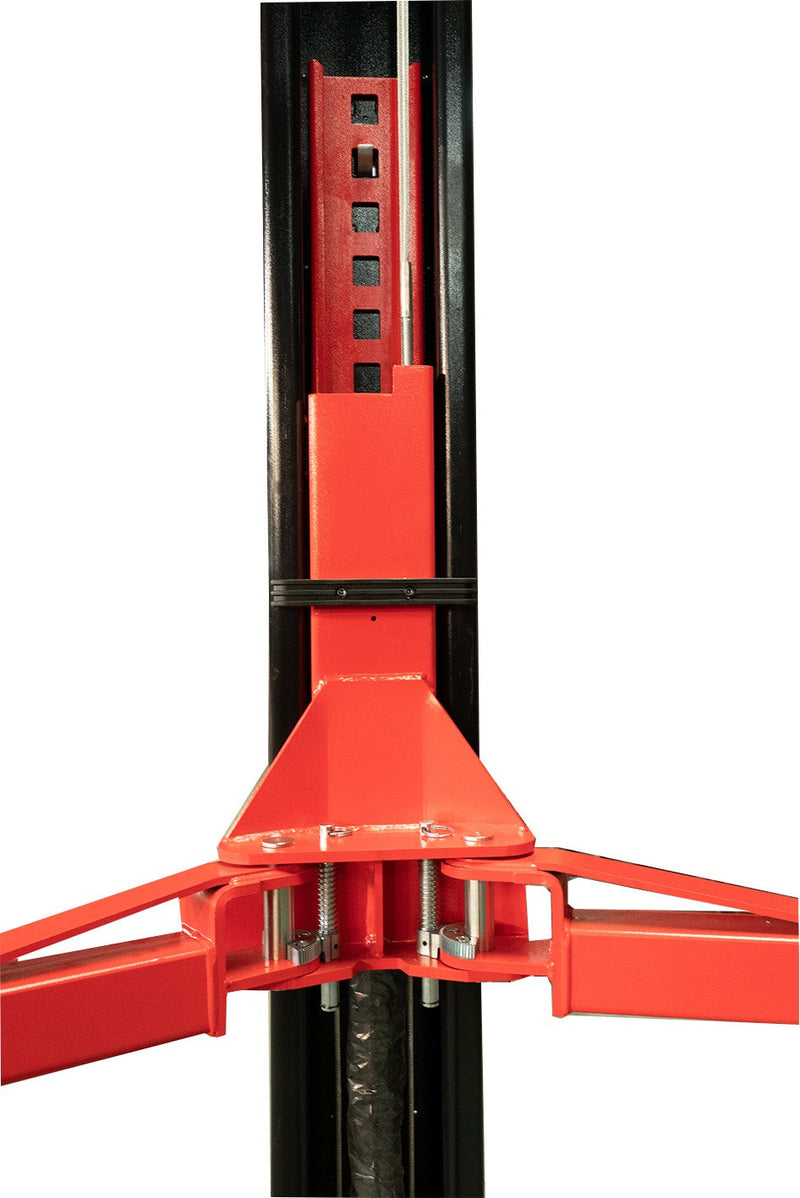

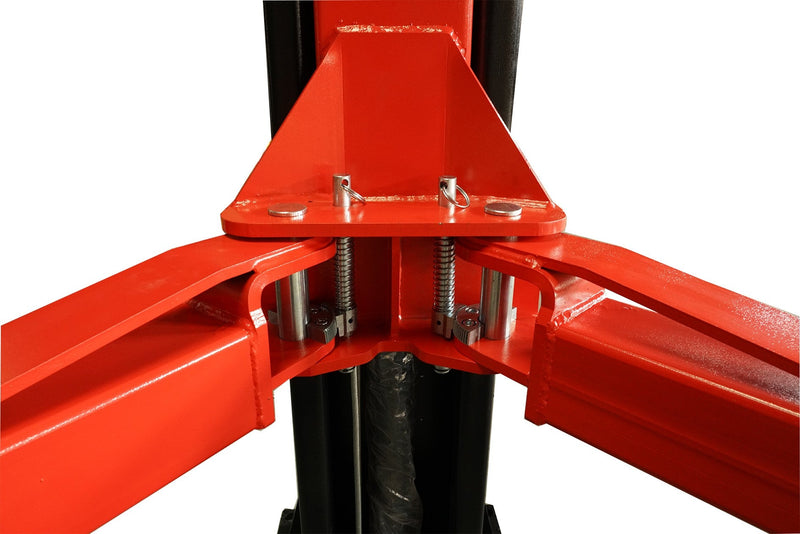

- Deluxe pin-on carriage

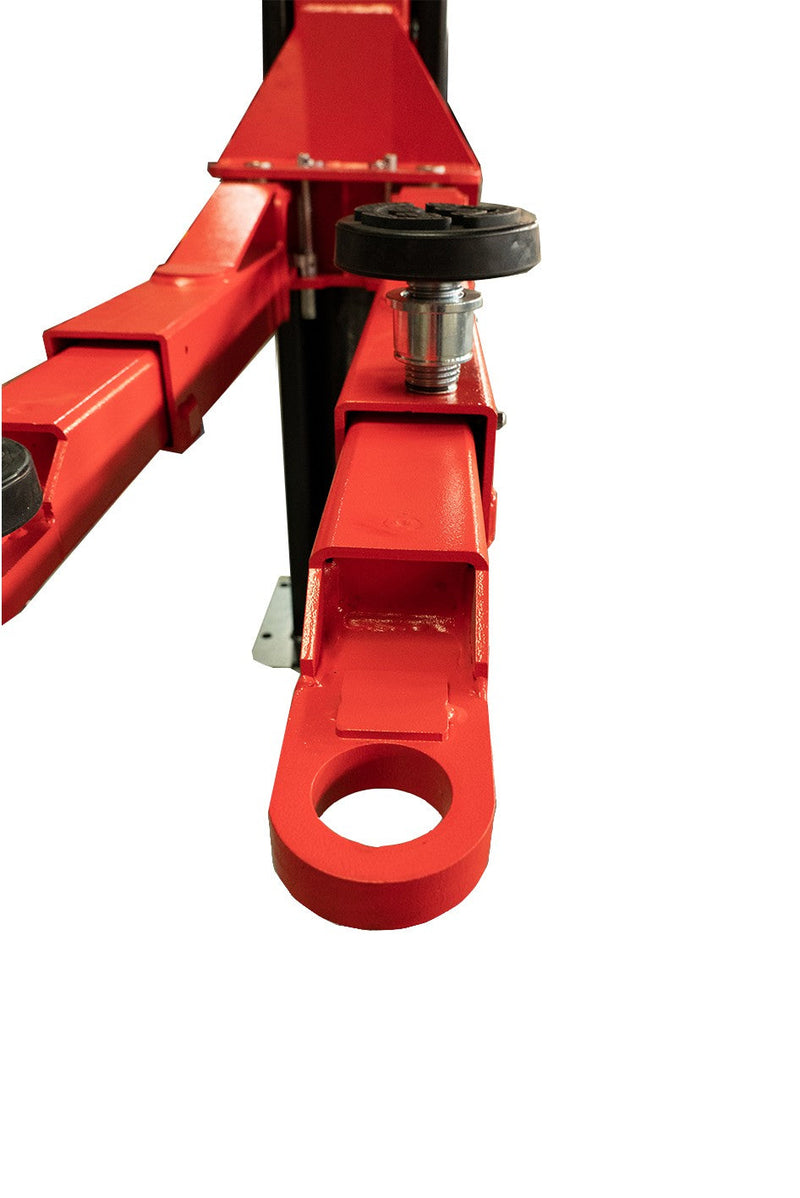

- Swing-arm supports with high-quality pads
- Door anti-crush rubber protection
- Mounting hardware included

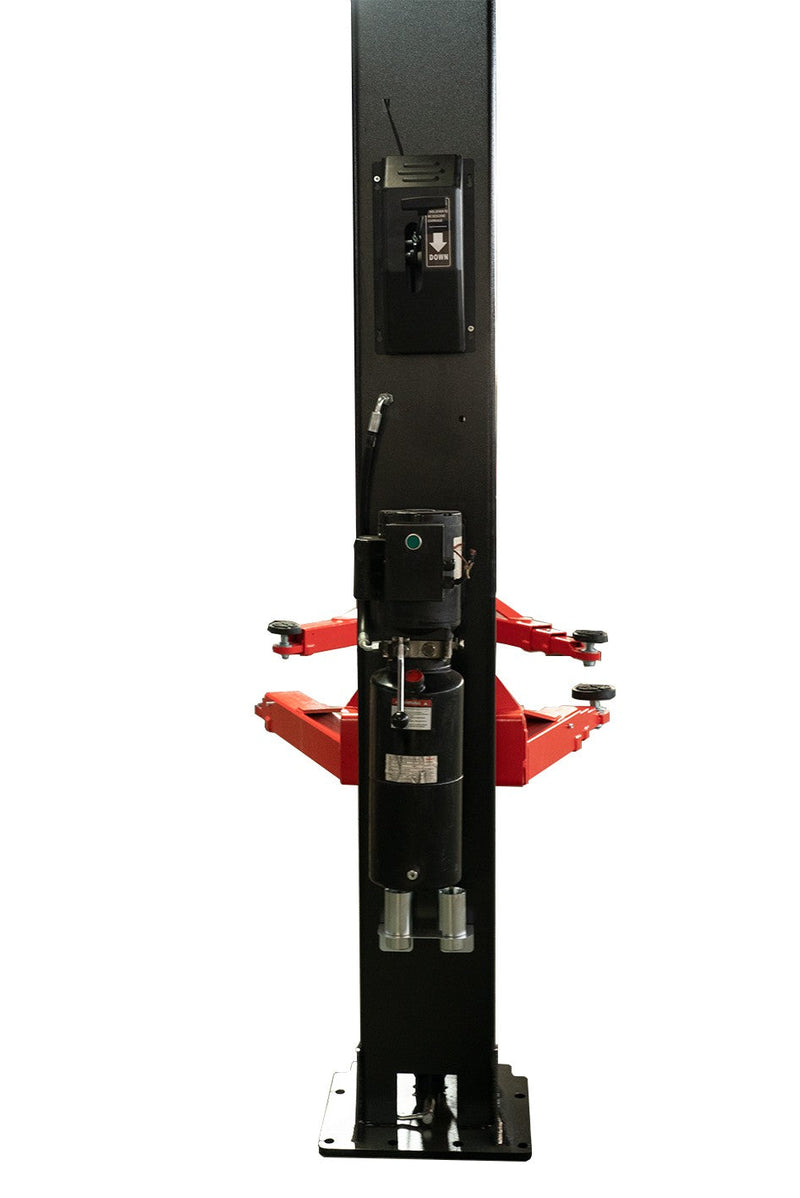

- 220V HPU2203 power unit
- 3HP, 2.2KW, 1PH power unit
- Certified and tested at 150% of rated capacity
- 10-year warranty

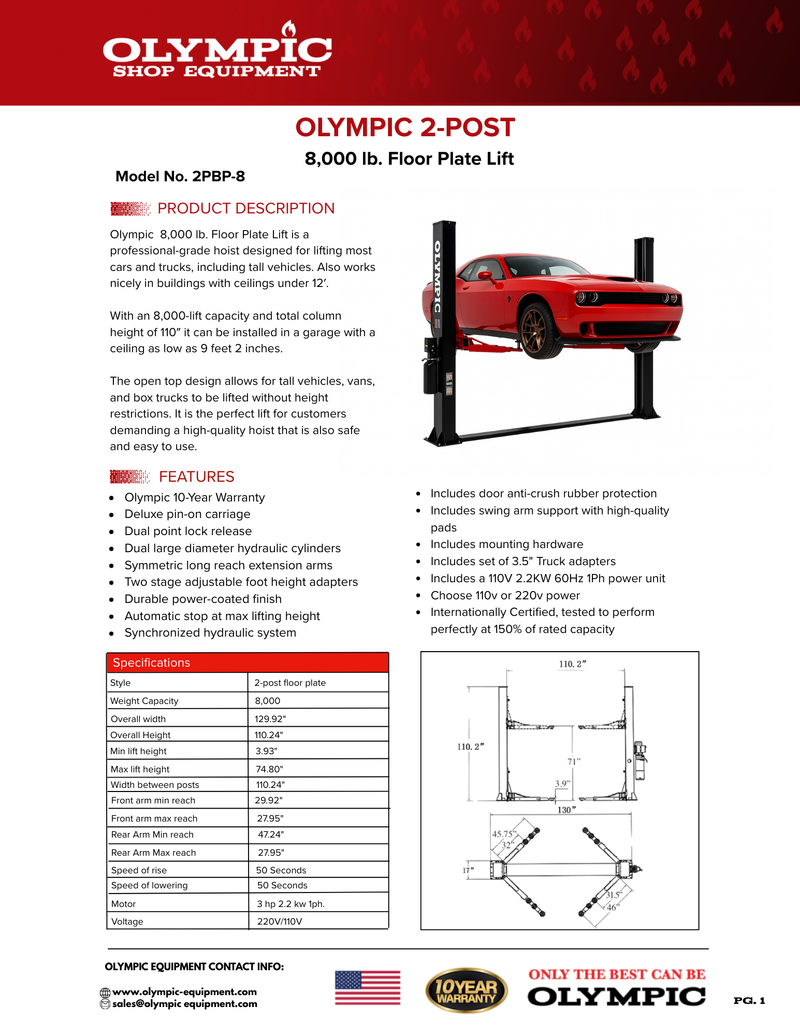

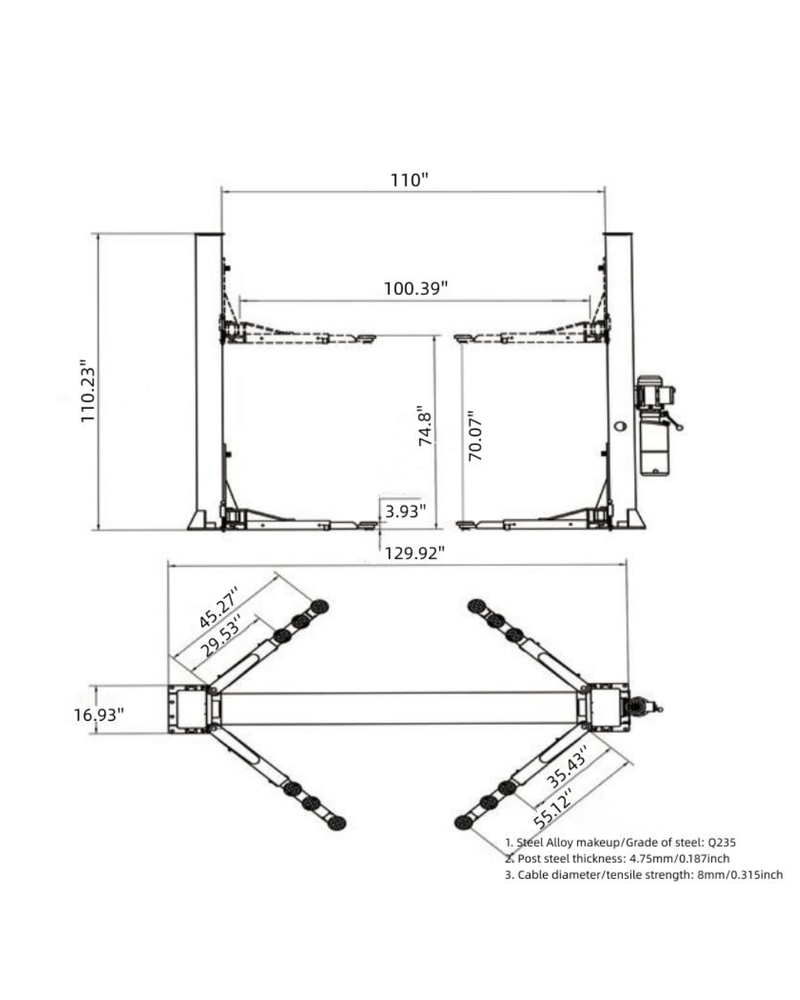

SPECIFICATIONS
| Specification | Details |
|---|---|
| Model | Olympic 2PBP-8 |
| Lift Type | 2-Post Baseplate Lift |
| Capacity | 8,000 lbs |
| Overall Height | 110.2″ |
| Overall Width | 129.92″ |
| Width Between Posts | 110.2″ |
| Voltage | 220V |
| Minimum Lift Height | 3.94″ |
| Maximum Lift Height | 71″ |
| Front Arm Reach | 31.5″ – 45.75″ |
| Rear Arm Reach | 31.5″ – 46″ |
| Rise Speed | 50 seconds |
| Lowering Speed | 50 seconds |
| Power Unit | HPU2203 |
| Power | 3HP, 2.2KW, 1PH |
| Locking Positions | 15 |
| Ceiling Height | 9′2″ |
| Truck Adapters | 4 × 3.5″ |
| Warranty | 10 Years |
BENEFITS
Versatile vehicle service: The 8,000 lb. capacity accommodates a wide range of passenger vehicles, trucks, and vans.
Efficient shop operation: The synchronized hydraulic system and 50-second rise and lowering speeds support efficient daily service work.
Flexible arm positioning: Symmetric long-reach arms and two-stage adjustable foot adapters provide flexibility when positioning vehicles on the lift.
Practical garage fit: With a 110.2″ overall height and 9′2″ minimum recommended ceiling clearance, the lift is designed for professional facilities with moderate ceiling height.
Heavy-duty construction: Q235 structural steel, dual hydraulic cylinders, and a durable powder-coated finish provide a robust platform for automotive service applications.
IDEAL FOR
- Automotive repair shops
- Professional mechanics
- Independent garages
- Vehicle service centers
- Automotive maintenance facilities
- Truck and van service
- Passenger vehicle repair
WHY CHOOSE THIS PRODUCT
The Olympic 2PBP-8 combines 8,000 lb. lifting capacity, a space-conscious baseplate design, hydraulic operation, symmetric long-reach arms, and professional-grade structural components. It is a practical choice for repair facilities that need dependable lifting capability for cars, trucks, vans, and other compatible vehicles.
Equip your garage or repair facility with the Olympic 2PBP-8 8,000 lb 2-Post Baseplate Car Lift and bring professional vehicle lifting capability to your service bay.
Official 2PBP-8 Resources
- Download the 2PBP-8 operating and installation manual
- Professional installation
- Replacement parts
- Warranty details and exclusions
- Schedule service or request technical support
Before installation or operation, compare the identification plate and current product drawing with the manual supplied with the exact lift.
