Katool KT-T810 + KT-B760 Tire Changer and Wheel Balancer Combo

by Katool
Original price $1,999.00 - Original price $1,999.00
Original price
$1,999.00
$1,999.00 - $1,999.00
Current price $1,999.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

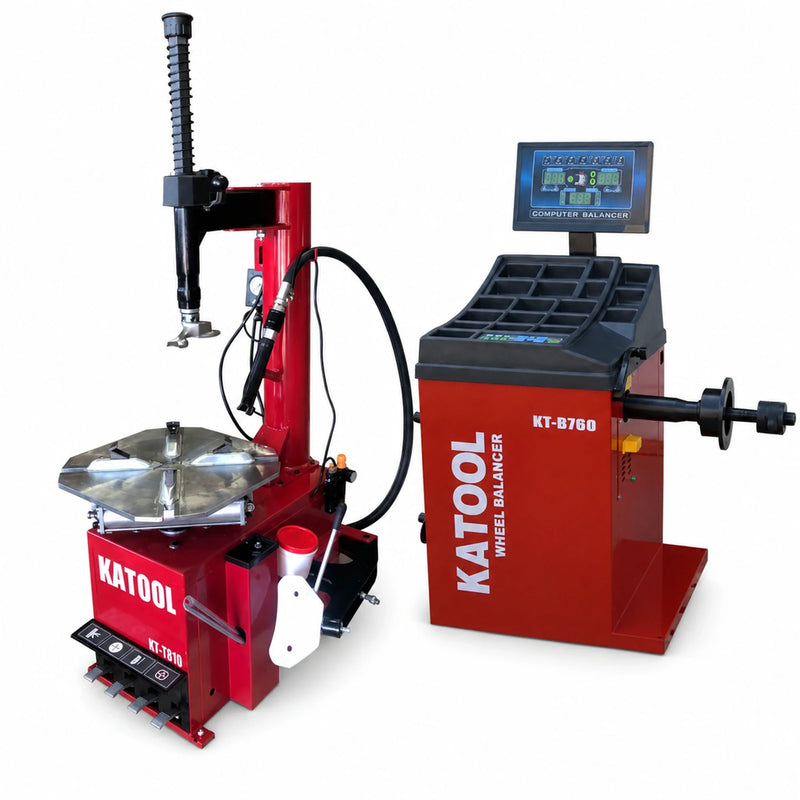

This package pairs the Katool KT-T810 swing-arm wheel clamp tire changer with the Katool KT-B760 computerized wheel balancer. The KT-T810 clamps 12"–22" from the outside and 14"–24" from the inside, takes wheels up to 41" in diameter and 15" wide, runs on 120V single-phase power and has a bead blast seater with post tank. The KT-B760 has an automatic measurement ruler, a laser marker and a separate display panel, runs on 110V single-phase power and balances to ±1g with a 7-second measuring time.

Shipping information

Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

Why Choose the Katool KT-T810 + KT-B760

  • Bead blast seater

    The KT-T810's bead blast seater with post tank helps seat tough bead tires.

  • Inside and outside clamping

    The KT-T810's adjustable clamps cover 12"–22" outside and 14"–24" inside with no extra tools.

  • Alloy wheel protection

    The KT-T810's stainless steel mounting head has protective plastic covers to help prevent rim damage.

  • Automatic measurement ruler

    The KT-B760's automatic measurement (diameter) ruler handles A and D input.

  • Laser marker

    A laser marker is built into the KT-B760 alongside the automatic ruler.

  • Separate display panel

    The KT-B760's display panel mounts on its own support tube.

Product Overview

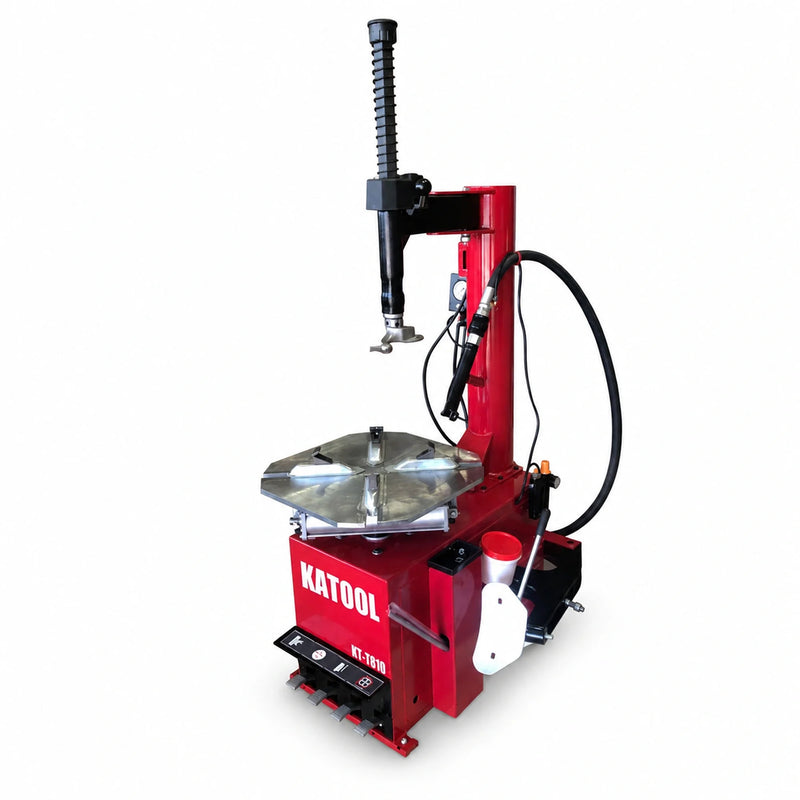

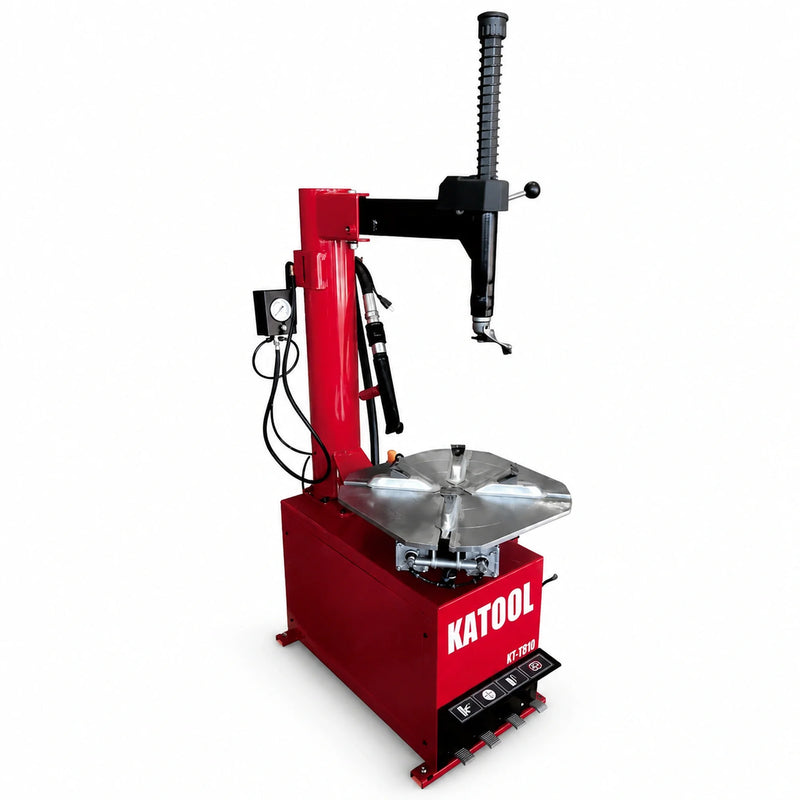

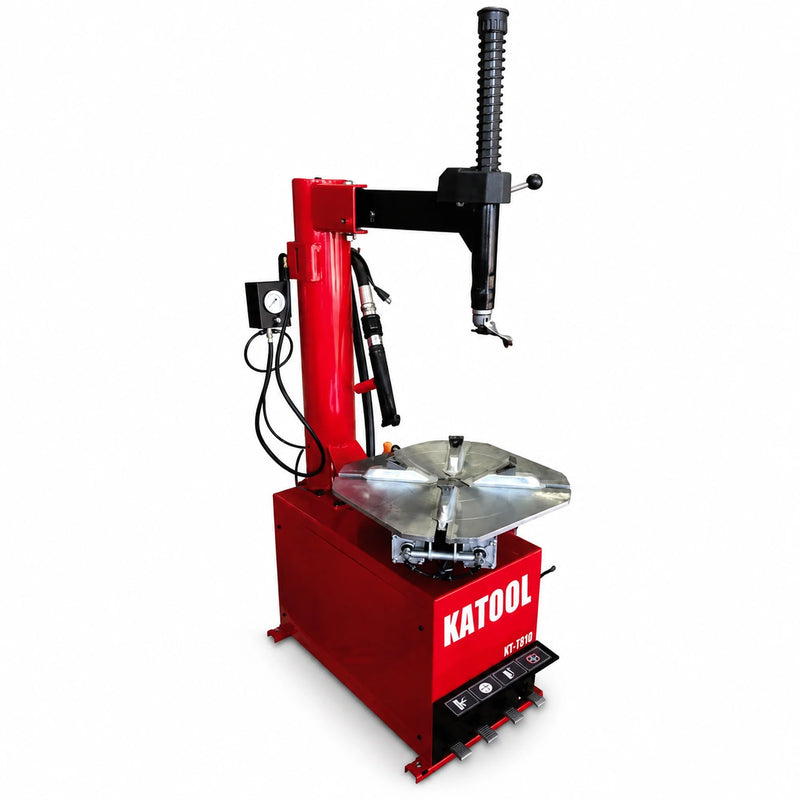

The KT-T810 Tire Changer

The KT-T810 is a swing-arm wheel clamp tire changer for cars, light trucks and most passenger vehicles. Its alloy steel clamp jaws, carburized and quenched, adjust between inside and outside clamping without extra tools, covering 12"–22" outside and 14"–24" inside, with a maximum wheel diameter of 41" (1040 mm) and maximum wheel width of 15" (380 mm). A bead blast seater with post tank and a pedal-controlled inflation gauge let you seat beads and inflate at the machine. The 2.0 HP / 1.5 kW single-phase motor turns the table at 6.8 r/min, the machine uses pull-type pedals, and the closed-body design protects internal components from dust and debris. The pneumatic system includes a filter and lubricator, and the steel-frame machine has a net weight of 186 kg.

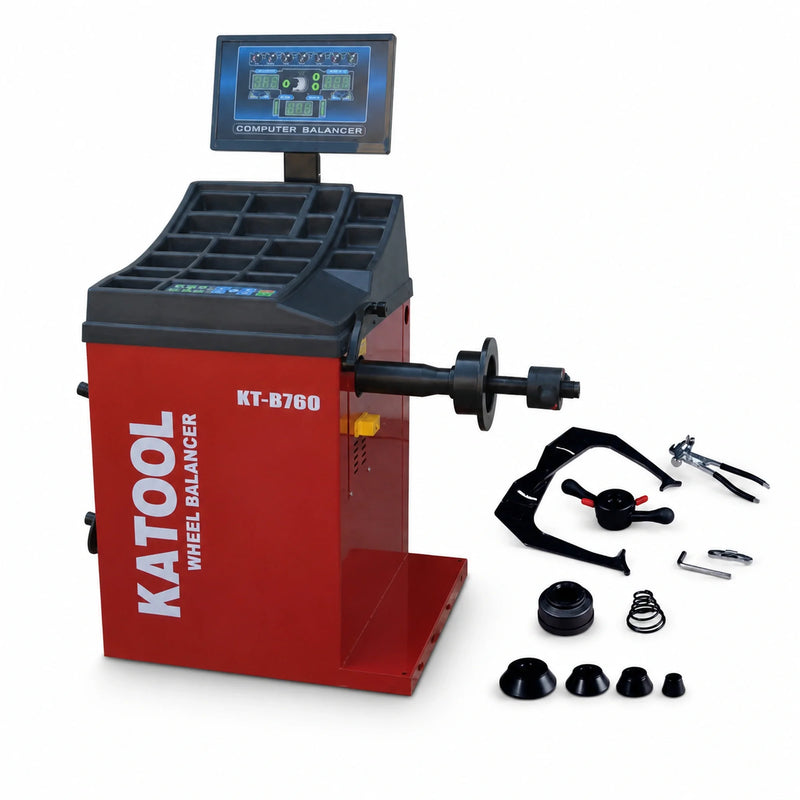

The KT-B760 Wheel Balancer

The KT-B760 has an automatic measurement (diameter) ruler for A and D input, a laser marker, and a separate display panel on a support tube. It detects static and dynamic imbalance, spins at 180 rpm, measures in 7 seconds and balances to ±1g. The panel has STD, ALU1, ALU2, ALU3, ALU4, ALU5 and STA indicators, an ALS mode is also available, and the balance-weight split (hidden weight) function works in static mode. The body is 3 mm (1/8") steel with continuous welds, and wheels mount on a 36 mm high-strength steel threaded shaft with a quick-lock hub nut. Built-in fault diagnostics and double-side self-calibration are standard, and the balancer is factory-calibrated. No wheel guard is included with the KT-B760.

Setting Up Both Machines

The KT-T810 runs on 120V single-phase power and needs shop air at 0.8–1.0 MPa (116–145 PSI), fed to its filter and lubricator, so install it near both. It must sit fully on the ground and be fixed well to avoid shaking, and the column and bead breaking arm are assembled on site. The KT-B760 plugs into a grounded 110V, 60 Hz wall outlet. It installs on flat, stable ground, secured with concrete screws at 4 locations, with the back panel 0.6 m from the wall and room on both sides; on site, the display support tube is moved outside the cabinet and the display cables are connected. Amperage is not specified for either machine, so have a licensed electrician check each data plate.

Specifications

SpecificationValue
Tire changerKatool KT-T810
Wheel balancerKatool KT-B760
KT-T810 outside clamping range12"–22"
KT-T810 inside clamping range14"–24"
KT-T810 max wheel diameter41" (1040 mm)
KT-T810 max wheel width15" (380 mm)
KT-T810 power120V, 1PH
KT-T810 motor2.0 HP / 1.5 kW
KT-T810 air pressure0.8–1.0 MPa (116–145 PSI)
KT-T810 bead seatingBead blast seater with post tank
KT-B760 rim diameter<30"
KT-B760 wheel width3"–12"
KT-B760 max tire diameter<880 mm / 34.64"
KT-B760 max wheel weight<65 kg / 143 lbs
KT-B760 balancing accuracy±1g
KT-B760 measuring time7 s
KT-B760 power110V 1PH
KT-B760 motor0.25 kW

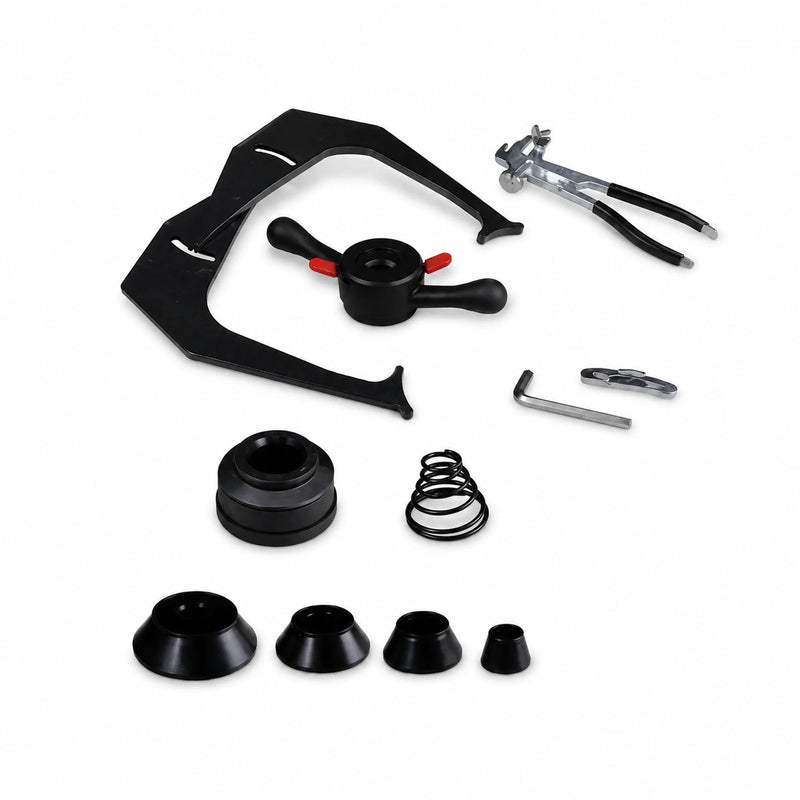

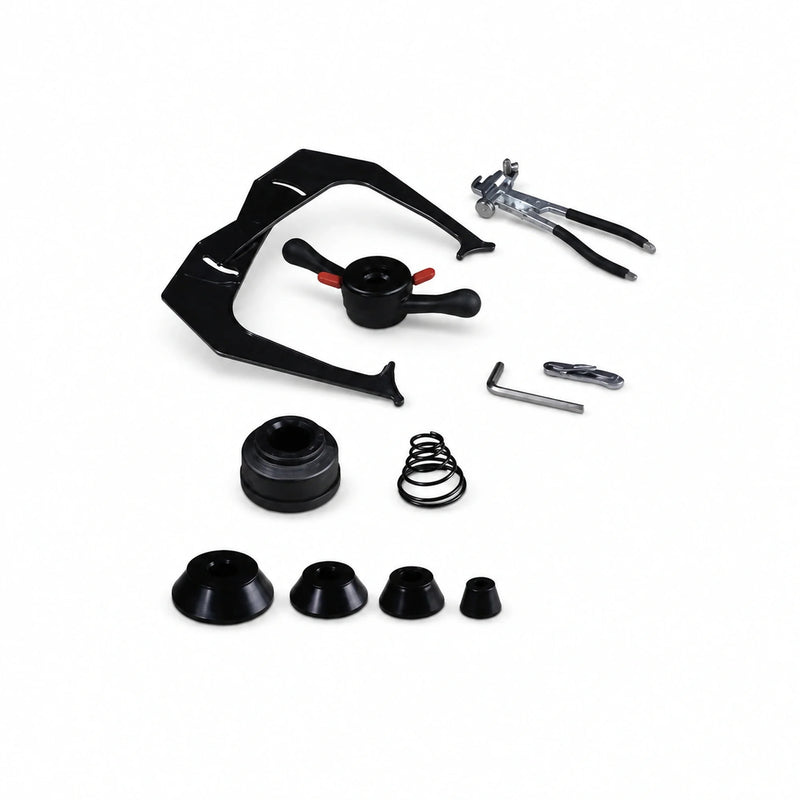

What's Included

  • Katool KT-T810 tire changer
  • Katool KT-B760 wheel balancer
  • KT-B760: cones, 4 sizes: 5 7/16"–3 11/16", 4 1/8"–2 3/4", 3 1/8"–2 1/8", 2 3/8"–1 5/8"
  • KT-B760: quick-lock hub nut with cap (pressure cup)
  • KT-B760: display panel with support tube (installed on site)
  • KT-B760: 100-gram calibration weight

Best For

  • Tire shops and general repair shops servicing cars and light trucks.
  • Shops that want automatic A and D measurement instead of manual entry.
  • Home garages that want a wheel clamp changer with bead seating built in.

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

KT-T810
Install near the electrical supply and the compressed-air system; the machine needs both.
KT-T810
The machine ships partly assembled; the column and the bead breaking arm are assembled on site.
KT-T810
The machine must sit fully on the ground and be fixed well to avoid shaking.
KT-B760
Install on flat, stable ground (not on a wooden pallet).
KT-B760
Secure the balancer to the floor with concrete screws at 4 locations.
KT-B760
Keep the back panel 0.6 m from the wall, with room on both sides.
KT-B760
On site, the display support tube moves from inside the cabinet to the outside, the display ribbon cables are routed and connected, and the top cover and support-arm screws are refitted.
Electrical
120V, single phase; 2.0 HP / 1.5 kW motor (KT-T810).
Air
Requires shop air at 0.8–1.0 MPa (116–145 PSI) for the KT-T810.
Air
The shop air line feeds a filter and lubricator (KT-T810).
Electrical
Amperage is not specified; have a licensed electrician check the data plate (KT-T810).
Air
The shop air consumption is not specified; confirm compressor sizing with Garage Lift Depot (KT-T810).
Electrical
110V, single phase; 0.25 kW motor (KT-B760).
Electrical
Plugs into a wall outlet (110V, 60 Hz); the outlet must be grounded (KT-B760).
Electrical
Amperage and plug type are not specified; have a licensed electrician check the data plate (KT-B760).

Warranty

Katool covers each machine in this package with a 12-month warranty on all parts and product defects. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

One Katool KT-T810 swing-arm tire changer and one Katool KT-B760 wheel balancer. The KT-B760 comes with cones in 4 sizes, a quick-lock hub nut with cap, a display panel with support tube and a 100-gram calibration weight.

The KT-T810 runs on 120V single-phase power with a 2.0 HP / 1.5 kW motor and needs shop air at 0.8–1.0 MPa (116–145 PSI). The KT-B760 plugs into a grounded 110V, 60 Hz wall outlet and has a 0.25 kW motor. Amperage is not specified for either machine, so have a licensed electrician check each data plate.

The KT-T810 clamps 12"–22" from the outside and 14"–24" from the inside, with a max wheel diameter of 41" and max wheel width of 15". The KT-B760 takes rims under 30", wheel widths of 3"–12", tire diameters under 880 mm / 34.64" and wheel weights under 65 kg / 143 lbs.

No wheel guard is included. The KT-B750, offered in the KT-T810 + KT-B750 package, has a hood that starts the spin when closed.

Yes. Both machines are sold individually at Garage Lift Depot.
