Katool KT-T810 + KT-B700 Tire Changer and Wheel Balancer Combo

by Katool
Original price $1,899.00 - Original price $1,899.00
Original price
$1,899.00
$1,899.00 - $1,899.00
Current price $1,899.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

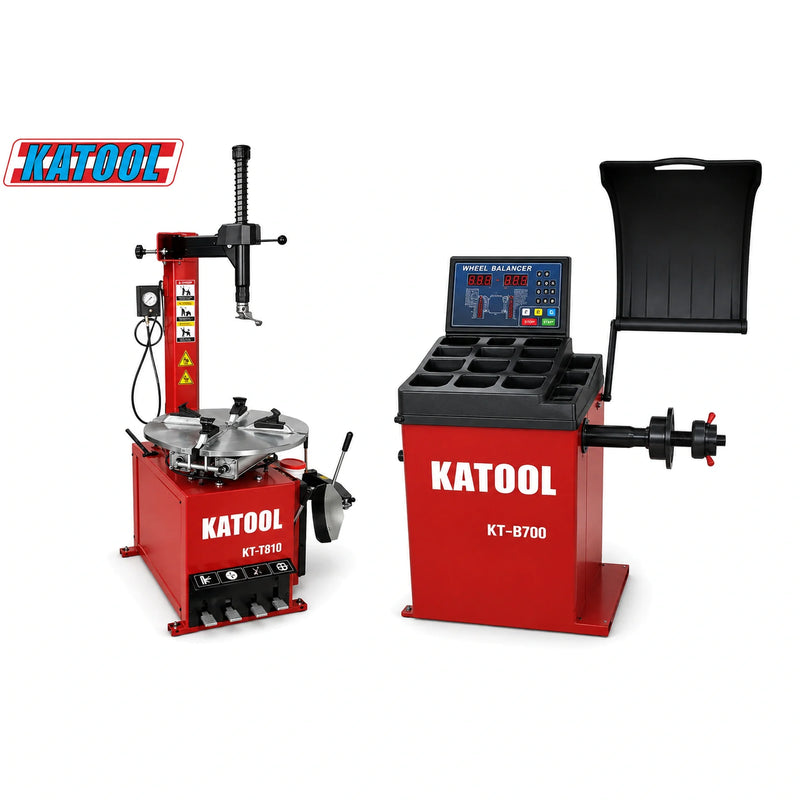

This package pairs the Katool KT-T810 swing-arm wheel clamp tire changer with the Katool KT-B700 computerized wheel balancer. The KT-T810 clamps 12"–22" from the outside and 14"–24" from the inside, takes wheels up to 41" in diameter, and has a bead blast seater with post tank and a pedal-controlled inflation gauge. The KT-B700 runs on 120V single-phase power, handles rims under 30" and wheels up to 143 lbs, and balances to ±1g with a 7-second measuring time.

Shipping information

Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

Why Choose the Katool KT-T810 + KT-B700

  • Bead blast seater

    The KT-T810's bead blast seater with post tank helps seat tough bead tires.

  • Inside and outside clamping

    The KT-T810's adjustable clamps cover 12"–22" outside and 14"–24" inside with no extra tools.

  • Alloy wheel protection

    The KT-T810's stainless steel mounting head has protective plastic covers to help prevent rim damage.

  • Six balancing modes

    The KT-B700's STD, STA, ALU1, ALU2, ALU3 and ALS modes cover different rim types.

  • Balancing accuracy

    The KT-B700 spins at 180 rpm, measures in 7 seconds and balances to ±1g.

  • Runs on 120V power

    The KT-T810 and the KT-B700 are each set up for 120V single-phase power.

Product Overview

The KT-T810 Tire Changer

The KT-T810 is a swing-arm wheel clamp tire changer for cars, light trucks and most passenger vehicles. Its clamp jaws are alloy steel with carburization and quenching, and they adjust between inside (14"–24") and outside (12"–22") clamping without extra tools. Max wheel diameter is 41" (1040 mm) and max wheel width is 15" (380 mm). A 2.0 HP / 1.5 kW single-phase motor turns the table at 6.8 r/min, and the machine uses pull-type pedals. A bead blast seater with post tank and a pedal-controlled inflation gauge handle bead seating and inflation at the machine. The stainless steel mounting head has protective plastic covers, the closed body protects internal components from dust and debris, and net weight is 186 kg.

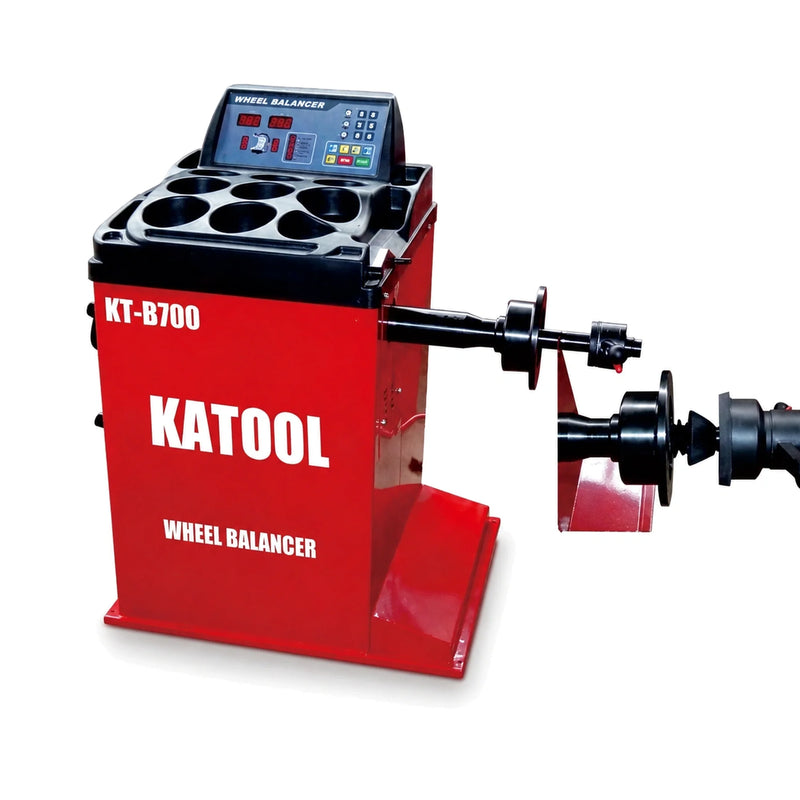

The KT-B700 Wheel Balancer

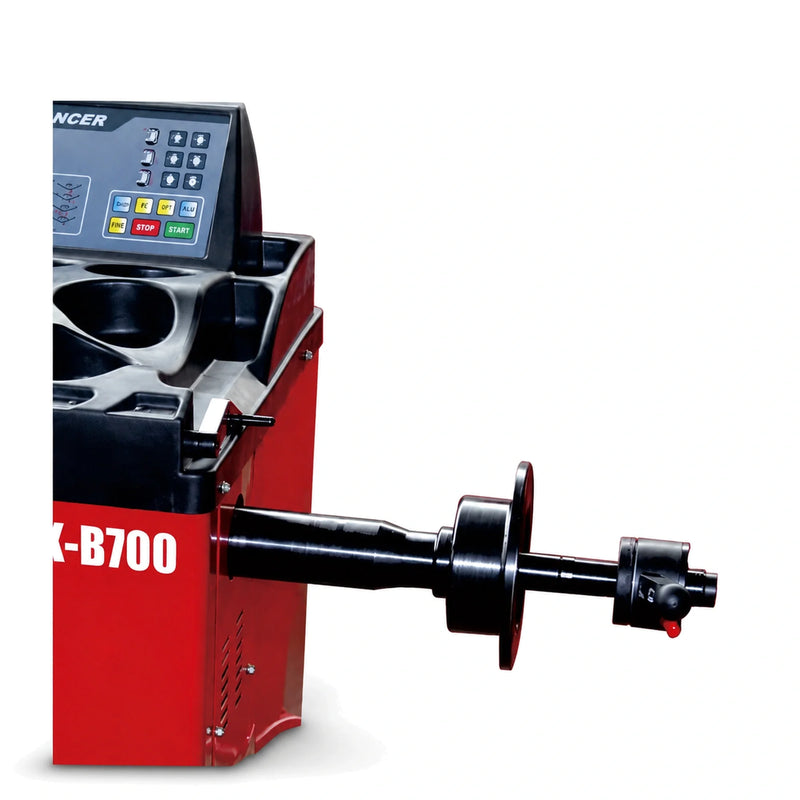

The KT-B700 is a computerized balancer that detects both static and dynamic imbalance. It spins at 180 rpm, measures in 7 seconds and balances to ±1g. You measure the A (distance) reading with the offset arm and enter A, width (B) and diameter (D) with the keys; readings appear on a digital LED readout with weight-position indicator lights. It takes rims under 30", wheel widths of 3"–12", tire diameters under 880 mm / 34.64" and wheel weights under 65 kg / 143 lbs. Six modes (STD, STA, ALU1, ALU2, ALU3, ALS) cover different rim types, and the balance-weight split function hides the outer weight behind two spokes in static mode. Wheels mount on a 36 mm high-strength steel threaded shaft, and the balancer is factory-calibrated.

Setting Up Both Machines

The KT-T810 runs on 120V single-phase power and needs shop air at 0.8–1.0 MPa (116–145 PSI) feeding its filter and lubricator, so install it near both its electrical supply and the compressed-air system. It must sit fully on the ground and be fixed well to avoid shaking, and its column and bead breaking arm are assembled on site. The KT-B700 runs on 120V single phase and must be electrically grounded. Install it on flat, stable ground, secure it with concrete screws at 4 locations, and keep its back panel 0.6 meters from the wall for ventilation, with working room for mounting and removing wheels. Amperage is not specified for either machine, so have a licensed electrician check each data plate.

Specifications

SpecificationValue
Tire changerKatool KT-T810
Wheel balancerKatool KT-B700
KT-T810 typeSwing-arm wheel clamp tire changer
KT-T810 outside clamping range12"–22"
KT-T810 inside clamping range14"–24"
KT-T810 max wheel diameter41" (1040 mm)
KT-T810 power120V, 1PH
KT-T810 motor2.0 HP / 1.5 kW
KT-T810 air pressure0.8–1.0 MPa (116–145 PSI)
KT-T810 bead seatingBead blast seater with post tank
KT-B700 rim diameter<30"
KT-B700 wheel width3"–12"
KT-B700 max tire diameter<880 mm / 34.64"
KT-B700 max wheel weight<65 kg / 143 lbs
KT-B700 balancing accuracy±1g
KT-B700 measuring time7 s
KT-B700 power120V 1PH
KT-B700 balancing modesSTD, STA, ALU1, ALU2, ALU3, ALS

What's Included

  • Katool KT-T810 tire changer
  • Katool KT-B700 wheel balancer

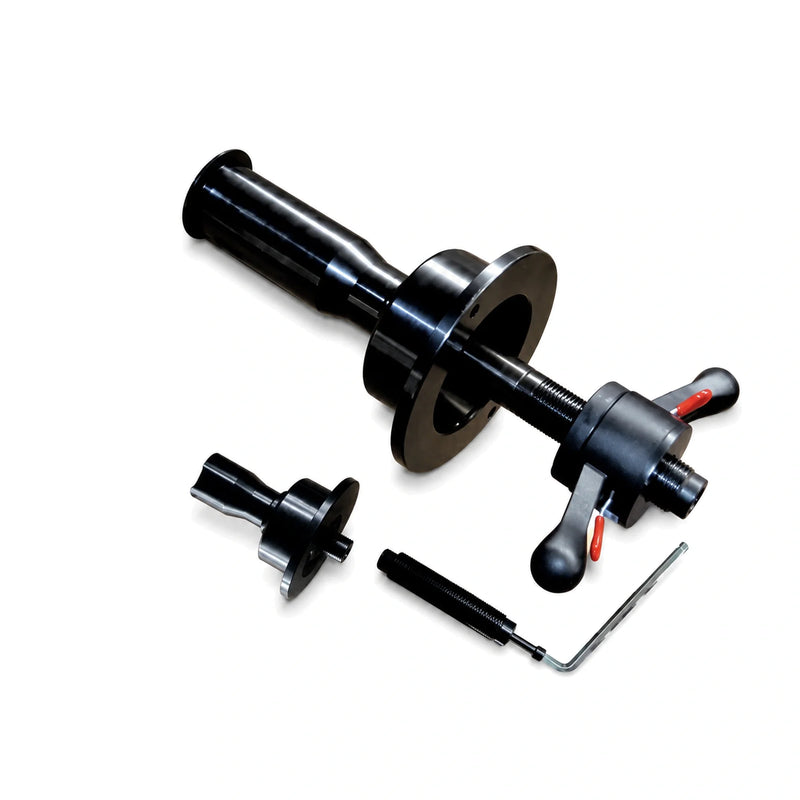

  • KT-B700: cones, 4 sizes: 5 7/16"–3 11/16", 4 1/8"–2 3/4", 3 1/8"–2 1/8", 2 3/8"–1 5/8"

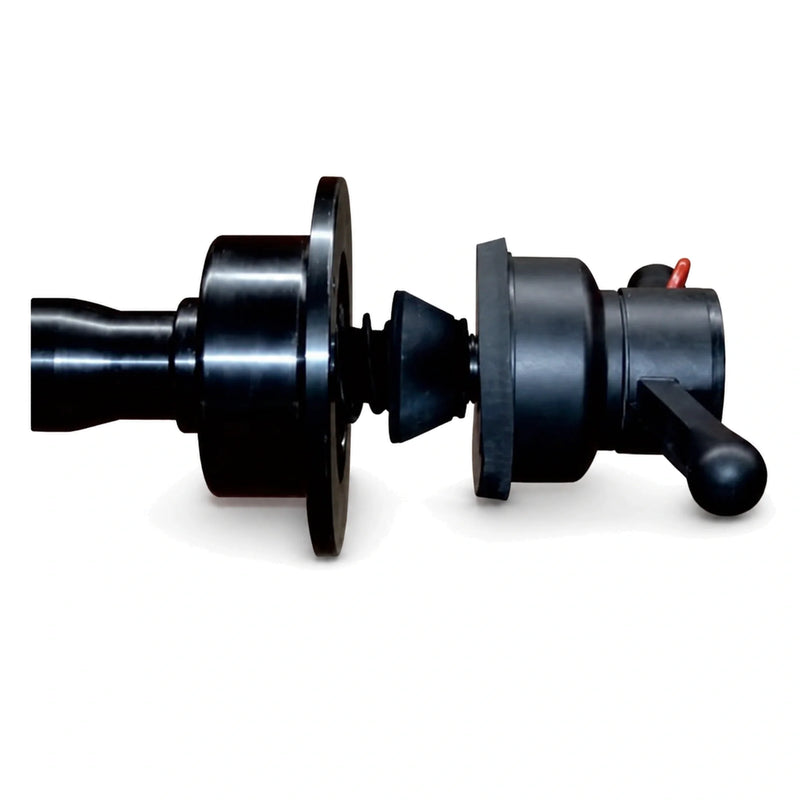

  • KT-B700: quick-lock hub nut with cap (pressure cup)
  • KT-B700: offset arm (measures A and D)
  • KT-B700: 100-gram calibration weight

Best For

  • Tire shops and general repair shops servicing cars and light trucks.
  • Home garages and small shops working from a standard 120V supply.
  • Shops that want bead seating at the changer and in-house wheel balancing.

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

KT-T810
Install near the electrical supply and the compressed-air system; the machine needs both.
KT-T810
The column and the bead breaking arm are assembled on site.
KT-T810
The machine must sit fully on the ground and be fixed well to avoid shaking.
KT-B700
Install on flat, stable ground (not on a wooden pallet). The balancer must sit solidly on its feet or readings may be inaccurate.
KT-B700
Secure the balancer to the floor with concrete screws at 4 locations.
KT-B700
Keep the back panel 0.6 meters from the wall for ventilation, with room on both sides and working room for mounting and removing wheels.
KT-B700
Do not install in high temperature or moisture, or near heating, a water tap, a humidifier or a chimney.
Electrical
120V, single phase (1PH); 2.0 HP / 1.5 kW motor (KT-T810).
Air
Requires shop air at 0.8–1.0 MPa (116–145 PSI); the shop air line feeds a filter and lubricator (KT-T810).
Electrical
Amperage is not specified; have a licensed electrician check the data plate (KT-T810).
Air
The shop air consumption is not specified; confirm your compressor capacity with Garage Lift Depot (KT-T810).
Electrical
120V, single phase (1PH); 0.25 kW motor (KT-B700).
Electrical
The balancer must be electrically grounded; do not remove the grounding pin (KT-B700).
Electrical
Amperage and plug type are not specified; have a licensed electrician check the data plate (KT-B700).

Warranty

Katool covers each machine in this package with a 12-month warranty on all parts and product defects. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

One Katool KT-T810 swing-arm tire changer and one Katool KT-B700 wheel balancer. The KT-B700 comes with cones in 4 sizes, a quick-lock hub nut with cap, an offset arm and a 100-gram calibration weight.

The KT-T810 runs on 120V single phase with a 2.0 HP / 1.5 kW motor and needs shop air at 0.8–1.0 MPa (116–145 PSI). The KT-B700 runs on 120V single phase with a 0.25 kW motor and must be electrically grounded. Amperage is not specified for either, so have a licensed electrician check each data plate.

The KT-T810 clamps 12"–22" from the outside and 14"–24" from the inside, with a max wheel diameter of 41" and max wheel width of 15". The KT-B700 takes rims under 30", wheel widths of 3"–12", tire diameters under 880 mm / 34.64" and wheel weights under 65 kg / 143 lbs.

No. The KT-T810 has a bead blast seater with post tank but no assist arm.

Yes. The KT-T810 tire changer and the KT-B700 wheel balancer are both sold individually at Garage Lift Depot.
