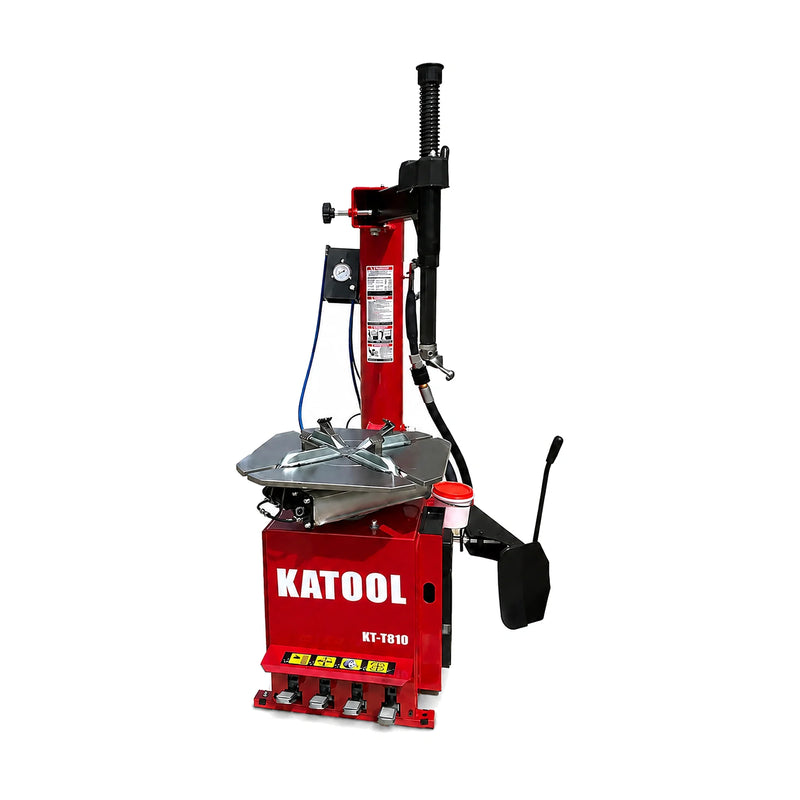

The Katool KT-T810 is a swing-arm wheel clamp tire changer for cars, light trucks and most passenger vehicles. It clamps 12"–22" from the outside and 14"–24" from the inside, takes wheels up to 41" in diameter and 15" wide, and runs on 120V single-phase power. A bead blast seater with post tank and a pedal-controlled inflation gauge are part of the machine.

Shipping information

Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

Why Choose the Katool KT-T810

  • Runs on 120V power

    The 2.0 HP / 1.5 kW single-phase motor is set up for North American 120V circuits.

  • Bead blast seater

    A bead blast seater with post tank helps seat tough bead tires.

  • Inside and outside clamping

    The adjustable clamps cover 12"–22" outside and 14"–24" inside with no extra tools.

  • Alloy wheel protection

    The stainless steel mounting head has protective plastic covers to help prevent rim damage.

  • Closed-body design

    The enclosed base protects internal components from dust and debris.

Product Overview

Swing-Arm Layout with Wheel Clamp Turntable

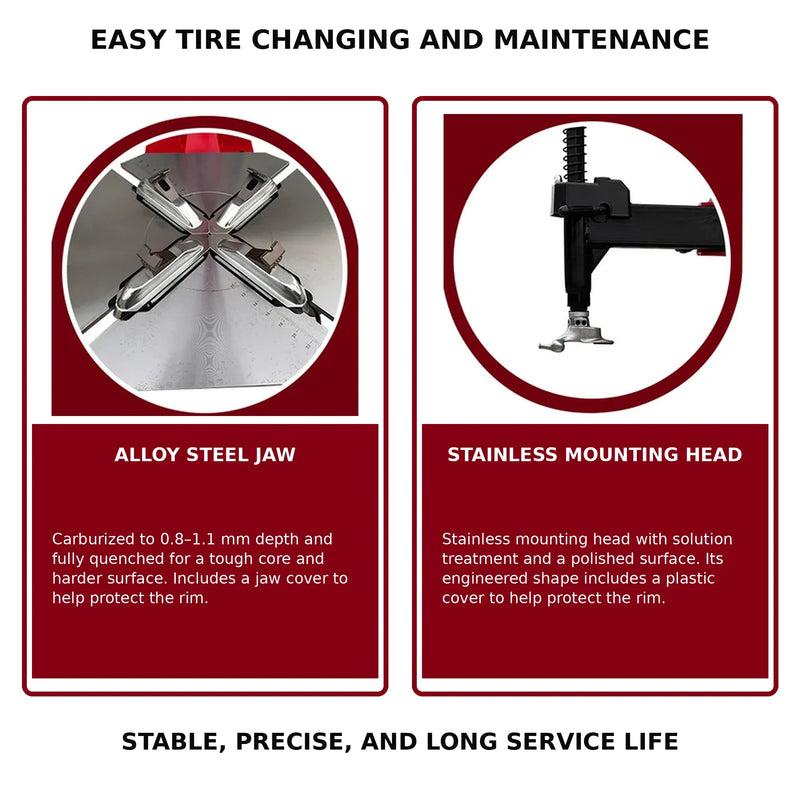

The KT-T810 uses a swing-arm design with a wheel clamp turntable. The clamp jaws are alloy steel with carburization and quenching, and they adjust between inside and outside clamping without extra tools. The machine uses pull-type pedals.

Bead Seating and Inflation

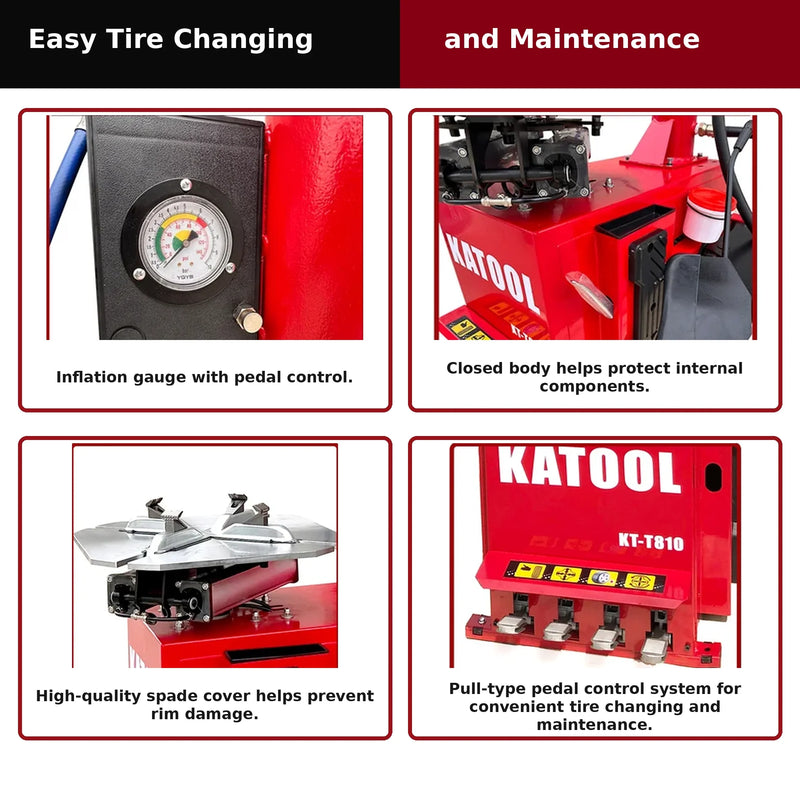

The KT-T810 has a bead blast seater with post tank for seating tough bead tires, plus a pedal-controlled inflation gauge, so bead seating and inflation happen at the machine.

Air System and Construction

The pneumatic system includes a filter and lubricator and runs at 0.8–1.0 MPa (116–145 psi). The machine has a steel frame and a net weight of 186 kg. The turntable rotates at 6.8 r/min.

Specifications

SpecificationValue
ModelKT-T810
TypeSwing-arm wheel clamp tire changer

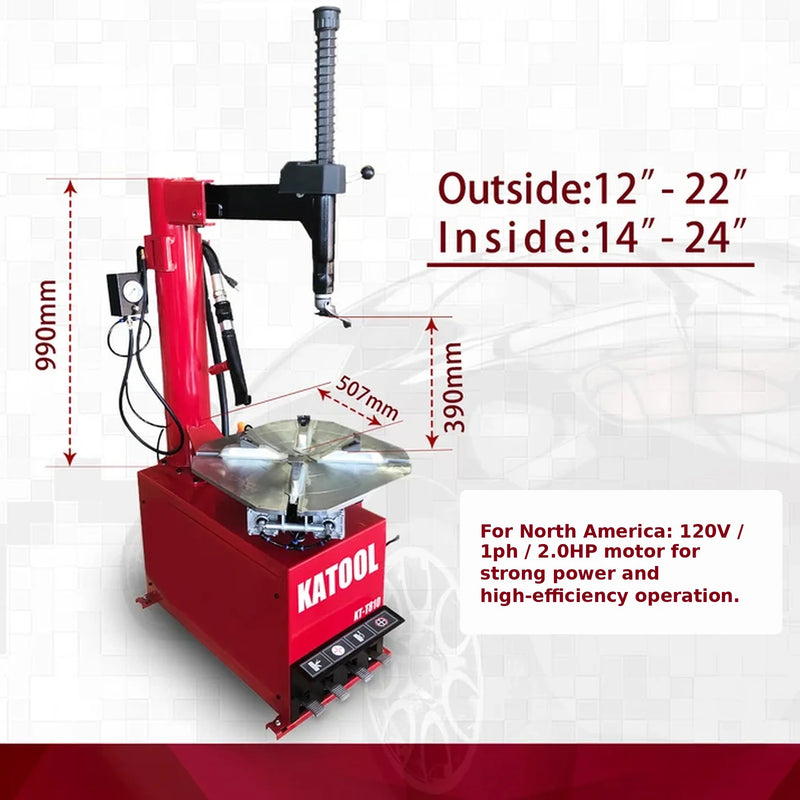

Outside clamping range12"–22"
Inside clamping range14"–24"
Max wheel diameter41" (1040 mm)
Max wheel width15" (380 mm)
Power120V, 1PH
Motor2.0 HP / 1.5 kW
Rotation speed6.8 r/min
Air pressure0.8–1.0 MPa (116–145 psi)
Bead seatingBead blast seater with post tank
Net weight186 kg
ConstructionSteel frame

Best For

  • Tire shops and general repair shops servicing cars and light trucks
  • Mobile tire service setups working from a 120V supply
  • Home garages that want a wheel clamp changer with bead seating built in

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Location
Install near the electrical supply and the compressed-air system; the machine needs both.
Assembly
The machine ships partly assembled; the column and the bead breaking arm are assembled on site.
Floor
The machine must sit fully on the ground and be fixed well to avoid shaking.
Electrical
120V, single phase (1PH); 2.0 HP / 1.5 kW motor
Air
Requires shop air at 0.8–1.0 MPa (116–145 PSI).
Air
The shop air line feeds a filter and lubricator.
Electrical
Amperage and air consumption are not specified. Have a licensed electrician check the data plate, and confirm compressor sizing with Garage Lift Depot.

Warranty

Katool covers this machine with a 12-month warranty on all parts and product defects. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

It clamps 12"–22" from the outside and 14"–24" from the inside, with a max wheel diameter of 41" and max wheel width of 15".

Yes. It has a bead blast seater with post tank for seating tough bead tires, along with a pedal-controlled inflation gauge.

It runs on 120V single-phase power with a 2.0 HP / 1.5 kW motor. Amperage is not specified, so have a licensed electrician check the data plate before installation.

The machine operates at 0.8–1.0 MPa (116–145 psi). Air consumption (CFM) is not specified; confirm compressor sizing with Garage Lift Depot.

No. If you work on stiff-sidewall or low-profile tires often, compare the KT-T830 (double assist arms) or the KT-T835 (single assist arm).
