Katool KT-4M110PA 11,000 lb 4-Post Alignment Lift with Rolling Jack

by Katool
Original price $3,999.00 - Original price $3,999.00
Original price
$3,999.00
$3,999.00 - $3,999.00
Current price $3,999.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

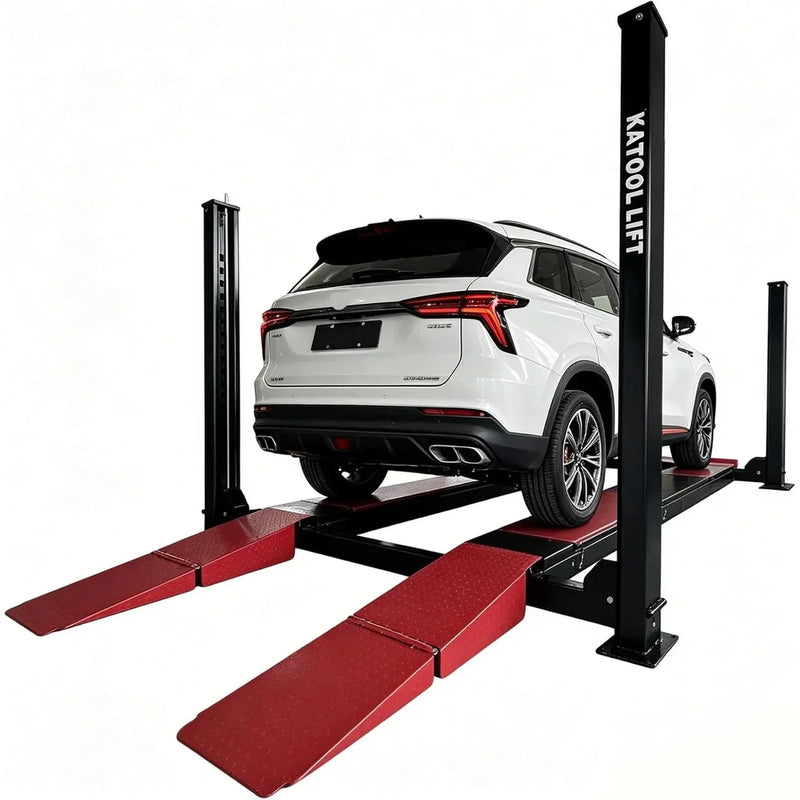

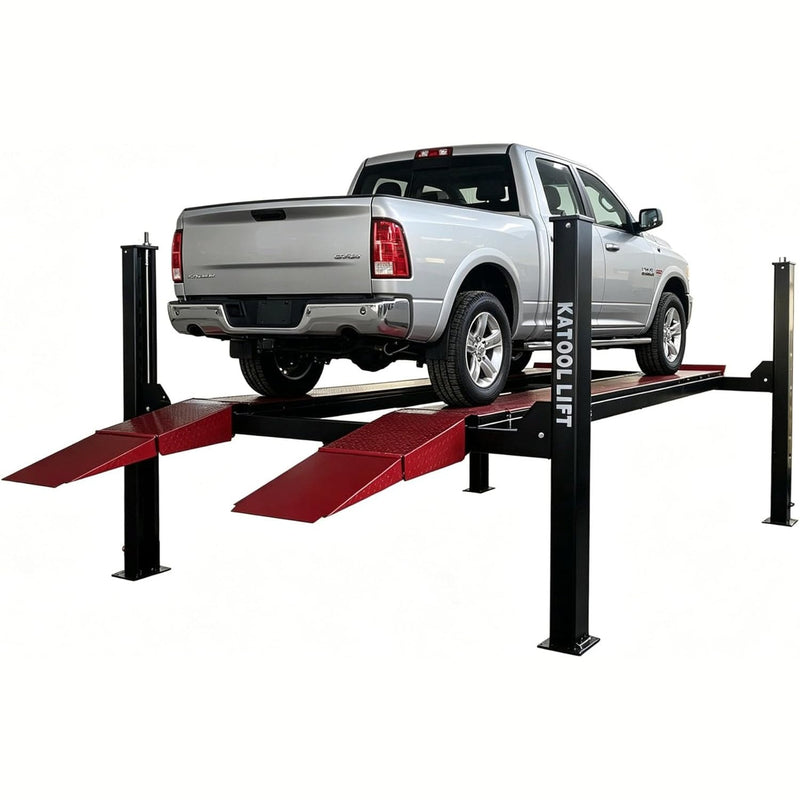

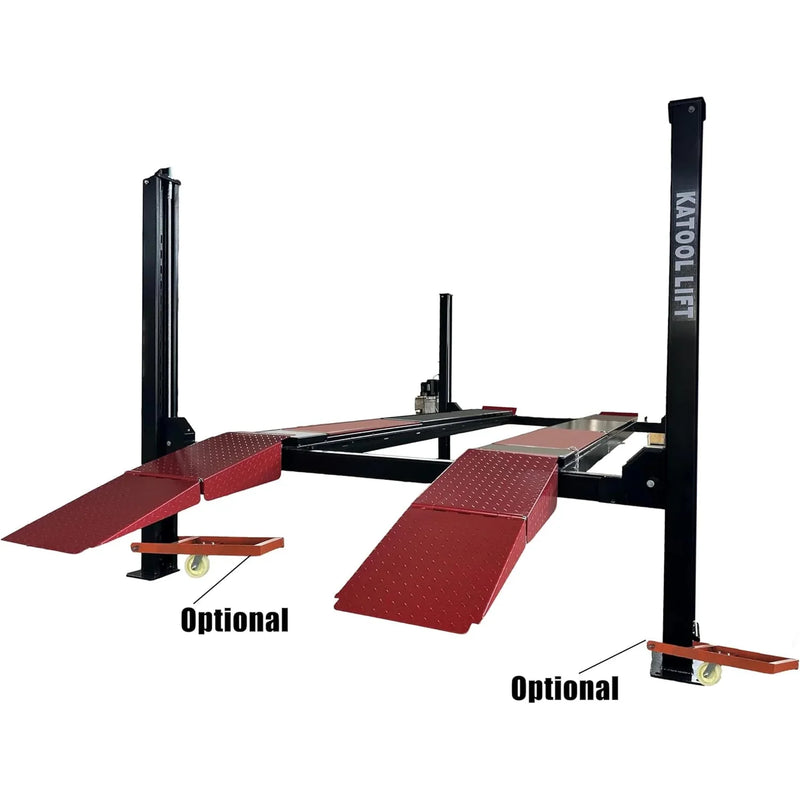

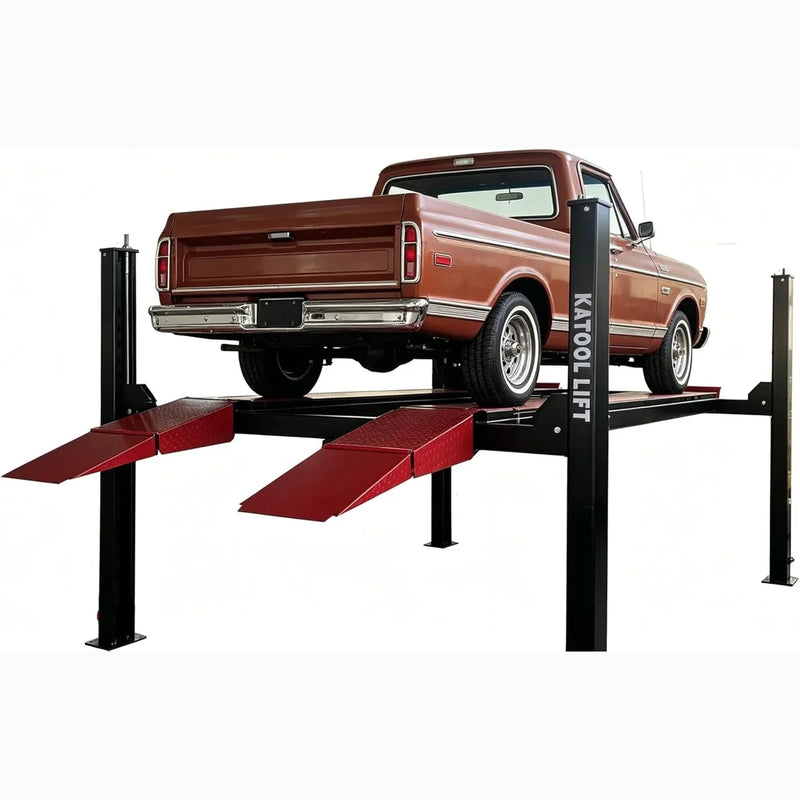

The Katool KT-4M110PA is an 11,000 lb four-post alignment lift that runs on 110V power and comes with a 7,000 lb rolling jack, three drip trays, a lift tray and approach ramps. It rises to 84.5 in, has 112.81 in (2865 mm) between columns, and uses a single-point pneumatic safety lock release.

Shipping information

A forklift is required on site; lifts are too heavy for liftgate delivery.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Rated capacity
11,000 lbs (4990 kg)
Power
110V, 60 Hz, single phase
Overall height
94.88 in (2410 mm) post height
Runway size
4620 mm (181.9 in) long x 480 mm (18.9 in) wide
Maximum lifting height
84.5 in

Why Choose the Katool KT-4M110PA

  • Runs on 110V

    The 2.2 kW power unit runs on 110V, 60 Hz, single phase with a 30 amp requirement.

  • Rolling jack included

    A 7,000 lb rolling jack comes with the lift for raising wheels off the runways.

  • Pneumatic lock release

    A single-point pneumatic safety lock release frees all four locks from one control.

  • Trays and ramps included

    Three drip trays, one lift tray and approach ramps come in the package.

  • Maximum lift height

    The runways rise to 84.5 in for work under the vehicle.

  • Adjustable runway spacing

    The space between runways ranges from 34.3 in to 41.3 in to suit different track widths.

Product Overview

Four-Post Alignment Design

The KT-4M110PA is a four-post alignment lift with crossbeams and a rolling jack that serves as a secondary lift. Each runway is 480 mm (18.9 in) wide and 4620 mm (181.9 in) long, with 950 mm (37.4 in) between runways at the standard setting (min. 34.3 in, max. 41.3 in).

Capacity and Vehicle Fit

The lift is rated for 11,000 lbs (4990 kg) and rises to 84.5 in. Width between columns is 112.81 in (2865 mm), and the posts stand 94.88 in (2410 mm) tall. The included 7,000 lb rolling jack lifts the vehicle off the runways for wheel and brake work.

Locks and Controls

Four mechanical locking devices hold the runways at working height, with a secondary slack-cable lock and a lock range of 450 mm to 2196 mm. A single-point pneumatic safety lock release frees the locks. The lift reaches full height in approximately 50 seconds and lowers in 40 seconds or more.

Power and Site

The 2.2 kW power unit runs on 110V, 60 Hz, single phase and needs a 30 amp supply. The pneumatic release needs a shop air line to the supplied filter regulator. Hydraulic oil is N32 or N46, with an oil capacity of 10 L. The lift anchors with 16 expansion bolts into 3000 PSI concrete; confirm the slab thickness with Garage Lift Depot before installation.

Specifications

SpecificationValue
ModelKT-4M110PA
Lift typeFour-post alignment lift with crossbeams
Rated capacity11,000 lbs (4990 kg)
Maximum lifting height84.5 in
Overall height94.88 in (2410 mm) post height
Width between columns112.81 in (2865 mm)
Runway size4620 mm (181.9 in) long x 480 mm (18.9 in) wide
Space between runways950 mm (37.4 in); min. 34.3 in, max. 41.3 in
Lifting timeApproximately 50 seconds
Lowering time40 seconds or more
Safety locksFour mechanical locking devices; secondary slack-cable lock; lock range 450–2196 mm
Lock releaseSingle-point pneumatic safety lock release
Power110V, 60 Hz, single phase
Motor2.2 kW
Amperage30 amp
Air supplyShop air line to supplied filter regulator; pressure not specified
Hydraulic oilN32 or N46; 10 L capacity
Rolling jack capacity7,000 lbs
Net weight2116 lbs (960 kg)

What's Included

  • KT-4M110PA 4-post lift
  • 7,000 lb rolling jack (KT-RJ70)
  • 3 drip trays
  • 1 lift tray
  • Approach ramps

Best For

  • Home garages and small shops with a 110V circuit rather than 220V
  • Repair bays that want a rolling jack and drip trays on an alignment-style four-post lift
  • Owners servicing cars, SUVs and light trucks within an 11,000 lb rating

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Concrete
Confirm the concrete requirement for this lift with Garage Lift Depot before installation. The concrete must be rated at 3000 PSI.
Anchoring
16 expansion bolts, drilled with a 19 mm bit.
Bay
Confirm the overall width and length with Garage Lift Depot when planning the bay.
Height
Posts stand 94.88 in (2410 mm); measure your ceiling to the lowest obstruction before ordering.
Air
A shop air line is needed at the lift for the pneumatic lock release.
Electrical
110V, 60 Hz, single phase; 2.2 kW motor.
Electrical
Amperage requirement: 30 amp. Have a licensed electrician run and confirm the circuit.
Air
Pneumatic lock release: connect shop air to the supplied filter regulator; the required air pressure (PSI) is not specified.
Hydraulic
Hydraulic oil: N32 or N46; oil capacity 10 L.

Warranty

Katool covers this lift with a 1-year warranty on all parts and a 3-year warranty on structural components. Labor is not included. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

Yes. It runs on 110V, 60 Hz, single phase with a 30 amp requirement. Have a licensed electrician confirm the circuit.

The lift, a 7,000 lb rolling jack, three drip trays, one lift tray and approach ramps.

Yes. The single-point pneumatic safety lock release connects to shop air through the supplied filter regulator. The required air pressure is not specified, so confirm it with Garage Lift Depot.

The runways rise to 84.5 in, and the posts stand 94.88 in (2410 mm) tall.

Yes. The space between runways is 950 mm (37.4 in) at the standard setting and ranges from 34.3 in to 41.3 in.

The concrete must be rated at 3000 PSI, and the lift anchors with 16 expansion bolts. Confirm the required slab thickness with Garage Lift Depot before installation.
