Katool KT-4H120X 12,000 lb 4-Post Alignment Lift with Rolling Jack

by Katool
Original price $4,500.00 - Original price $4,500.00
Original price
$4,500.00
$4,500.00 - $4,500.00
Current price $4,500.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

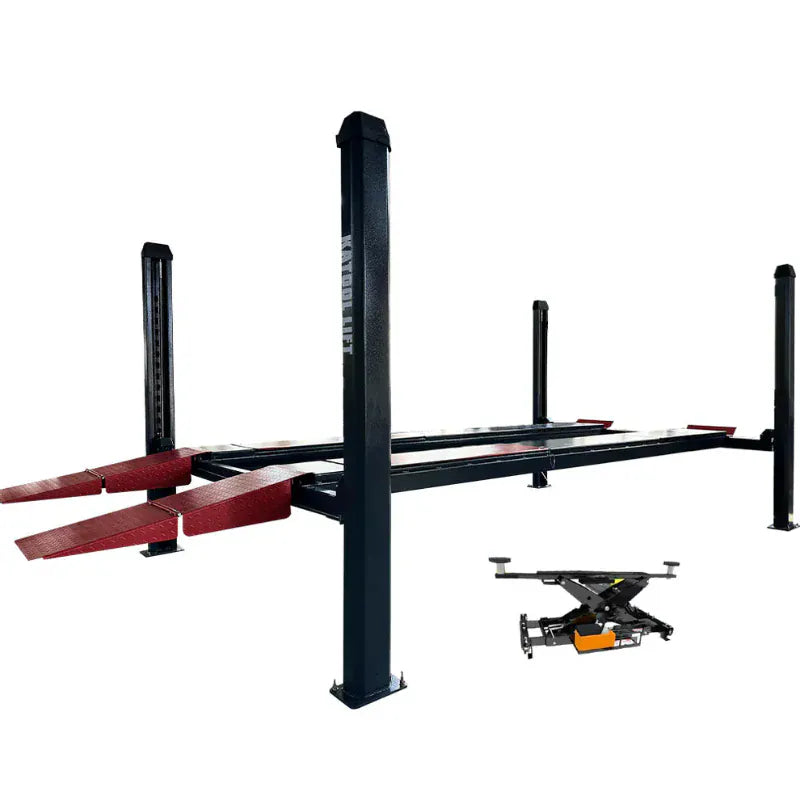

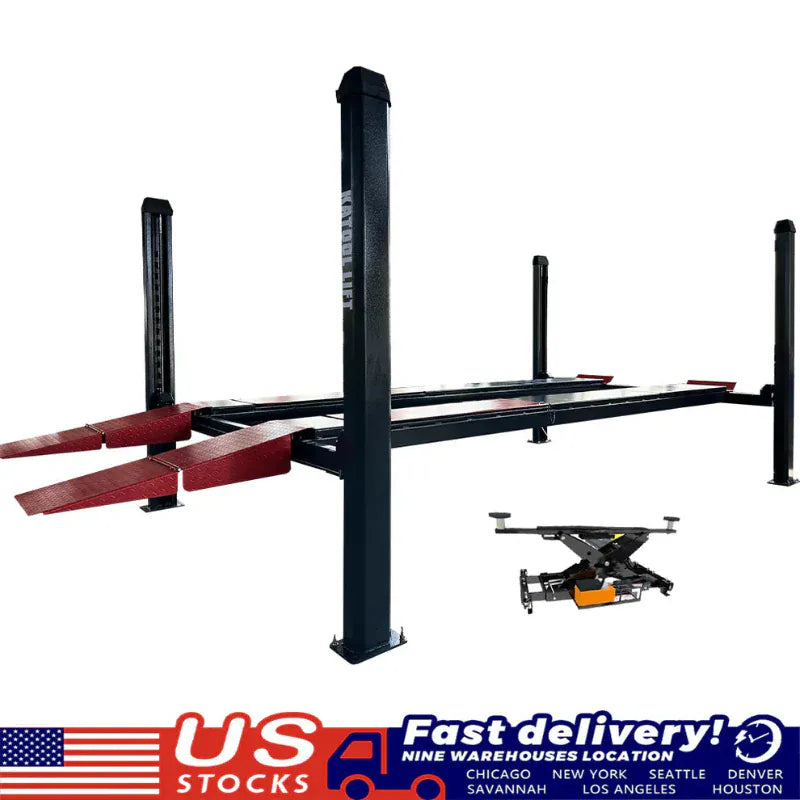

The Katool KT-4H120X is a 12,000 lb four-post alignment lift with crossbeams, supplied with one KT-RJ70 rolling jack. It raises to a maximum of 86.9 in (2208 mm), measures 135.2 in (3435 mm) wide and 258 in (6553 mm) long with ramps, and runs on 220V single-phase power with a 30 amp requirement.

Shipping information

A forklift is required on site; lifts are too heavy for liftgate delivery.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Rated capacity
12,000 lbs (5443 kg)
Power
220V, single phase
Overall height
94.88 in (2410 mm)
Overall width
135.2 in (3435 mm)
Overall length
258 in (6553 mm) with ramps

Why Choose the Katool KT-4H120X

  • Rated for 12,000 lbs

    The runways carry vehicles up to a rated 12,000 lbs (5443 kg).

  • Rolling jack included

    One KT-RJ70 rolling jack comes with the lift, so wheels can be raised off the runways for brake, tire and suspension work.

  • Maximum lifting height

    The runways rise to 86.9 in (2208 mm) for work under the vehicle.

  • Locks on all four posts

    Mechanical safety locks engage on four safety ladders across a lock range of 450 mm to 2196 mm.

  • Single-phase 220V power

    A 2.2 kW power unit runs on 220V single phase with a 30 amp requirement.

  • Known cycle times

    The lift raises in 83 seconds or less and lowers in no less than 40 seconds.

Product Overview

Four-Post Alignment Design

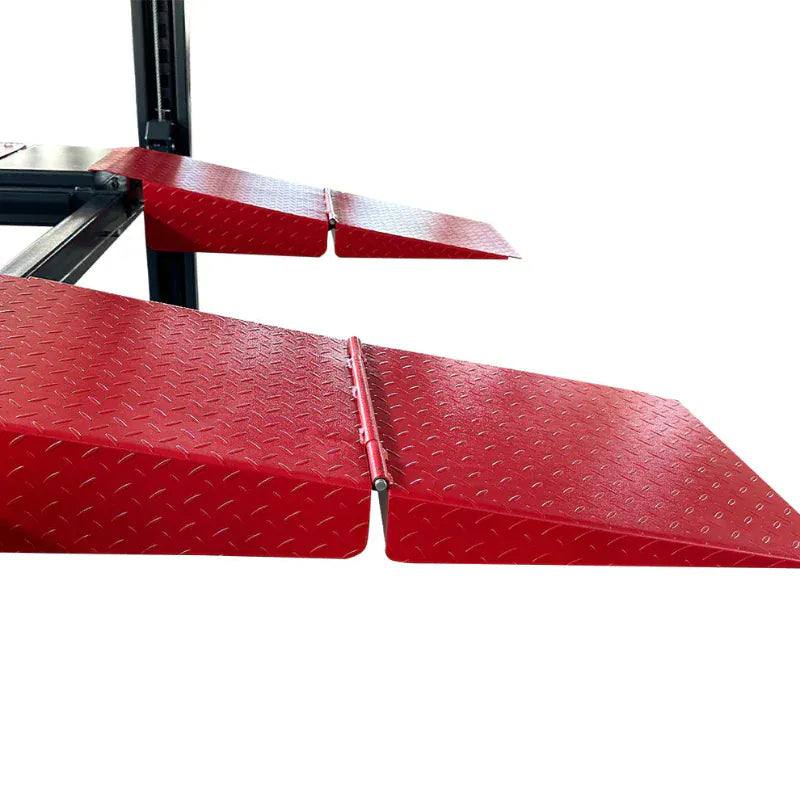

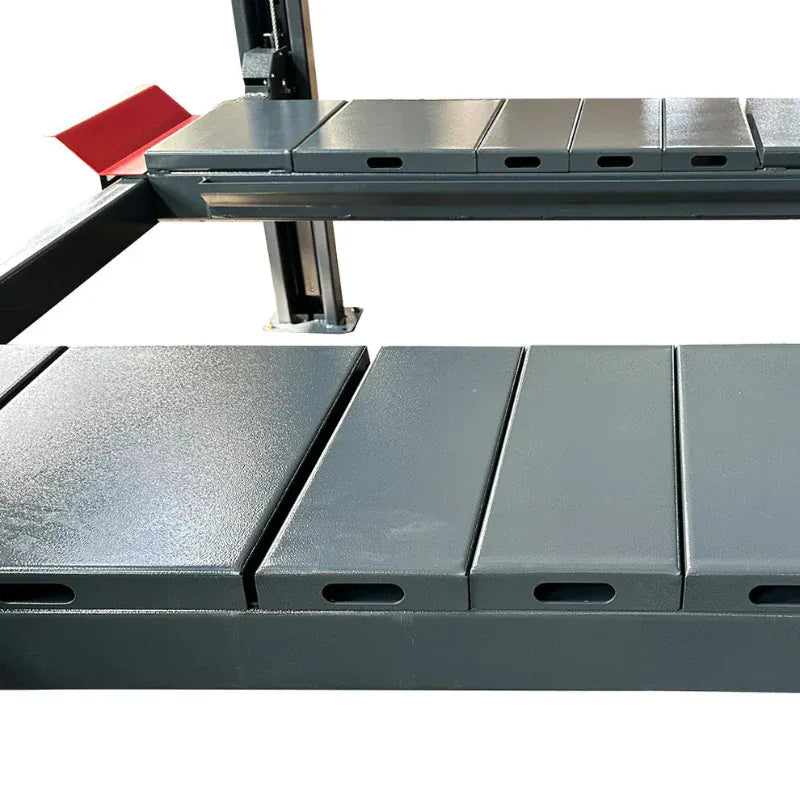

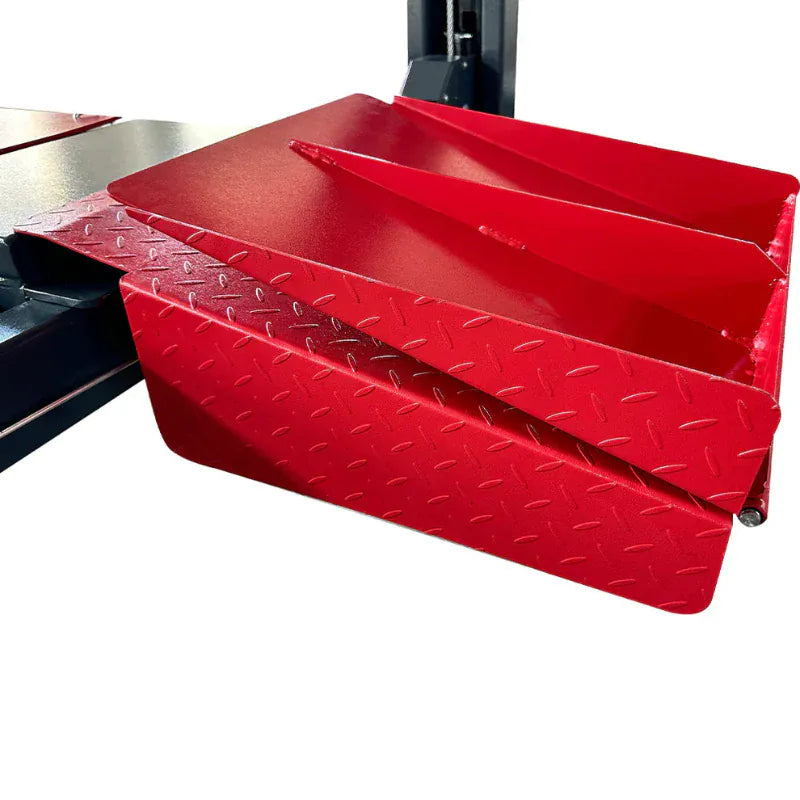

The KT-4H120X is a four-post lift with crossbeams that carry two drive-on runways, set up as an alignment lift with a rolling jack. Each runway is 20 in wide with 37 in between runways, and the vehicle drives on over the ramps at the entry end.

Capacity and Footprint

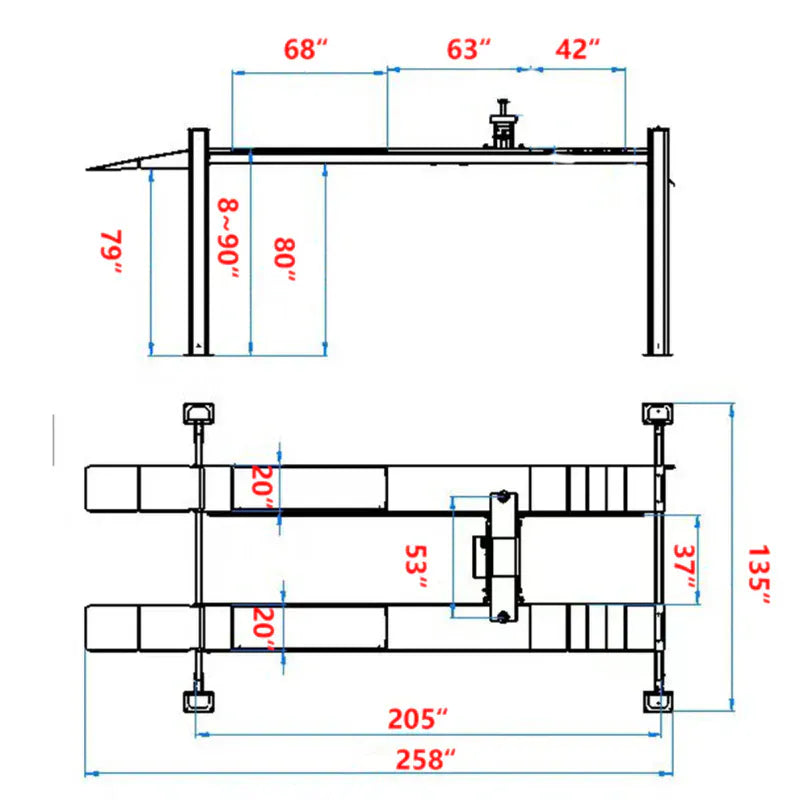

The lift is rated for 12,000 lbs (5443 kg). Width between columns is 112.81 in (2865 mm), overall width is 135.2 in (3435 mm) and overall length is 258 in (6553 mm) with ramps. The posts stand 94.88 in (2410 mm) tall, which is the figure to compare against your ceiling and any door track before ordering.

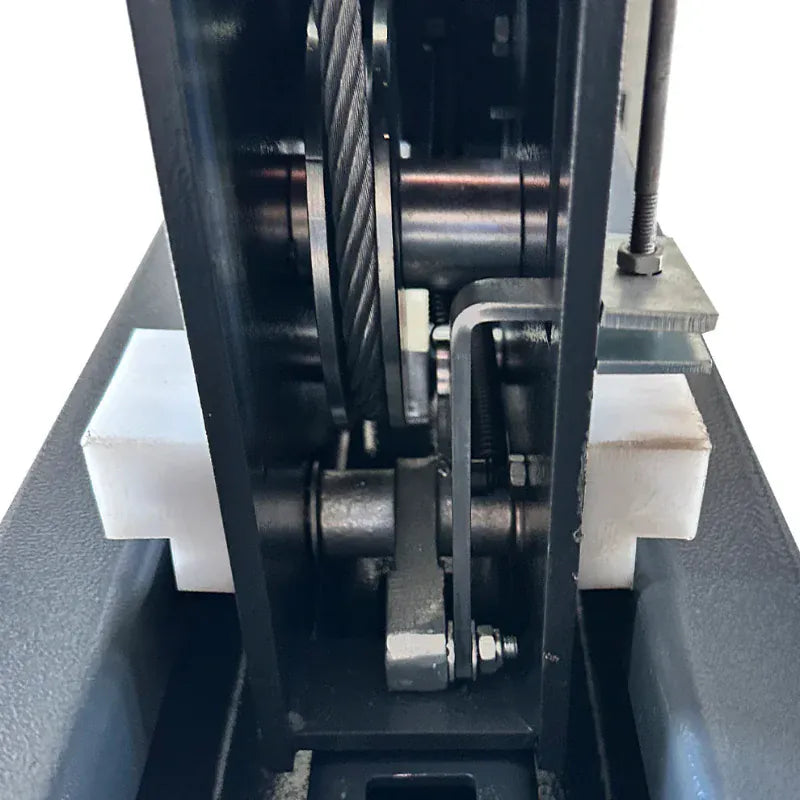

Locks and Lifting

Mechanical safety locks on four safety ladders hold the runways at working height, with a lock range of 450 mm to 2196 mm. Raising takes 83 seconds or less and lowering takes 40 seconds or more. Confirm the lock release system supplied with this lift with Garage Lift Depot before ordering.

Power and Site

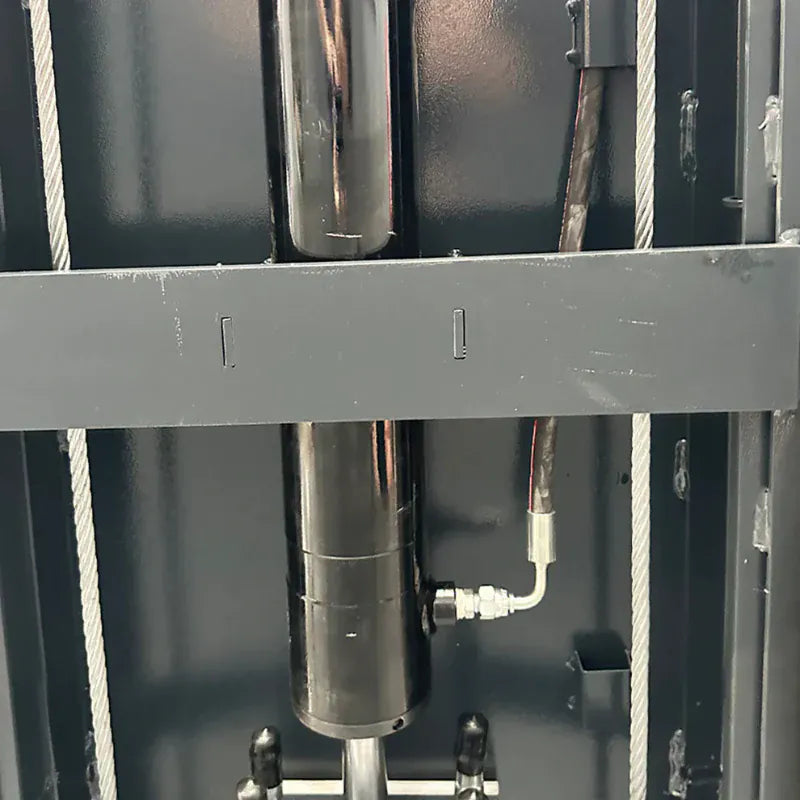

The 2.2 kW power unit runs on 220V single phase and needs a 30 amp supply. The hydraulic system uses N32 or N46 oil, with an oil capacity of 10 L. The lift anchors with 16 expansion bolts into 3000 PSI concrete; confirm the slab thickness with Garage Lift Depot before installation.

Specifications

SpecificationValue
ModelKT-4H120X
Lift typeFour-post alignment lift with crossbeams
Rated capacity12,000 lbs (5443 kg)
Maximum lifting height86.9 in (2208 mm)
Overall height94.88 in (2410 mm)
Overall width135.2 in (3435 mm)
Overall length258 in (6553 mm) with ramps
Width between columns112.81 in (2865 mm)
Runway width20 in each; 37 in between runways
Lifting time83 seconds or less
Lowering time40 seconds or more
Safety locksMechanical locks on four safety ladders; lock range 450–2196 mm
Power220V, single phase
Motor2.2 kW
Amperage30 amp
Hydraulic oilN32 or N46; 10 L capacity
Concrete requirement3000 PSI; confirm thickness with Garage Lift Depot
Net weight3373 lbs (1530 kg)

What's Included

  • Lift structure with runways, ramps and power unit
  • 220V pump
  • One KT-RJ70 rolling jack
  • 16 expansion bolts

Optional: a second rolling jack; emergency hand pump.

Best For

  • Repair shops that want an alignment-style four-post lift with a rolling jack for wheels-free work
  • Fleet and dealership bays servicing cars, SUVs and pickups within a 12,000 lb rating
  • Home garages with the floor area, ceiling height and 220V circuit to suit a full-size four-post lift

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Concrete
Confirm the concrete requirement for this lift with Garage Lift Depot before installation. The concrete must be rated at 3000 PSI.
Anchoring
16 expansion bolts, drilled with a 19 mm bit.
Bay
Column layout dimensions are 5012 mm (197 in), 3429 mm (135 in) and 6071 mm (239 in); use the layout drawing in the installation manual supplied with the lift to mark the floor.
Height
Posts stand 94.88 in (2410 mm); measure your ceiling to the lowest obstruction before ordering.
Electrical
220V, single phase; 2.2 kW motor.
Electrical
Amperage requirement: 30 amp. Have a licensed electrician run and confirm the circuit.
Hydraulic
Hydraulic oil: N32 or N46; oil capacity 10 L.

Warranty

Katool covers this lift with a 1-year warranty on all parts and a 3-year warranty on structural components. Labor is not included. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

Yes. One KT-RJ70 rolling jack comes with the lift. A second rolling jack is available as an option.

It runs on 220V single phase with a 2.2 kW motor and a 30 amp requirement. Have a licensed electrician confirm the circuit before installation.

Maximum lifting height is 86.9 in (2208 mm), and the posts stand 94.88 in (2410 mm) tall.

Overall width is 135.2 in (3435 mm) and width between columns is 112.81 in (2865 mm). Overall length is 258 in (6553 mm) with ramps.

The concrete must be rated at 3000 PSI, and the lift anchors with 16 expansion bolts. Confirm the required slab thickness with Garage Lift Depot before installation.

N32 or N46 hydraulic oil, with an oil capacity of 10 L.
