Katool KT-4H150 15,000 lb 4-Post Alignment Lift with Rolling Jack

by Katool
Original price $5,700.00 - Original price $5,700.00
Original price
$5,700.00
$5,700.00 - $5,700.00
Current price $5,700.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

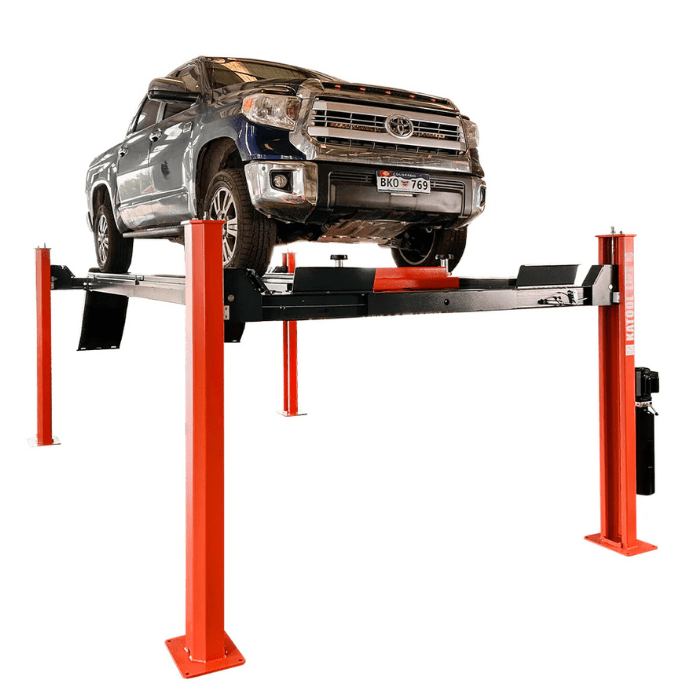

The Katool KT-4H150 is a 15,000 lb extended four-post alignment lift that comes with a 6,000 lb rolling jack. It raises to approx. 76 in, has 118 in (3000 mm) between columns and 136 in (3456 mm) overall width, and runs on a 3 kW, 220 V/60 Hz/1 PH power unit.

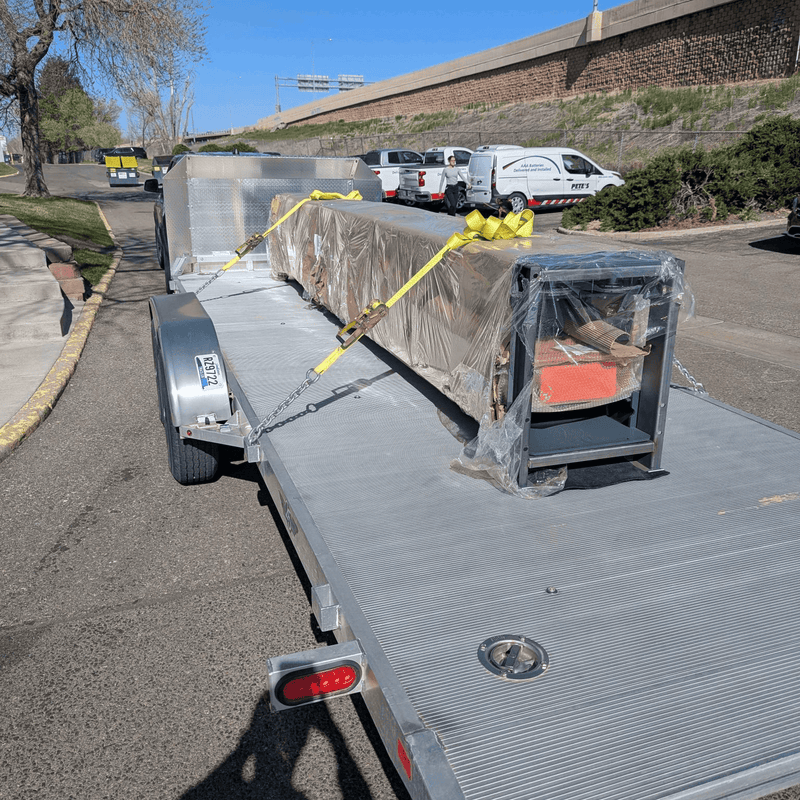

Shipping information

A forklift is required on site; lifts are too heavy for liftgate delivery.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Rated capacity
15,000 lbs (6804 kg)
Power
3 kW, 220 V/60 Hz/1 PH
Overall width
136 in (3456 mm)
Overall length
Approx. 245.31 in (6231 mm) with ramps
Maximum lifting height
Approx. 76 in

Why Choose the Katool KT-4H150

  • Rated for 15,000 lbs

    The runways carry vehicles up to a rated 15,000 lbs (6804 kg).

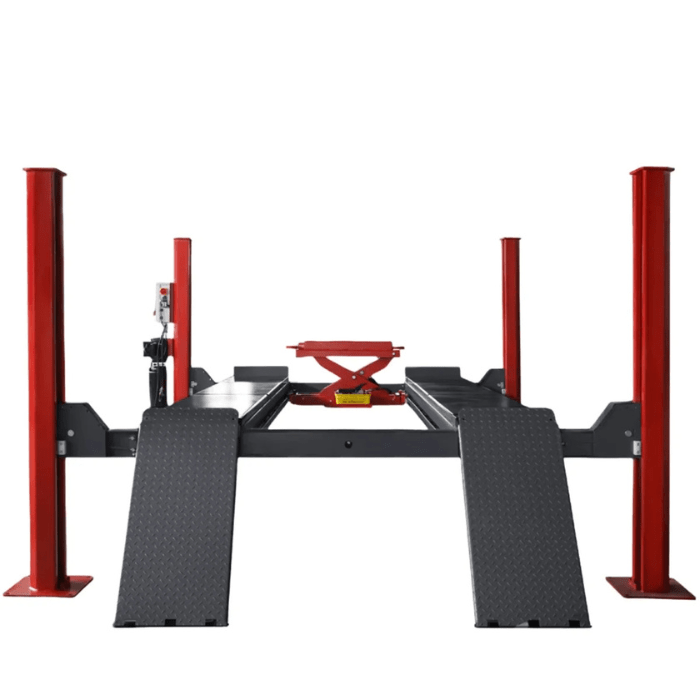

  • Rolling jack included

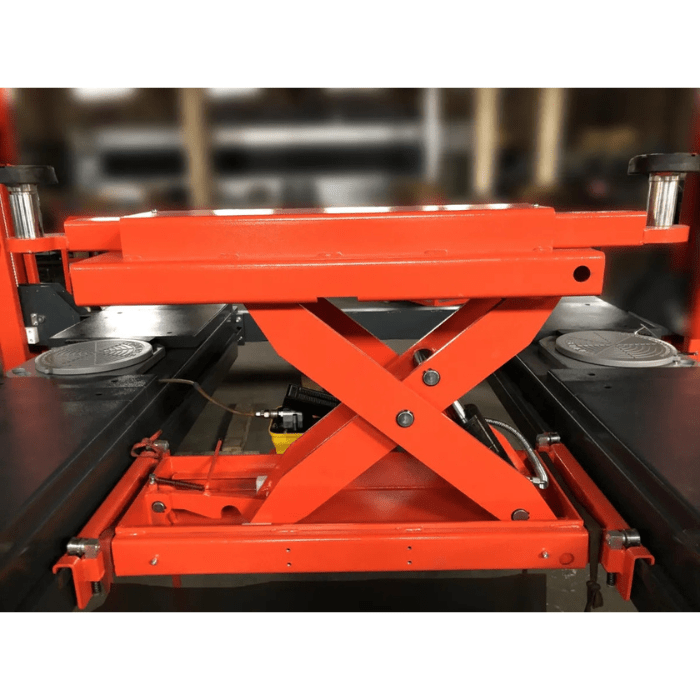

    A 6,000 lb rolling jack comes with the lift for raising wheels off the runways.

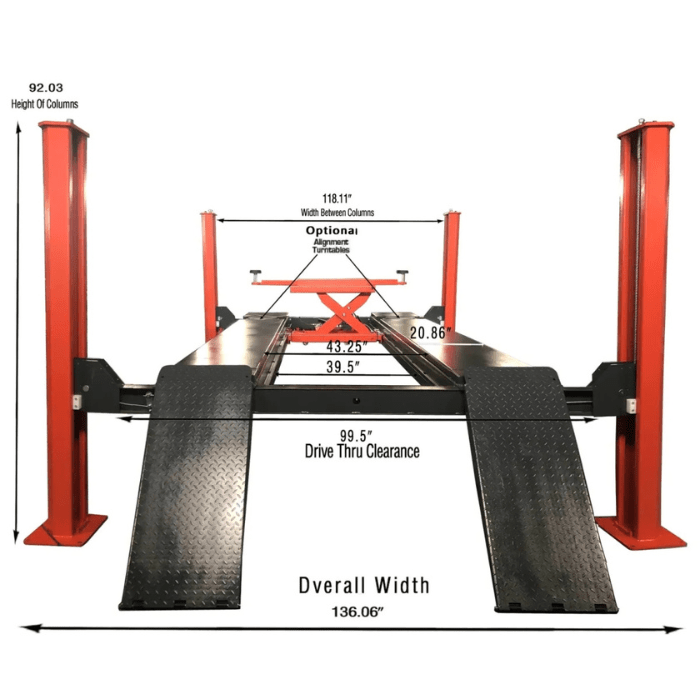

  • Wide column spacing

    Width between columns is 118 in (3000 mm) for wider vehicles.

  • Single-point lock release

    A single-point manual safety lock release frees all locks from one position.

  • Continuous safety locks

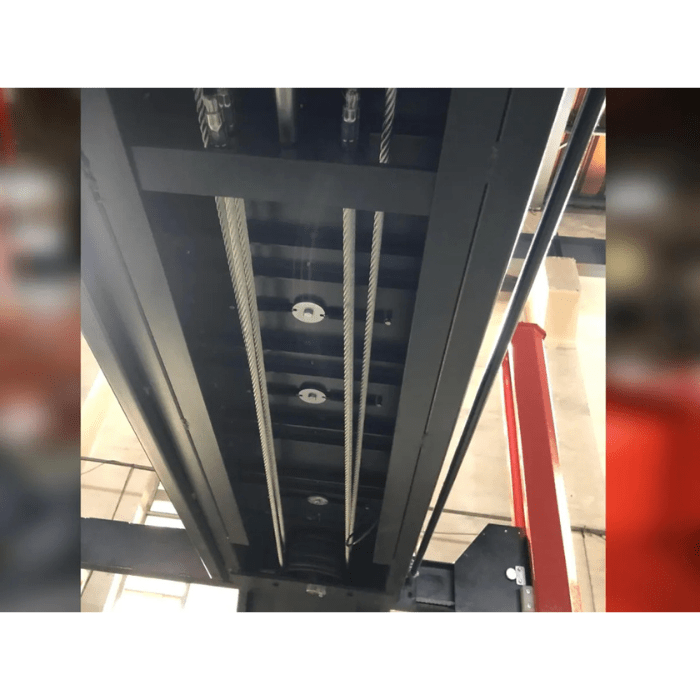

    Spring-loaded safety locks engage as the lift rises, backed by a secondary slack-cable lock.

  • Single-phase 220 V power

    The 3 kW power unit runs on 220 V/60 Hz/1 PH.

Product Overview

Extended Four-Post Alignment Design

The KT-4H150 is an extended four-post alignment lift with crossbeams and a rolling jack that works as a secondary lift. Each runway is 550 mm (21.65 in) wide. Overall length is approx. 245.31 in (6231 mm) with ramps.

Capacity and Vehicle Fit

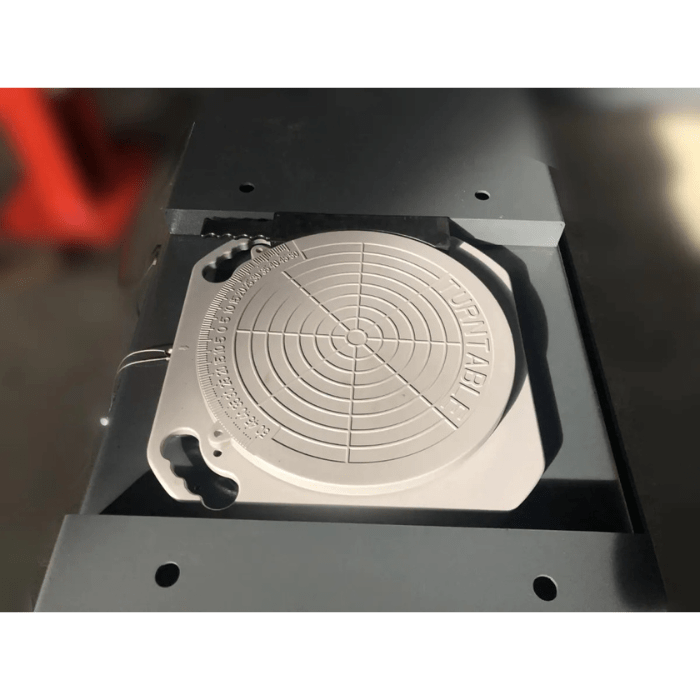

The lift is rated for 15,000 lbs (6804 kg). With 118 in (3000 mm) between columns and 136 in (3456 mm) overall width, it suits larger pickups and vans within the rating. The runways lower to approx. 9.3 in (236 mm) and rise to approx. 76 in. Alignment turntables are sold separately.

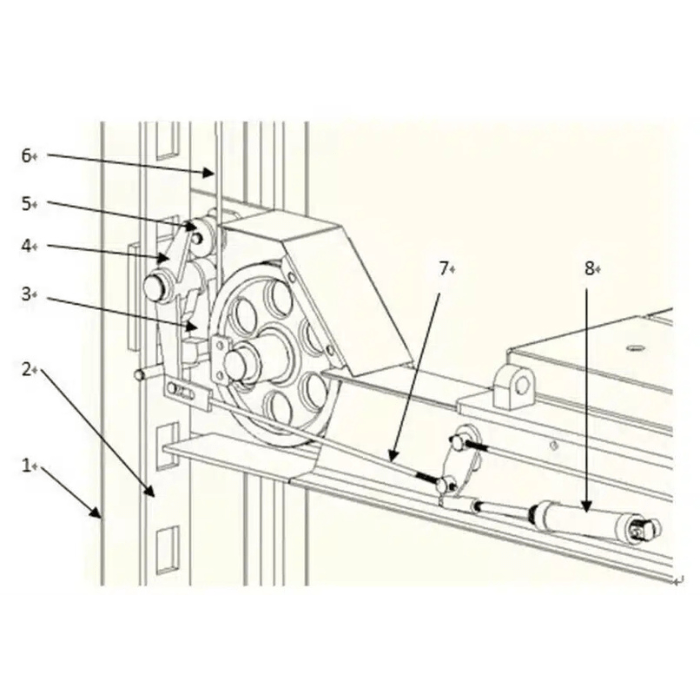

Locks and Controls

Spring-loaded safety locks engage continuously as the lift rises and hold at multiple height positions across a lock range of 450 mm to 1961 mm. A secondary slack-cable lock adds a second layer of protection. The locks release through a single-point manual safety lock release. Raising takes 60 seconds or less and lowering takes 55 seconds or more.

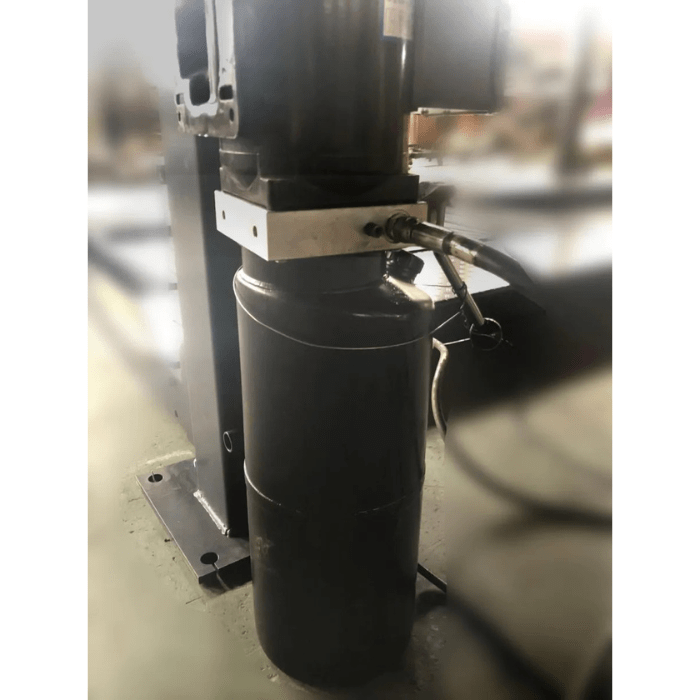

Power and Site

The 3 kW power unit runs on 220 V/60 Hz/1 PH and needs a 30 amp supply. Hydraulic oil is N32 or N46, with an oil capacity of 10 L. The lift is anchored to 3000 PSI concrete; confirm the concrete requirement with Garage Lift Depot before installation.

Specifications

SpecificationValue
ModelKT-4H150
Lift typeExtended four-post alignment lift with crossbeams
Rated capacity15,000 lbs (6804 kg)
Maximum lifting heightApprox. 76 in
Minimum heightApprox. 9.3 in (236 mm)
Overall width136 in (3456 mm)
Overall lengthApprox. 245.31 in (6231 mm) with ramps
Width between columns118 in (3000 mm)
Runway width550 mm (21.65 in)
Lifting time60 seconds or less
Lowering time55 seconds or more
Safety locksSpring-loaded, continuous engagement; secondary slack-cable lock; lock range 450–1961 mm
Lock releaseSingle-point manual safety lock release
Power3 kW, 220 V/60 Hz/1 PH
Amperage30 amp
Hydraulic oilN32 or N46; 10 L capacity
Rolling jack capacity6,000 lbs
Net weight4850 lbs (2200 kg)

What's Included

  • One 6,000 lb rolling jack
  • 220V/60Hz/1PH pump
  • Electric control box
  • 2 vehicle ramps
  • Pneumatic lines and hydraulic lines

Optional: alignment turntables (sold separately); a second rolling jack; KT-150PL replacement 220V pump.

Best For

  • Shops aligning and servicing larger pickups, vans and SUVs within a 15,000 lb rating
  • Fleet bays that want a rolling jack on the lift for wheel and brake work
  • Buyers with a 220 V single-phase circuit and room for a 136 in wide lift

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Concrete
Confirm the concrete requirement for this lift with Garage Lift Depot before installation. The concrete must be rated at 3000 PSI.
Anchoring
The lift is anchored to the floor; holes are drilled with a 19 mm bit.

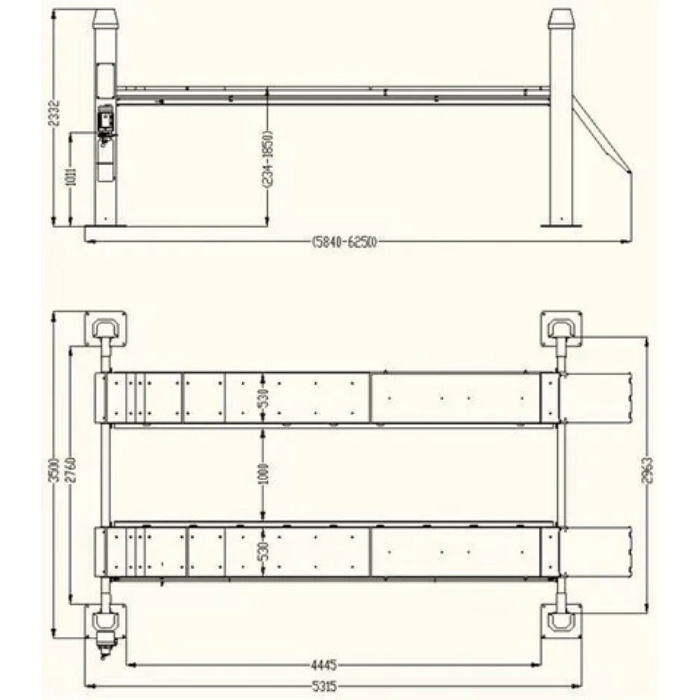

Bay
Allow at least 2000 mm from the lift to the side wall and at least 1000 mm at the front. Column layout dimensions are 5778 mm, 3456 mm and 6733 mm.
Ceiling
A ceiling height is not specified for this model; the installation manual supplied with the lift gives a formula based on the vehicle height and the lift height. Confirm the post height with Garage Lift Depot before ordering.
Air supply
Confirm whether this lift and its rolling jack need an air supply with Garage Lift Depot before installation.
Electrical
3 kW, 220 V/60 Hz/1 PH. This lift works only with the 220V power unit.
Electrical
Amperage requirement: 30 amp. Have a licensed electrician run and confirm the circuit.
Hydraulic
Hydraulic oil: N32 or N46; oil capacity 10 L.

Warranty

Katool covers this lift with a 1-year warranty on all parts and a 3-year warranty on structural components. Labor is not included. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

Yes. One 6,000 lb rolling jack is included. A second rolling jack is available as an option.

It runs on a 3 kW, 220 V/60 Hz/1 PH power unit with a 30 amp requirement. It works only with the 220V power unit. Have a licensed electrician confirm the circuit.

Through a single-point manual safety lock release. The spring-loaded locks engage continuously as the lift rises, and a secondary slack-cable lock is fitted.

Overall width is 136 in (3456 mm) and overall length is approx. 245.31 in (6231 mm) with ramps. Allow at least 2000 mm to the side wall and at least 1000 mm at the front.

A ceiling height is not specified for this model. The installation manual supplied with the lift gives a formula based on vehicle height and lift height, and Garage Lift Depot can confirm the post height before you order.

No. Alignment turntables are sold separately.
