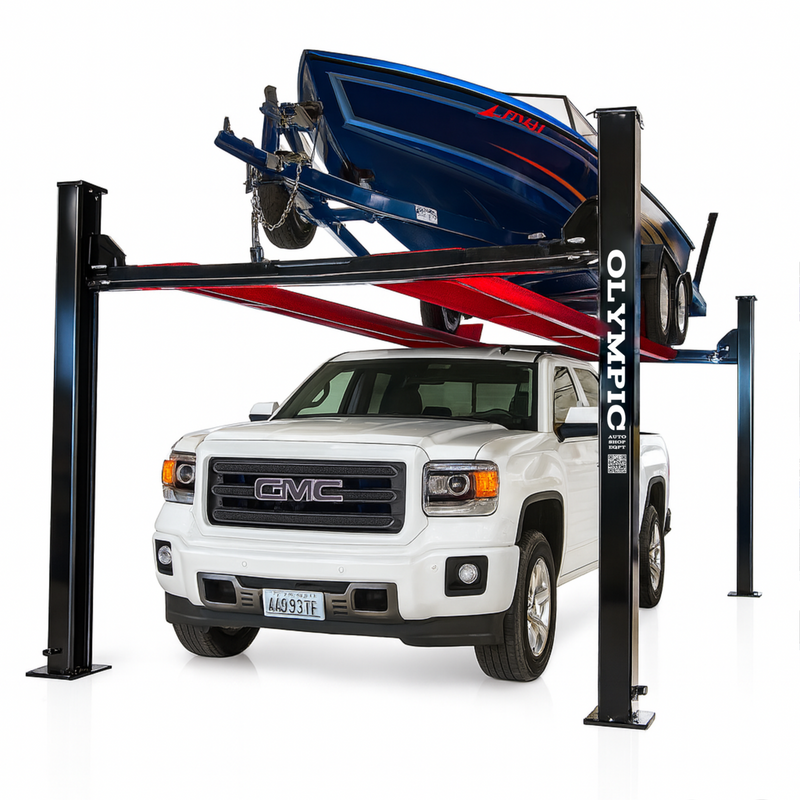

Olympic HDMBL-10 “The Skipper” 10,000 lb Portable Boat & Trailer Lift – Extra-Wide 4-Post Storage Lift with Adjustable Runway
Specifications
The Olympic HDMBL-10 “The Skipper” is a heavy-duty 10,000 lb portable 4-post boat and trailer storage lift designed for large trailers, pickups, trucks, and oversized recreational equipment. Its extra-wide, extra-long configuration provides the clearance and working space needed for demanding storage applications.
With a 112″ drive-through width, 125″ between posts, 195″ runways, and up to 84.02″ of clearance under the tracks, The Skipper is built to accommodate large equipment while helping maximize usable garage, workshop, or storage space.

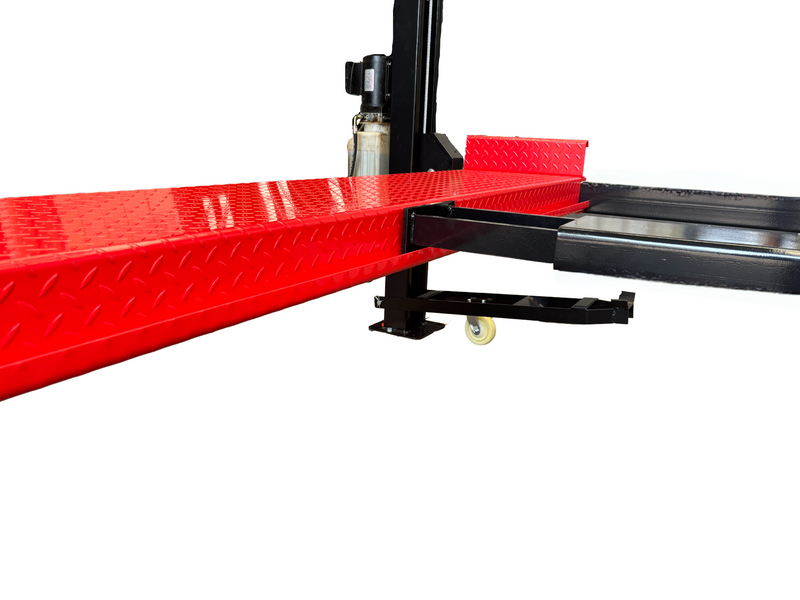

The adjustable runway configuration provides flexibility for different trailer widths, while the included adjustable-width trailer hitch wheel rest helps support trailer positioning.
KEY FEATURES
- 10,000 lb rated lifting capacity

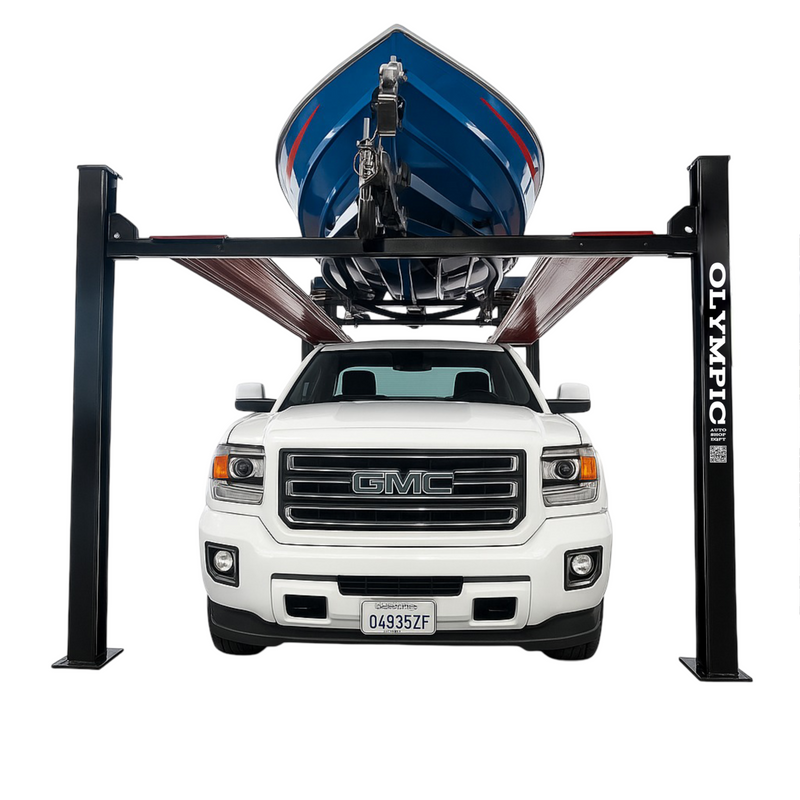

- Portable 4-post boat and trailer lift design

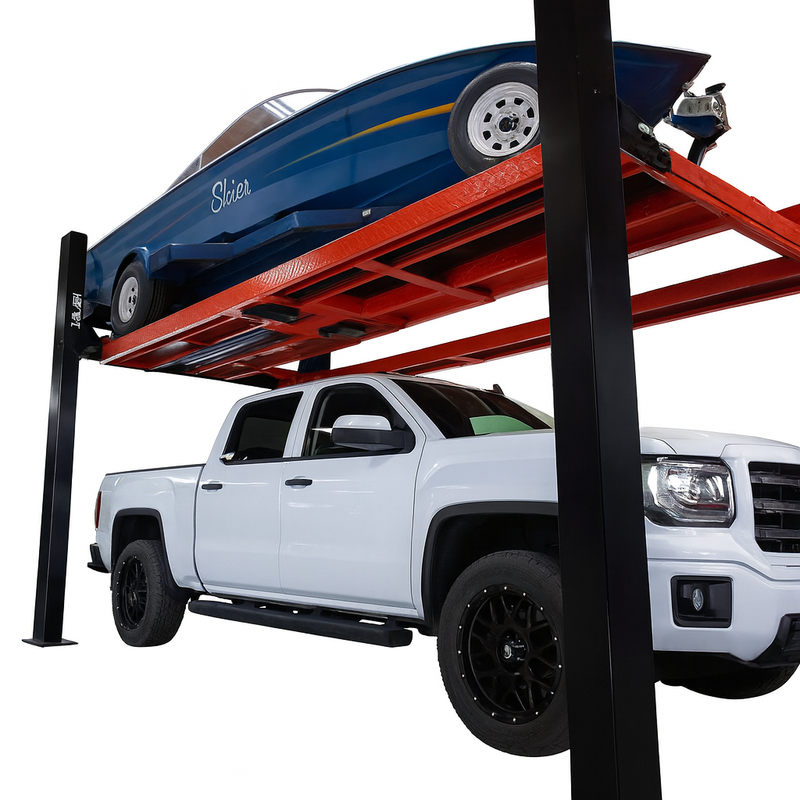

- 112″ drive-through width
- 125″ width between posts
- Up to 84.02″ maximum clearance under tracks
- 195″ extra-long runways
- Adjustable runway spacing from 46″
- 20″ runway width
- 19 ladder locking positions

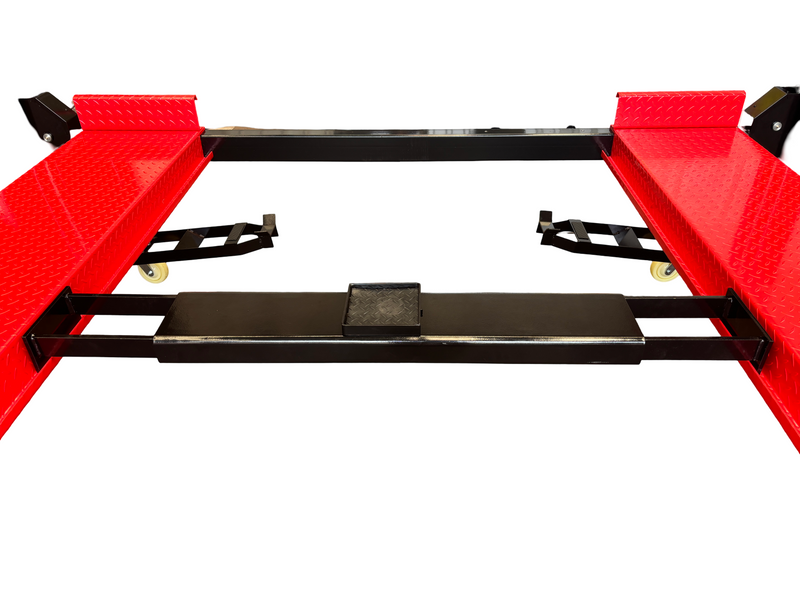

- Adjustable-width trailer hitch wheel rest
- Portable drive-through configuration
- Q235 structural steel construction
- Durable powder-coated finish

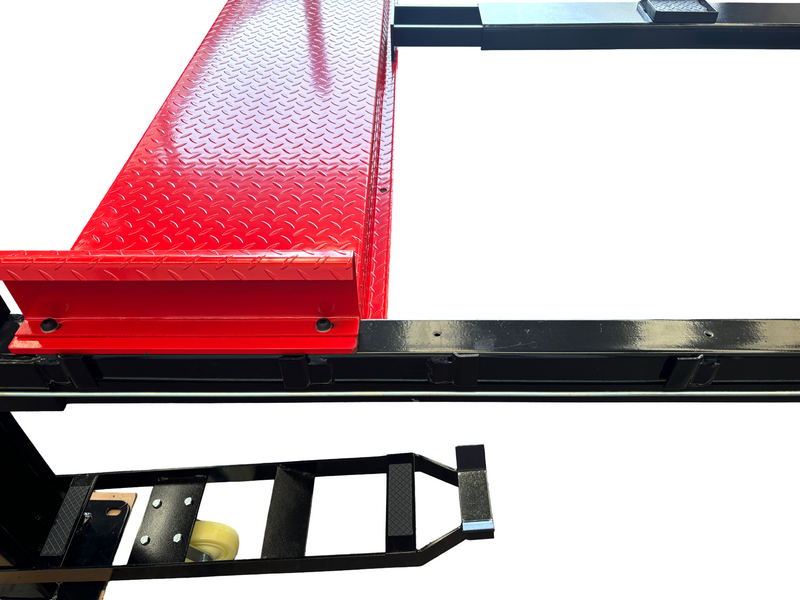

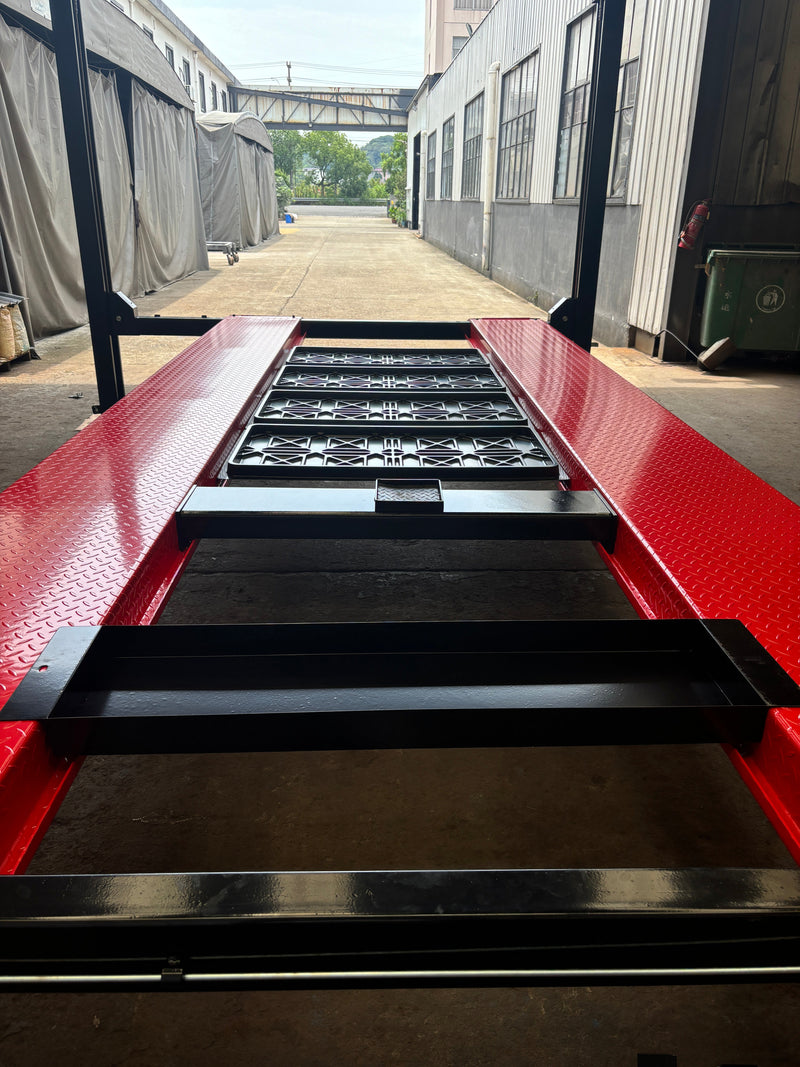

- Removable ramps and removable stops
- Drip trays included
- 110V / 220V power options
- 110V 2.2KW 60Hz 1Ph power unit included
- Optional aluminum ramps
- Optional tool tray

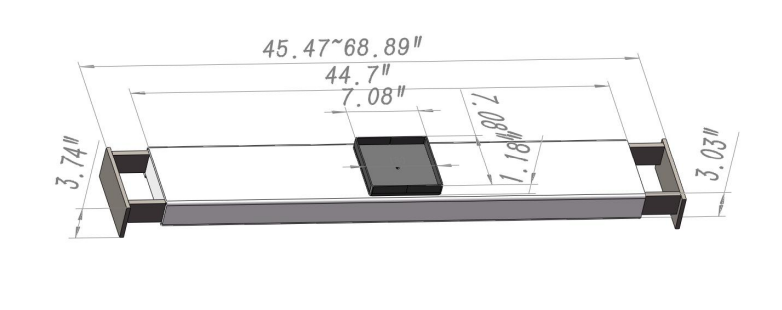

- Optional 1,000 lb aluminum center platforms

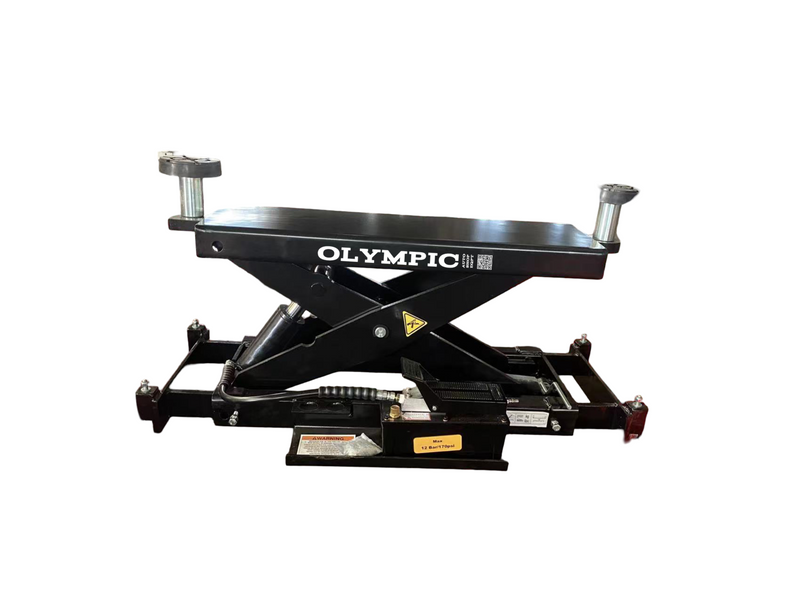

- Optional 7,000 lb bridge jack
- 10-year limited structural warranty

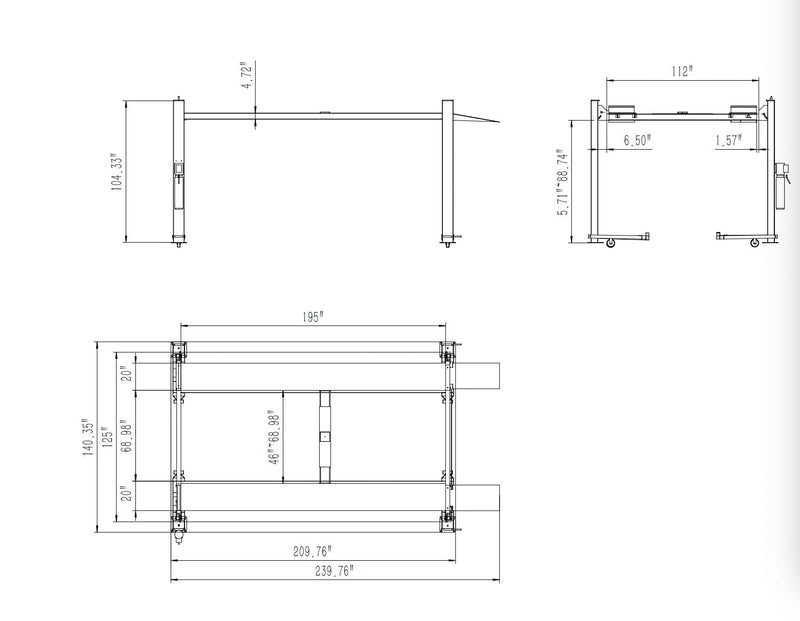

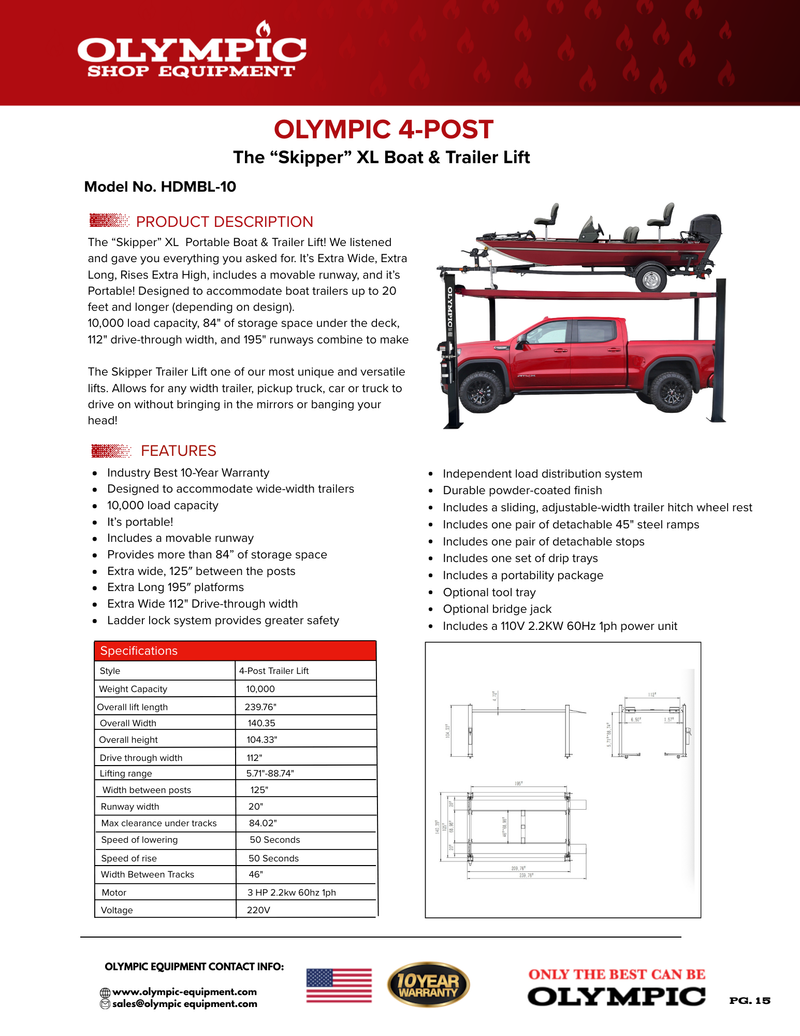

SPECIFICATIONS
| Specification | Details |
|---|---|
| Model | Olympic HDMBL-10 “The Skipper” |
| Lift Style | 4-Post Boat & Trailer Lift |
| Capacity | 10,000 lbs |
| Overall Lift Length | 239.76″ |
| Overall Width | 140.35″ |
| Overall Height | 104.33″ |
| Drive-Through Width | 112″ |
| Lifting Range | 5.71″ – 88.74″ |
| Width Between Posts | 125″ |
| Runway Width | 20″ |
| Runway Length | 195″ |
| Maximum Clearance Under Tracks | 84.02″ |
| Width Between Tracks | 46″ |
| Rise Speed | 50 seconds |
| Lowering Speed | 50 seconds |
| Voltage | 110V / 220V |
| Power Unit | 110V 2.2KW 60Hz 1Ph; 220V option |
| Locking Positions | 19 |
| Steel | Q235 structural steel |
| Warranty | 10-year limited structural warranty |
BENEFITS
High 10,000 lb Capacity
The Skipper provides a 10,000 lb lifting capacity for large trailers, pickups, trucks, boats, and other compatible equipment.

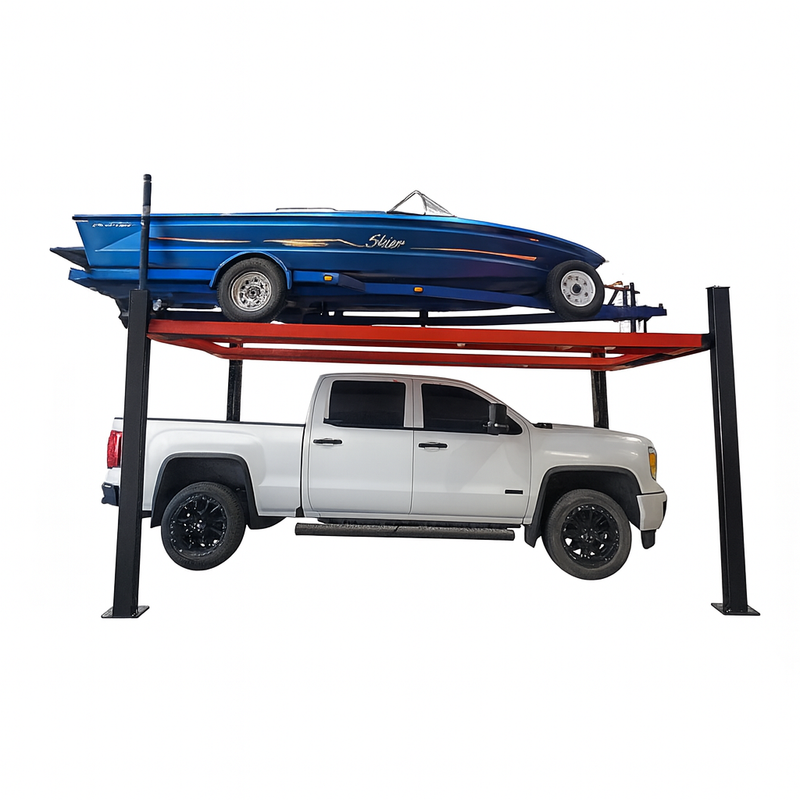

Extra-Wide Configuration
The 112″ drive-through width and 125″ space between posts make this lift suitable for oversized trailers and wide vehicles where standard lifting equipment may not provide enough clearance.

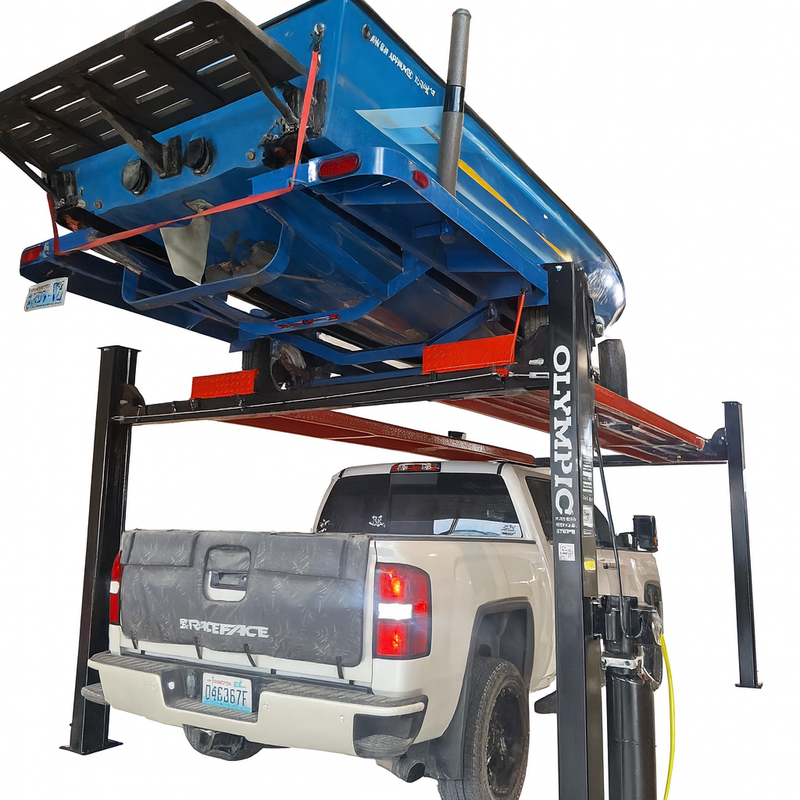

High Under-Track Clearance
With up to 84.02″ of clearance under the tracks, the lift creates substantial vertical storage space for equipment and vehicles.
Adjustable Trailer Support
The adjustable runway configuration and trailer hitch wheel rest provide greater flexibility when positioning trailers with different widths.

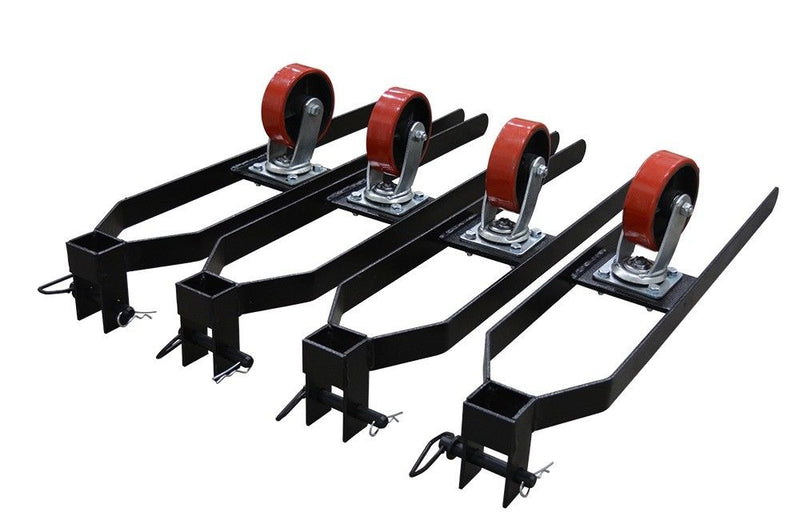

Portable Design
The portable 4-post configuration allows the lift to be used as a flexible storage solution where mobility is required.
Built for Heavy-Duty Applications
Q235 structural steel, 19 locking positions, heavy-duty cables, and a durable powder-coated finish provide a robust configuration for professional storage and lifting applications.
IDEAL FOR
- Boat and trailer storage
- Large trailer storage
- Pickup truck storage
- Truck and service vehicle storage
- Commercial garages
- Automotive workshops
- Professional service facilities
- Equipment storage areas
- Recreational vehicle storage applications
- Customers needing extra-wide and extra-long lifting equipment
WHY CHOOSE THIS PRODUCT
The Olympic HDMBL-10 “The Skipper” combines high lifting capacity, wide vehicle access, long runways, substantial under-track clearance, and portable functionality in one heavy-duty trailer storage lift.
Its 10,000 lb capacity and extra-wide 4-post configuration make it particularly suited to large trailers, pickups, trucks, boats, and professional storage environments where additional width and clearance are important.
Olympic states that this model is load-tested at 150% of rated capacity. Buyers should review current model-specific certification and test documentation, along with the exact product drawing, identification plate, installation requirements, and written warranty before installation or operation.
Upgrade your storage setup with the Olympic HDMBL-10 “The Skipper” 10,000 lb Portable Boat & Trailer Storage Lift. With its extra-wide design, 195″ runways, 84.02″ maximum under-track clearance, adjustable runway configuration, and trailer hitch wheel rest, it is built for demanding large-trailer storage applications.
Review the specifications and installation requirements for your exact lift configuration before purchase and installation.
