Olympic 4PC-6 Little Buddy 6,000 lb Compact 4-Post Storage Lift

Original price $4,228.00 - Original price $4,228.00
Original price
$4,228.00
$4,228.00 - $4,228.00
Current price $4,228.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

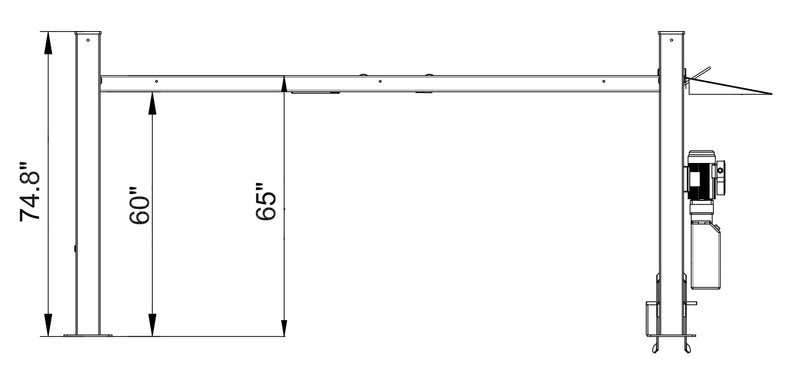

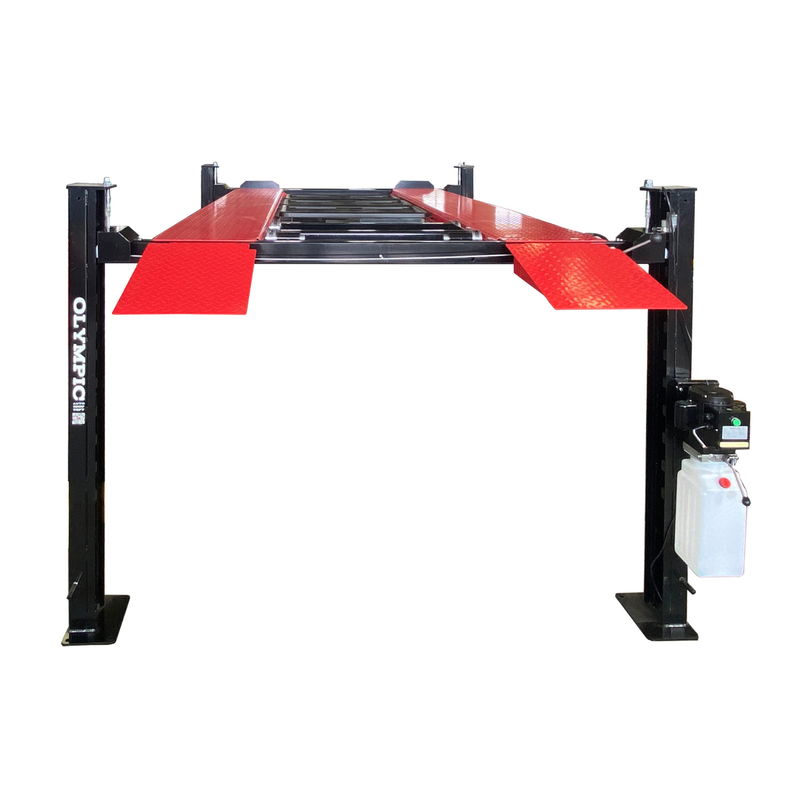

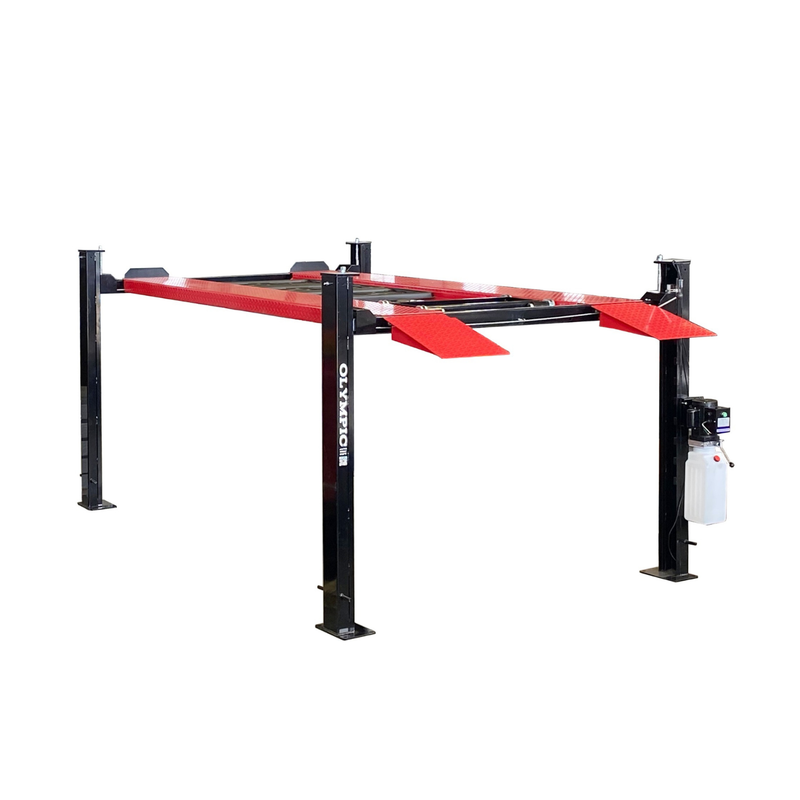

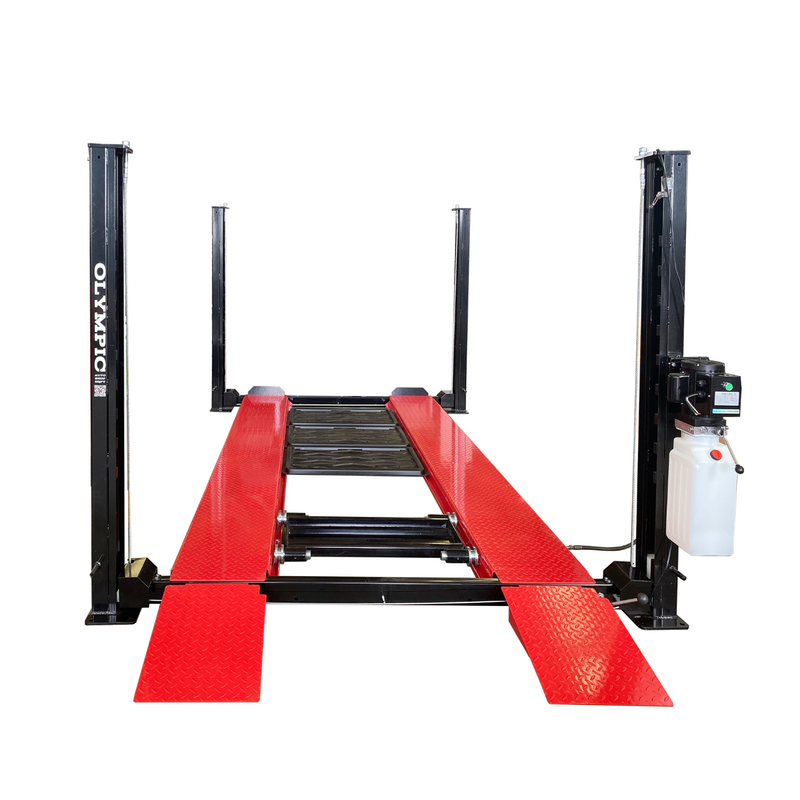

The Olympic 4PC-6 Little Buddy is a 6,000 lb compact four-post lift for storing a car in a shorter bay. It is 173.4" long and 74.8" tall, gives up to 60" of clearance under the runways, and runs on an included 110V power unit.

Shipping information

A forklift is required on site.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Rated capacity
6,000 lbs
Overall height
74.8"
Overall width
96.57"
Overall length
173.4"

Why Choose the Olympic 4PC-6

  • Compact footprint

    The lift measures 173.4" long × 96.57" wide × 74.8" tall.

  • Clearance under the runways

    The lift offers up to 60" clearance under the runways for parking a low car underneath.

  • Low-profile runways

    The low-profile runways suit sports cars and lowered vehicles.

  • Power unit options

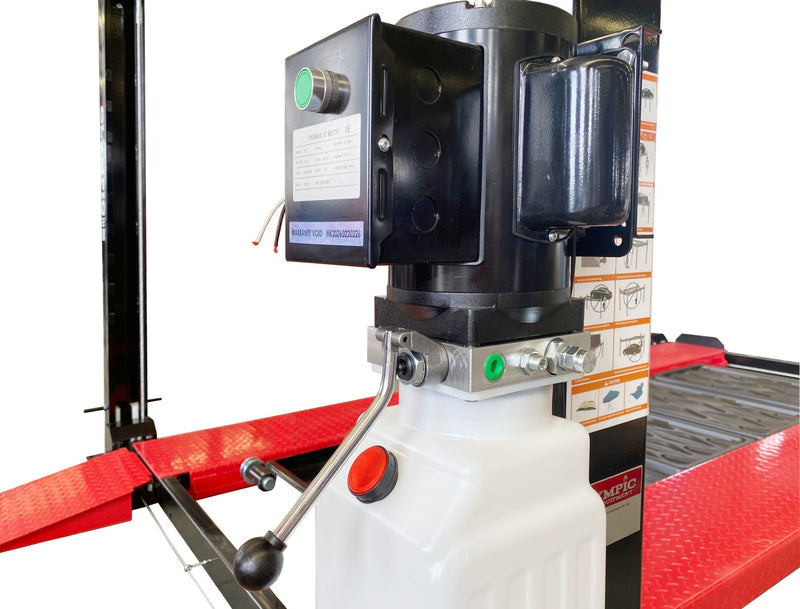

    A 110V, 2.2 kW power unit is included, with 220V 3 kW or 4 kW units offered as options.

  • Single-lock system

    The lift uses a single-lock system with manual release.

  • Accessories included

    Three drip trays, removable steel ramps and stops come with the lift.

Product Overview

A Four-Post Lift Sized for Smaller Garages

At 173.4" long and 74.8" tall, the 4PC-6 is built for shorter bays. The runways are 145" long and 16.7" wide, with 76.77" of drive-through width.

Storage for Low Cars

The runways sit low for sports cars and lowered vehicles, and the lift gives up to 60" of clearance underneath. That suits stacking a low car under another low car.

Simple Operation

The 4PC-6 uses a single-lock system with a manual release. The hydraulic system holds 12 L of oil, and the lift itself needs no shop air. The lift is load-tested at 150% of its rated capacity.

Portable with an Optional Caster Kit

The 4PC-6 is a drive-through design. Casters are not standard; a caster wheel portability package is available as an option.

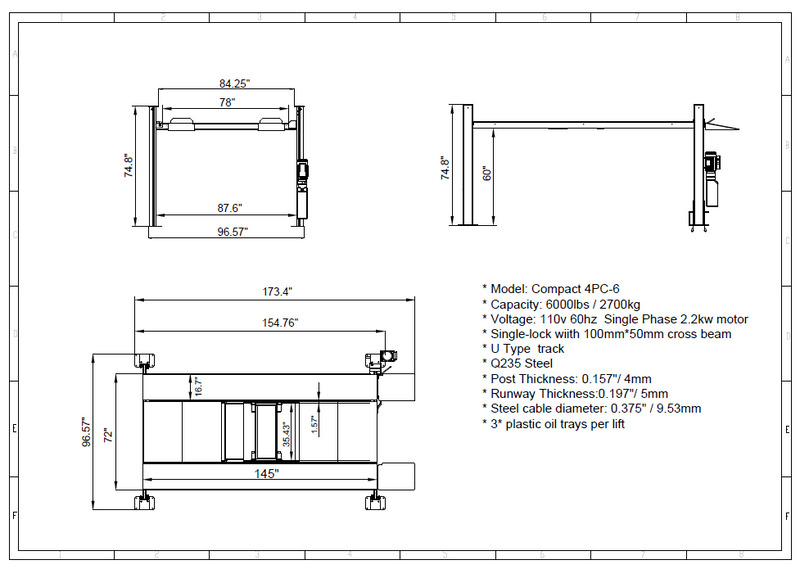

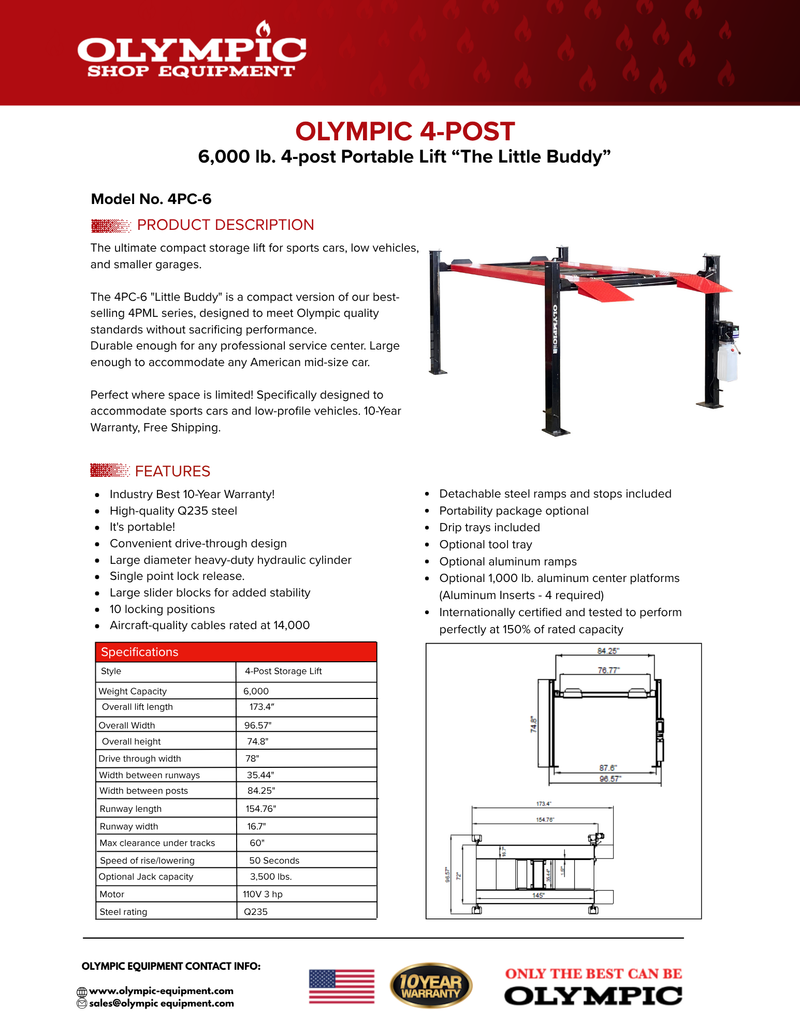

Specifications

SpecificationValue
Model4PC-6 Little Buddy
Lift typeCompact 4-post storage lift
Rated capacity6,000 lbs
Max clearance under runwaysUp to 60"
Overall length173.4"
Overall width96.57"
Overall height74.8"
Runway length145"
Runway width16.7"
Drive-through width76.77"
Width between posts87.6"
LockingSingle-lock system, manual release
Power unit110V, 2.2 kW (3 HP), 60Hz, single phase
Optional power units220V 3 kW or 4 kW
Hydraulic oil12 L

What's Included

  • 4PC-6 four-post lift
  • Three drip trays
  • Removable steel ramps
  • Removable stops
  • 110V power unit

Available as options: caster wheel portability package, tool tray, air-operated or hand-pump rolling bridge jack, aluminum ramps, 1,000 lb aluminum center platform, and 220V 3 kW or 4 kW power unit.

Not included: Installation; caster kit (optional).

Best For

  • Home garages with shorter bays or lower ceilings
  • Sports car and lowered-car owners who want two cars in one bay
  • Owners who want a lighter-duty storage lift on 110V power

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Ceiling
The lift stands 74.8" tall. For storage, add the height of the top car to the raised runway height and measure to the lowest obstruction.
Floor
Level within ±1 mm across the installation area. No asphalt or expansion seams.
Concrete
C30 concrete with a hardened layer at least 6" (150 mm) thick and compressive strength above 3,000 psi, with 7.87" (200 mm) of extra concrete around the lift.
Air
None needed for the lift. Air is only needed if you add the optional air-operated bridge jack.
Electrical
110V, 60Hz, single-phase, 2.2 kW power unit included. Optional 220V 3 kW or 4 kW units are available.
Electrical
A licensed electrician should run the power supply.
Hydraulic
Hydraulic: 12 L of #46 or 10-WT hydraulic oil (the manual also allows ATF).

Warranty

Olympic warranty: 10 years on major structural components; 3 years on electric and pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves and bushings; 1 year on wear parts such as pads, slide blocks and rubber components. Coverage begins on the date of shipment, applies to the original purchaser, requires professional installation, and does not include labor.

Frequently Asked Questions

Up to 60". No separate maximum lifting height is specified for the 4PC-6.

It comes with a 110V, 2.2 kW single-phase power unit. Have a licensed electrician confirm the circuit.

With the optional caster wheel portability package. Casters are not included as standard.

The low-profile runways are designed for sports cars and lowered vehicles. Check your car's ground clearance against the ramps before ordering.

76.77".
