Olympic 2PBP-12 12,000 lb Heavy-Duty Baseplate 2-Post Lift

Original price $6,643.00 - Original price $6,643.00
Original price
$6,643.00
$6,643.00 - $6,643.00
Current price $6,643.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

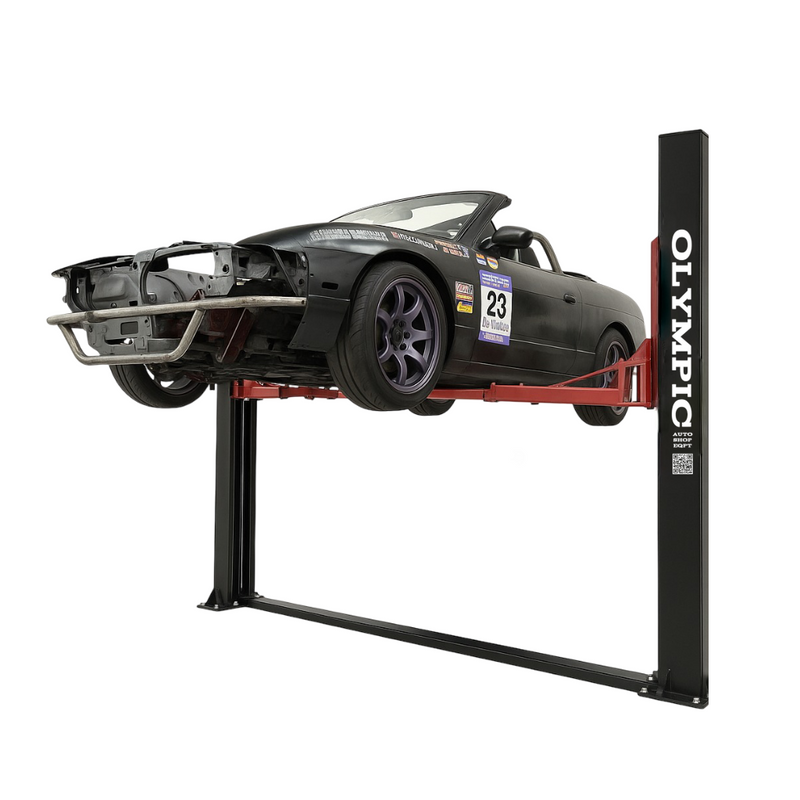

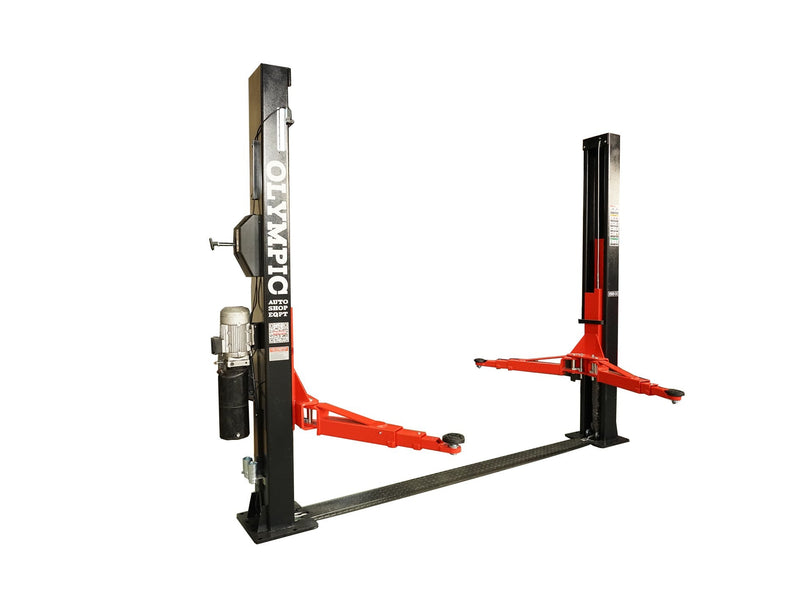

The Olympic 2PBP-12 is a 12,000 lb two-post baseplate lift with three-stage symmetrical long-reach arms. It lifts to 70.87", has 12 locking positions with single-point lock release, stands 114.96" tall, and ships with a 110V power unit (a 220V option is available) and four 3.5" truck adapters.

Shipping information

A forklift is required on site.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Rated capacity
12,000 lb
Power
110V power unit included; 220V option available
Overall height
114.96"
Overall width
153.07"
Maximum lifting height
70.87"

Why Choose the Olympic 2PBP-12

  • Rated capacity

    The lift has a 12,000 lb rated capacity on a baseplate frame, with no overhead beam between the posts.

  • Drive-through width

    The lift has a 116.54" drive-through width and 130" between posts, giving wider vehicles room to pass between the columns.

  • Three-stage symmetrical arms

    The arms have 34.64"–70.86" of reach front and rear, so they can be set to a wide range of lift points.

  • Single-point lock release

    The lift has 12 locking positions, and the locks on both columns are released from one location.

  • Power unit

    A 110V power unit is included, with a 220V option.

  • Load testing

    The lift is load-tested at 150% of its rated capacity.

Product Overview

A Higher-Capacity Baseplate Two-Post Lift

The 2PBP-12 is the 12,000 lb model in Olympic's baseplate two-post range. A baseplate lift ties the columns together with a plate across the floor instead of a beam overhead, which keeps the top of the columns at 114.96". That is the figure to check against your ceiling, garage-door tracks and lighting, plus the height of your tallest vehicle at full rise.

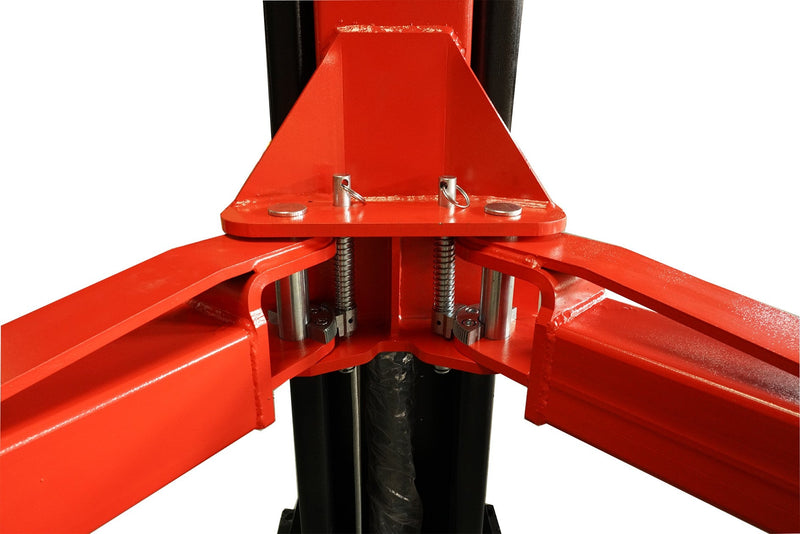

Arms, Reach and Lift Points

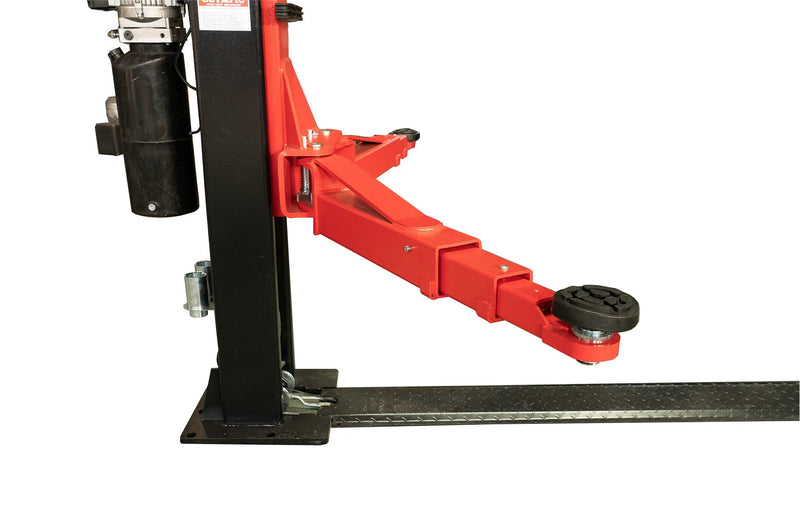

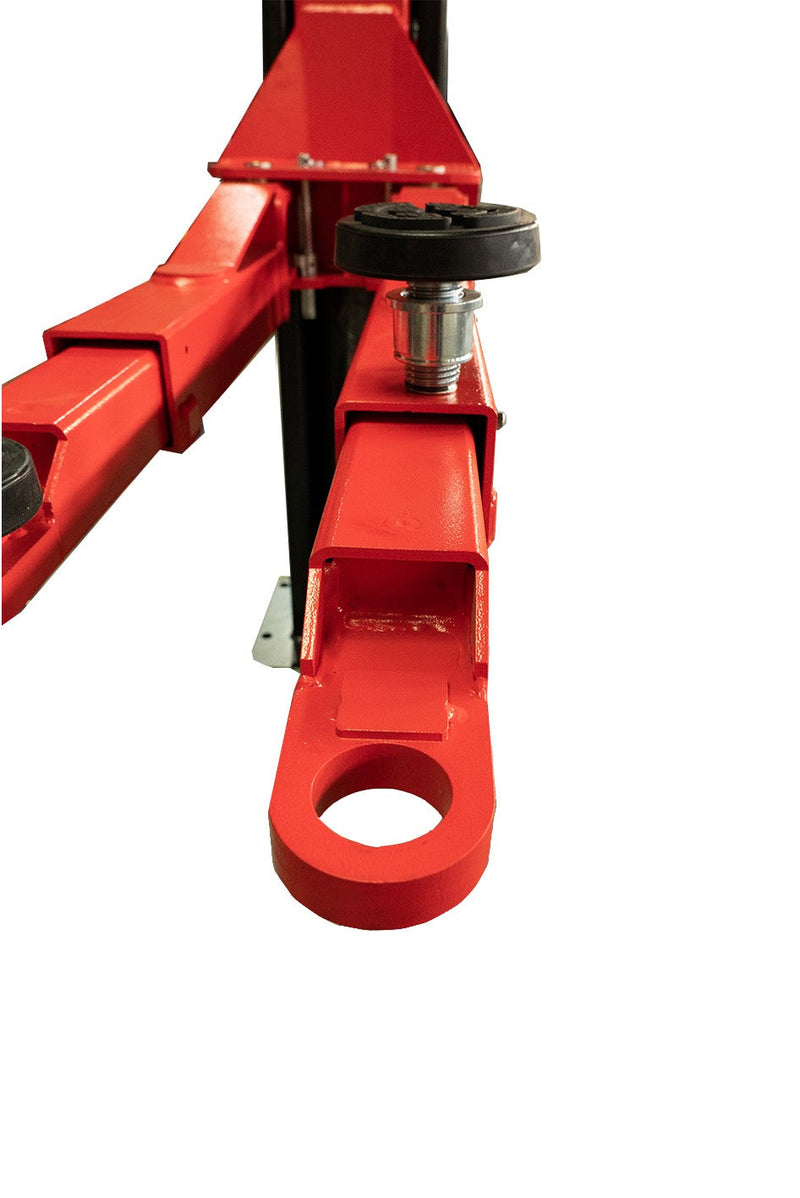

Both the front and rear arms are three-stage symmetrical long-reach arms, each with a reach of 34.64"–70.86". Long reach on every arm helps when a vehicle's lift points sit far from the columns. Four 3.5" truck adapters come with the lift to add pad height for vehicles with higher frames.

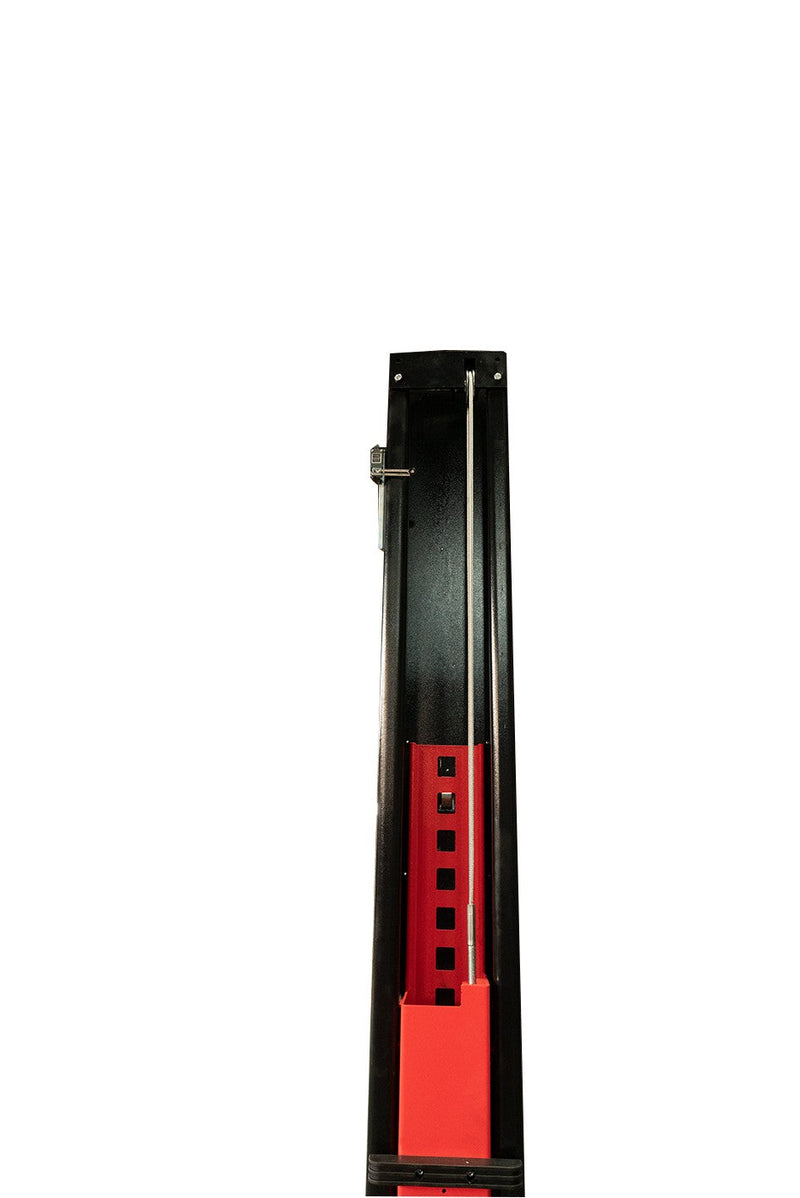

Lifting Range and Locks

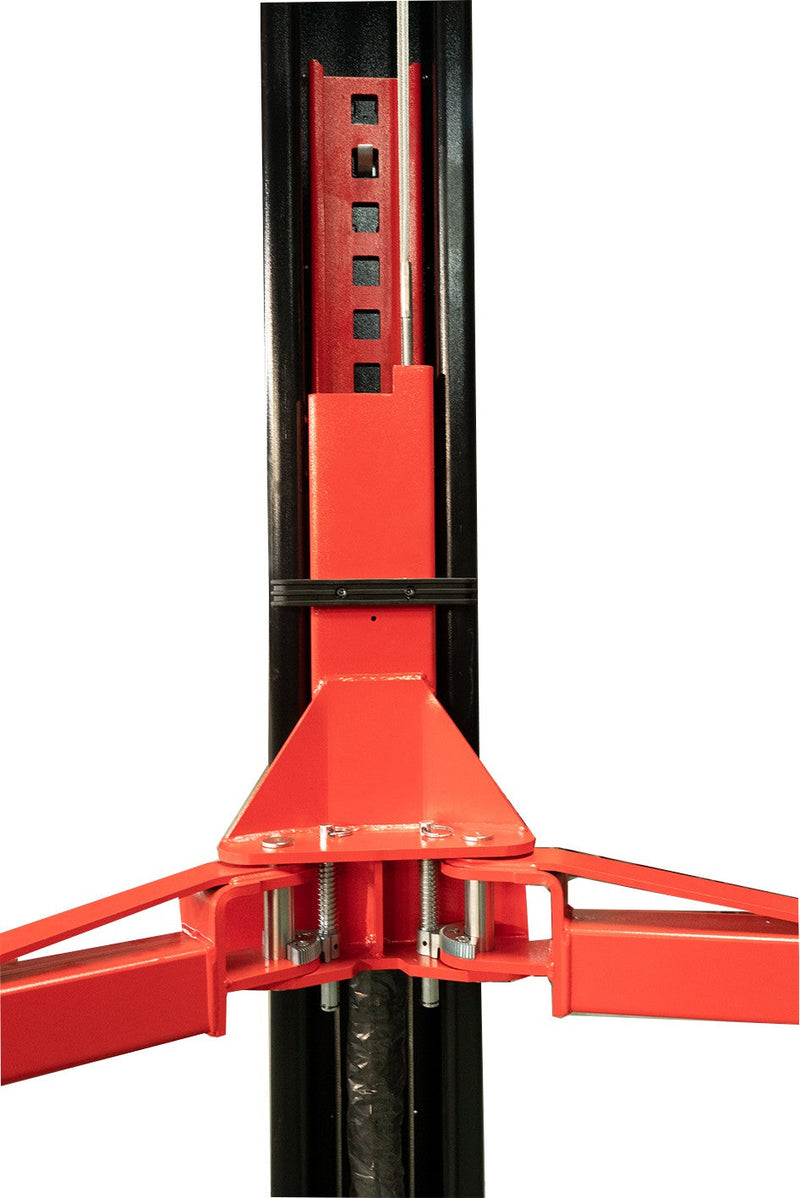

Minimum pad height is 4.33", and maximum lift height is 70.87". The lift has 12 locking positions, and the single-point lock release frees both columns' locks from one location rather than at each post.

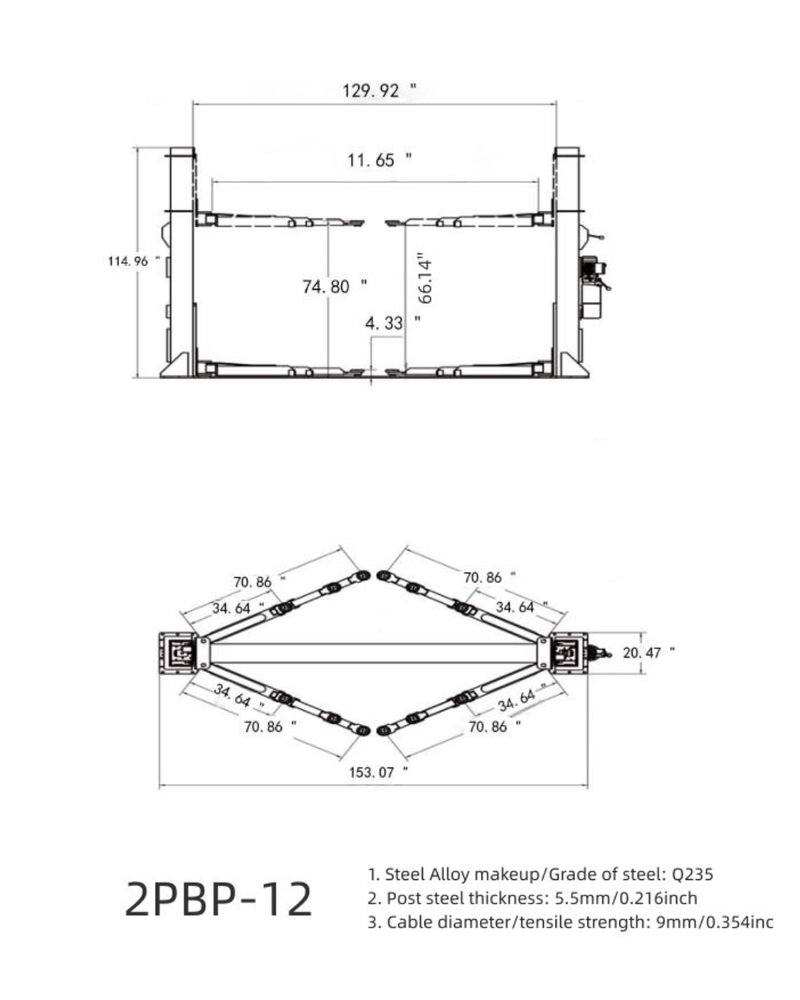

Footprint

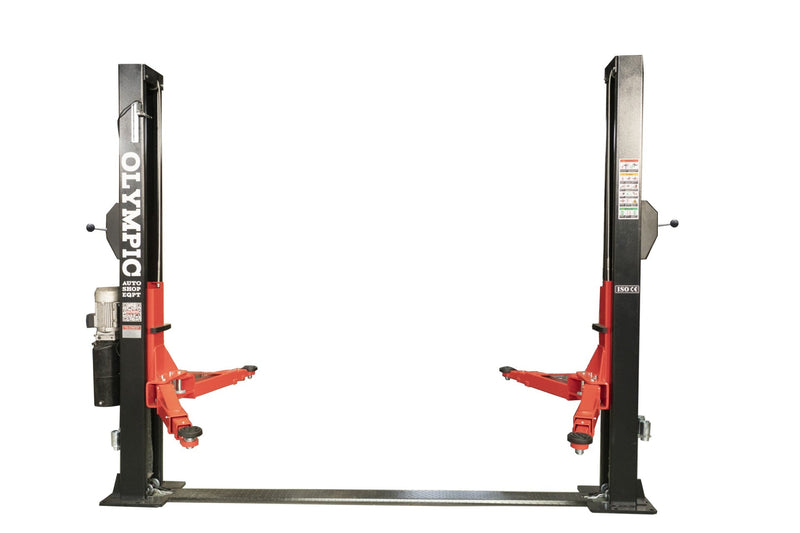

Overall width is 153.07", with 130" between posts and 116.54" of drive-through width. Plan the bay so there is working room around both columns, the power unit and the vehicle.

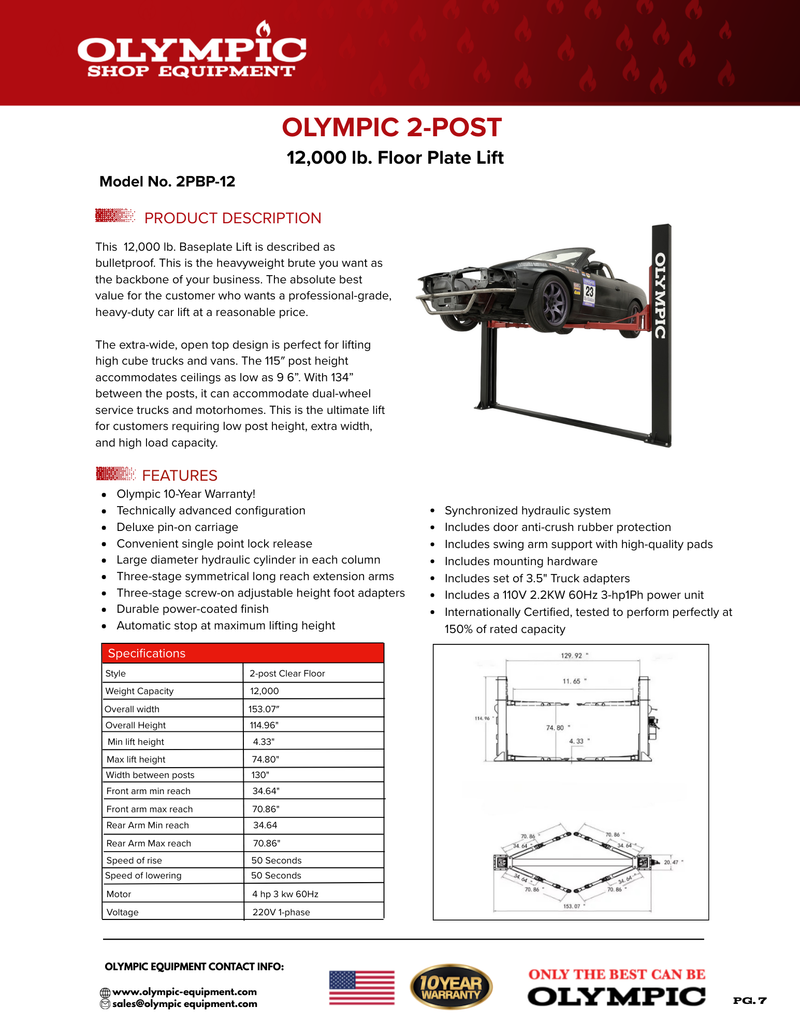

Specifications

SpecificationValue
ModelOlympic 2PBP-12
Lift type2-post baseplate lift
Rated capacity12,000 lb
Maximum lifting height70.87"
Minimum pad height4.33"
Locking positions12
Lock releaseSingle-point
ArmsThree-stage symmetrical long-reach arms
Front arm reach34.64"–70.86"
Rear arm reach34.64"–70.86"
Overall height114.96"
Overall width153.07"
Width between posts130"
Drive-through width116.54"
Power110V power unit included; 220V option available

What's Included

  • Olympic 2PBP-12 two-post baseplate lift
  • 110V power unit
  • Four 3.5" truck adapters
  • Mounting hardware

Not included: Installation.

Best For

  • Shops and garages lifting vehicles up to 12,000 lb that prefer a baseplate design to an overhead beam
  • Bays where wide drive-through width between the columns matters
  • Buyers who want long-reach arms front and rear with truck adapters included

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Ceiling
The lift is 114.96" tall. Allow additional clearance above for the raised vehicle and any overhead obstructions such as door tracks and lights.
Floor
Level concrete with no more than a 3° slope and no cracks or expansion seams.
Concrete
At least 6.3" thick, minimum 3,000 psi, fully cured (new concrete at least 28 days).
Electrical
Olympic's current product listing includes a 110V power unit, with a 220V option available.
Electrical
Before electrical installation, have a licensed electrician check the data plate on the power unit actually supplied and wire to those requirements.

Warranty

Olympic warranty: 10 years on major structural components; 3 years on electric and pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves and bushings; 1 year on wear parts such as pads, slide blocks and rubber components. Coverage begins on the date of shipment, applies to the original purchaser, requires professional installation, and does not include labor.

Frequently Asked Questions

114.96" overall. Allow extra clearance above for the vehicle on the lift and anything overhead.

70.87" maximum, from a 4.33" minimum pad height, with 12 locking positions.

Olympic's current product listing includes a 110V power unit, with a 220V option available. Have a licensed electrician confirm the circuit from the data plate on the unit you receive.

Both the front and rear arms are three-stage symmetrical long-reach arms with 34.64"–70.86" of reach.

At least 6.3" thick, minimum 3,000 psi, fully cured (new concrete at least 28 days), level to within 3°, with no cracks or expansion seams.
