Katool KT-X99 7,700 lb Full-Rise Scissor Lift

by Katool
Original price $4,499.00 - Original price $4,499.00
Original price
$4,499.00
$4,499.00 - $4,499.00
Current price $4,499.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

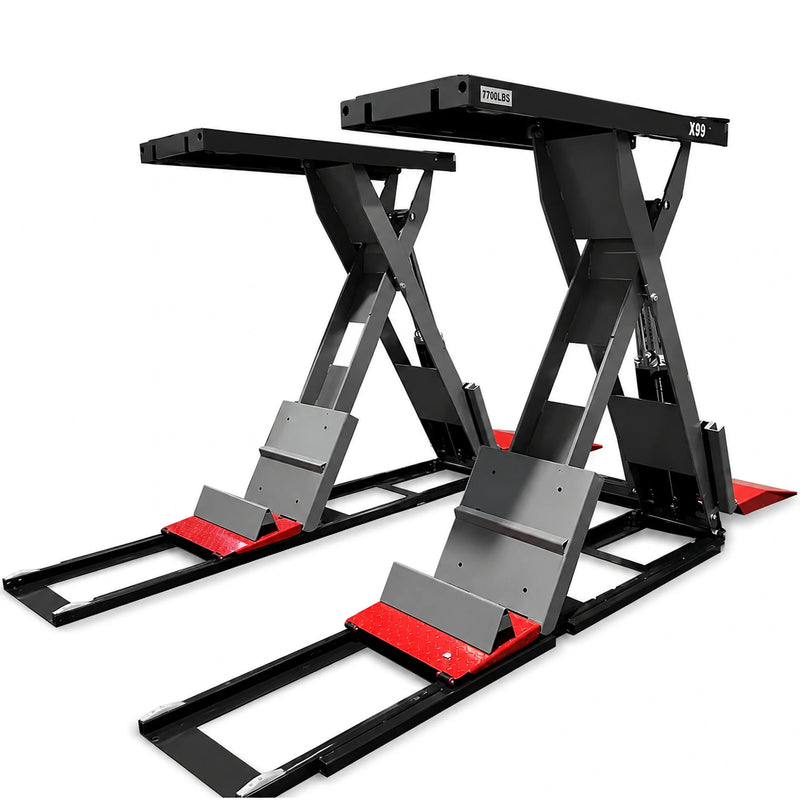

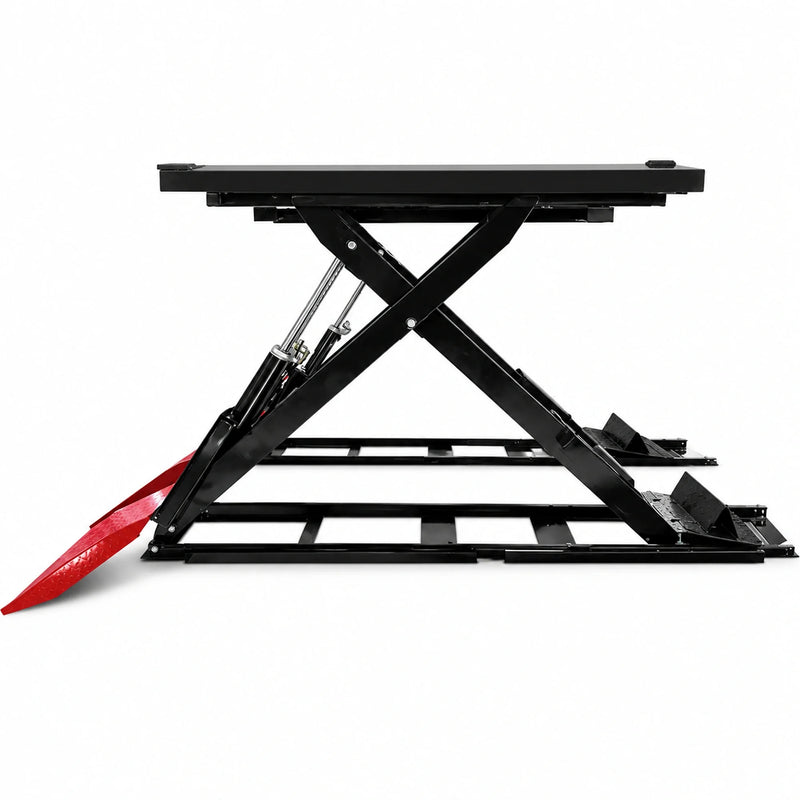

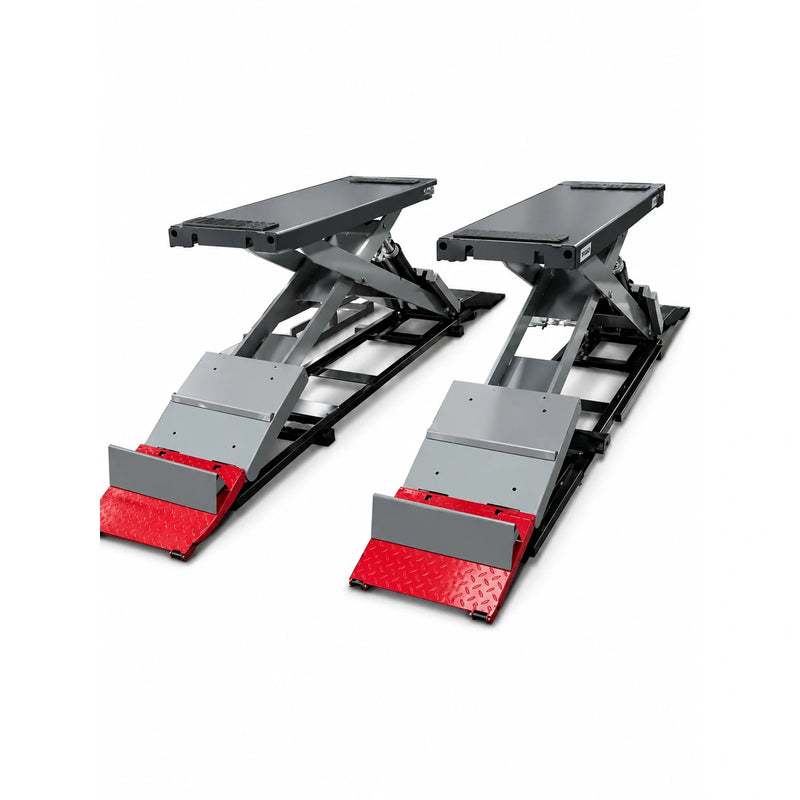

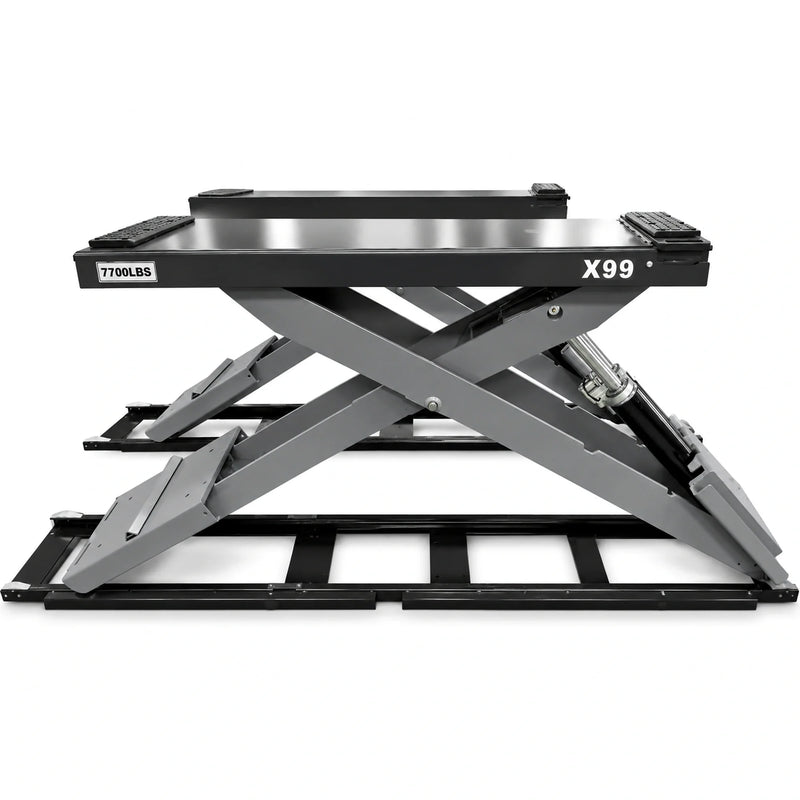

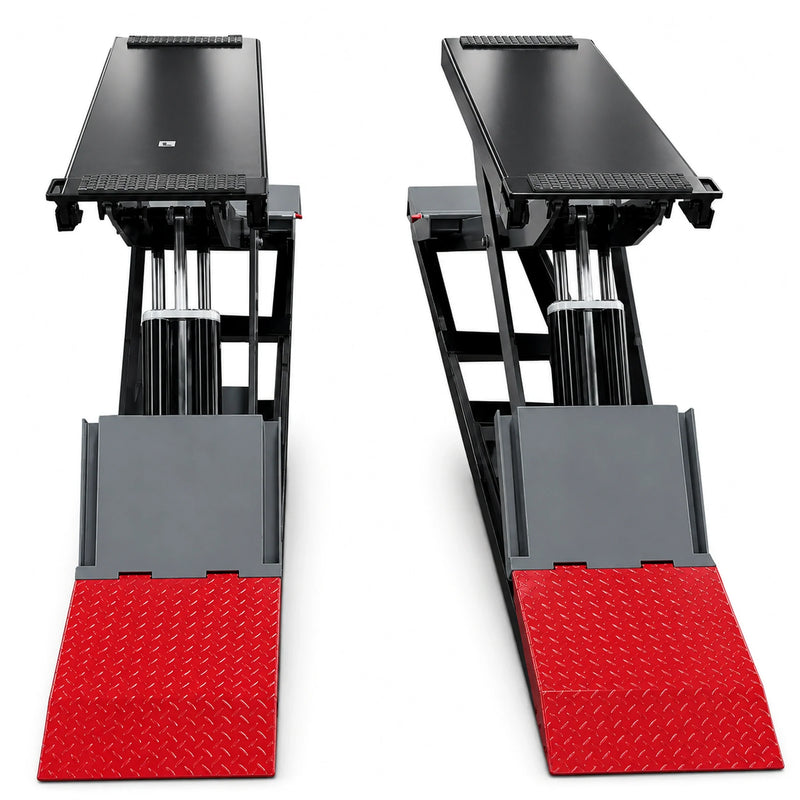

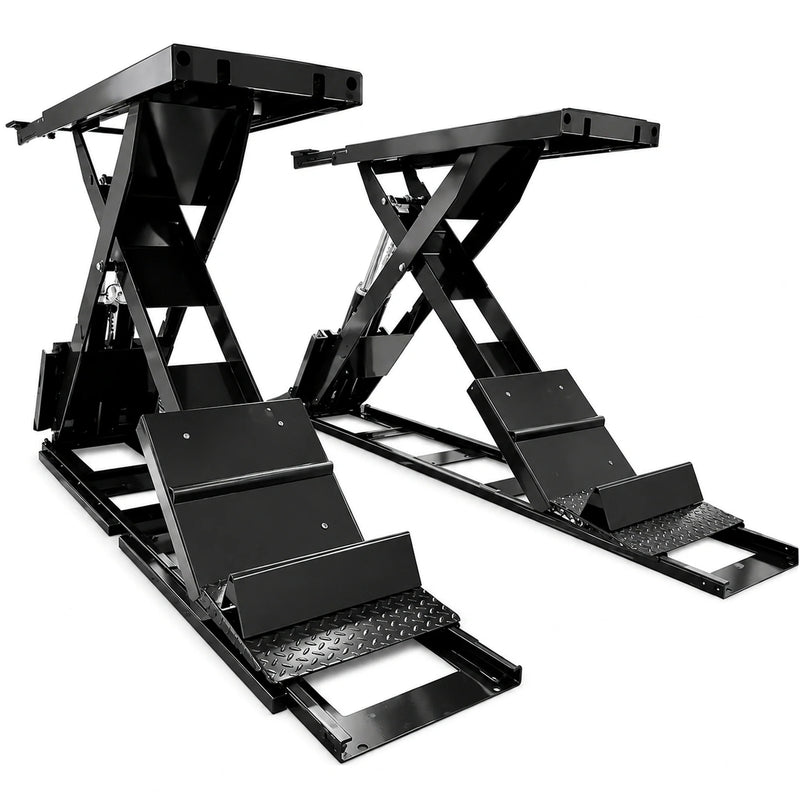

The Katool KT-X99 is a 7,700 lb full-rise scissor lift with platform slide extensions and a separate control panel, for on-ground or in-ground installation. It lowers to 4.5 in (115 mm) and runs on a 110V or 220V electric-hydraulic power unit with a 2.0 HP motor. Mechanical safety pawls hold the load, and four hydraulic cylinders keep the platforms synchronized.

Shipping information

A forklift is required on site; lifts are too heavy for liftgate delivery.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Rated capacity
7,700 lbs
Power
110V / 220V electric hydraulic, single / three phase optional, 60 Hz
Minimum height
4.5 in (115 mm)

Why Choose the Katool KT-X99

  • Full-rise scissor design

    The KT-X99 is a full-rise scissor lift with platform slide extensions and a separate control panel.

  • Rated capacity

    The lift is rated for 7,700 lbs.

  • Low lowered height

    Fully lowered, the runways sit at 4.5 in (115 mm).

  • Mechanical safety pawls

    Safety pawls are engaged before anyone works under the vehicle, and four hydraulic cylinders keep the platforms synchronized.

  • Choice of 110V or 220V

    The electric-hydraulic power unit comes in 110V or 220V, with single or three phase optional and a 2.0 HP motor.

  • On-ground or in-ground

    The lift can be installed on the floor or set in-ground.

Product Overview

Full-Rise Scissor Design

The KT-X99 lifts the vehicle on two scissor platforms with slide extensions, run from a separate control panel. A full-rise scissor lift takes the vehicle to full working height without columns, so there are no posts to work around in the bay. It can be installed on-ground or in-ground; the on-ground version uses front and rear entrance plates.

Capacity and Fit

Rated capacity is 7,700 lbs, and the runways lower to 4.5 in (115 mm). Confirm the maximum lifting height, overall length and width with Garage Lift Depot before ordering, and check your vehicle's lifting points against the platforms. Extension beam sets 1–4 are optional.

Locks and Controls

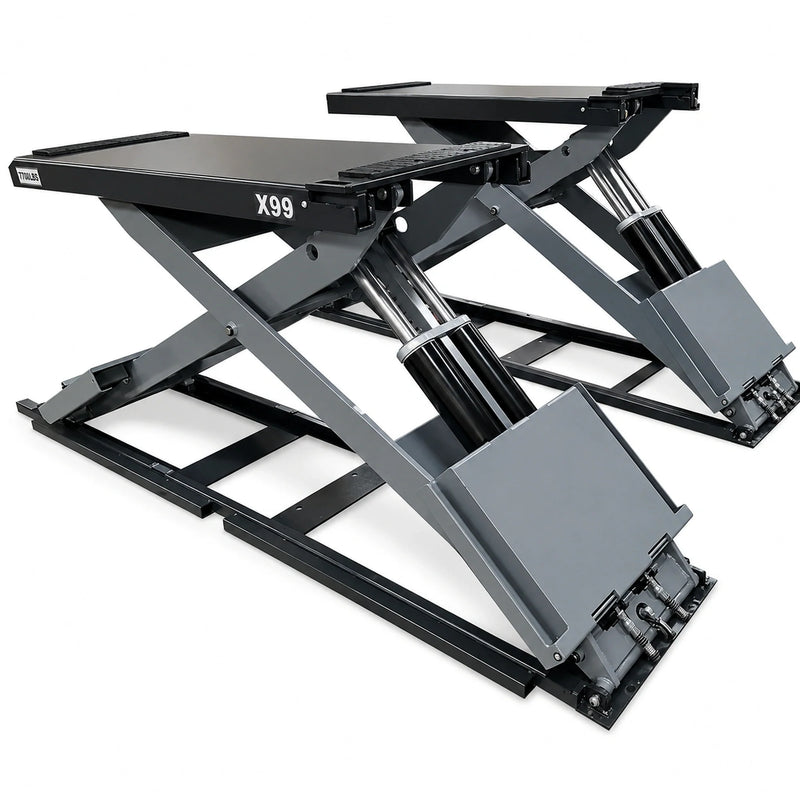

Mechanical safety pawls, or the safety locker, are engaged before anyone goes under the lift. Four hydraulic cylinders keep the platforms synchronized. A remote controller and an emergency manual pump are optional.

Power and Site

The power unit is 110V or 220V electric-hydraulic, with single or three phase optional, a 2.0 HP motor and 60 Hz operation. The lift needs at least 160 mm of reinforced concrete that is flat and horizontal, with a minimum surface load of 25 N/mm². Indoor installation is required to maintain the warranty.

Specifications

SpecificationValue
ModelKT-X99
Lift typeFull-rise scissor lift with platform slide extensions
Rated capacity7,700 lbs
Minimum height4.5 in (115 mm)
Power110V / 220V electric hydraulic, single / three phase optional, 60 Hz
Motor2.0 HP (standard)
Safety locksMechanical safety pawls
SynchronizationHydraulic, four cylinders
ControlsSeparate control panel; remote controller optional
InstallationOn-ground or in-ground
Hydraulic oil32CST, 12 liters
Concrete requirementMinimum 160 mm reinforced concrete, flat and horizontal
Anchoring6 anchor bolts on the base plate, 2 on the control panel
Net weight1,050 kg
Warranty1 year all parts; 3 years structural components

What's Included

  • Main body
  • Control panel
  • Entrance plates, front (2) and rear (2)
  • Synchronization cover
  • Rear stoppers (2)
  • Hose covers (2)
  • Manual

Optional: extension beam sets 1–4, remote controller, emergency manual pump.

Best For

  • Service shops and home garages that want full-rise access without posts
  • Bays where the lift can be installed on-ground or set in-ground
  • Vehicles within the 7,700 lb rated capacity

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Ceiling
Confirm the maximum lifting height and ceiling clearance for this lift with Garage Lift Depot before installation.
Floor
Confirm the overall length and width with Garage Lift Depot. Keep the lift at least 1 m from any wall or fixed object, and allow 2500 mm of working space beyond the platform end.
Concrete
Minimum 160 mm of reinforced concrete, flat and horizontal, with a minimum surface load of 25 N/mm². Anchor with 6 bolts on the base plate and 2 on the control panel; drill holes deeper than 2/3 of the bolt length, leave 35~45 mm of bolt protruding and torque to 80~100 N·m.
Location
Indoor installation is required to maintain the warranty.
Electrical
110V / 220V electric-hydraulic power unit, single or three phase optional, 60 Hz, 2.0 HP motor (standard).
Electrical
Amperage is not specified; have a licensed electrician confirm the circuit from the data plate.
Hydraulic
Hydraulic oil: 32CST, 12 liters.

Warranty

Katool covers this lift with a 1-year warranty on all parts and a 3-year warranty on structural components. Labor is not included. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

The KT-X99 is rated for 7,700 lbs.

The runways lower to 4.5 in (115 mm).

A 110V or 220V electric-hydraulic power unit, with single or three phase optional and a 2.0 HP motor. Have a licensed electrician confirm the circuit.

Yes. The KT-X99 can be installed on-ground or in-ground.

At least 160 mm of reinforced concrete that is flat and horizontal, anchored with 6 bolts on the base plate and 2 on the control panel.

No. Indoor installation is required to maintain the warranty.
