Katool KT-X95 8,000 lb Full-Rise Scissor Lift

by Katool
Original price $4,799.00 - Original price $4,799.00
Original price
$4,799.00
$4,799.00 - $4,799.00
Current price $4,799.00
Voltage: 110V
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

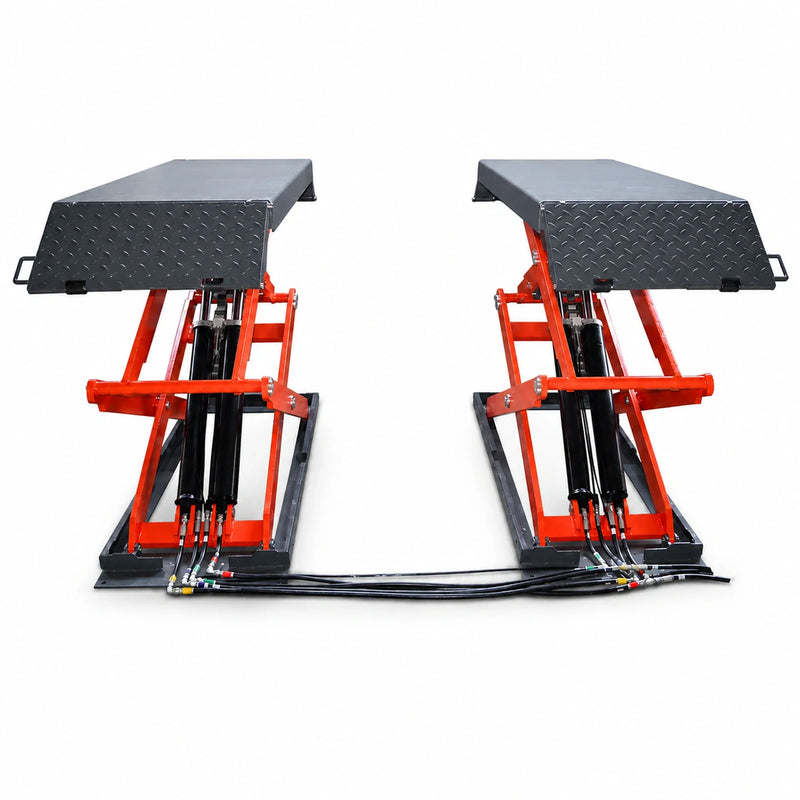

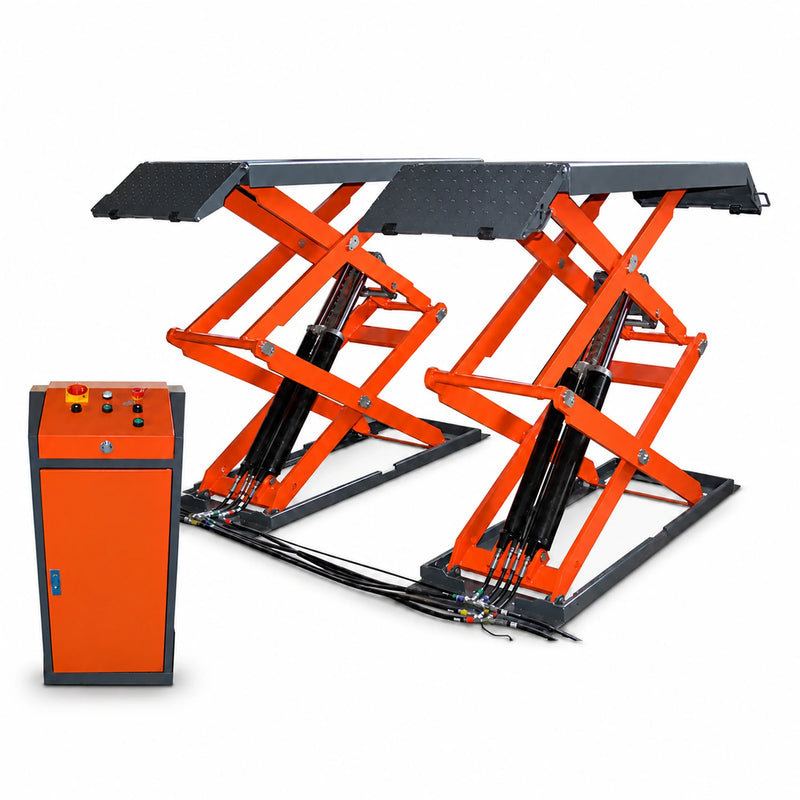

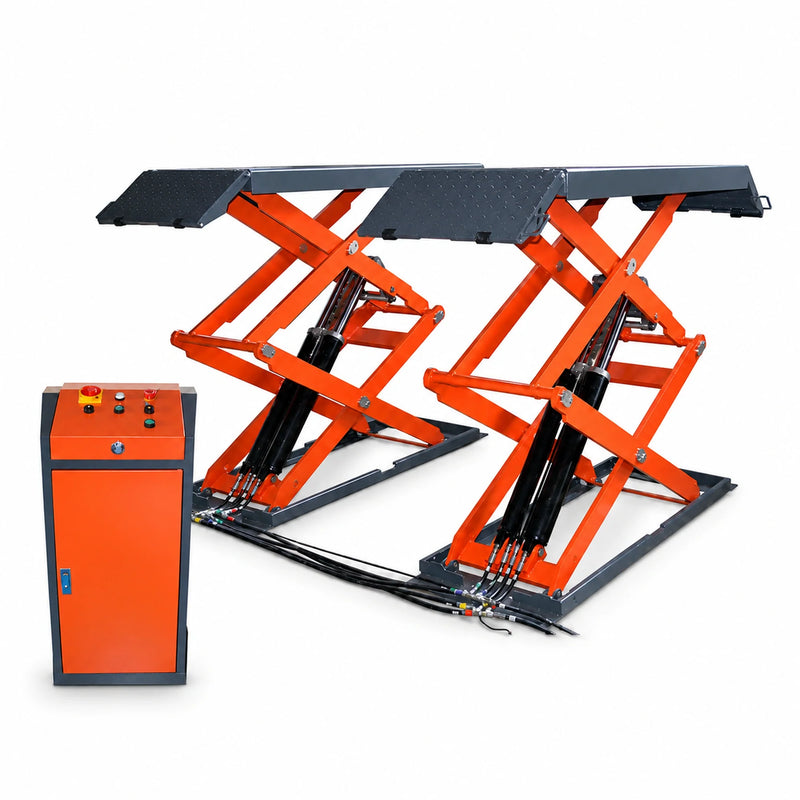

The Katool KT-X95 is an 8,000 lb full-rise scissor lift with two platforms, extension ramps and a separate control box. It raises to a maximum lifting height of 72.3″ (1,836 mm) from a lowered height of 105 mm, and it is offered in 110V and 220V versions with a 2.2 kW motor. The safety locks release pneumatically, so the lift needs shop air at 6–8 kgf/cm² (≈ 85–115 PSI).

Shipping information

A forklift is required on site; lifts are too heavy for liftgate delivery.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Rated capacity
8,000 lbs
Power
110V or 220V version
Overall length
2035 mm
Runway size
1495–2110 mm long (with extension ramp) × 620 mm wide, each platform
Maximum lifting height
72.3″ (1,836 mm)

Why Choose the Katool KT-X95

  • Full-rise lifting height

    The KT-X95 raises to a maximum lifting height of 72.3″ (1,836 mm) for access under the vehicle.

  • Two platforms with ramps

    Two 620 mm wide platforms sit 800 mm apart, and extension ramps take the platform length from 1495 mm to 2110 mm.

  • Double safety locking

    A hydraulic lock works together with mechanical safety pawls on a gear rack.

  • Pneumatic lock release

    Air cylinders lift the safety pawls when the lift is lowered, using shop air at 6–8 kgf/cm².

  • Choice of 110V or 220V

    The lift is offered in 110V and 220V versions, both with a 2.2 kW motor.

  • Parts and structure coverage

    Warranty coverage is 1 year on all parts and 3 years on structural components.

Product Overview

Full-Rise Scissor Design

The KT-X95 is a full-rise scissor lift built on two platforms with extension ramps, run from a separate control box. A full-rise scissor lift takes the vehicle to full working height on scissor frames instead of columns, so there are no posts to work around in the bay. Fully lowered, the platforms sit at 105 mm.

Capacity and Platform Fit

Rated capacity is 8,000 lbs. Each platform is 620 mm wide, the gap between the platforms is 800 mm, and platform length runs from 1495 mm to 2110 mm with the extension ramps. Overall machine length is 2035 mm. Check your vehicle's lifting points against the platform width and gap before ordering.

Locks and Controls

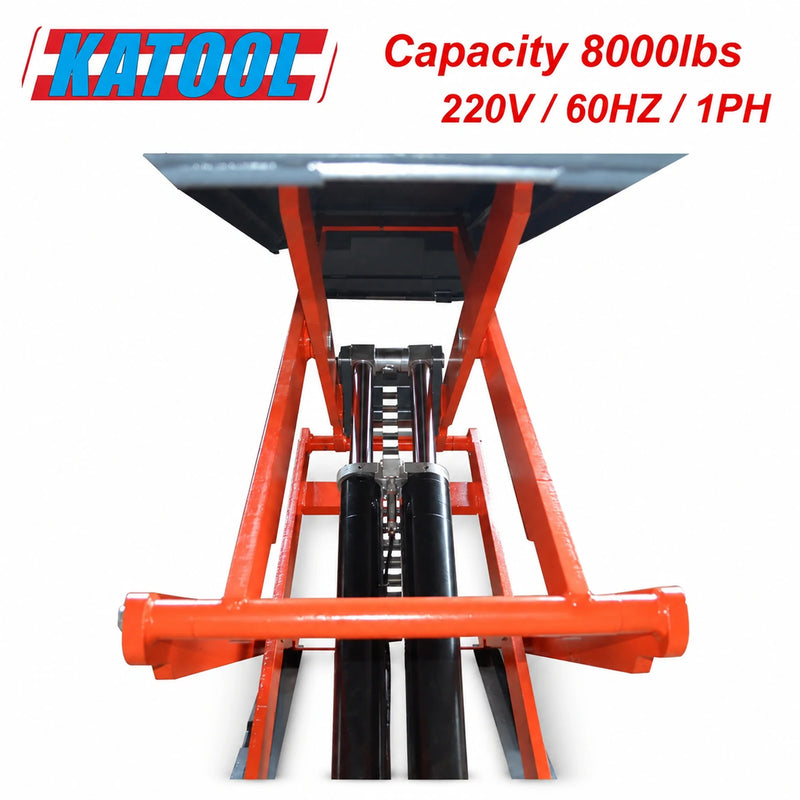

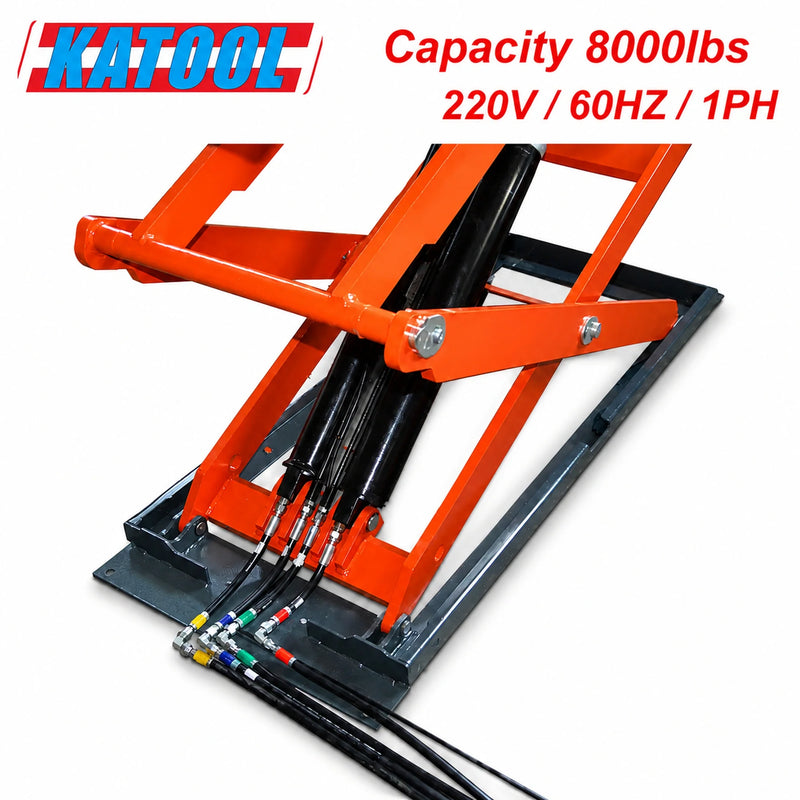

Safety comes from two systems working together: a hydraulic lock and mechanical safety pawls that engage a gear rack. When you lower the lift, a solenoid air valve feeds air cylinders that lift the pawls clear. The controls include a LOCK SEC. DOWN button, a lower limit stop at ~330 mm with a buzzer, and a photocell level sensor. Lifting takes ≤50 seconds and lowering ≤60 seconds.

Power and Site

Choose the 110V or 220V version to match your shop supply; both use a 2.2 kW motor. The lift also needs shop air for the lock release. The floor must be at least 150 mm of concrete, level to within 5 mm over its whole length, and the room must be at least 4000 mm high. Confirm anchoring requirements with Garage Lift Depot before installation.

Specifications

SpecificationValue
ModelKT-X95
Lift typeFull-rise scissor lift, two platforms with extension ramps, separate control box
Rated capacity8,000 lbs
Maximum lifting height72.3″ (1,836 mm)
Minimum height105 mm
Overall length2035 mm
Runway size1495–2110 mm long (with extension ramp) × 620 mm wide, each platform
Platform gap800 mm
Lifting time≤50 seconds
Lowering time≤60 seconds
Power110V or 220V version
Motor2.2 kW
Air supply6–8 kgf/cm² (≈ 85–115 PSI)
Lock typeHydraulic lock plus mechanical safety pawls
Lock releasePneumatic
Hydraulic oil18 L anti-wear hydraulic oil (provided by user)
Concrete requirement≥150 mm, level within 5 mm over whole length
AnchoringConfirm anchoring requirements with Garage Lift Depot
Warranty1 year all parts; 3 years structural components

What's Included

  • Composite rubber lifting blocks
  • Control system

Not included: Hydraulic oil (18 L anti-wear hydraulic oil, provided by the user).

Best For

  • Service shops and home garages that want full-rise access without a post layout
  • Bays with at least 4000 mm of room height and an air supply already in place
  • Vehicles that fit two 620 mm platforms 800 mm apart and stay within 8,000 lbs

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Ceiling
The room must be at least 4000 mm high.
Floor
At least 150 mm of concrete, level to within 5 mm over the whole length of the lift.
Concrete
Concrete type 425#, cured for 15 days, with a floor strength of ≥250 kg/cm². If the floor is thinner than 150 mm, pour 2500 × 2500 mm pads at least 150 mm thick under the platform ends. Confirm anchoring requirements with Garage Lift Depot before installation.
Bay
Keep at least 1000 mm of clearance from walls. The control box can sit up to 2000 mm from the lift.
Electrical
110V or 220V version with a 2.2 kW motor. Order the version that matches your shop supply.
Electrical
Amperage is not specified; have a licensed electrician confirm the circuit from the data plate.
Hydraulic
Hydraulic oil: 18 L anti-wear hydraulic oil, provided by the user.
Air
Requires shop air at 6–8 kgf/cm² (≈ 85–115 PSI) for the pneumatic lock release.

Warranty

Katool covers this lift with a 1-year warranty on all parts and a 3-year warranty on structural components. Labor is not included. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

It raises to a maximum lifting height of 72.3″ (1,836 mm) and lowers to 105 mm.

Yes. The KT-X95 is offered in 110V and 220V versions, both with a 2.2 kW motor. Have a licensed electrician confirm the circuit.

Yes. The pneumatic lock release needs shop air at 6–8 kgf/cm² (≈ 85–115 PSI).

The room must be at least 4000 mm high.

Confirm anchoring requirements with Garage Lift Depot before installation. The floor still needs at least 150 mm of concrete, level to within 5 mm over the length of the lift.

Composite rubber lifting blocks and the control system. Hydraulic oil (18 L) is provided by the user.
