Katool KT-T830 Light Duty Assist Arm Tire Changer with Bead Blaster

by Katool
Original price $1,699.00 - Original price $1,699.00
Original price
$1,699.00
$1,699.00 - $1,699.00
Current price $1,699.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

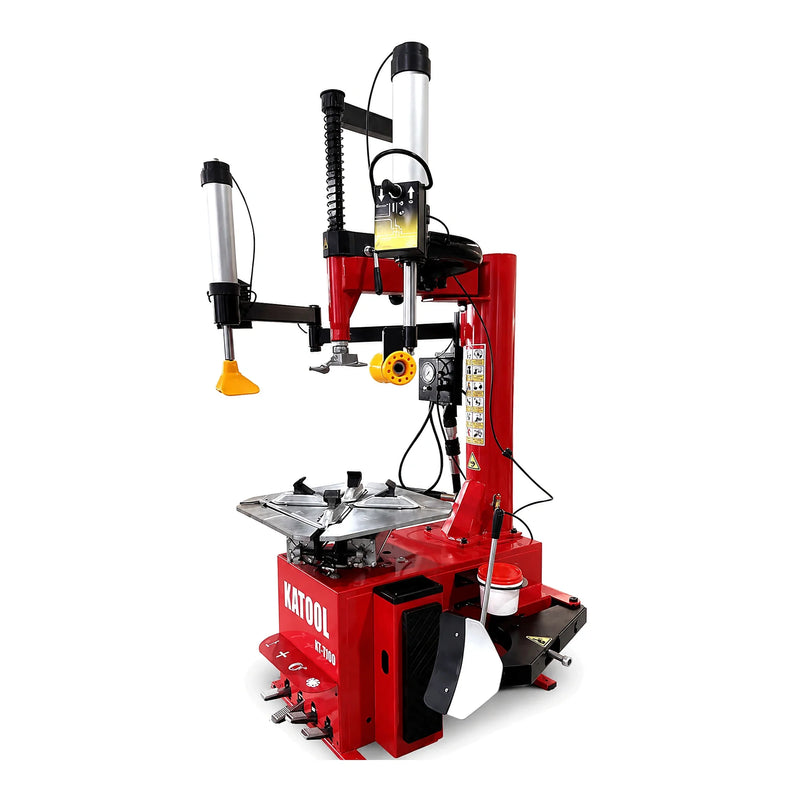

The Katool KT-T830 is a light duty rim clamp tire changer for passenger cars, SUVs and light trucks, fitted with an assist arm, a roller arm and a Turbo Blast bead blaster. It clamps rims from 12"–22" outside and 14"–24" inside, takes wheels up to 41" (1040 mm) in diameter, and runs on 110V single-phase power with a 2.0 HP / 1.5 kW motor.

Shipping information

Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

Why Choose the Katool KT-T830

  • Double assist arms

    An assist arm and a roller arm, each with pneumatic up/down control, hold the upper bead in the drop center while the turntable rotates.

  • Bead blaster included

    The Turbo Blast hose assembly with slide valve and nozzle helps seat low-profile and difficult beads.

  • Inflation box with gauge

    A pedal-operated inflation box with gauge, manual relief valve and pressure limiter is part of the machine.

  • Runs on 110V power

    The KT-T830 plugs into a grounded 110V, 60 Hz single-phase outlet.

  • Wide clamping range

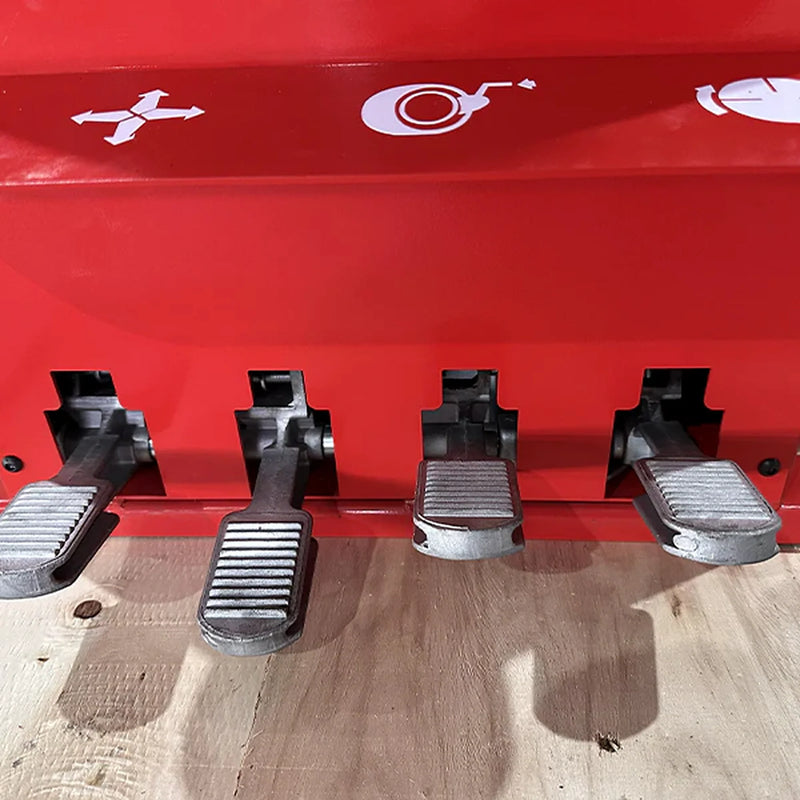

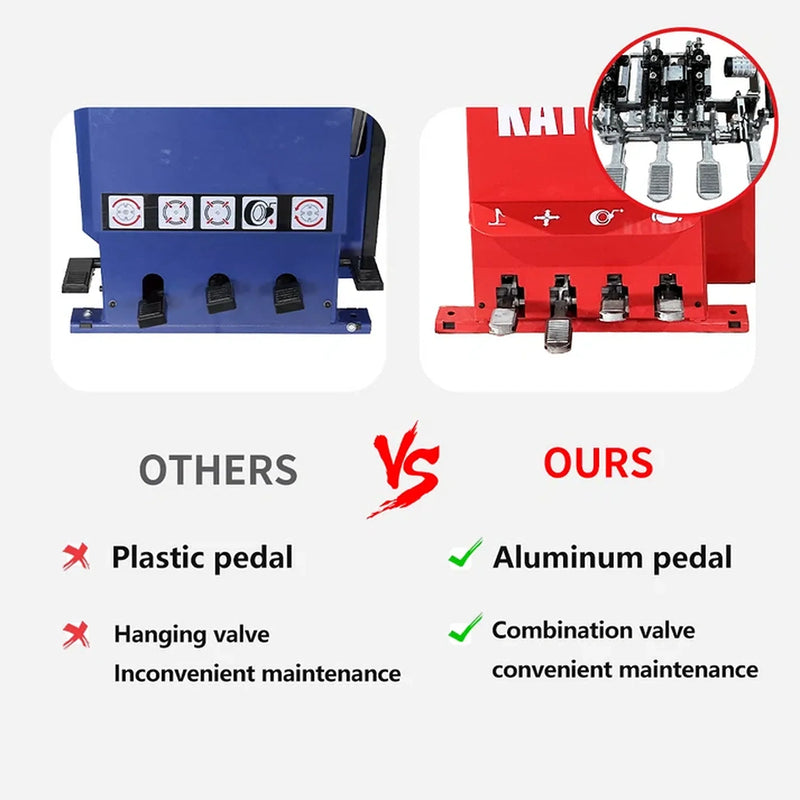

    Four pedal-operated jaws clamp rims from 12"–22" outside and 14"–24" inside.

  • Strong bead breaker

    The bead breaker develops 5,510 lb (2,500 kg) of pressing force at 10 bar.

Product Overview

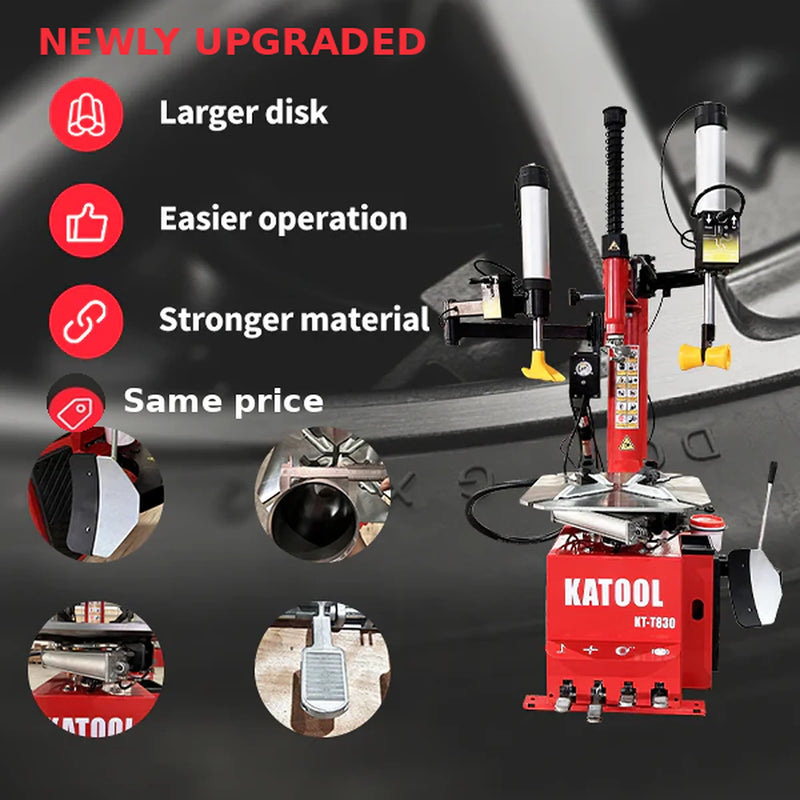

Assist Arm and Roller Arm

The KT-T830 adds a helper tower with two pneumatic arms: an assist arm on the left and a roller arm on the right. Each has its own pneumatic up/down switch. During mounting they press the tire down and hold the upper bead in the drop center while the turntable rotates. The vertical arm swings out on a hex shaft with a locking lever and hand wheel, and it keeps its head clearance when swung out, which helps when changing a set of like wheels.

Bead Blaster and Inflation

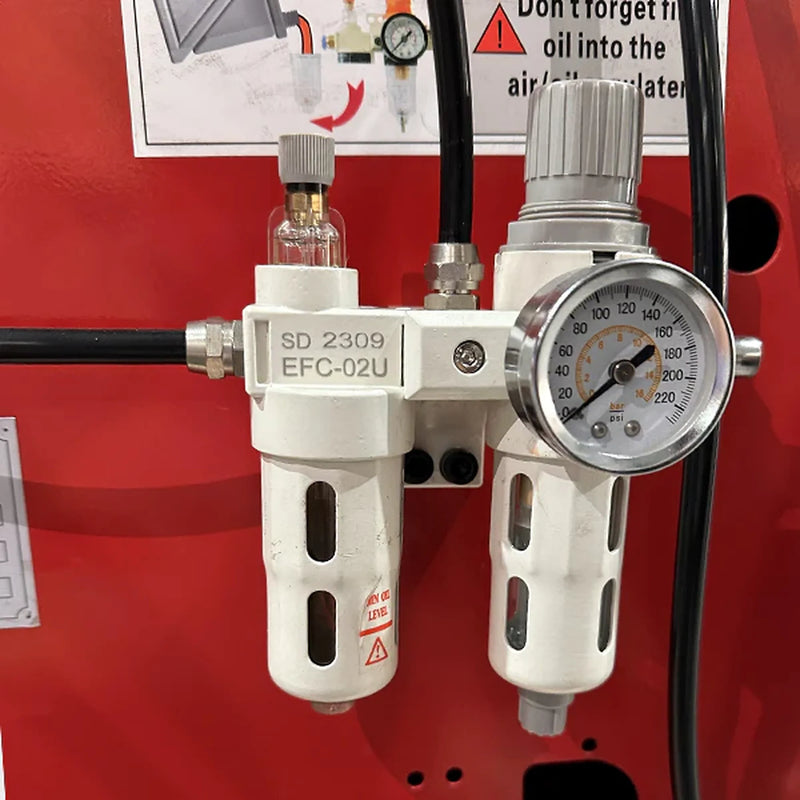

The bead blaster uses a Turbo Blast hose assembly with slide valve and nozzle, fed from an air storage tank, for sealing low-profile or difficult beads. The inflation box carries a gauge and an inflation pedal, plus a manual pressure relief valve and a pressure limiter/regulator. Maximum charge pressure is 3.5 bar (50 psi). An air filter/regulator and oil-mist lubricator condition the incoming shop air.

Clamping, Capacity and Drive

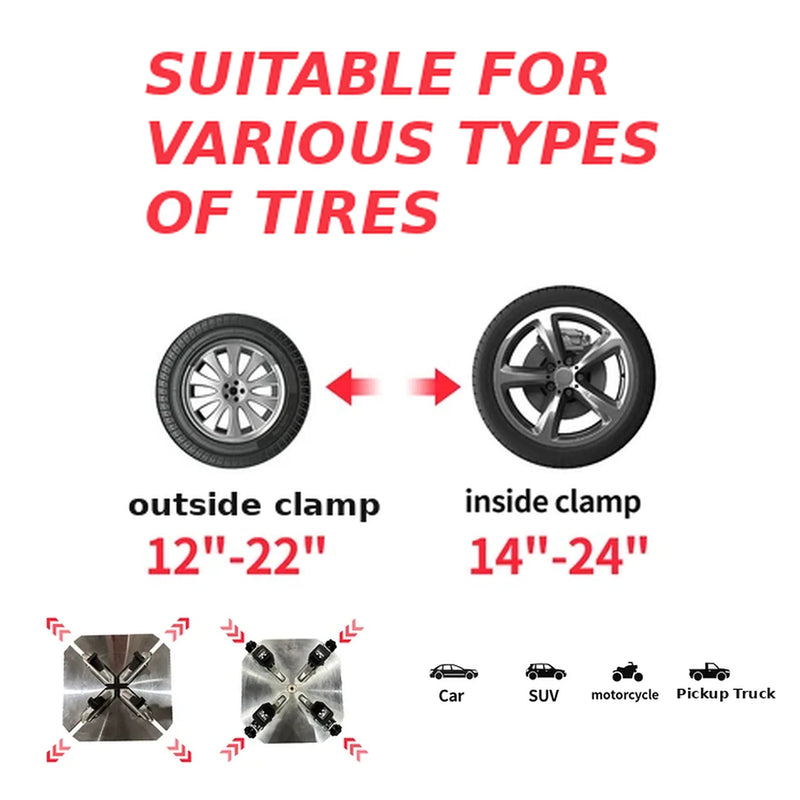

Four pedal-operated jaws clamp rims from 12"–22" on the outside and 14"–24" on the inside. Maximum wheel diameter is 41" (1040 mm) and maximum wheel width is 15" (380 mm), covering passenger car, SUV, light truck and performance wheels. A 2.0 HP / 1.5 kW motor turns the table at 6.8 r/min, and the mount/demount head and duckhead are designed to protect wheel finishes. The frame is all steel; net weight is 529 lb (240 kg) and working noise is under 70 dB(A).

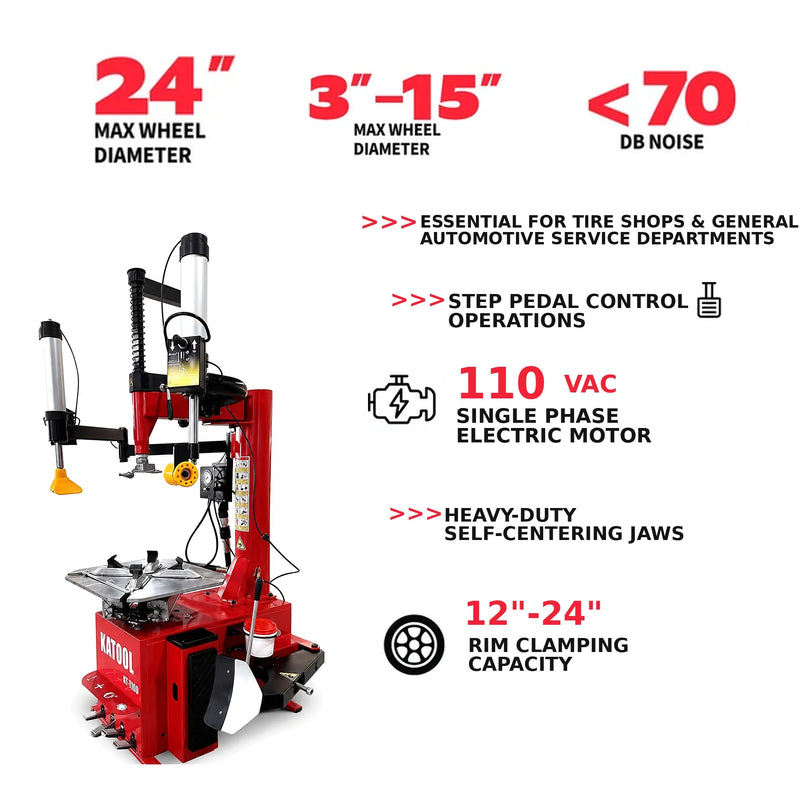

Specifications

SpecificationValue
ModelKT-T830
TypeRim clamp tire changer with assist arm, roller arm and bead blaster
Outside clamping range12"–22"
Inside clamping range14"–24"
Max wheel diameter41" (1040 mm)
Max wheel width15" (380 mm)
Power110V, single phase (1PH)
Motor2.0 HP / 1.5 kW
Rotation speed6.8 r/min
Air pressure0.8–1.0 MPa (116–145 psi)
Maximum charge pressure3.5 bar (50 psi)
Bead breaker pressing force (at 10 bar)5,510 lb (2,500 kg)
Working noise<70 dB(A)
Net weight529 lb (240 kg)
ConstructionSteel frame

What's Included

  • Machine body (base with turntable and filter/regulator/lubricator)
  • Tower
  • Hexagon shaft unit
  • Mounting/dismounting head
  • Bead breaker arm
  • Bead breaker
  • Bead breaker pad
  • Inflation box unit
  • 310 helper arm assembly
  • 210 helper arm assembly
  • Assist arm cylinders
  • Assist arm cylinder collar
  • Assist arm ends
  • Up/down switches (2)
  • Turbo Blast hose assembly
  • Soap bucket
  • Oil dryer and accessories
  • Bead lifting tool

Best For

  • Tire and wheel service centers and auto repair shops working on passenger cars, SUVs and light trucks.
  • Performance and racing garages that regularly mount low-profile and run-flat tires.
  • Alignment and suspension shops, mobile tire services and well-equipped home garages with 110V power and shop air.

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Floor
Install on flat, stable ground (not on a wooden pallet) so the machine sits solidly on its feet, and secure it to the floor with concrete screws.
Clearance
Keep at least 600 mm (0.6 m) between the machine and the wall, and leave room on both sides for assist-arm operation.
Location
Choose a well-lit area away from oil, grease and lathe chips, and away from heat, moisture or explosive gas.
Assembly
The machine ships partly disassembled; the tower, hex shaft, bead breaker arm, assist and roller arms, inflation box and Turbo Blast hose are mounted on site following the installation manual supplied with the machine.
Electrical
Electrical: 110V, single phase (1PH), 60 Hz; plug into a grounded wall outlet.
Electrical
Any extension cord must be rated equal to or greater than the equipment rating.
Electrical
Motor: 2.0 HP / 1.5 kW.
Air
Requires shop air at 0.8–1.0 MPa (116–145 PSI), connected to the machine's regulator.
Electrical
Lubricator oil: HG ISO VG32 (for example Esso Febis K32, Mobil Vacouline 1405 or Klüber 32).
Electrical
Amperage, breaker size and air consumption are not specified; have a licensed electrician check the data plate and confirm your compressor capacity with Garage Lift Depot.

Warranty

Katool covers this machine with a 12-month warranty on all parts and product defects. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

Yes. A Turbo Blast hose assembly with slide valve and nozzle is included, along with an inflation box with gauge and inflation pedal.

The KT-T830 has two pneumatic helper arms, an assist arm and a roller arm. They press the tire down and hold the upper bead in the drop center while the turntable rotates during mounting.

It runs on a grounded 110V, 60 Hz single-phase outlet with a 2.0 HP / 1.5 kW motor, and needs shop air at 0.8–1.0 MPa (116–145 psi).

It clamps 12"–22" rims from the outside and 14"–24" rims from the inside, with a maximum wheel diameter of 41" (1040 mm) and maximum wheel width of 15" (380 mm).

Yes, it should be secured to the floor with concrete screws on flat, stable ground. An inflation safety cage conforming to OSHA 1910.177 is recommended and is not included.
