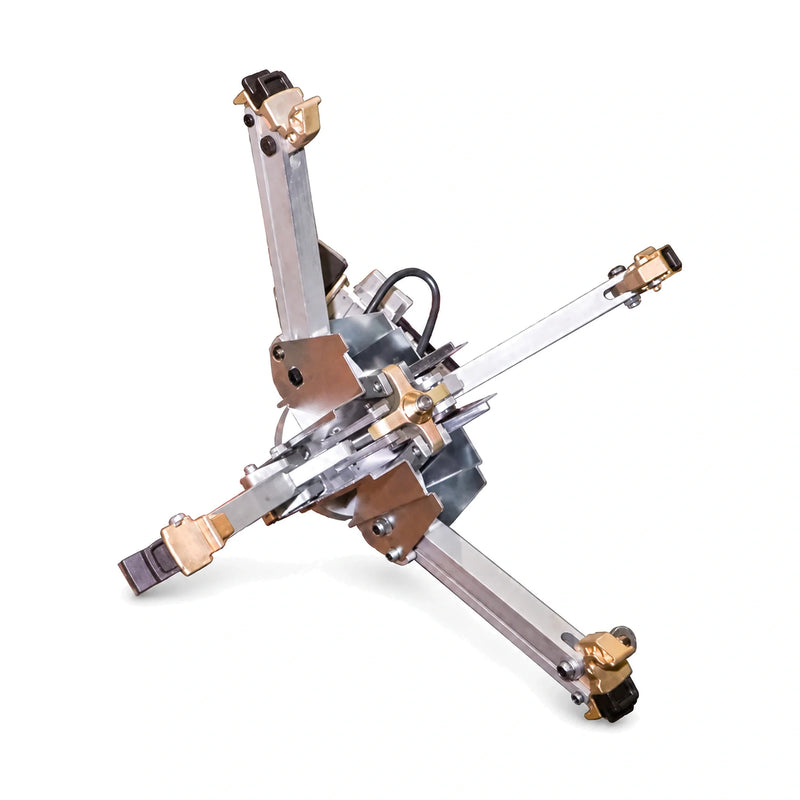

Katool KT-T260 Heavy Duty Truck Tire Changer for 14"–42" Rims

by Katool
Original price $5,999.00 - Original price $5,999.00
Original price
$5,999.00
$5,999.00 - $5,999.00
Current price $5,999.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

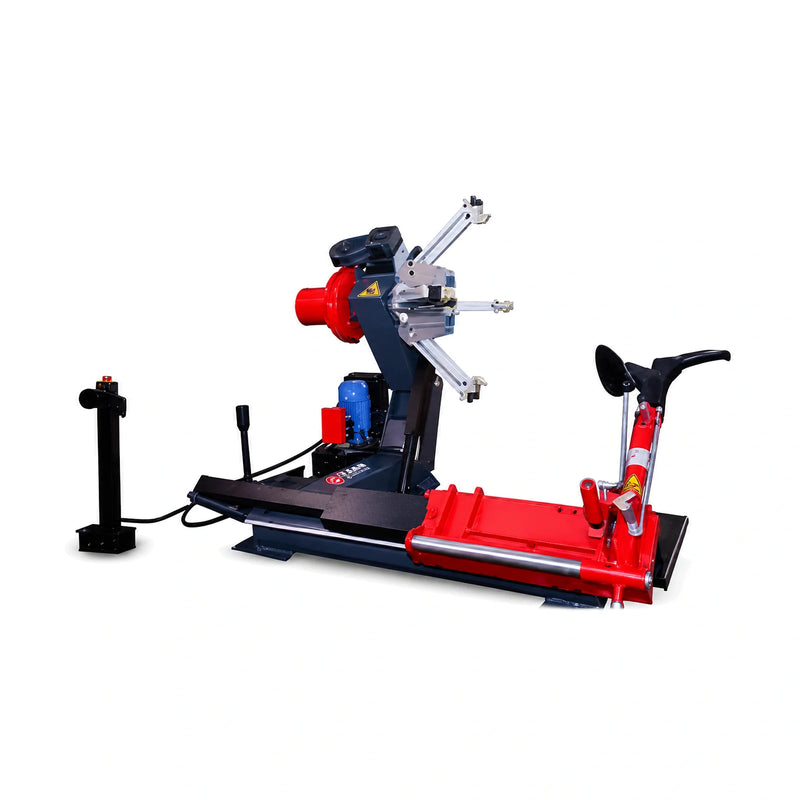

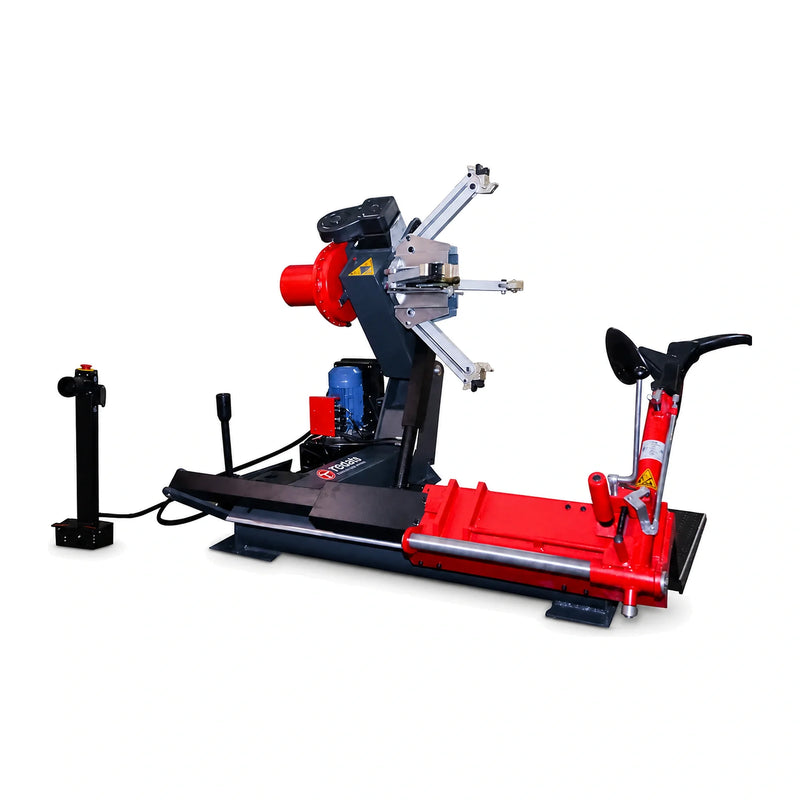

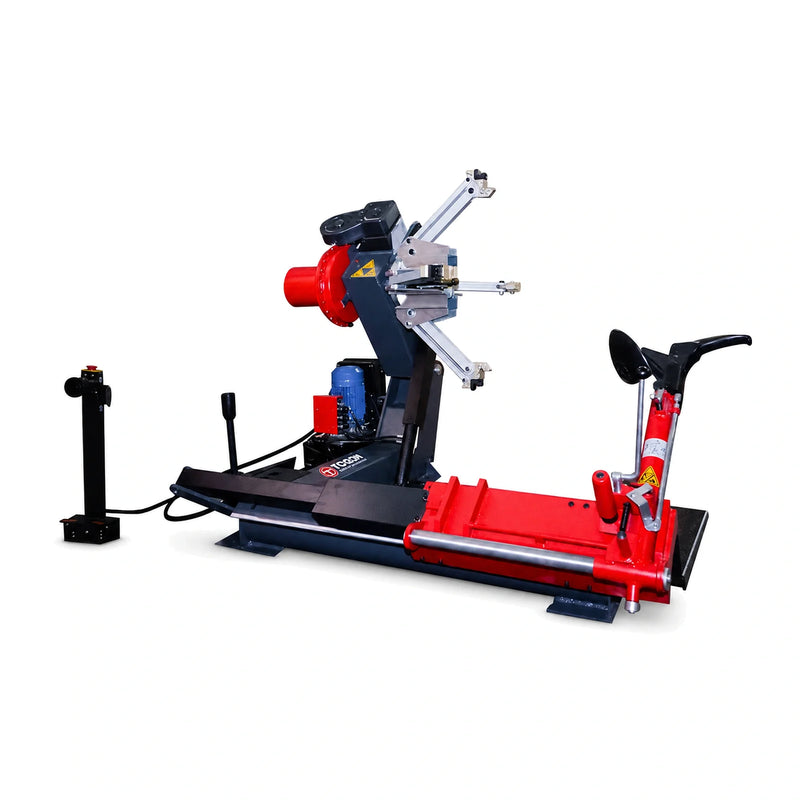

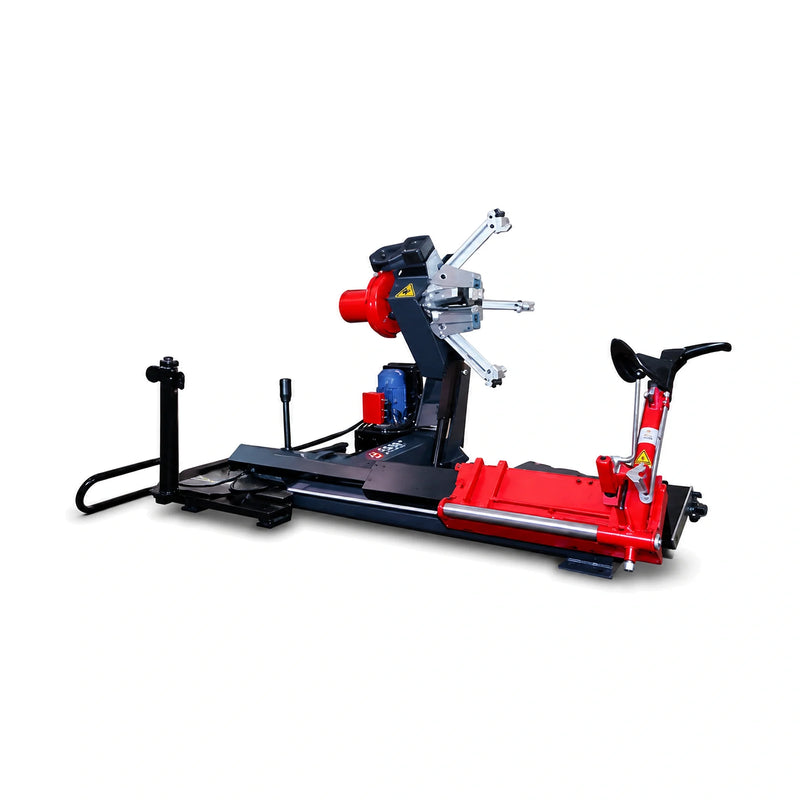

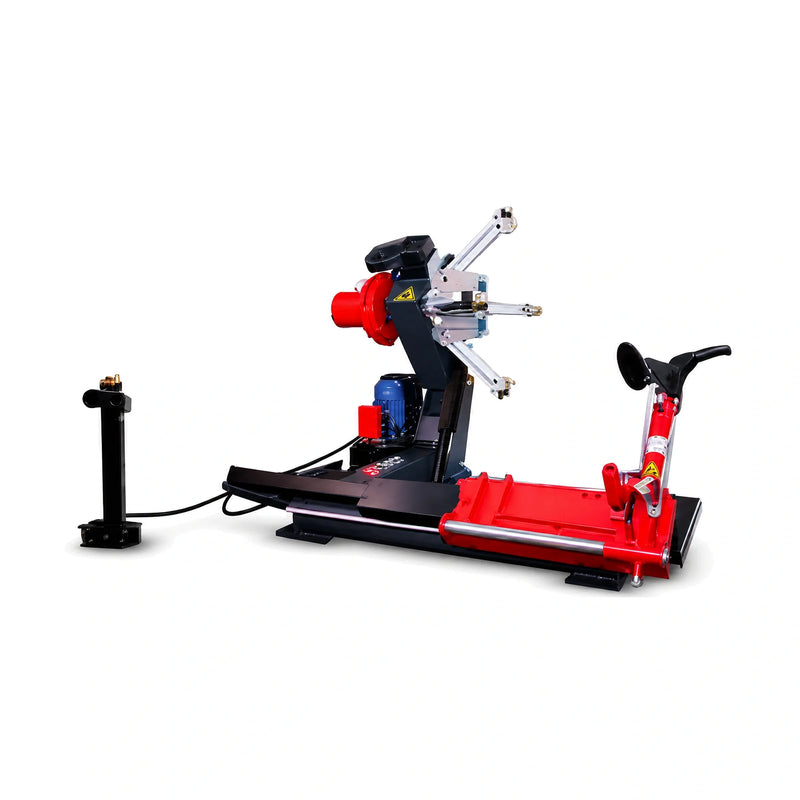

The Katool KT-T260 is an electro-hydraulic tire changer for heavy truck, bus and agricultural tires. It covers 14"–42" rims and wheels up to 91" in diameter, 41" (1040 mm) wide and 3,527 lbs. It delivers 7,275 lbs of bead breaking force and up to 5,265 Nm of torque.

Shipping information

Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Power
220V / 400V, 50/60Hz, 1PH / 3PH options
Max wheel weight
3,527 lbs
Rim diameter
14"–42"

Why Choose the Katool KT-T260

  • Wide rim range

    The KT-T260 covers rims from 14" to 42" for truck, bus and agricultural wheels.

  • Large wheel capacity

    It handles wheels up to 91" in diameter, 41" (1040 mm) wide and 3,527 lbs.

  • Strong bead breaking

    The bead breaker delivers 7,275 lbs of force.

  • High torque output

    Max torque is 5,265 Nm for mounting and demounting.

  • Electro-hydraulic operation

    The machine pairs a 2.2 kW gearbox motor with a hydraulic pump system.

  • Reinforced steel construction

    The frame is reinforced steel, with a machine weight of approx. 1,671 lbs.

Product Overview

Built for Large Truck and Agricultural Wheels

The KT-T260 is designed for heavy truck, bus and agricultural tires. Its 14"–42" rim diameter range and max wheel diameter of up to 91" put large agricultural wheels within reach of the same machine that handles truck and bus work. A max wheel width of 41" (1040 mm) and a max wheel weight of 3,527 lbs leave room for wide, heavy assemblies.

Electro-Hydraulic Drive and Bead Breaking

Power comes from a 2.2 kW gearbox motor paired with a hydraulic pump system. Max torque is 5,265 Nm, and the bead breaker delivers 7,275 lbs of force. The reinforced steel construction brings the machine weight to approx. 1,671 lbs.

Power Configurations

The KT-T260 comes in 220V / 400V, 50/60Hz, 1PH / 3PH options. Confirm the electrical configuration with Garage Lift Depot before ordering so the machine matches your shop's service.

Specifications

SpecificationValue
ModelKT-T260
TypeHeavy duty truck tire changer
OperationElectro-hydraulic
Rim diameter14"–42"
Max wheel diameterUp to 91"
Max wheel widthUp to 41" (1040 mm)
Max wheel weight3,527 lbs
Max torque5,265 Nm
Bead breaking force7,275 lbs
Power220V / 400V, 50/60Hz, 1PH / 3PH options
Motor2.2 kW gearbox motor + hydraulic pump system
ConstructionReinforced steel
Machine weightApprox. 1,671 lbs

Best For

  • Truck and bus service centers and fleet shops working on commercial wheels.
  • Agricultural dealers and farm operations servicing large agricultural tires.
  • Commercial garages that need one changer for rims from 14" up to 42".

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Electrical
Available in 220V / 400V, 50/60Hz, 1PH / 3PH options.
Electrical
2.2 kW gearbox motor + hydraulic pump system.
Electrical
Confirm the electrical configuration with Garage Lift Depot before ordering, and have a licensed electrician check the data plate before connecting the machine.

Warranty

Katool covers this machine with a 12-month warranty on all parts and product defects. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

It covers 14"–42" rims, with wheels up to 91" in diameter and 41" (1040 mm) wide.

It handles wheels up to 3,527 lbs.

It comes in 220V / 400V, 50/60Hz, 1PH / 3PH options. Confirm the electrical configuration with Garage Lift Depot before ordering.

The KT-T260 is designed for heavy truck, bus and agricultural tires, and it suits fleet service centers, truck shops and commercial garages.
