Katool KT-T160 Heavy Duty Truck Tire Changer for 14"–26" Rims

by Katool
Original price $4,399.00 - Original price $4,399.00
Original price
$4,399.00
$4,399.00 - $4,399.00
Current price $4,399.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

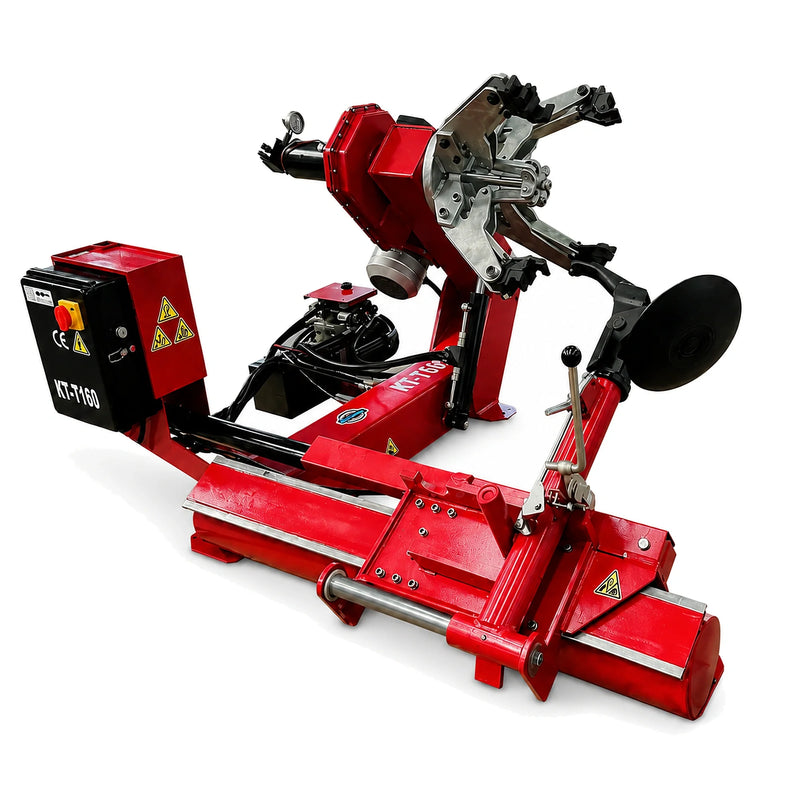

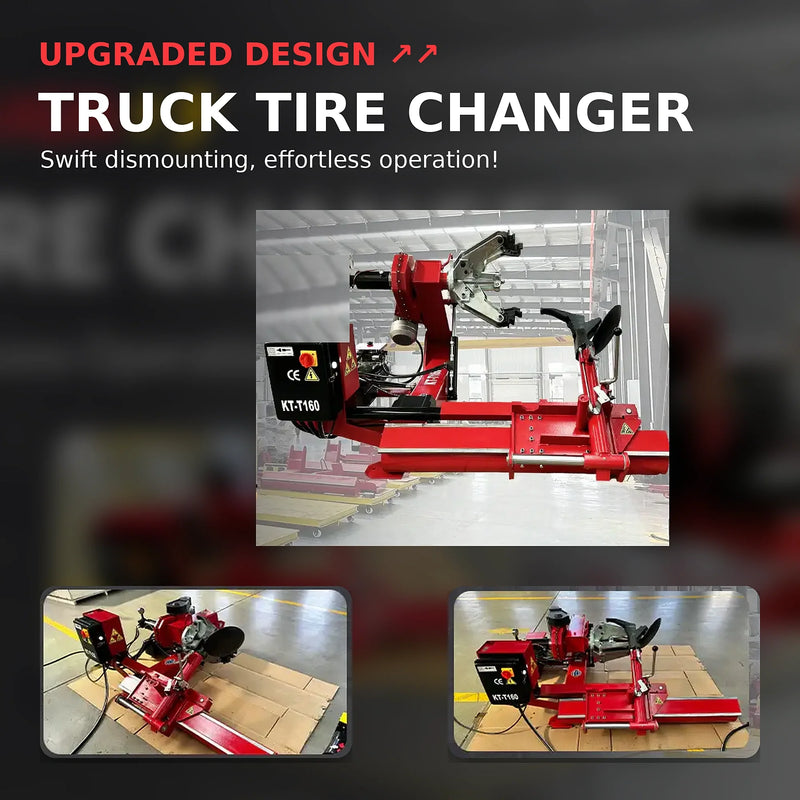

The Katool KT-T160 is an electro-hydraulic tire changer for truck, bus, tractor and earth-moving vehicle tires. It clamps 14"–26" rims on a self-centering chuck and takes wheels up to 62" (1600 mm) in diameter and 30" (780 mm) wide. It runs on 220V single-phase power, and the operator works it from a mobile control unit with a joystick and foot pedal.

Shipping information

Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Power
220V 1PH
Rim diameter
14"–26"

Why Choose the Katool KT-T160

  • Large wheel capacity

    The KT-T160 handles wheels up to 62" (1600 mm) in diameter and 30" (780 mm) wide on 14"–26" rims.

  • Single-phase power

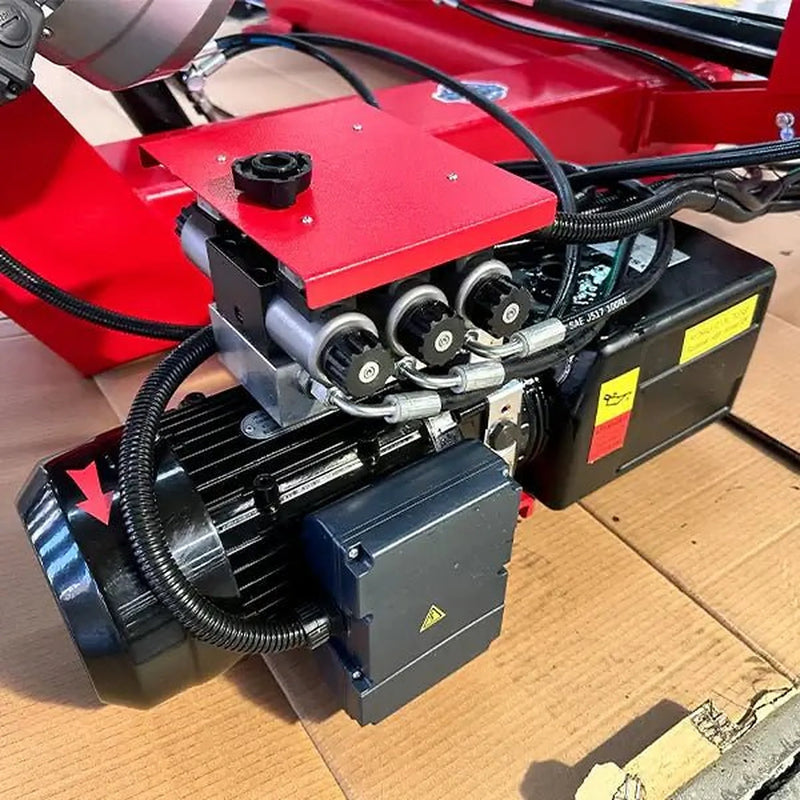

    It runs on 220V single phase, with a 1.5 kW (2.0 HP) pump motor and a 2.2 kW (3.0 HP) gearbox motor.

  • Mobile control unit

    The joystick and foot pedal let the operator work from any position around the machine.

  • Two-in-one bead tool

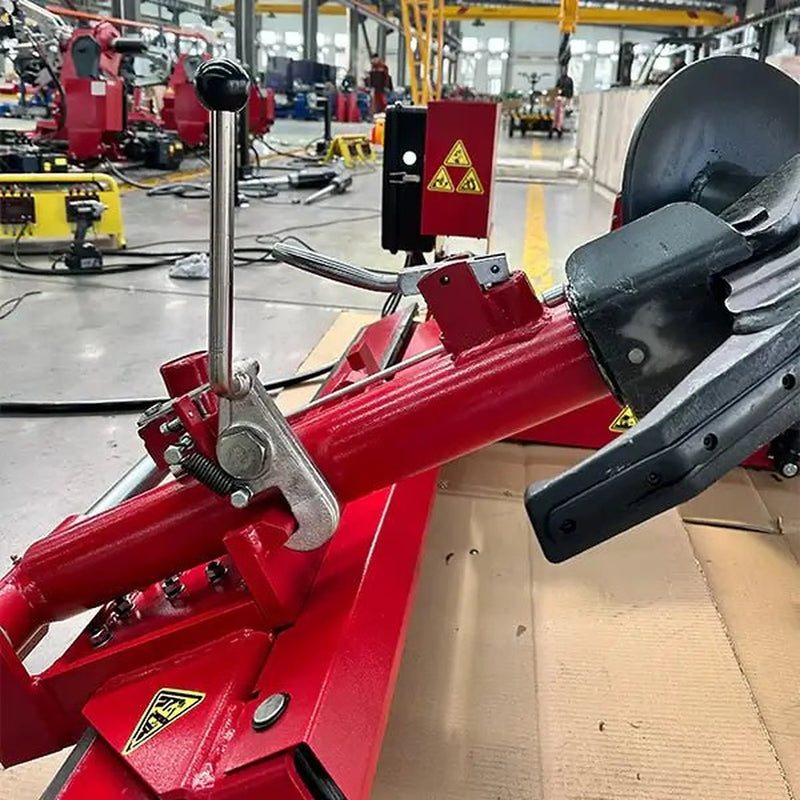

    A double-headed tool switches between the bead-breaking disk and the hook tool, turning 180° and locking automatically.

  • Built-in safety devices

    The machine has hydraulic check valves, a 130 bar ±5% pressure relief valve, a pump motor overload cut-out and a mechanical tool-arm lock.

  • No anchoring required

    Anchoring the machine to the floor isn't essential, as long as the floor is smooth and even.

Product Overview

Electro-Hydraulic Truck Tire Changer

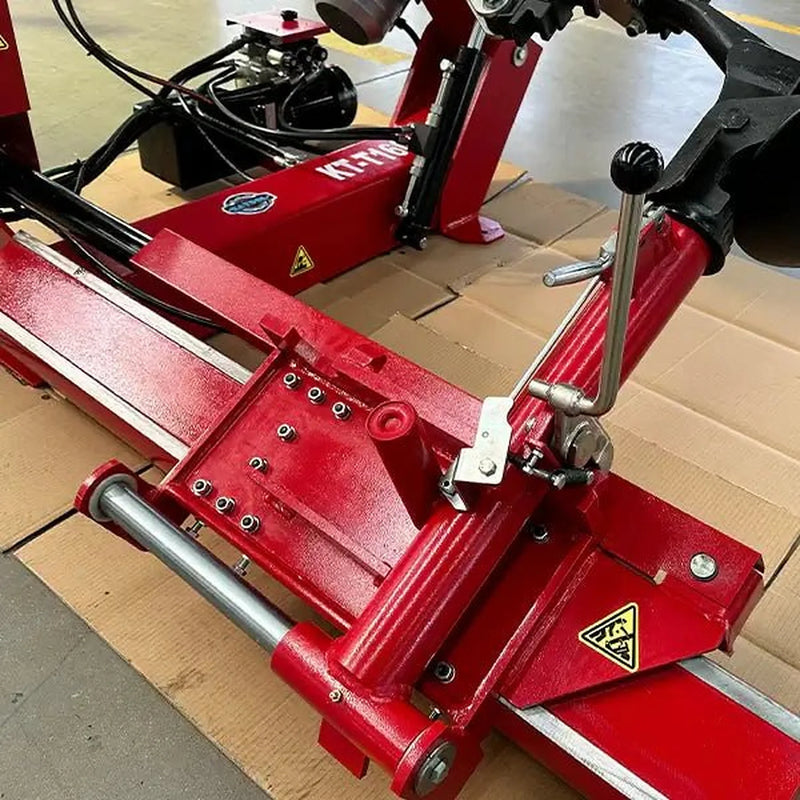

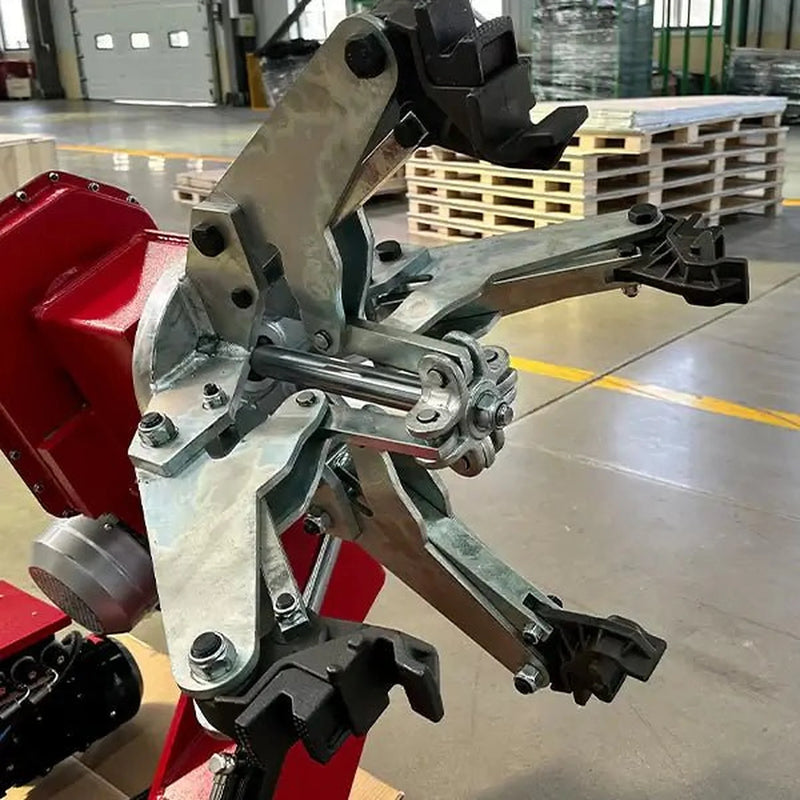

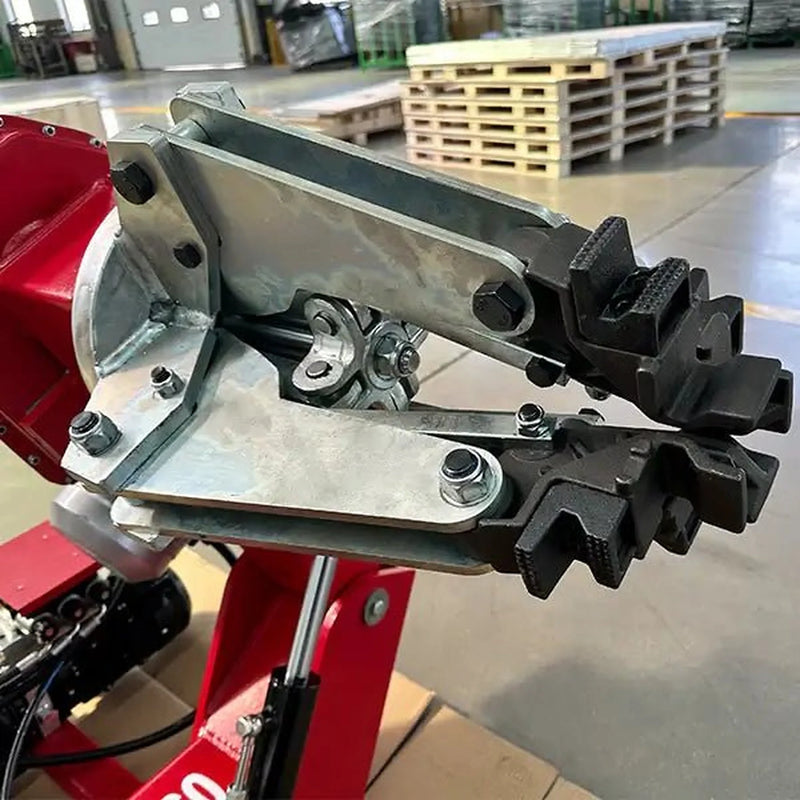

The KT-T160 is built for truck, bus, tractor and earth-moving vehicle tires. The wheel is clamped on its rim center flange by a hydraulic self-centering chuck, which the foot pedal rotates in either direction. A sliding platform carries the wheel to and from the chuck, and a lifting chuck arm and tool carrier arm handle positioning. Working pressure is up to 130 bar.

Controls and Bead Tools

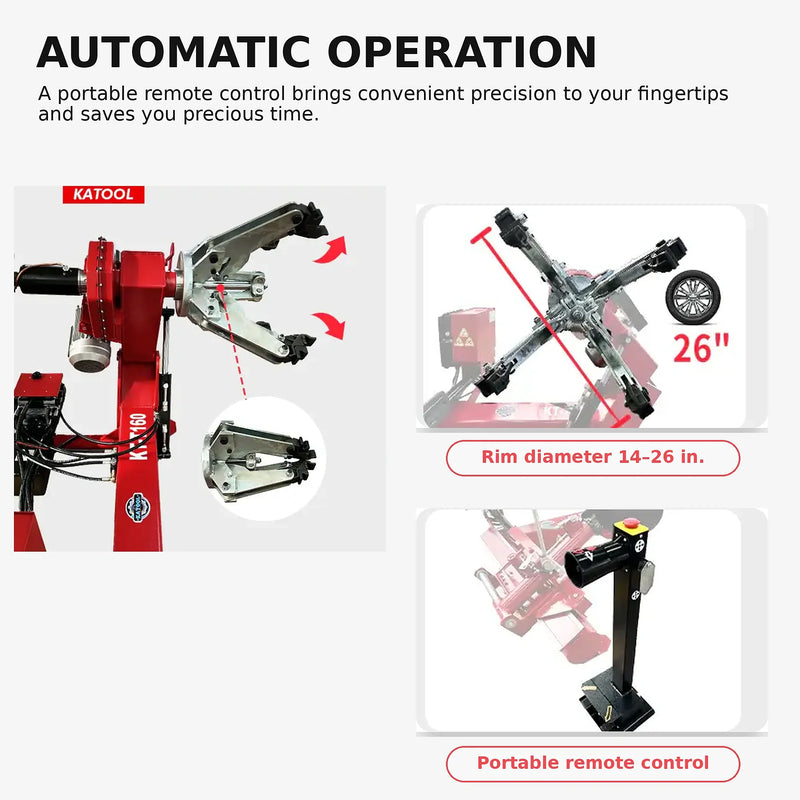

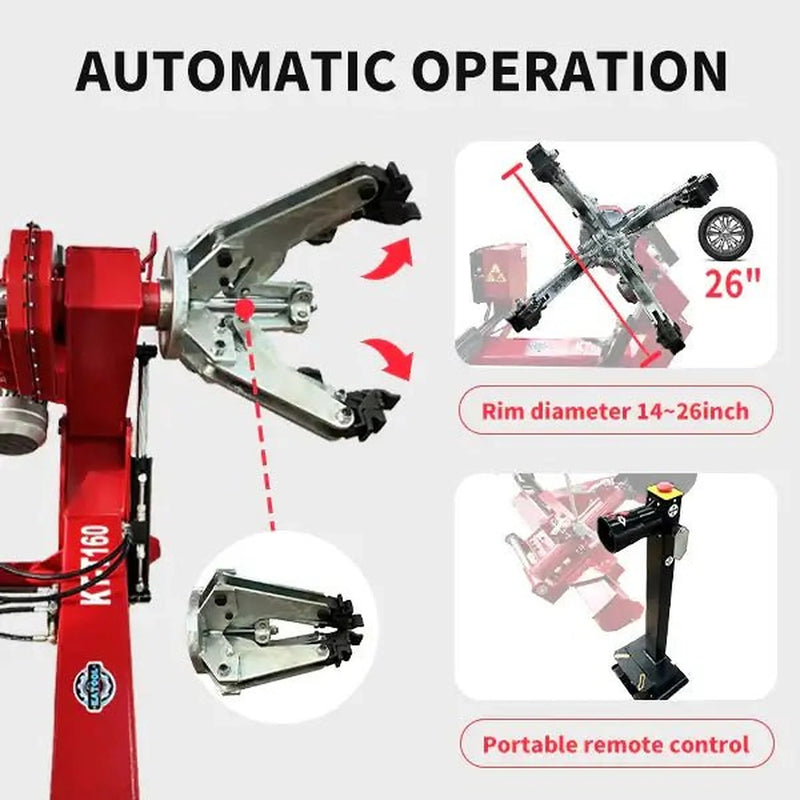

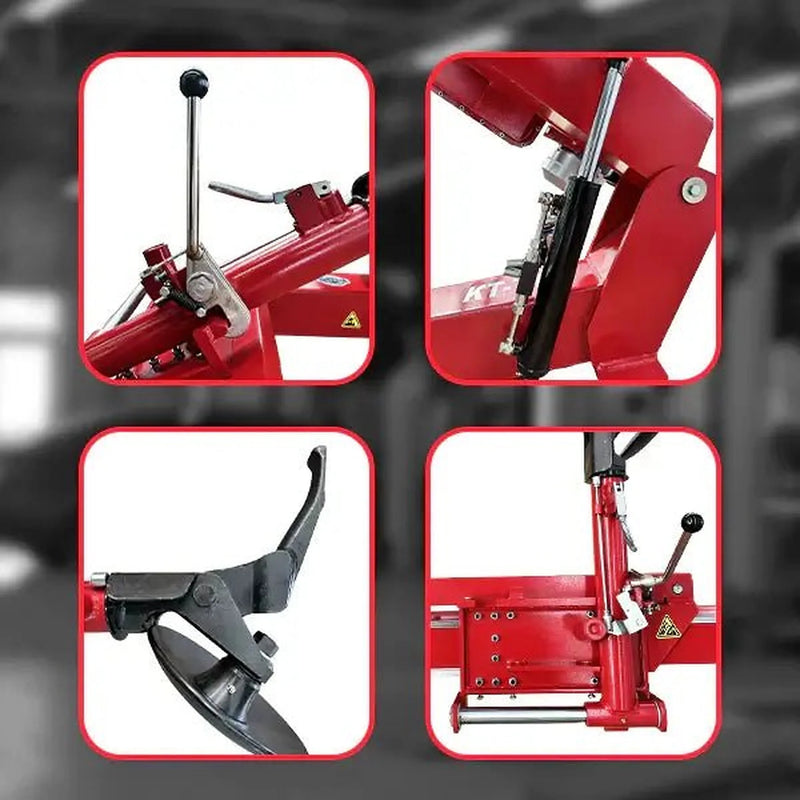

All functions run from a mobile control unit, so the operator can work safely from any position around the machine. The joystick raises and lowers the chuck arm and moves the tool carrier and platform toward or away from the spindle. A chuck switch opens and closes the jaws, and a lever tips the tool carrier arm between working and non-working positions. The double-headed tool carries a bead-breaking disk on one side and a hook tool on the other.

Wheel Types It Covers

Operating procedures cover tubeless, supersingle and tubed truck wheels, plus 3-piece split-ring and 5-segment split-ring wheels. The chuck has six clamping positions. Tire inflation is not done on the machine: remove the wheel and inflate it in a safety cage.

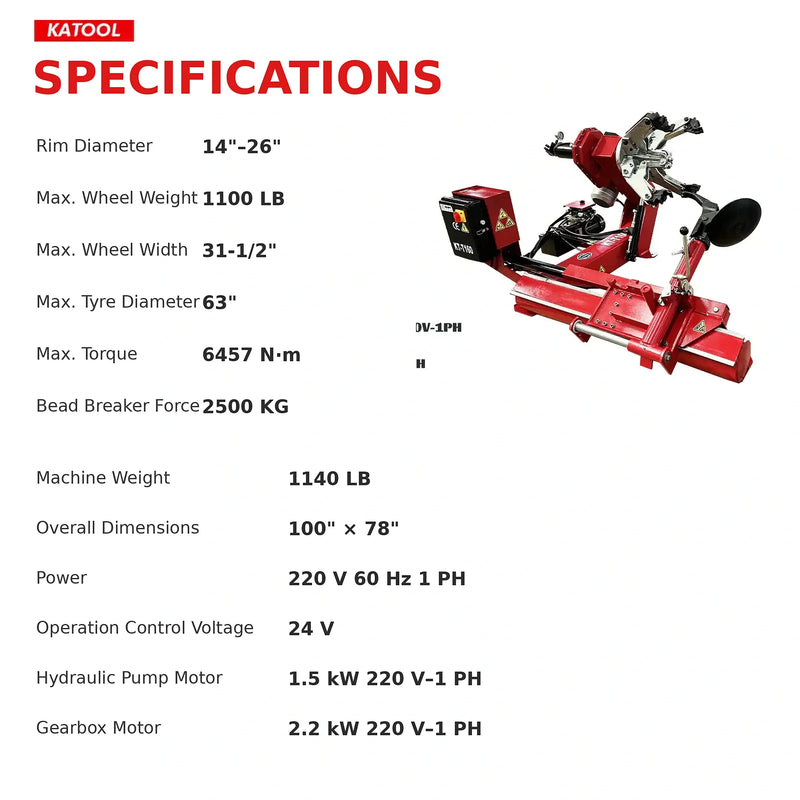

Specifications

SpecificationValue
ModelKT-T160
TypeElectro-hydraulic truck tire changer
Rim diameter14"–26"
Max wheel diameter62" (1600 mm)
Max wheel width30" (780 mm)
Working pressure≤130 bar
Pressure relief valve setting130 bar ±5%
Power220V 1PH
Pump motor1.5 kW (2.0 HP)
Gearbox motor2.2 kW (3.0 HP)
Fuse / switch ratingFuse 10A, switch 16A
Noise level (at work)LPA <70 dB(A)
Machine space requirement76.77" x 63" (1950 x 1600 mm)
Operating environment0–55℃; relative humidity 30–95% without condensation
Net weight1,257 lbs (570 kg)
Packing size79.9" x 61.8" x 32.7" (2030 x 1570 x 830 mm)

Best For

  • Truck, bus and fleet service shops working on commercial wheels.
  • Agricultural and equipment operations servicing tractor and earth-moving vehicle tires.
  • Tire shops adding truck work that have 220V single-phase power available.

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Space
The machine needs 76.77" x 63" (1950 x 1600 mm), plus clear working distances around it. This area is also the working range, so keep untrained people out of it.
Floor
Anchoring isn't essential, but the floor must be smooth, unbroken and even so the platform rollers move freely.
Location
If installed outdoors, protect it with a roof against rain. Don't use it in explosive atmospheres.
Handling
Lift and position the machine using the lifting bracket, with the chuck arm lowered, the chuck closed and the slide at its stop. Use a hoisting belt at least 60 mm wide.
Electrical
220V single-phase (1PH) power supply.
Electrical
1.5 kW (2.0 HP) pump motor and 2.2 kW (3.0 HP) gearbox motor.
Electrical
Mains voltage must match the voltage tag on the cord, with a good grounding circuit and a supply-line circuit breaker set for 30 mA.
Electrical
Overcurrent protection: fuse 10A, switch 16A.
Electrical
Electrical work must be done by qualified personnel. At first power-up, check that the gearbox motor turns in the direction of the arrow.
Electrical
Supply frequency, plug type and amperage draw are not specified. Confirm the electrical setup with Garage Lift Depot and have a licensed electrician check the data plate.

Warranty

Katool covers this machine with a 12-month warranty on all parts and product defects. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

It clamps 14"–26" rims and takes wheels up to 62" (1600 mm) in diameter and 30" (780 mm) wide.

It runs on 220V single phase. Use a grounded circuit with a 30 mA circuit breaker and 10A fuse / 16A switch overcurrent protection, installed by a qualified electrician.

Anchoring isn't essential. The floor must be smooth, unbroken and even so the platform rollers move freely.

No. Remove the wheel from the machine and inflate it in a safety cage.

The hydraulic system uses Esso Nuto H46 or a similar ISO 46 oil, and the gear unit uses Esso Spartan EP 320 or similar.
