Katool KT-M110 11,000 lb Clear-Floor 2-Post Lift

by Katool
Original price $2,099.00 - Original price $2,398.00
Original price
$2,099.00
$2,099.00 - $2,398.00
Current price $2,099.00
Voltage: 220V
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

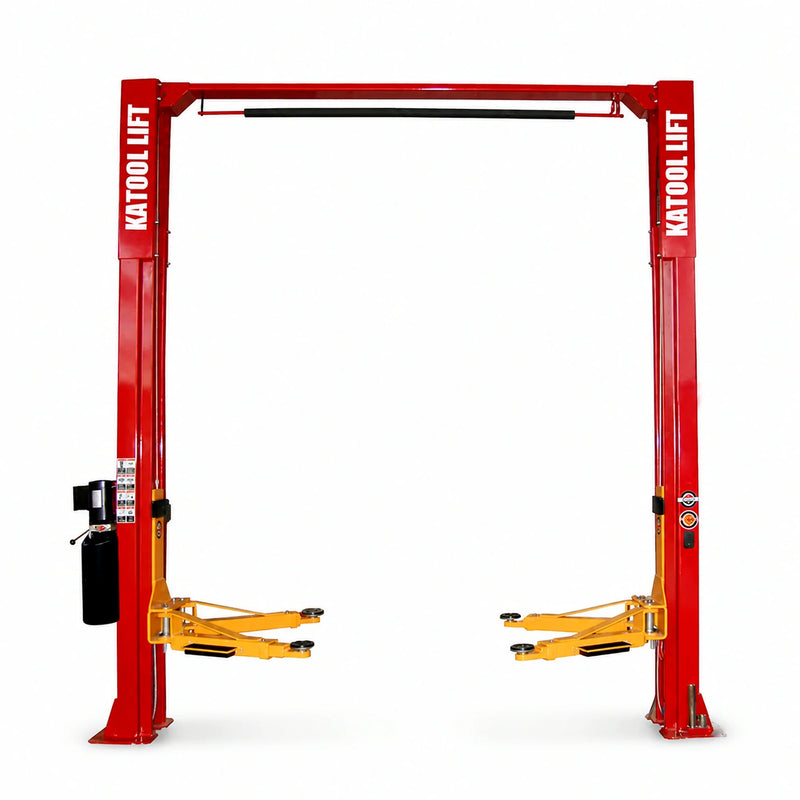

The Katool KT-M110 is an 11,000 lb clear-floor two-post lift with a cross beam, an overhead safety shutoff bar and symmetric two-stage arms. It lifts to 70.75", stands 141.25" tall overall and gives 94.5" of drive-through width. The standard power unit is 220V, 60 Hz, single phase; a 110V power unit is an optional add-on.

Shipping information

A forklift is required on site; lifts are too heavy for liftgate delivery.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Rated capacity
11,000 lb (5000 kg)
Power
220V, 60 Hz, single phase (110V optional)
Overall height
141.25" (3587 mm)
Overall width
142.25" (3614 mm)
Maximum lifting height
70.75" (1800 mm)

Why Choose the Katool KT-M110

  • Clear floor between posts

    A cross beam joins the posts overhead, leaving the floor between the columns open.

  • Overhead safety shutoff

    A shutoff bar on the cross beam acts as a limit switch at the top of the lift.

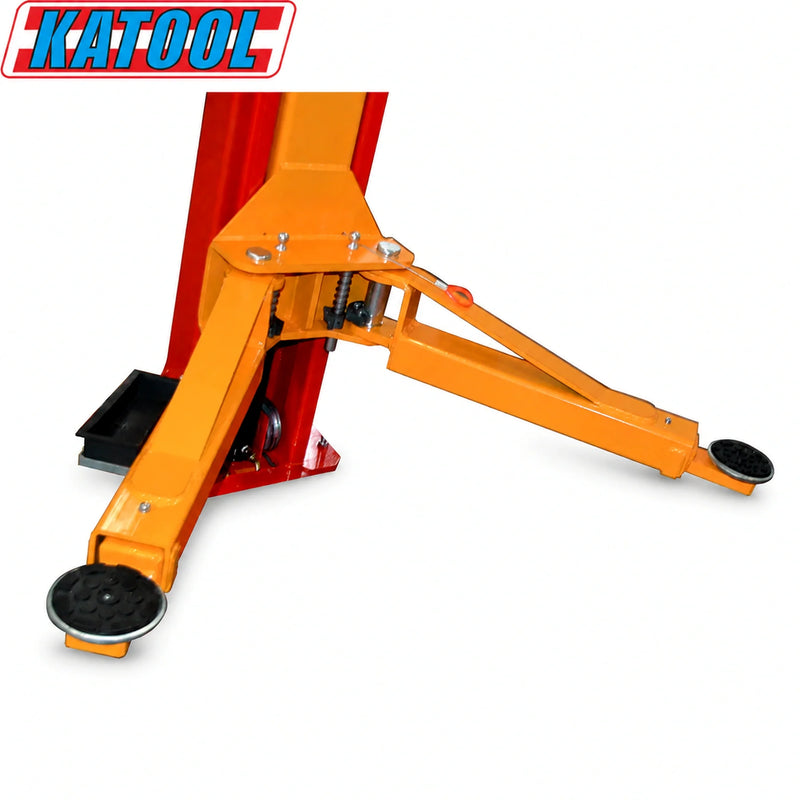

  • Symmetric two-stage arms

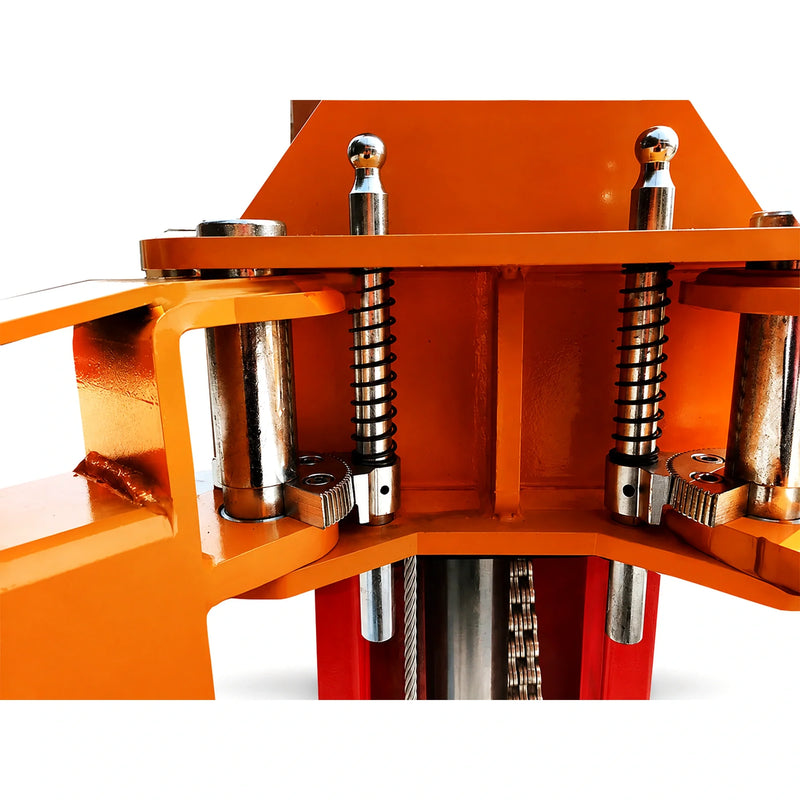

    All four arms adjust from 30.75" to 50.5", front and rear.

  • Dual chain-drive cylinders

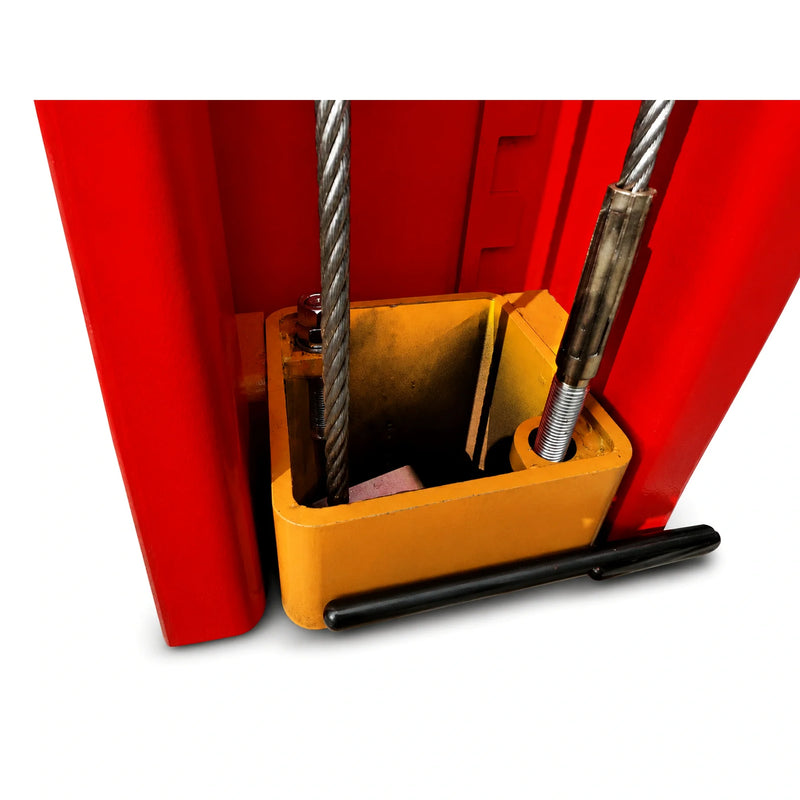

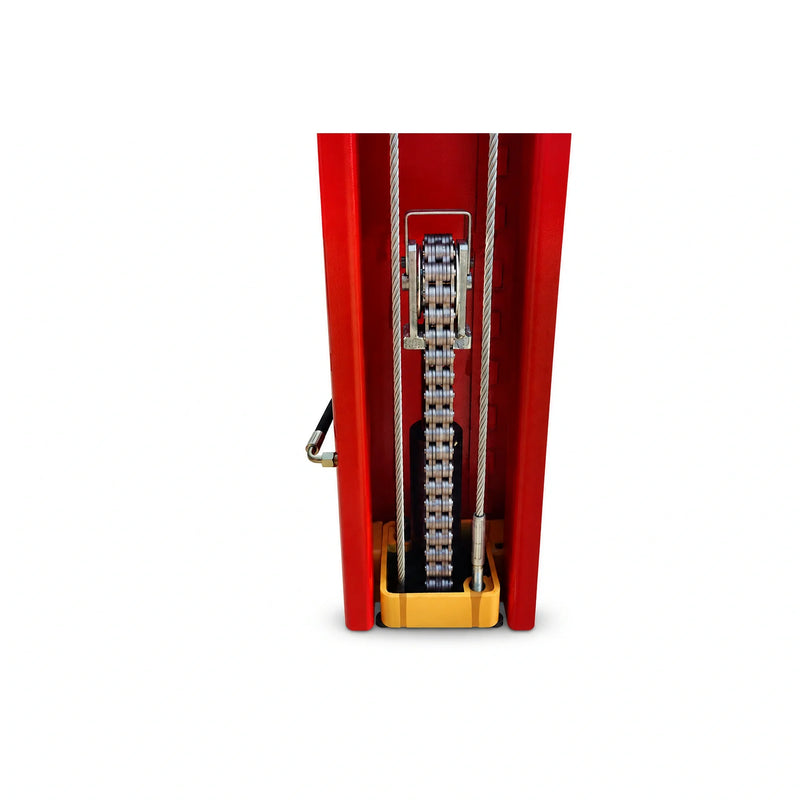

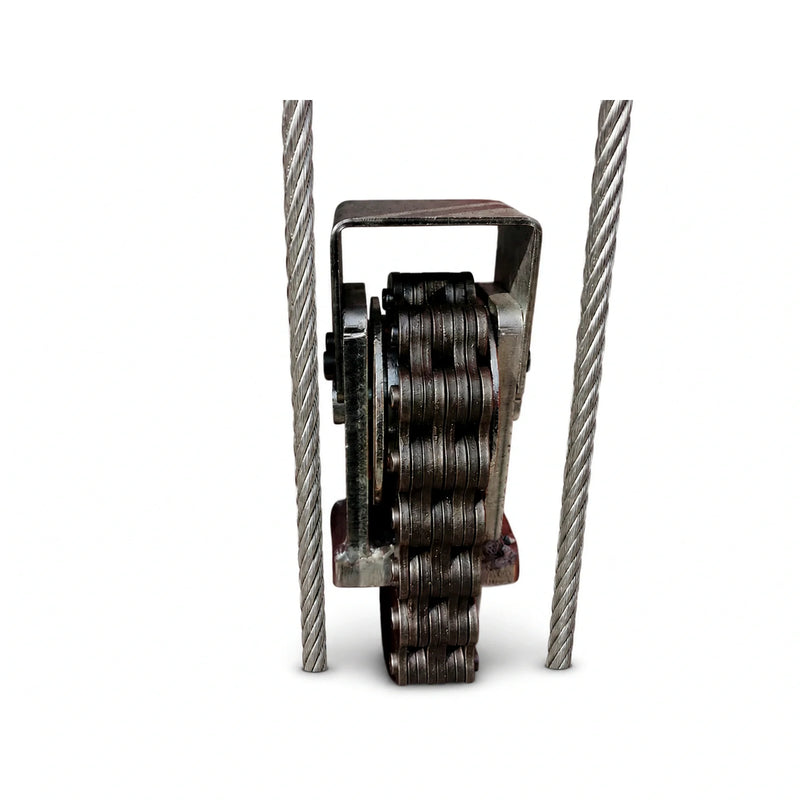

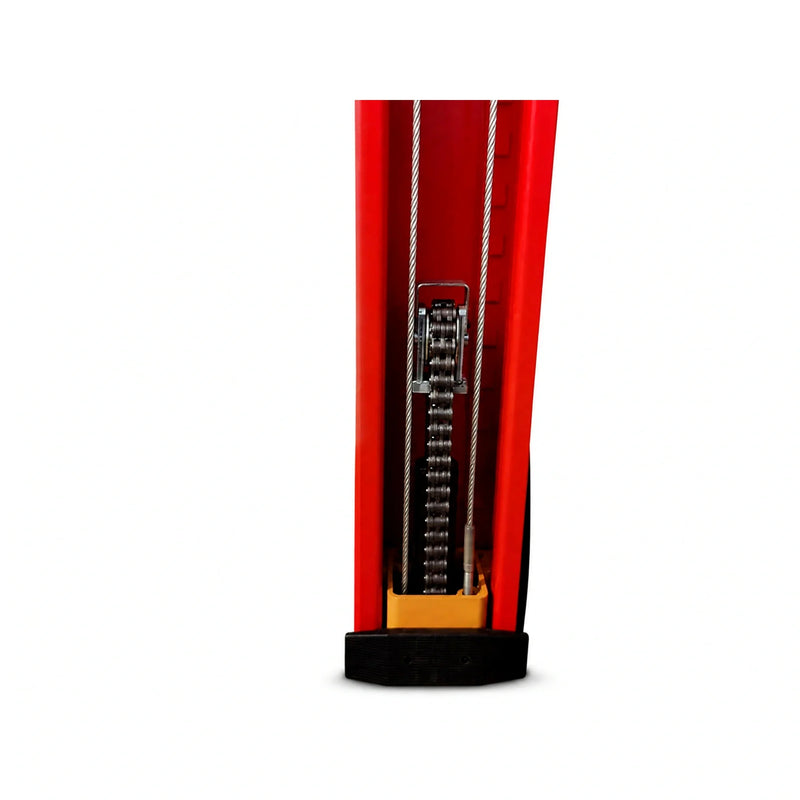

    Two hydraulic cylinders drive the carriages through leaf chains, with dual equalizer cables between the sides.

  • Low pickup height

    The lift pads start at 4.25" off the floor.

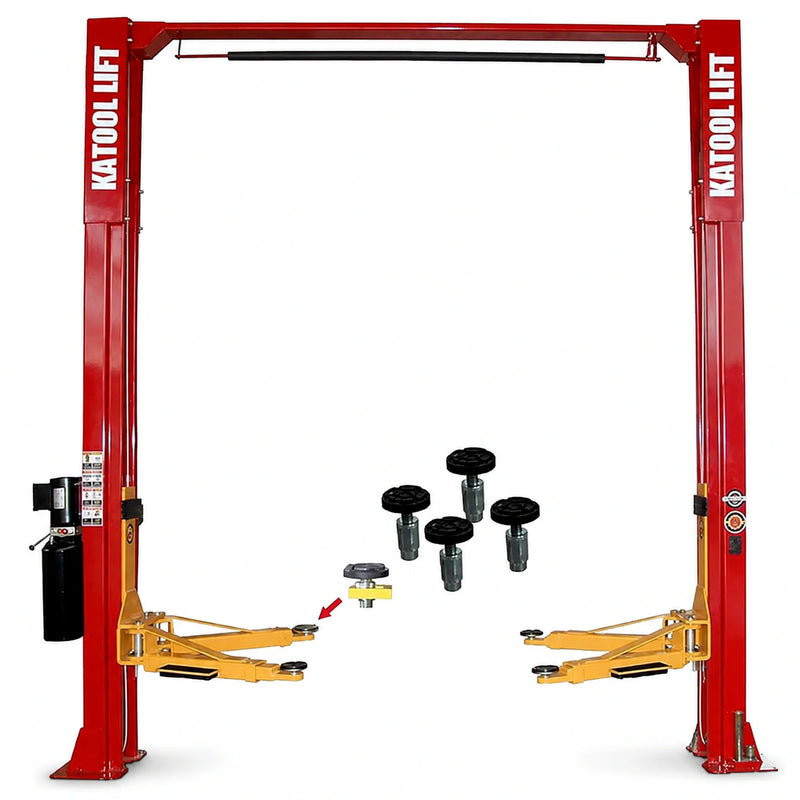

  • Adapters and guards included

    Extension adapter sets of +30 mm and +120 mm, feet-protection guardrails with a tool box and rubber door-edge pads come with the lift.

Product Overview

Clear-Floor Two-Post Design

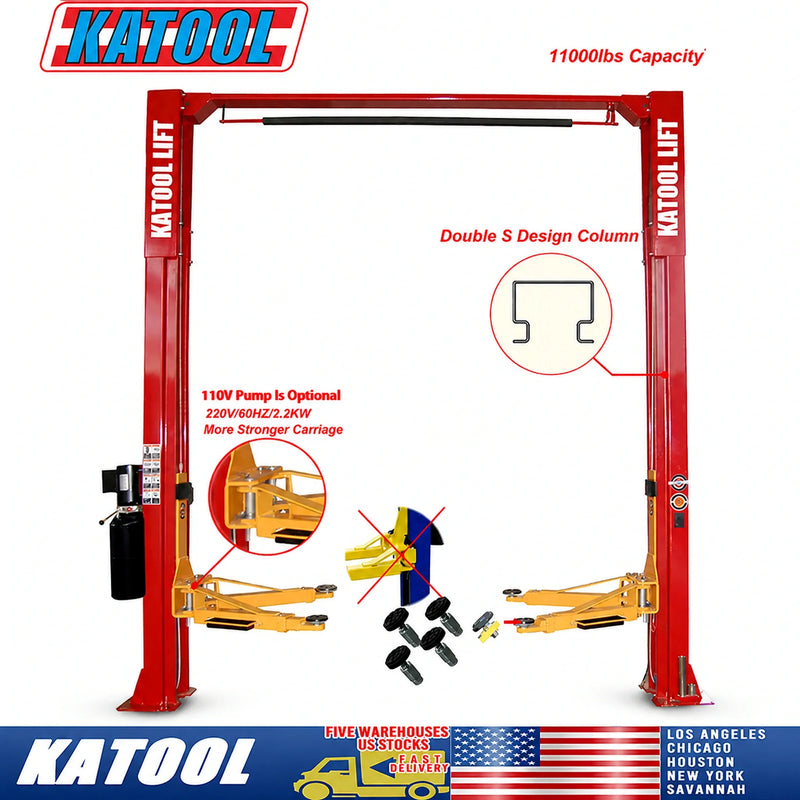

The KT-M110 connects its posts with an overhead cross beam, so the floor between the columns stays clear. An overhead safety shutoff bar on the beam serves as a limit switch, and the lift stands 141.25" (3587 mm) tall overall. Two post extensions are included.

Capacity, Height and Arm Reach

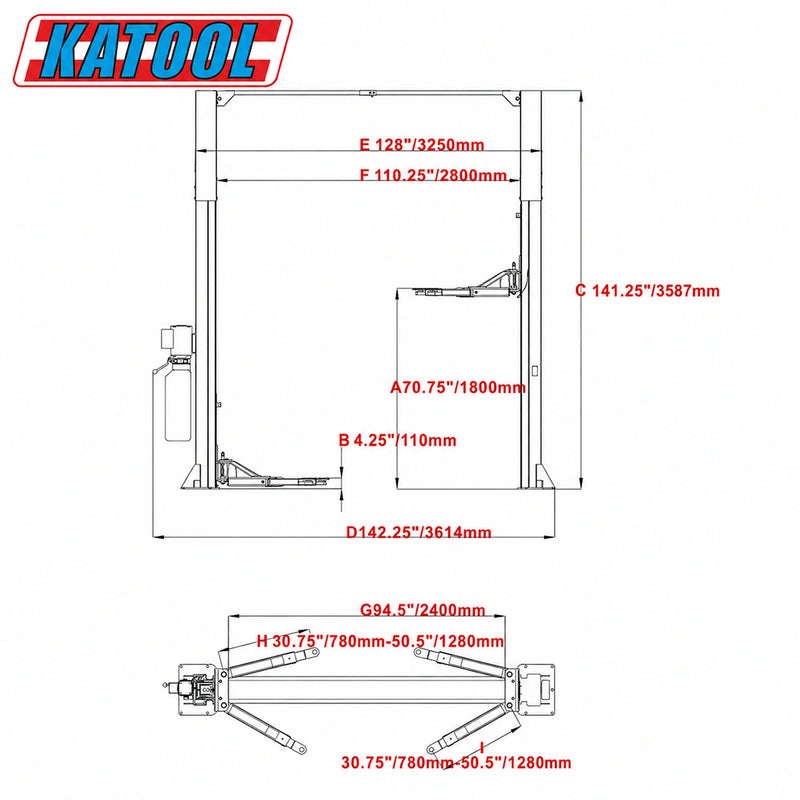

The rated capacity is 11,000 lb (5000 kg). The lift pads travel from 4.25" (110 mm) to a maximum lifting height of 70.75" (1800 mm), and a full rise takes 50 seconds or less. The four symmetric two-stage arms each adjust from 30.75" (780 mm) to 50.5" (1280 mm), with four frame contact pads and frame cradle pads supplied. Width between the columns is 110.25" (2800 mm), drive-through width is 94.5" (2400 mm), and the outside of the columns measures 128" (3250 mm).

Locks and Lowering

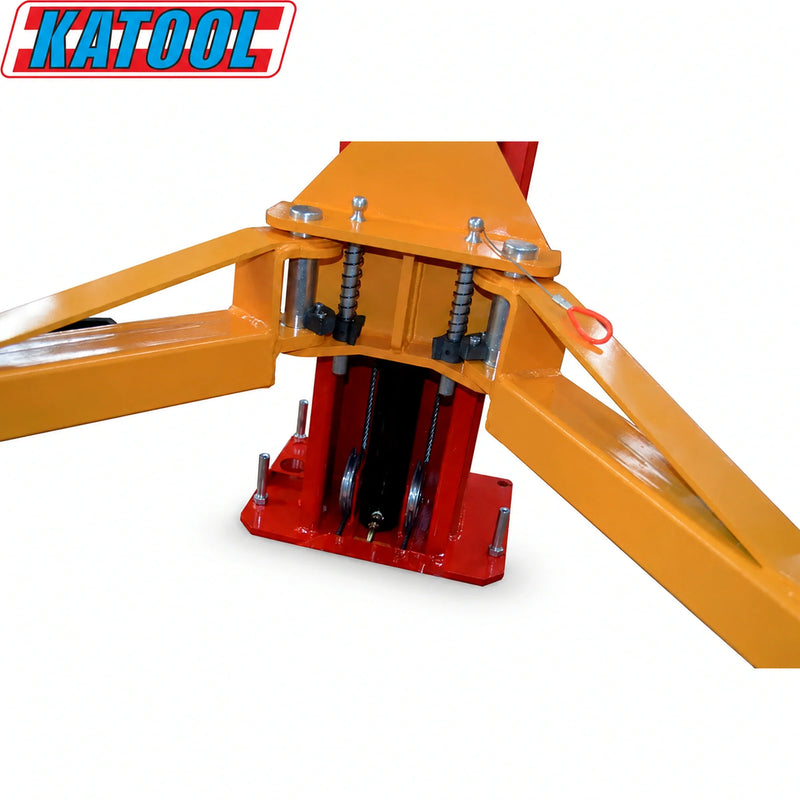

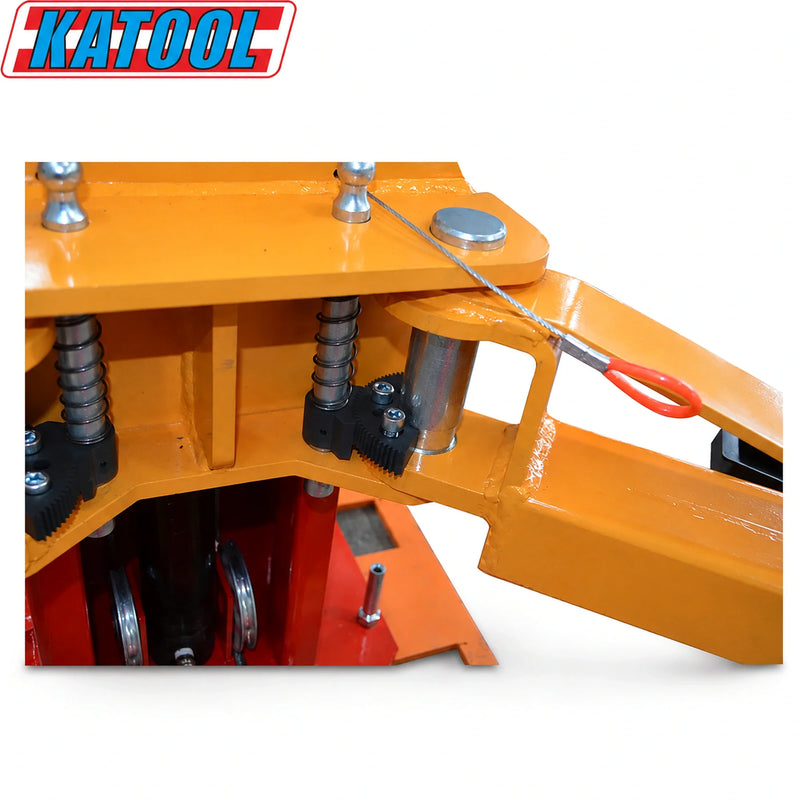

Spring-loaded safety locking plates engage a toothed bar welded inside each column. To lower, the locks are released by hand from both sides by pulling the steel rope on each carriage. Lowering takes 20 seconds or more.

Power and Installation

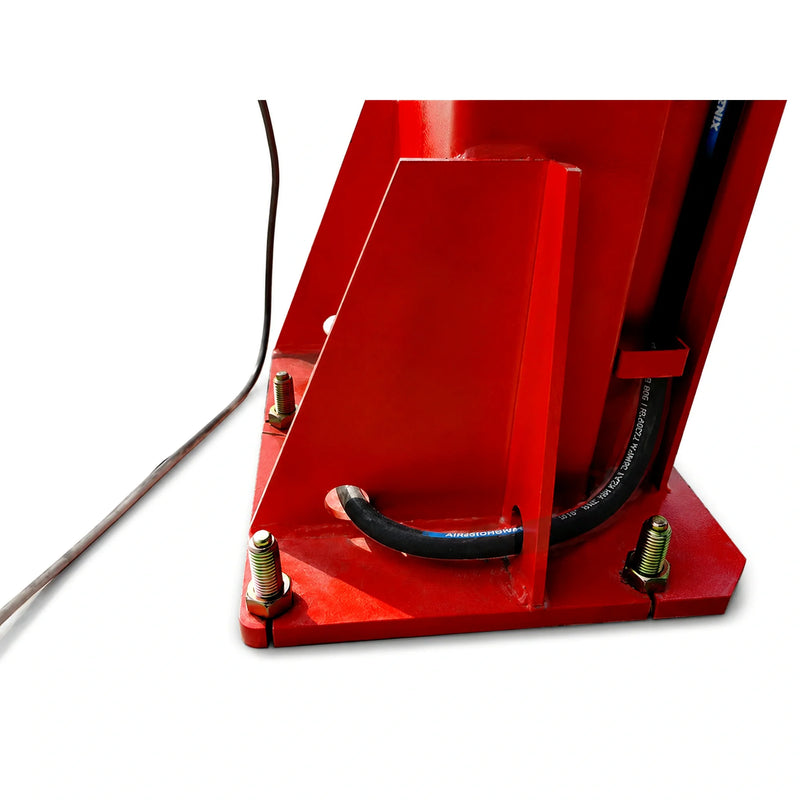

The hydraulic power unit runs on 220V, 60 Hz, single phase with a 2.2 kW motor. A 110V, 60 Hz, single-phase power unit is available as an optional add-on. The lift needs a dedicated power line, and each post is anchored with five concrete anchor bolts into a slab at least 5.9" (150 mm) thick rated at 3000 PSI or more.

Specifications

SpecificationValue
ModelKT-M110
Lift typeTwo-post, clear floor with cross beam, symmetric
Rated capacity11,000 lb (5000 kg)
Maximum lifting height70.75" (1800 mm)
Minimum height4.25" (110 mm)
Overall height141.25" (3587 mm)
Overall width142.25" (3614 mm)
Width between columns110.25" (2800 mm)
Outside of columns128" (3250 mm)
Drive-through width94.5" (2400 mm)
Front arm reach30.75"–50.5" (780–1280 mm)
Rear arm reach30.75"–50.5" (780–1280 mm)
Arm designSymmetric, two-stage
DriveDual hydraulic chain-drive cylinders, dual equalizer cables
Lock releaseManual, from both sides
Lifting time50 s or less
Lowering time20 s or more
Power220V, 60 Hz, single phase (110V optional)
Motor2.2 kW
Concrete requirementAt least 5.9" (150 mm), 3000 PSI or more
Net weight1,389 lb (630 kg)

What's Included

  • Overhead assembly (cross beam) with overhead safety shutoff bar
  • Offside and powerside posts, with 2 post extensions
  • 4 lift arm assemblies
  • 4 frame contact pads and frame cradle pads
  • 2 hydraulic cylinders
  • Hydraulic power unit (220V, 60 Hz, single phase)
  • Balancing steel cables and hydraulic lines

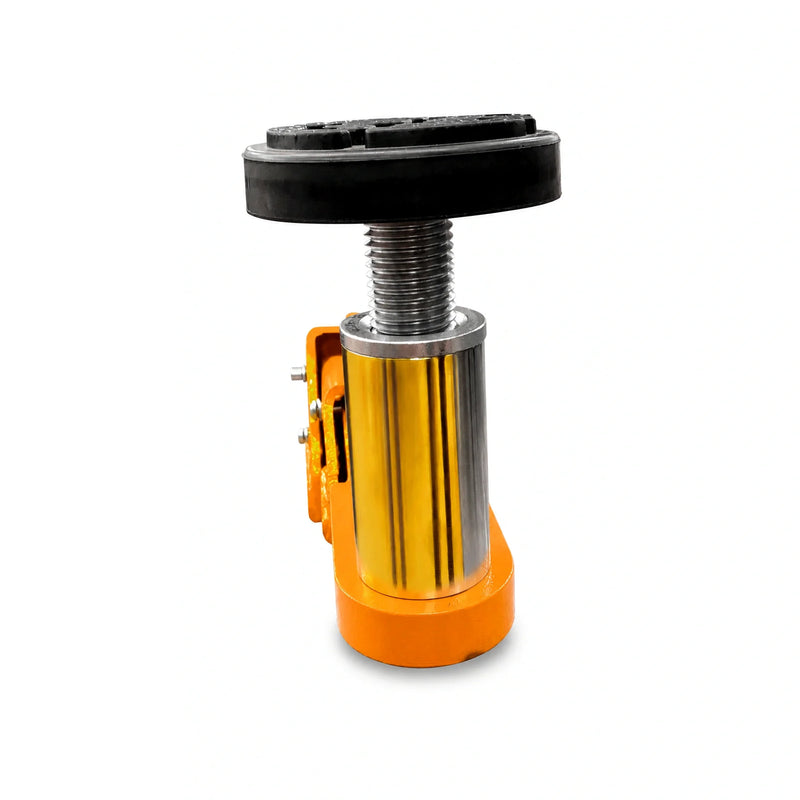

  • Extension support adapter sets, +30 mm and +120 mm
  • Feet-protection safety guardrails with tool box
  • Rubber pad door opening protection
  • Anchor bolts

Optional: 110V, 60 Hz, single-phase power unit; emergency hand pump; KT-MP2 Lift Height Extensions (set of 4); KT-MP5 Two Post Lift Frame Cradle Set.

Best For

  • Garages and shops that want the floor between the posts kept clear for jacks and carts
  • Bays with enough ceiling height for a 141.25" overall lift height
  • Owners lifting vehicles up to 11,000 lb who want symmetric arms of equal reach front and rear

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Concrete
At least 5.9" (150 mm) thick, 3000 PSI or more, reinforced with steel bar, level and aged at least 7 days. No asphalt, seams or cracks under the posts.
Anchors
Five concrete anchor bolts per post, 10 x D18 x 160 in total. Drill with a sharp 19 mm bit to the anchor length, tighten with a torque wrench only (no impact tools), and shim no more than 5 mm.
Ceiling
Must clear the lift's 141.25" overall height, and also the maximum lifting height (70.75") plus your tallest vehicle plus at least 6" (152 mm). Keep the area free of overhead obstructions.
Bay
Allow approx. 4 m in front of and behind the lift, measured from the centerline.
Electrical
220V, 60 Hz, single phase (standard); 110V, 60 Hz, single-phase power unit available as an optional add-on.
Electrical
Motor: 2.2 kW. Run the lift on a dedicated power line installed by a licensed electrician.
Electrical
Amperage is not specified; have a licensed electrician confirm the circuit from the data plate.
Hydraulic
Hydraulic oil: N32 or N46, 10 L capacity. Change it 6 months after first use, then once a year.

Warranty

Katool covers this lift with a 1-year warranty on all parts and a 3-year warranty on structural components. Labor is not included. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

The standard power unit is 220V, 60 Hz, single phase. A 110V, 60 Hz, single-phase power unit is available as an optional add-on.

The ceiling must clear the lift's 141.25" overall height. It also needs to clear the 70.75" maximum lifting height plus your tallest vehicle plus at least 6" (152 mm).

A level slab at least 5.9" (150 mm) thick, rated at 3000 PSI or more, reinforced with steel bar and aged at least 7 days, with no asphalt, seams or cracks.

Drive-through width is 94.5" (2400 mm), and the width between the columns is 110.25" (2800 mm).

Spring-loaded locking plates hold each carriage on a toothed bar. You release them by hand from both sides by pulling the steel rope on each carriage.

Extension support adapter sets of +30 mm and +120 mm, plus four frame contact pads and frame cradle pads.
