Katool KT-H100 10,000 lb Floor-Plate 2-Post Lift

by Katool
Original price $1,999.00 - Original price $1,999.00
Original price
$1,999.00
$1,999.00 - $1,999.00
Current price $1,999.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

The Katool KT-H100 is a 10,000 lb floor-plate (base plate) two-post lift with symmetric two-stage arms. It raises the lift pads to 70.75" and stands 110.25" tall overall, with 94.5" of drive-through width between the posts. The standard power unit runs on 220V, 60 Hz, single phase, and a 110V power unit is available as an option.

Shipping information

A forklift is required on site; lifts are too heavy for liftgate delivery.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

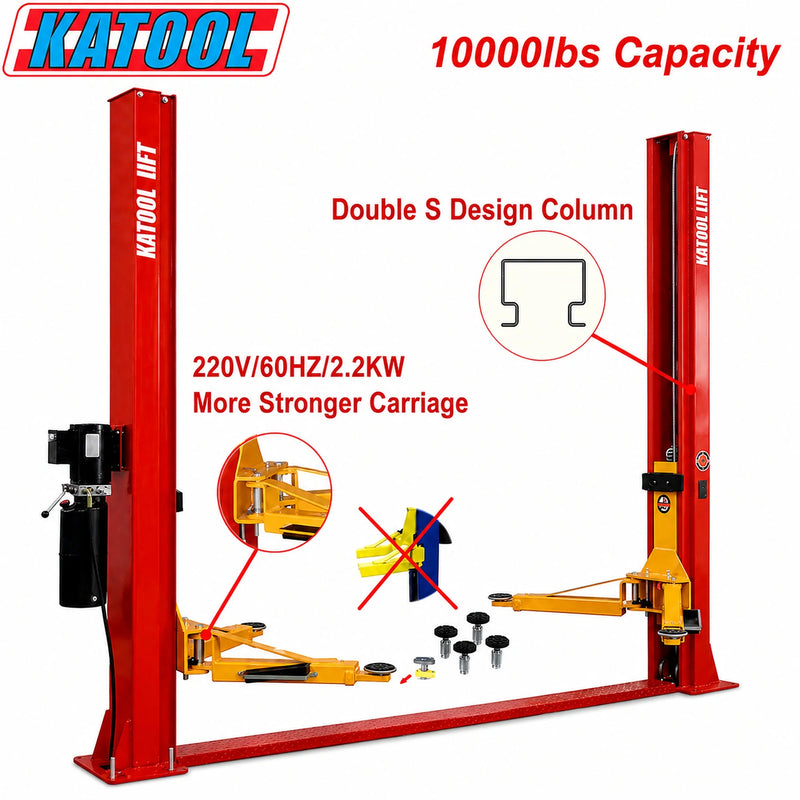

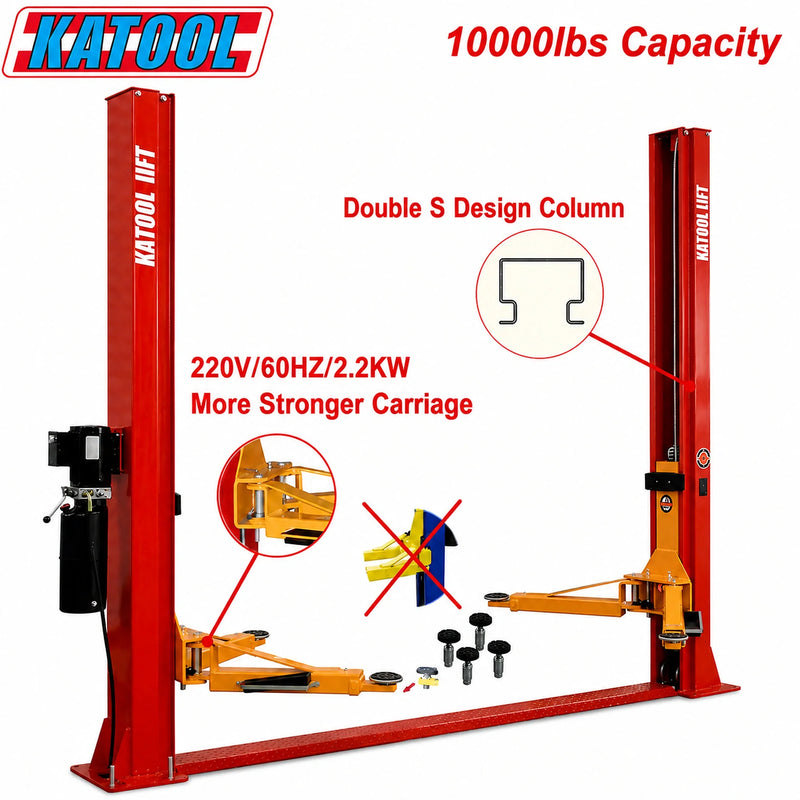

At a Glance

Rated capacity
10,000 lb (4500 kg)
Power
220V, 60 Hz, single phase (110V optional)
Overall height
110.25" (2800 mm)
Overall width
142.25" (3614 mm)
Maximum lifting height
70.75" (1800 mm)

Why Choose the Katool KT-H100

  • Floor-plate design

    The posts sit on base plates with a floor board cover between them, so no overhead cross beam is needed.

  • Compact overall height

    The lift stands 110.25" (2800 mm) tall overall.

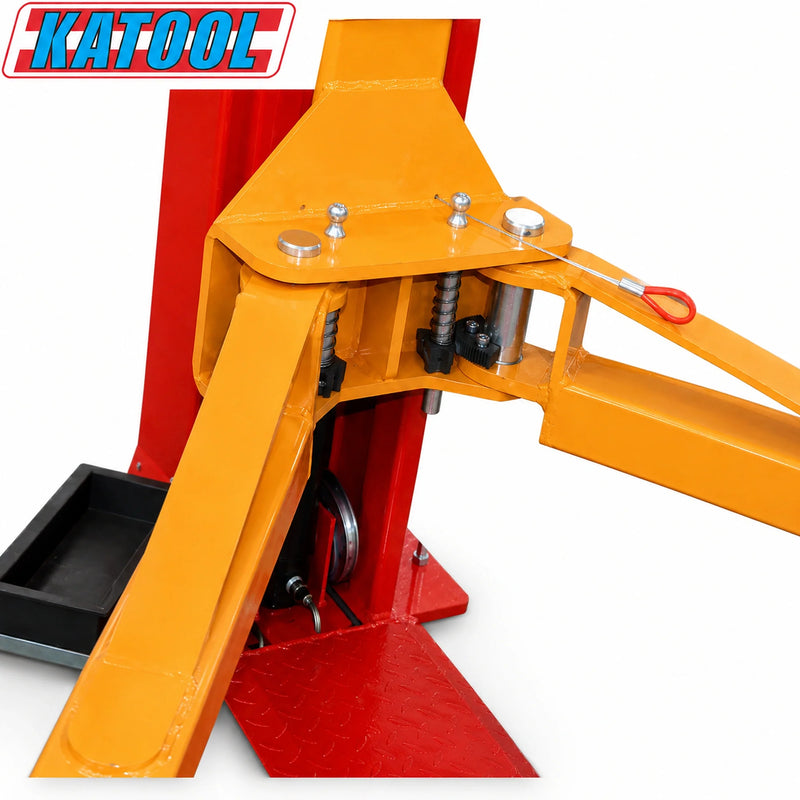

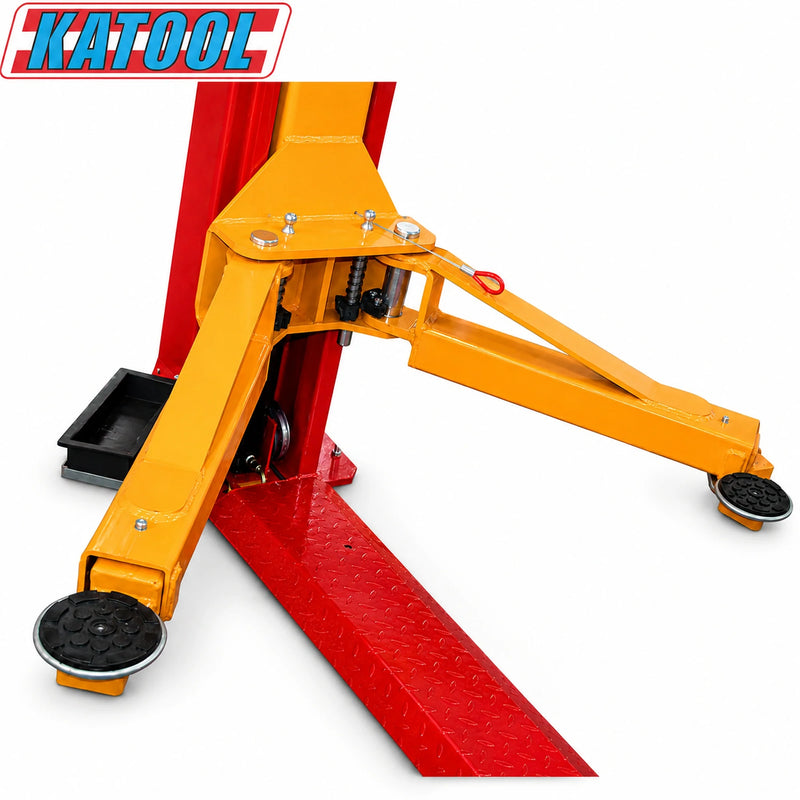

  • Symmetric two-stage arms

    All four arms reach from 30.75" to 50.5", front and rear.

  • Dual chain-drive cylinders

    Each post has its own hydraulic cylinder driving the carriage through a chain.

  • Low pickup height

    The lift pads start at 4.25" off the floor.

  • Adapters and guards included

    Extension adapter sets of +30 mm and +120 mm, feet-protection guardrails with a tool box and rubber door-edge pads come with the lift.

Product Overview

Floor-Plate Two-Post Design

The KT-H100 is a two-post lift built on base plates rather than a cross beam over the bay. A floor board cover runs between the posts, and the lift stands 110.25" (2800 mm) tall overall.

Capacity, Height and Arm Reach

The rated capacity is 10,000 lb (4500 kg). The lift pads travel from a minimum height of 4.25" (110 mm) to a maximum lifting height of 70.75" (1800 mm), and the lift reaches full height in 50 seconds or less. The four symmetric two-stage arms each adjust from 30.75" (780 mm) to 50.5" (1280 mm), and four frame contact pads are supplied. Width between the columns is 110.25" (2800 mm), drive-through width is 94.5" (2400 mm), and the outside of the columns measures 128" (3250 mm).

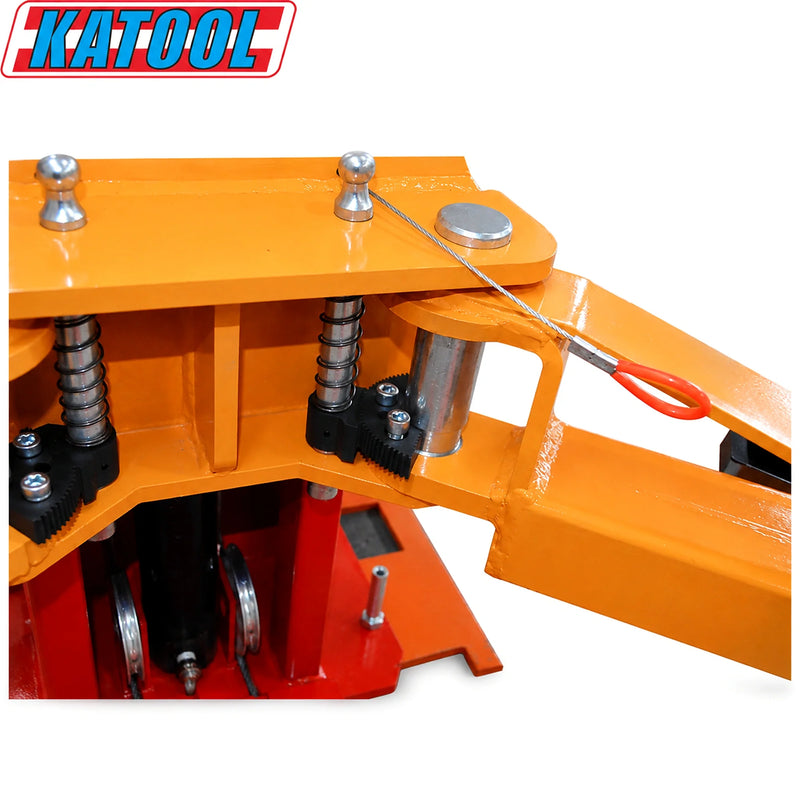

Locks and Lowering

Mechanical safety locking plates in each column engage a toothed bar as the carriage rises. To lower, the lock is released by hand from both sides, using the steel rope on each carriage. Lowering takes 20–40 seconds.

Power and Installation

The hydraulic power unit runs on 220V, 60 Hz, single phase with a 2.2 kW motor. A 110V, 60 Hz, single-phase power unit is available as an option. Each column is anchored with five concrete anchor bolts, which are supplied, into a slab at least 5.9" (150 mm) thick rated at 3000 PSI.

Specifications

SpecificationValue
ModelKT-H100
Lift typeTwo-post, floor plate (base plate), symmetric
Rated capacity10,000 lb (4500 kg)
Maximum lifting height70.75" (1800 mm)
Minimum height4.25" (110 mm)
Overall height110.25" (2800 mm)
Overall width142.25" (3614 mm)
Width between columns110.25" (2800 mm)
Outside of columns128" (3250 mm)
Drive-through width94.5" (2400 mm)
Front arm reach30.75"–50.5" (780–1280 mm)
Rear arm reach30.75"–50.5" (780–1280 mm)
Arm designSymmetric, two-stage
DriveDual hydraulic chain-drive cylinders
Lock releaseManual, from both sides
Lifting time50 s or less
Lowering time20–40 s
Power220V, 60 Hz, single phase (110V optional)
Motor2.2 kW
Concrete requirementAt least 5.9" (150 mm), 3000 PSI
Net weight1,246 lb (565 kg)

What's Included

  • Powerside and offside posts
  • 4 lift arm assemblies
  • 4 frame contact pads
  • 2 hydraulic cylinders
  • Hydraulic power unit (220V, 60 Hz, single phase)
  • Floor board cover
  • Extension support adapter sets, +30 mm and +120 mm
  • Feet-protection safety guardrails with tool box
  • Rubber pad door opening protection
  • Parts box with concrete anchor bolts

Optional: 110V, 60 Hz, single-phase power unit; emergency hand pump; KT-MP2 Lift Height Extensions (set of 4); KT-MP5 Two Post Lift Frame Cradle Set.

Best For

  • Garages that prefer a floor-plate lift with no overhead cross beam
  • Bays where overall lift height is a deciding factor, at 110.25" tall
  • Owners lifting vehicles up to 10,000 lb who want symmetric arms of equal reach front and rear

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Concrete
At least 5.9" (150 mm) thick, 3000 PSI, reinforced with steel bar and aged at least 7 days.
Anchors
Five concrete anchor bolts per column (supplied), drilled with a 19 mm bit; holes must not exceed 4-3/4" (108 mm) deep.
Ceiling
Add the maximum lifting height (70.75"), the height of the tallest vehicle you will lift and at least 6" (152 mm) of clearance. The lift itself stands 110.25" tall.
Bay
Allow approx. 4 m in front of and behind the lift, measured from the post centerline. The base layout is 3420 mm overall, with 2740 mm between the base plates.
Electrical
220V, 60 Hz, single phase (standard); 110V, 60 Hz, single-phase power unit optional.
Electrical
Motor: 2.2 kW.
Electrical
Amperage is not specified; have a licensed electrician confirm the circuit from the data plate.
Hydraulic
Hydraulic oil: N32 or N46, 10 L capacity.

Warranty

Katool covers this lift with a 1-year warranty on all parts and a 3-year warranty on structural components. Labor is not included. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

Add the 70.75" maximum lifting height, the height of your tallest vehicle and at least 6" (152 mm) of clearance. The lift itself is 110.25" tall overall, so the posts also need to clear the ceiling.

The standard power unit is 220V, 60 Hz, single phase. A 110V, 60 Hz, single-phase power unit is available as an option.

A slab at least 5.9" (150 mm) thick, rated at 3000 PSI, reinforced with steel bar and aged at least 7 days. Each column takes five anchor bolts, which are supplied.

Drive-through width is 94.5" (2400 mm), and the width between the columns is 110.25" (2800 mm).

Locking plates in each column hold the carriages on a toothed bar. To lower the lift, you release the locks by hand from both sides with the steel rope on each carriage.

Yes. Extension support adapter sets of +30 mm and +120 mm are included, along with four frame contact pads.
