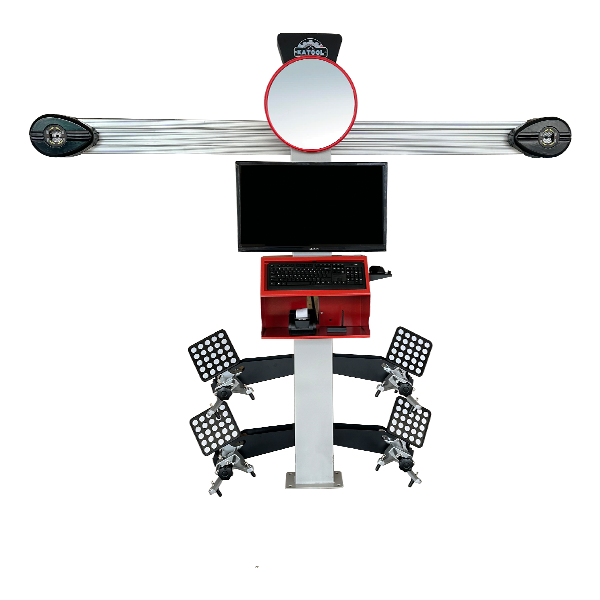

Katool KT-AV533 Compact 3D Wheel Alignment Machine

by Katool
Original price $3,999.00 - Original price $3,999.00
Original price
$3,999.00
$3,999.00 - $3,999.00
Current price $3,999.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

The Katool KT-AV533 is a compact 3D wheel alignment machine for front and rear alignment work. It measures total and single-wheel toe, camber, kingpin angles, thrust angle and axis angle, with camber read across a ±10° range at ±2′ accuracy.

Shipping information

Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

Why Choose the Katool KT-AV533

  • Space-saving design

    The compact layout makes it easier to place in a busy shop.

  • Stated accuracy figures

    Every measured angle has a defined range and accuracy, from ±2′ single-wheel toe to ±6′ kingpin inclination.

  • Wide camber range

    Wheel camber reads across ±10° at ±2′ accuracy.

  • Kingpin measurement

    It measures both kingpin rear angle and kingpin inclination for steering geometry checks.

  • Fine display resolution

    Readings display to 1′ angular and 0.1 mm linear resolution.

Product Overview

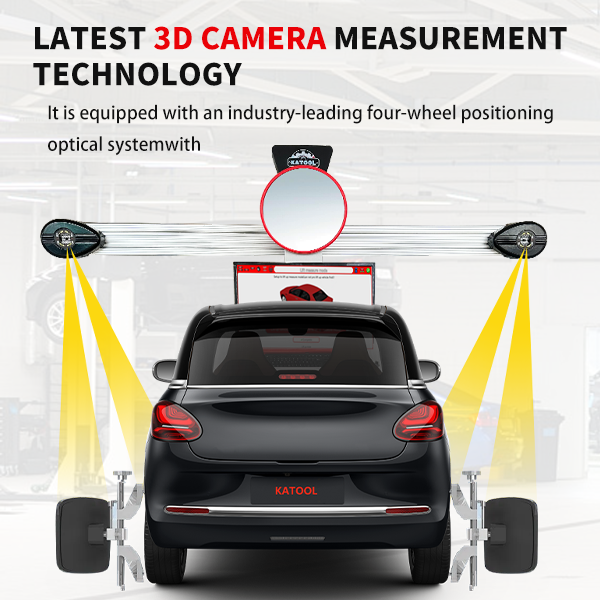

3D Measurement in a Compact Unit

The KT-AV533 is a 3D wheel alignment machine for front and rear alignment service. Its compact design suits shops where the alignment bay also handles other work, and where a large console would get in the way.

What It Measures and How Closely

Total front toe reads across ±6° at ±4′ accuracy, and single-wheel toe across ±3° at ±2′. Wheel camber covers ±10° at ±2′. Kingpin rear angle covers ±15° at ±2′, kingpin inclination ±20° at ±6′, and both thrust angle and axis angle ±6° at ±2′.

Stability Over a Job

Zero drift is ≤4′ within 30 minutes and the indicating value error is ±4′, which matters on longer jobs where the technician makes several adjustments before taking final readings. Display resolution is 1′ angular / 0.1 mm linear.

Specifications

SpecificationValue
ModelKT-AV533
Product type3D Wheel Alignment Machine
Total front toe / beam±6° range, ±4′ accuracy
Single wheel toe / beam±3° range, ±2′ accuracy
Wheel camber±10° range, ±2′ accuracy
Kingpin rear angle±15° range, ±2′ accuracy
Kingpin inclination±20° range, ±6′ accuracy
Thrust angle±6° range, ±2′ accuracy
Axis angle±6° range, ±2′ accuracy
Display resolution1′ angular / 0.1 mm linear
Zero drift≤4′ within 30 minutes
Indicating value error±4′

Best For

  • Repair shops and tire service centers adding alignment to their service menu.
  • Alignment bays with limited floor space that need a compact machine.
  • Technicians who want defined accuracy figures for each measured angle.

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Electrical
Power requirements are not specified; confirm them with Garage Lift Depot before ordering.

Warranty

Katool covers this aligner with a 12-month warranty on all parts. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

It measures total front toe, single-wheel toe, wheel camber, kingpin rear angle, kingpin inclination, thrust angle and axis angle.

Wheel camber reads across a ±10° range at ±2′ accuracy.

Zero drift is ≤4′ within 30 minutes, and the indicating value error is ±4′.

Power requirements are not specified. Confirm them with Garage Lift Depot before ordering.
