Olympic 4032-4 The Four Stacker 14,300 lb 4-Level Car Storage Lift

Original price $28,973.00 - Original price $28,973.00
Original price
$28,973.00
$28,973.00 - $28,973.00
Current price $28,973.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

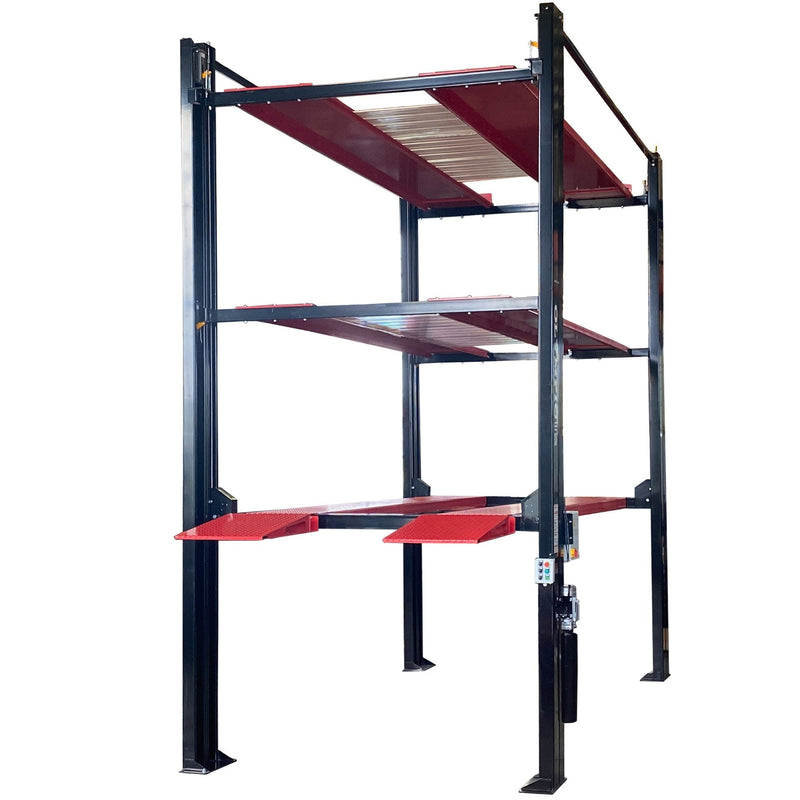

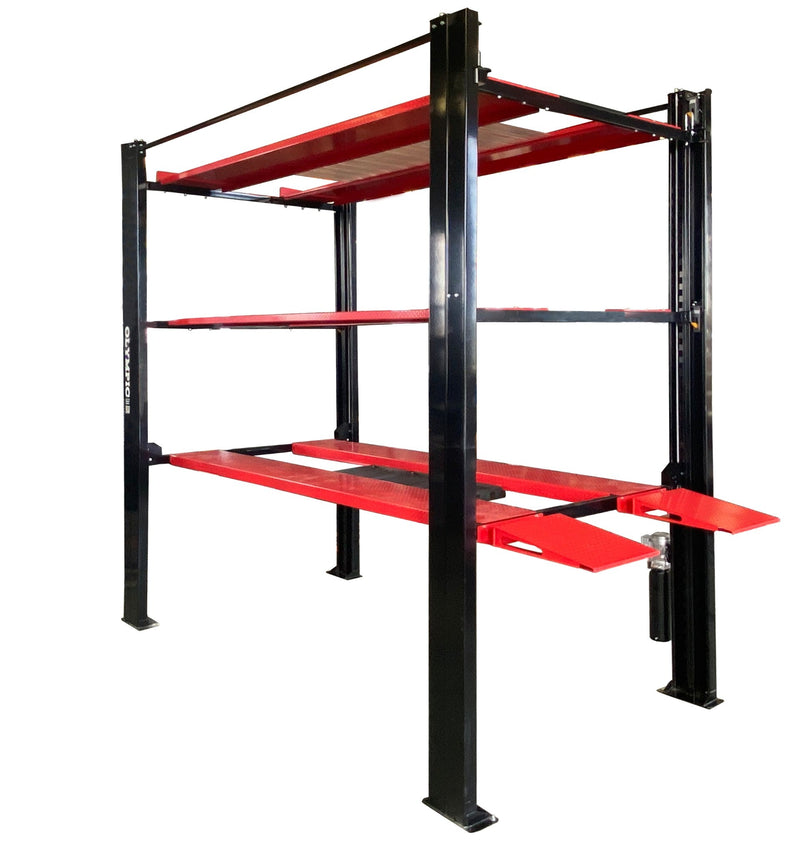

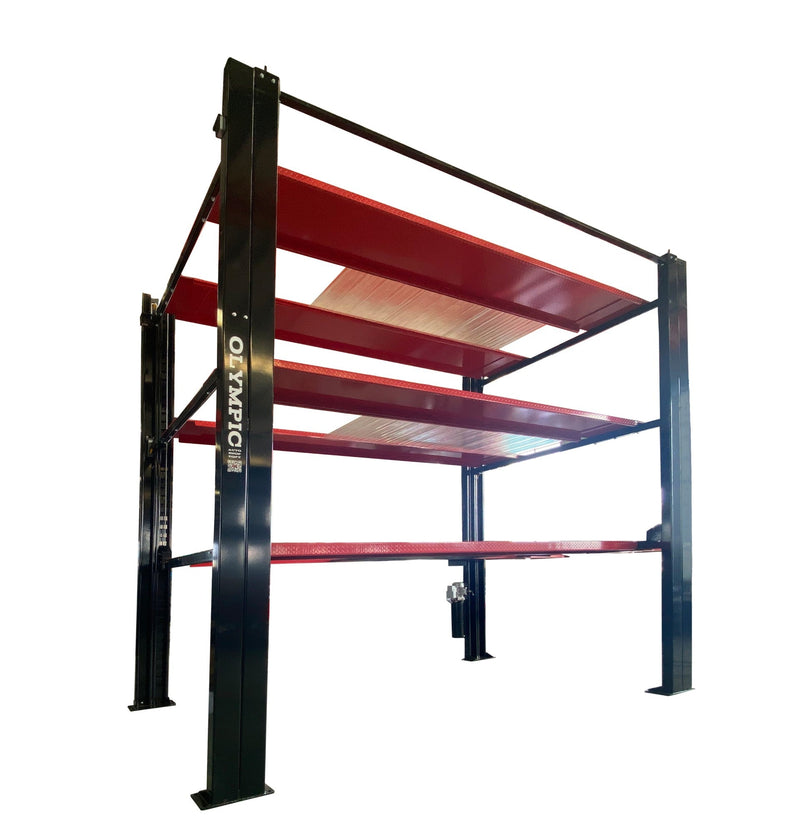

The Olympic 4032-4 Four Stacker parks four cars in a single vertical stack: one on the floor and three on platforms above it. The 2nd-level platform is rated at 5,500 lb and the 3rd and 4th levels at 4,400 lb each, for 14,300 lb combined across the platforms.

Shipping information

A forklift is required on site.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Power
220V single-phase, 3 kW (4 HP), 60 Hz
Overall width
111.9 in
Overall length
233.62 in
Combined platform capacity
14,300 lb

Why Choose the Olympic 4032-4

  • Four cars in one column

    It parks four cars in one column with a footprint of 111.9 in wide by 233.62 in long.

  • Level-by-level ratings

    Ratings are 5,500 lb on the 2nd level and 4,400 lb on the 3rd and 4th.

  • Space between platforms

    There is 63 in between platforms, suited to sedans and many SUVs.

  • Open top level

    The top vehicle has no platform above it.

  • Drip trays included

    Nine drip trays are included to protect the vehicles parked below.

  • Power unit

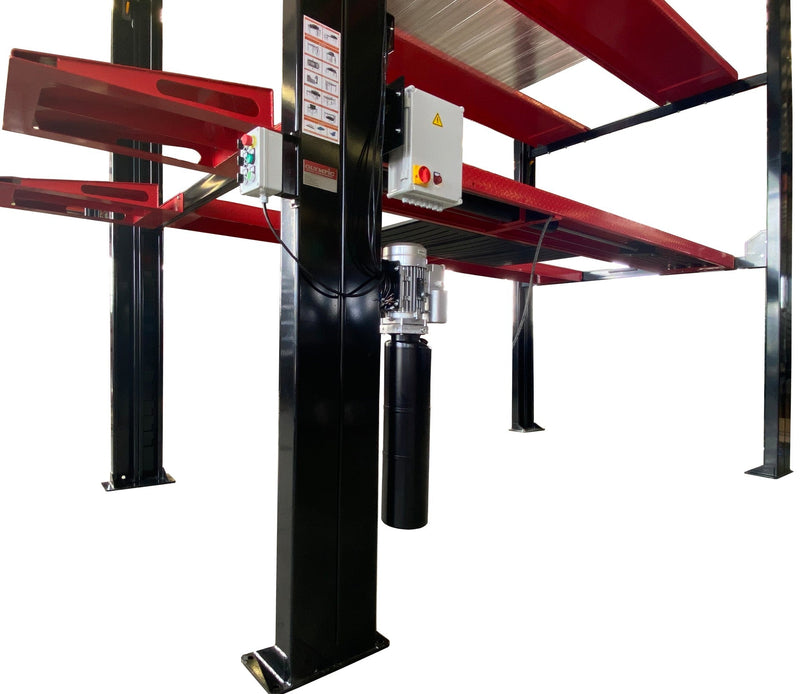

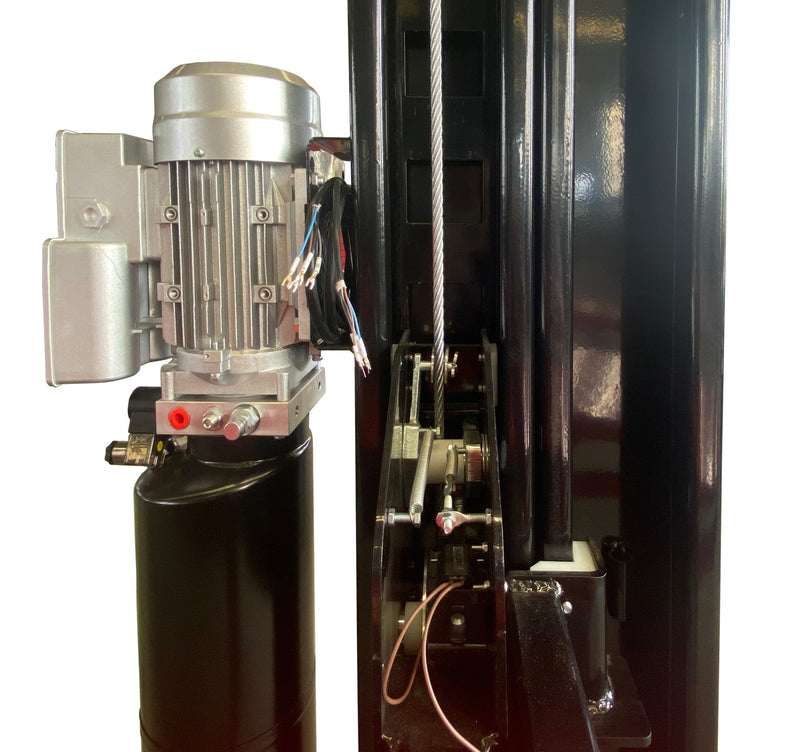

    The 3 kW, 220V single-phase power unit comes with an electric lock release.

Product Overview

Vertical Storage for Four Cars

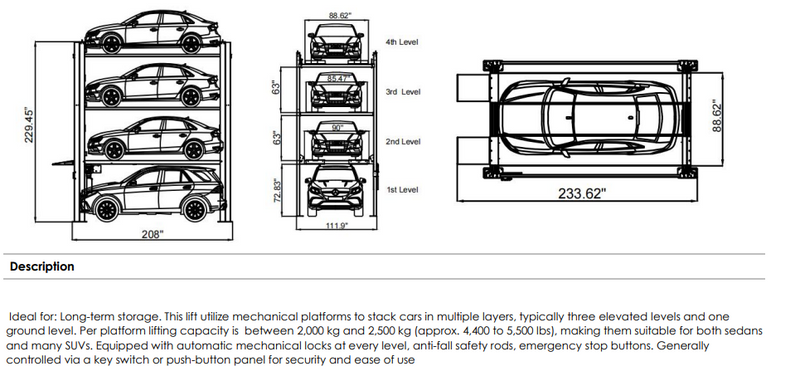

The 4032-4 stacks three platforms above a ground-level parking space. That puts four cars in the floor area of roughly one: 111.9 in wide by 233.62 in long, with 208 in between columns. It suits collectors and storage operators who have the height but not the floor space.

Capacity by Level

The 2nd-level platform is rated at 5,500 lb, and the 3rd and 4th levels at 4,400 lb each. Put the heaviest vehicle on the 2nd level and keep each vehicle within the rating of its platform.

Clearances

The platforms are 63 in apart, and the 2nd platform has a maximum rise of 72.83 in. The spacing suits sedans and many SUVs; check your tallest vehicles against the 63 in spacing. The top level is open.

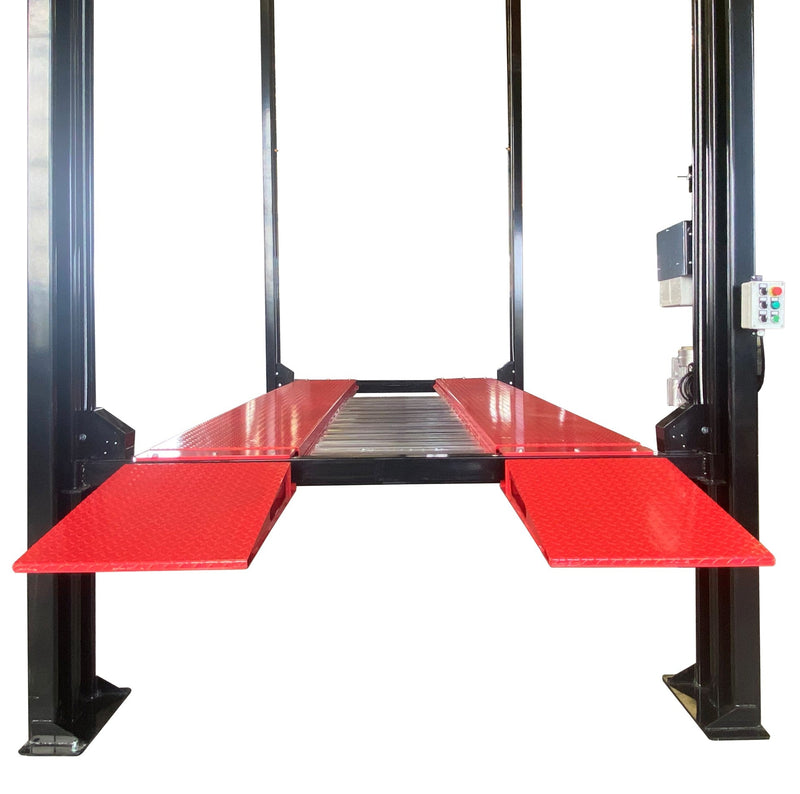

Runways and Drive-Through

Runways are 179.37 in long and 27.95 in wide, with an 88.62 in park width. Drive-through width is 89.88 in at the 2nd level and 95.12 in at the 4th level.

Specifications

SpecificationValue
Model4032-4 The Four Stacker
Lift typeFour-level, 4-car storage lift
2nd-level platform capacity5,500 lb
3rd-level platform capacity4,400 lb
4th-level platform capacity4,400 lb
Combined platform capacity14,300 lb
Max rise of 2nd platform72.83 in
Clearance between platforms63 in
Top levelOpen
Overall width111.9 in
Overall length233.62 in
Between columns208 in
Column height229.45 in
Runway length179.37 in
Runway width27.95 in
Park width88.62 in
Drive-through width, 2nd level89.88 in
Drive-through width, 4th level95.12 in
Lock releaseElectric
Power220V single-phase, 3 kW (4 HP), 60 Hz

What's Included

  • 4032-4 lift structure with three platforms
  • Runways and ramps
  • Nine drip trays

Not included: Installation, electrical work, concrete work.

Best For

  • Collectors storing four cars in a single bay
  • Storage facilities and dealers short on floor space
  • Sedan and SUV owners with a tall building and a 220V circuit

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Ceiling
The columns are 229.45 in (about 19 ft 1.5 in) tall, and the top level is open. Allow for the vehicle parked on the top level and confirm the top-platform height with Garage Lift Depot before ordering.
Floor
A 111.9 in by 233.62 in footprint, level to ±1 mm, plus room to drive on and work around the lift.
Concrete
C30 concrete with a hardened layer at least 6 in (150 mm) thick and compressive strength above 3,000 psi, extending 200 mm (7.87 in) beyond the lift. Anchor holes are drilled about 150 mm deep with an 18 mm bit. Have the slab verified before installation.
Electrical
220V single-phase, 3 kW (4 HP), 60 Hz. A licensed electrician should confirm the circuit.
Electrical
Electro-hydraulic lift with electric lock release.

Warranty

Olympic warranty: 10 years on major structural components; 3 years on electric and pneumatic power units, hydraulic cylinders, cables, hoses, locks, pulleys, sheaves and bushings; 1 year on wear parts such as pads, slide blocks and rubber components. Coverage begins on the date of shipment, applies to the original purchaser, requires professional installation, and does not include labor.

Shipment

Crate
One package of about 200.79 in × 29.53 in × 82.68 in (5100 × 750 × 2100 mm), gross weight 6,393 lb (2,900 kg).

Freight pricing, delivery options and timing are listed under Shipping information.

Frequently Asked Questions

5,500 lb on the 2nd level and 4,400 lb on each of the 3rd and 4th levels.

233.62 in overall. The 208 in figure is the distance between columns.

The platforms are 63 in apart, which suits sedans and many SUVs; measure your vehicles against that spacing.

89.88 in at the 2nd level and 95.12 in at the 4th level.

220V single-phase, 3 kW (4 HP), 60 Hz.
