Olympic W690 Automatic Truck Wheel Balancer with Lift Assist – 3-Year Warranty – Free Shipping
Specifications

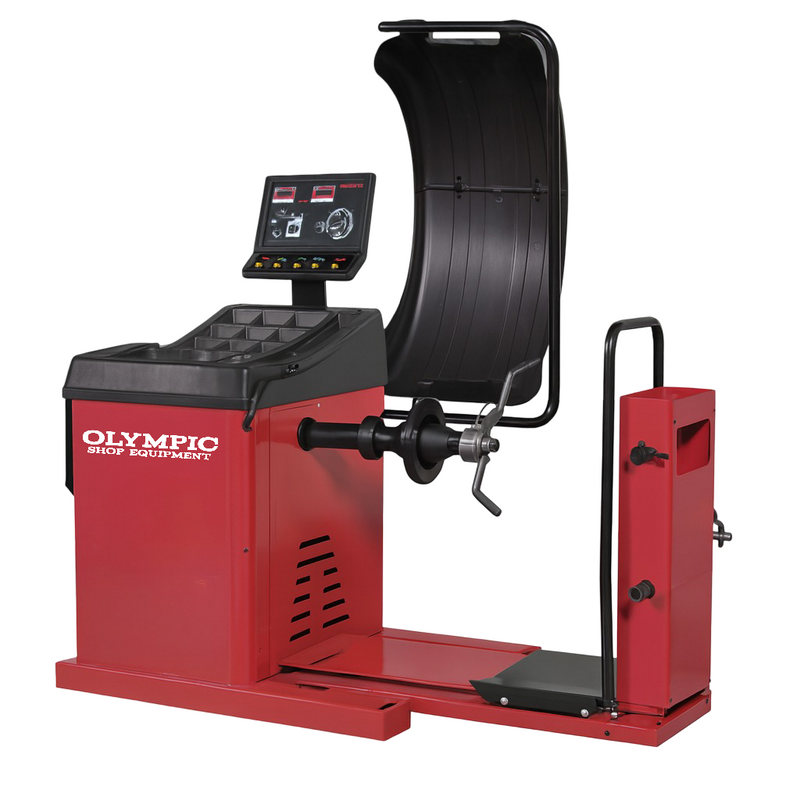

Olympic W690 Heavy-Duty Truck Tire Wheel Balancing Machine With Lift Assist
Professional-grade wheel balancer designed for both car and heavy-duty truck tires.
The Olympic W690 delivers speed, accuracy, and durability for high-volume shops. Featuring direct drive technology, automatic measurement, and a standard truck tire lift assist, it’s built to handle large wheels with ease while maintaining precision balancing.
Key Features
- Olympic 3-Year Warranty
- Direct drive technology
- Automatic distance & diameter measuring
- Automatic debugging self-learning calibration
- Extended heavy-duty main shaft
- Suitable for dynamic balancing of car and large truck tires
- Truck tire lift assist standard
- Fully pneumatic brake
- Large LCD display screen
- Multiple balancing modes
- Automatic start/stop operation
- Hidden weight program
- Includes heavy-duty hood
- Standard accessories included (caliper, pliers, cones)
- 110V / 220V, 2.2KW, 60Hz power unit
Specifications
| Balancing Accuracy | ± 0.5 g |
|---|---|
| Balancing Speed | 220 RPM |
| Rim Diameter | 12″ – 24″ |
| Rim Width | 1.5″ – 20″ |
| Measuring Time | 6 – 8 seconds |
| Max Wheel Weight | 145 lbs |
| Noise Level | < 90 dB |
| Package Size | 43″ × 45″ × 46″ |
| Machine Weight | 240 lbs |
| Power | 220V, 2.2KW, 60Hz, 1PH |
Why Choose Olympic?
The Olympic W690 Truck & Car Wheel Balancer is engineered for shops that demand reliability and precision. With Direct Drive Power, advanced automation, and Olympic’s trusted 3-Year Warranty, it delivers maximum performance with minimal downtime—making it a smart long-term investment for any professional service bay.
