Olympic FRSL-78 7,800 lb Full-Rise Scissor Lift

Original price $7,503.00 - Original price $7,503.00
Original price
$7,503.00
$7,503.00 - $7,503.00
Current price $7,503.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

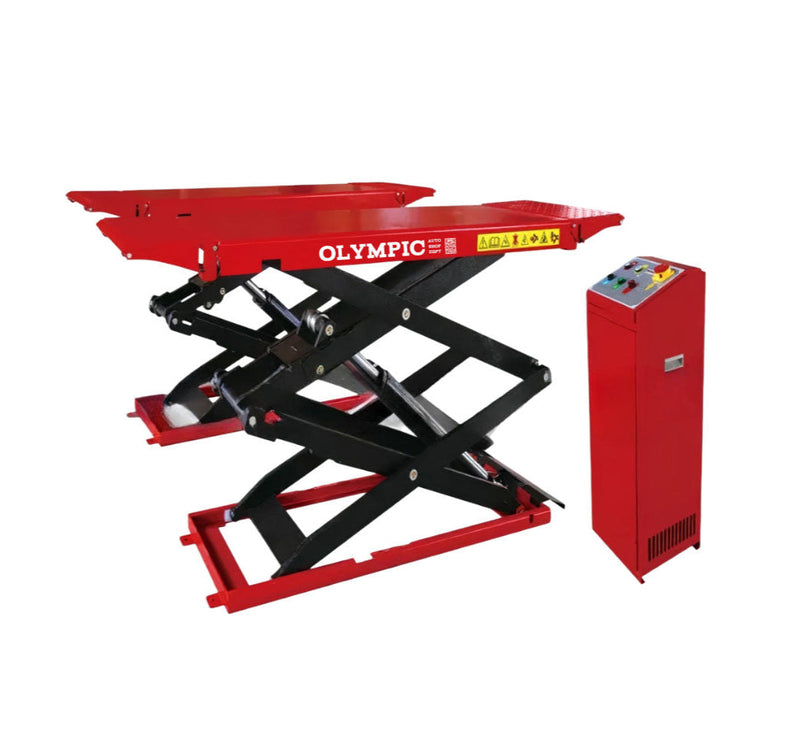

The Olympic FRSL-78 is a 7,800 lb full-rise scissor lift for cars, trucks and SUVs within its rated capacity. It lowers to 4.1" and raises to 72.8", powered by a 220V, 3 HP single-phase hydraulic unit with a pneumatic lock release.

Shipping information

A forklift is required on site.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Rated capacity
7,800 lbs
Overall width
81.3"
Overall length
80"
Maximum height
72.8"
Minimum height
4.1"

Why Choose the Olympic FRSL-78

  • Full-rise height

    The 72.8" maximum height lets a technician work under the vehicle at full rise.

  • Low lowered height

    The 4.1" lowered height helps with low vehicles driving on.

  • Rated capacity

    The 7,800 lb rated capacity covers cars, trucks and SUVs within that limit.

  • Power unit

    The 220V, 2.2 kW, 3 HP single-phase power unit has a 24V safety control circuit.

  • Pneumatic lock release

    Pneumatic lock release and drop-speed control allow controlled lowering.

  • Lift and lowering speed

    The lift takes about 55 seconds up and 45 seconds down.

Product Overview

Full Rise Without Posts

A full-rise scissor lift takes the vehicle to standing working height on a scissor frame instead of columns. The FRSL-78 tops out at 72.8" and comes down to 4.1", so the same lift handles low cars and taller trucks and SUVs within its 7,800 lb rating.

Hydraulics and Controls

Lifting is done by a 220V, 2.2 kW, 3 HP single-phase hydraulic power unit. The controls run on 24V. The system includes compensation valves and drop-speed control, and the safety locks are released pneumatically, which is why the lift needs a 6–8 bar shop-air supply.

Footprint

Overall length is 80" and overall width is 81.3", with a table width of 33.5". The lift is load-tested at 150% of its rated capacity.

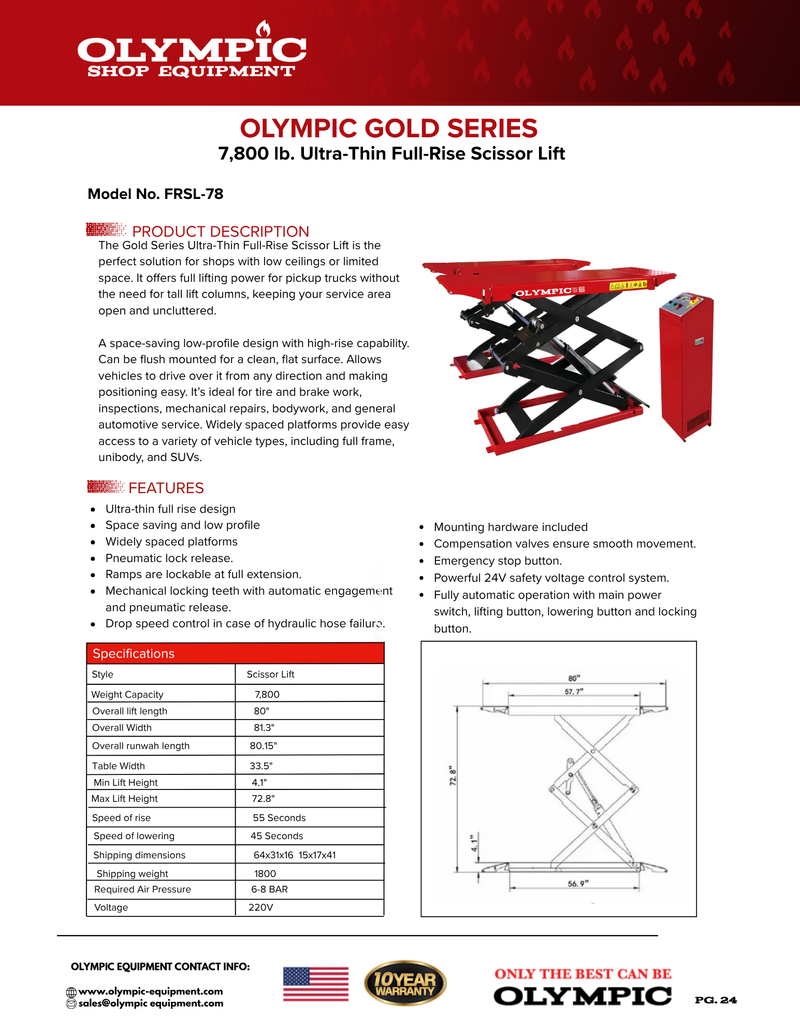

Specifications

SpecificationValue
ModelFRSL-78
Lift typeFull-rise scissor lift
Rated capacity7,800 lbs
Maximum height72.8"
Minimum height4.1"
Overall length80"
Overall width81.3"
Table width33.5"
Rise / lowering timeApprox. 55 seconds / approx. 45 seconds
Power unit220V, 2.2 kW, 3 HP, single phase, hydraulic
Control voltage24V
Air supply6–8 bar (approx. 87–116 psi)
Lock releasePneumatic
Other featuresDrop-speed control; compensation valves

What's Included

  • FRSL-78 scissor lift
  • 220V, 3 HP hydraulic power unit

Not included: Installation.

Best For

  • General repair shops that want full-rise access without a post layout
  • Tire, brake and suspension work on cars, trucks and SUVs within 7,800 lbs
  • Bays with low vehicles that need a 4.1" lowered height

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Ceiling
Add the height of the tallest vehicle to the 72.8" maximum height, and measure to the lowest obstruction.
Floor
An 80" × 81.3" lift footprint, plus room to drive on and work around the vehicle.
Concrete
Follow the current Olympic installation manual and have the slab verified.
Air
6–8 bar (approx. 87–116 psi) shop air for the pneumatic lock release.
Electrical
220V, 2.2 kW, 3 HP, single phase. A licensed electrician should confirm the circuit.
Electrical
24V safety control circuit.
Hydraulic
Hydraulic power unit with drop-speed control and compensation valves.

Warranty

The FRSL-78 carries a 7-year warranty. Contact Garage Lift Depot for the full terms before ordering.

Frequently Asked Questions

Up to 72.8". It lowers to 4.1".

A 220V single-phase supply for the 2.2 kW, 3 HP power unit. A licensed electrician should confirm the circuit.

Yes. The pneumatic lock release needs a 6–8 bar (approx. 87–116 psi) air supply.

About 55 seconds up and about 45 seconds down.

Cars, trucks and SUVs that fall within the 7,800 lb rated capacity.
