Katool KT-T850 + KT-B760 Tire Changer and Wheel Balancer Combo

by Katool
Original price $3,299.00 - Original price $3,299.00
Original price
$3,299.00
$3,299.00 - $3,299.00
Current price $3,299.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

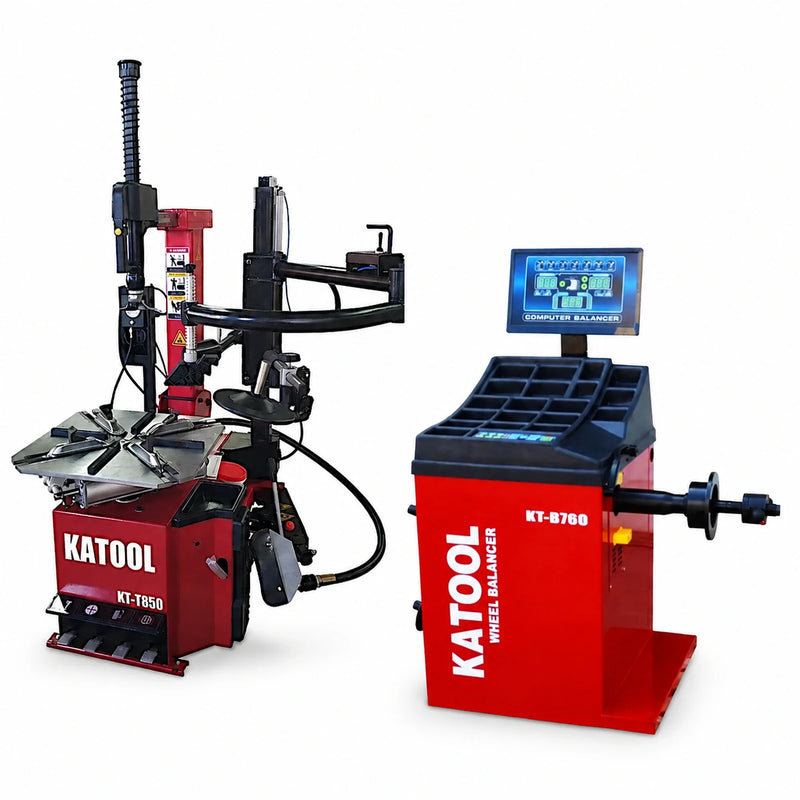

This package pairs the Katool KT-T850 tilt-back rim clamp tire changer with the KT-B760 computerized wheel balancer. The KT-T850 clamps rims from 14"–26" outside and 16"–28" inside, accepts wheels up to 47" (1200 mm) in diameter and runs on 110V single-phase power. The KT-B760 has an automatic measurement ruler and a laser marker, takes rims under 30" and wheels up to 143 lbs, and balances to ±1g on its own 110V single-phase supply.

Shipping information

Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

Why Choose the Katool KT-T850 + KT-B760

  • Tilt-back tower

    The KT-T850 is built around a tilt-back tower design, and its duckhead is designed to minimize wheel damage.

  • Large-wheel clamping

    The KT-T850 jaws clamp rims from 14"–26" on the outside and 16"–28" on the inside.

  • Adjustable bead breaker

    The KT-T850 bead breaking action adjusts for low-profile, run-flat and oversized tires.

  • Automatic ruler and laser

    The KT-B760 automatic measurement ruler handles A and D input, and a laser marker is built in.

  • Balancing accuracy

    The KT-B760 balances to ±1g at 180 rpm with a 7-second measuring time.

  • Separate display panel

    The KT-B760 display panel mounts on its own support tube.

Product Overview

The KT-T850 Tire Changer

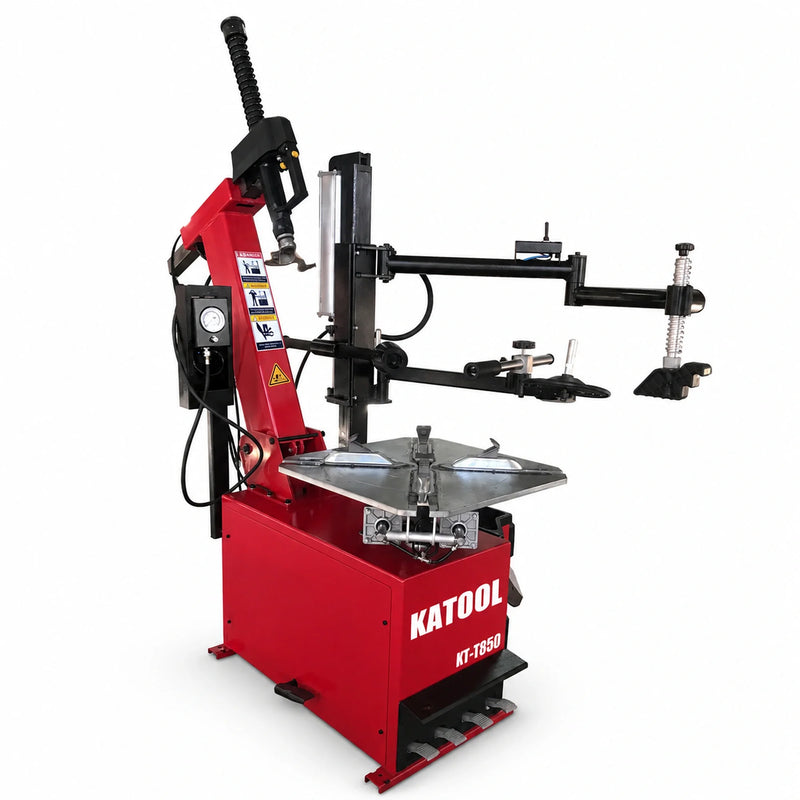

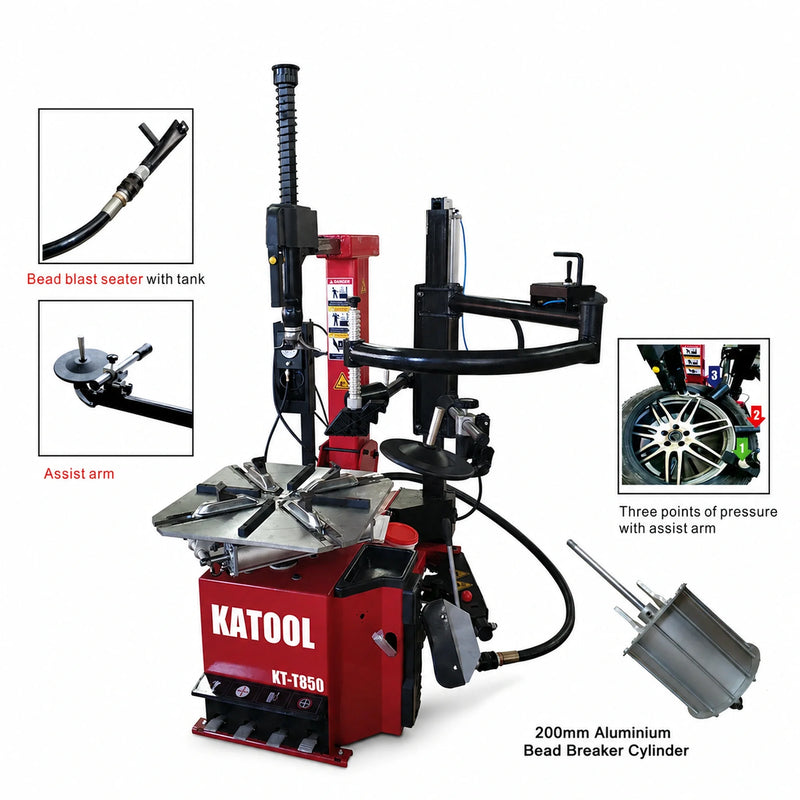

The KT-T850 is a tilt-back wheel clamp (rim clamp) tire changer for cars, SUVs, light trucks and performance wheels; its tower tilts back from the turntable. Adjustable jaws clamp the rim from the outside for 14"–26" wheels or from the inside for 16"–28" wheels, and the machine accepts wheels up to 47" (1200 mm) in diameter and 15" (380 mm) wide. The bead breaker has adjustable action for low-profile, run-flat and oversized tires, the mount/demount duckhead is designed to minimize wheel damage, and foot-operated pedals give hands-free control. A 2.0 HP / 1.5 kW motor turns the table at 6.8 r/min, an integrated accessory tray holds tools and supplies, and the steel-frame machine weighs 750 lb (340 kg) net.

The KT-B760 Wheel Balancer

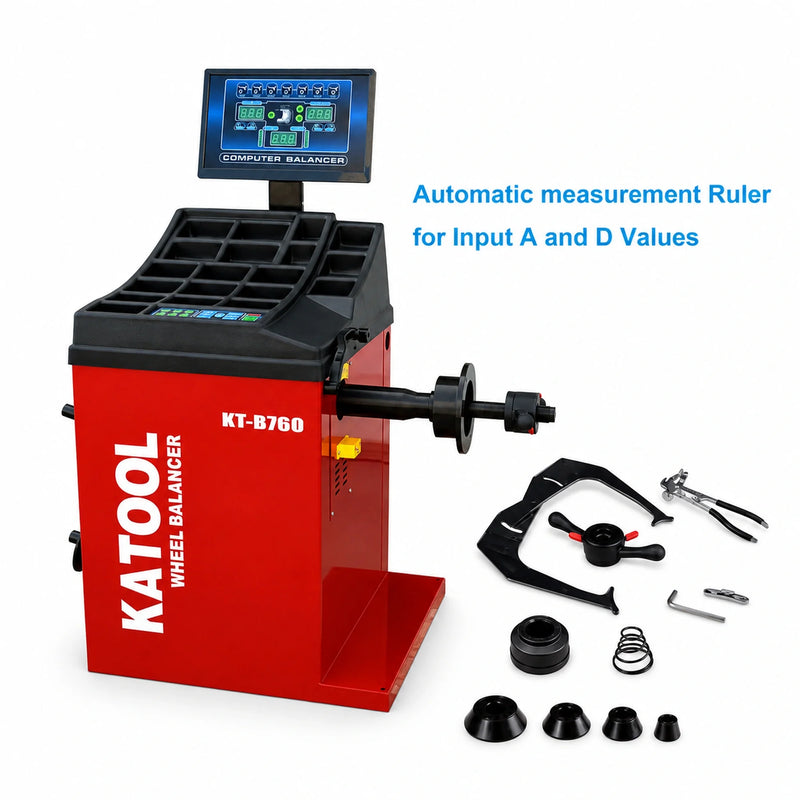

The KT-B760 is a computerized wheel balancer with an automatic measurement (diameter) ruler for A and D input, a laser marker and a separate display panel on a support tube. It detects static and dynamic imbalance, spins at 180 rpm, measures in 7 seconds and balances to ±1g. The panel has STD, ALU1, ALU2, ALU3, ALU4, ALU5 and STA indicators plus an ALS mode, and the balance-weight split (hidden weight) function works in static mode. Wheels mount on a 36 mm high-strength steel threaded shaft with a quick-lock hub nut. Built-in fault diagnostics and double-side self-calibration are standard, and the balancer ships factory-calibrated. No wheel guard is included.

Setting Up Both Machines

The KT-T850 runs on 110V, single phase (1PH) with a 2.0 HP / 1.5 kW motor and requires shop air at 0.8–1.0 MPa (116–145 PSI). Its amperage, circuit breaker size and air consumption are not specified, so have a licensed electrician check the data plate and confirm your compressor capacity with Garage Lift Depot. The KT-B760 runs on 110V, single phase (1PH) with a 0.25 kW motor and plugs into a grounded 110V, 60 Hz wall outlet; its amperage and plug type are not specified either, so check the supply for each machine on its own. The KT-B760 installs on flat, stable ground (not on a wooden pallet), is secured with concrete screws at 4 locations and needs its back panel 0.6 m from the wall, with room on both sides. Floor space and footprint for the KT-T850 are not specified; confirm with Garage Lift Depot before planning the bay.

Specifications

SpecificationValue
Tire changerKatool KT-T850
Wheel balancerKatool KT-B760
KT-T850 typeTilt-back wheel clamp (rim clamp) tire changer
KT-T850 outside clamping range14"–26"
KT-T850 inside clamping range16"–28"
KT-T850 max wheel diameter47" (1200 mm)
KT-T850 max wheel width15" (380 mm)
KT-T850 power110V, single phase (1PH)
KT-T850 motor2.0 HP / 1.5 kW
KT-T850 air pressure0.8–1.0 MPa (116–145 PSI)
KT-B760 typeComputerized wheel balancer with automatic measurement ruler and laser marker
KT-B760 rim diameter<30"
KT-B760 wheel width3"–12"
KT-B760 max tire diameter<880 mm / 34.64"
KT-B760 max wheel weight<65 kg / 143 lbs
KT-B760 balancing accuracy±1g
KT-B760 power110V 1PH
KT-B760 motor0.25 kW

What's Included

  • Katool KT-T850 tire changer
  • Katool KT-B760 wheel balancer
  • KT-B760: cones, 4 sizes: 5 7/16"–3 11/16", 4 1/8"–2 3/4", 3 1/8"–2 1/8", 2 3/8"–1 5/8"
  • KT-B760: quick-lock hub nut with cap (pressure cup)
  • KT-B760: display panel with support tube (installed on site)
  • KT-B760: 100-gram calibration weight

Best For

  • Tire shops and service centers that see larger SUV, light truck and performance wheels alongside passenger car work.
  • Repair shops and performance garages handling low-profile and run-flat tires that want automatic A and D measurement on the balancer.
  • Home garages and small shops with 110V single-phase power and a compressor that can supply 116–145 PSI.

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

KT-B760
Install on flat, stable ground (not on a wooden pallet).
KT-B760
Secure the balancer to the floor with concrete screws at 4 locations.
KT-B760
Keep the back panel 0.6 m from the wall, with room on both sides.
KT-B760
On site, the display support tube moves from inside the cabinet to the outside, the display ribbon cables are routed and connected, and the top cover and support-arm screws are refitted.
Electrical
Electrical: 110V, single-phase supply (KT-T850).
Electrical
Motor: 2.0 HP / 1.5 kW (KT-T850).
Air
Requires shop air at 0.8–1.0 MPa (116–145 PSI) for the KT-T850.
Electrical
Amperage and circuit breaker size are not specified; have a licensed electrician check the data plate (KT-T850).
Air
Air consumption is not specified; confirm your compressor capacity for the shop air supply with Garage Lift Depot (KT-T850).
Electrical
Electrical: 110V, single phase (1PH); 0.25 kW motor (KT-B760).
Electrical
Plugs into a wall outlet (110V, 60 Hz); the outlet must be grounded (KT-B760).
Electrical
Amperage and plug type are not specified; have a licensed electrician check the data plate (KT-B760).

Warranty

Katool covers each machine in this package with a 12-month warranty on all parts and product defects. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

The Katool KT-T850 tire changer and the KT-B760 wheel balancer. The KT-B760 comes with cones in 4 sizes, a quick-lock hub nut with cap, a display panel with support tube and a 100-gram calibration weight. No wheel guard is included.

The KT-T850 runs on 110V single phase with a 2.0 HP / 1.5 kW motor and needs shop air at 0.8–1.0 MPa (116–145 PSI). The KT-B760 runs on 110V single phase with a 0.25 kW motor and plugs into a grounded 110V, 60 Hz outlet. Amperage is not specified for either machine, so have a licensed electrician check the data plates.

The KT-T850 clamps 14"–26" rims from the outside and 16"–28" from the inside, with a maximum wheel diameter of 47" (1200 mm) and maximum wheel width of 15" (380 mm). The KT-B760 takes rims under 30", wheel widths of 3"–12", tire diameters under 880 mm / 34.64" and wheel weights under 65 kg / 143 lbs.

Katool covers each machine with a 12-month warranty on all parts and product defects. Contact Garage Lift Depot for warranty support.

Yes. The KT-T850 and the KT-B760 are both sold individually at Garage Lift Depot.
