Katool KT-T835 + KT-B750 Tire Changer and Wheel Balancer Combo

by Katool
Original price $2,699.00 - Original price $2,699.00
Original price
$2,699.00
$2,699.00 - $2,699.00
Current price $2,699.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

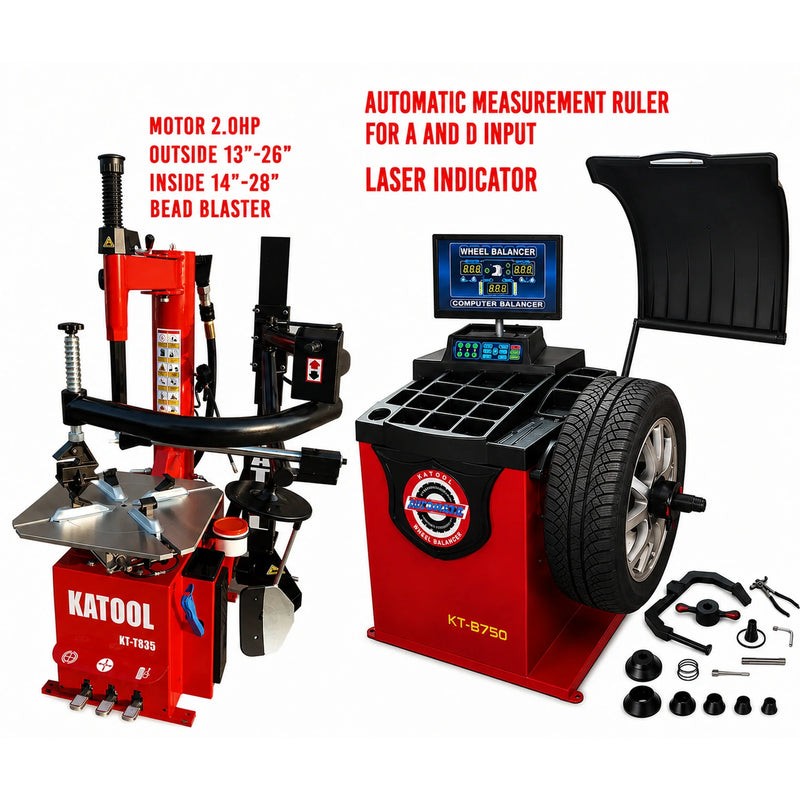

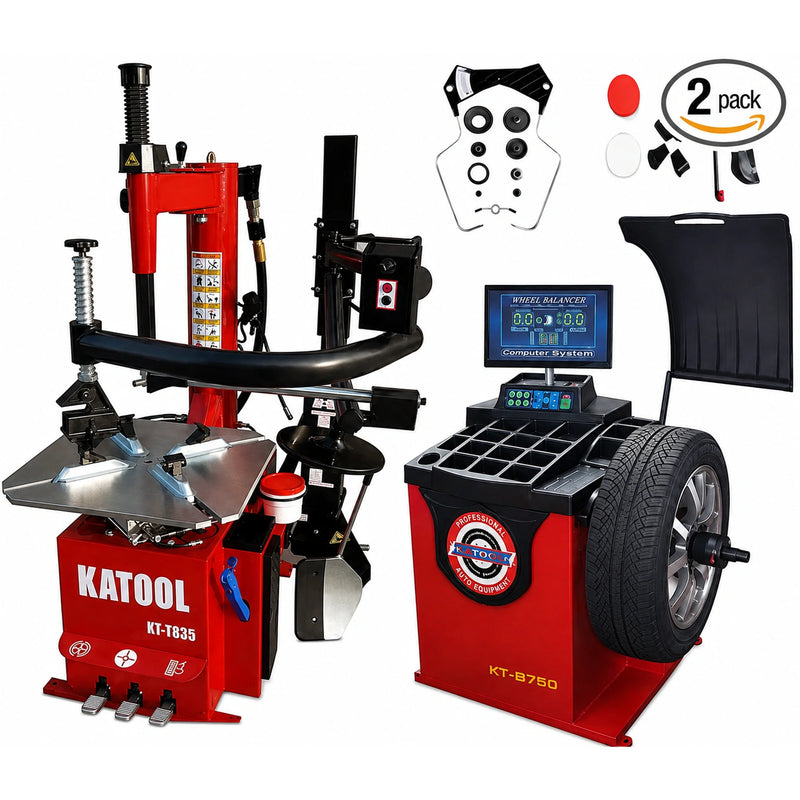

This package pairs the Katool KT-T835 single assist arm tire changer with the Katool KT-B750 computerized wheel balancer. The KT-T835 clamps 13"–26" from the outside and 14"–28" from the inside, and adds a pneumatic assist arm and a bead blaster for low-profile and stiff-sidewall tires. The KT-B750 has an automatic measurement ruler, a laser marker and a hood-type wheel guard that starts the spin when it closes, and balances to ±1g on 110V single-phase power.

Shipping information

Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

Why Choose the Katool KT-T835 + KT-B750

  • Single assist arm

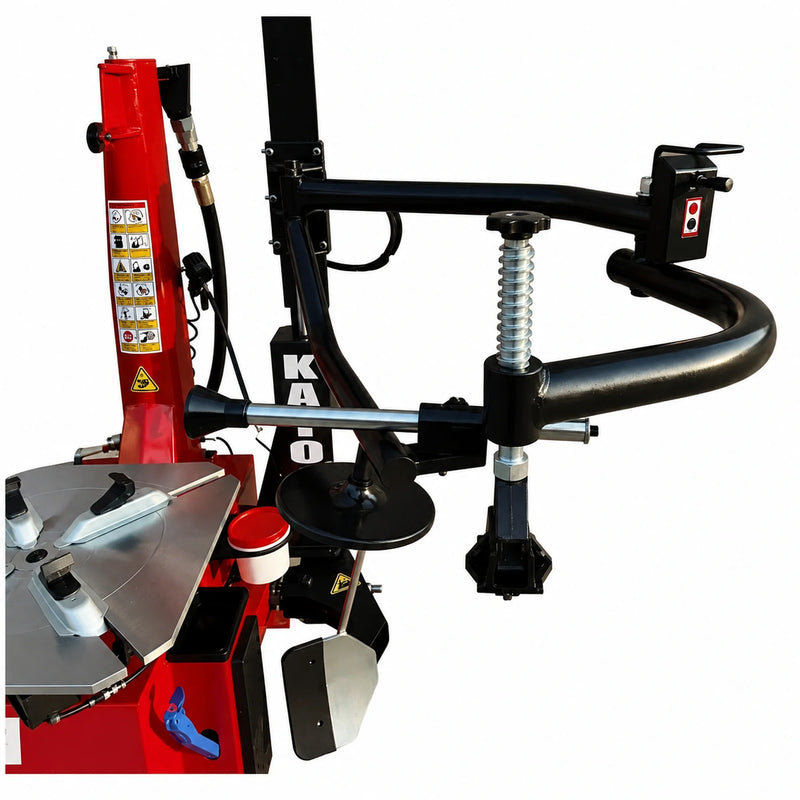

    The KT-T835's pneumatic bead assist arm helps hold the bead down on low-profile and stiff-sidewall tires.

  • Larger clamping range

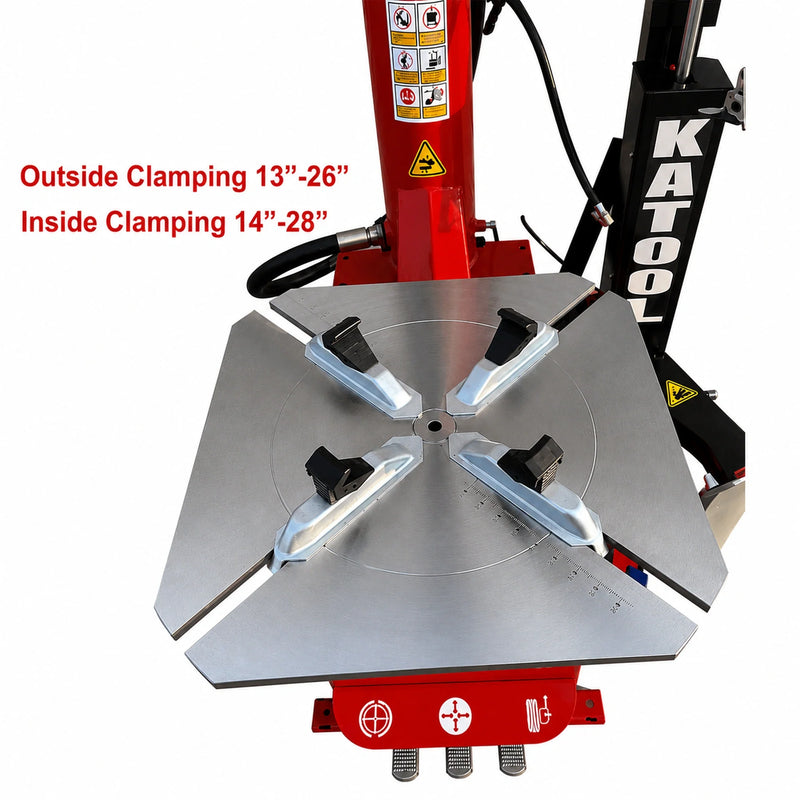

    The KT-T835's four wheel clamps cover 13"–26" outside and 14"–28" inside.

  • Bead blaster on board

    A tower surge tank and Turbo Blast hose assembly on the KT-T835 direct air under the rim lip to seat beads.

  • Automatic A and D input

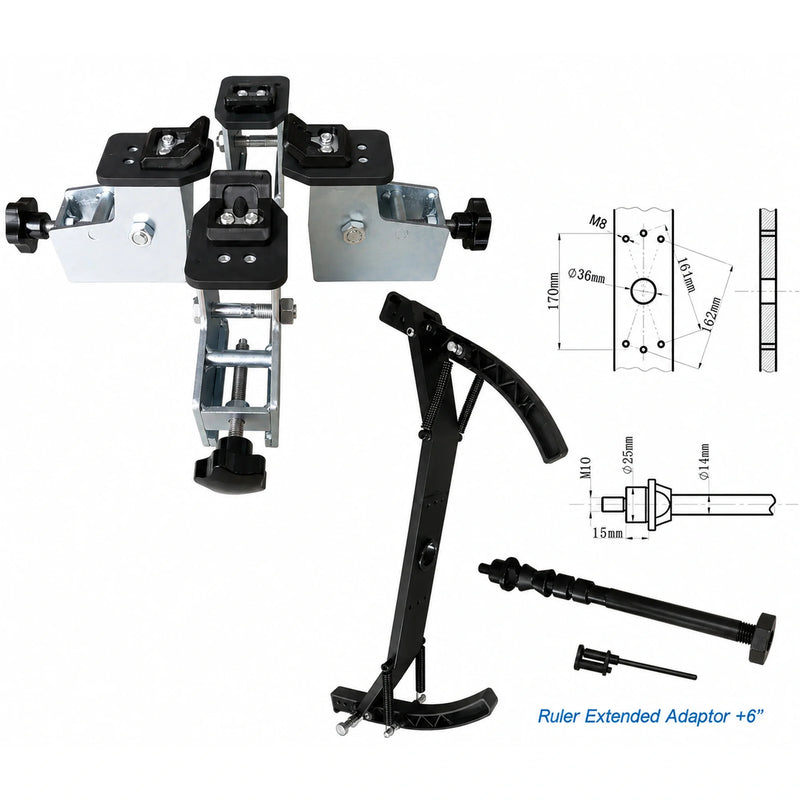

    The KT-B750's automatic measurement ruler enters the A and D readings, and a laser marker shows where the weight goes.

  • Hood-start wheel guard

    Closing the KT-B750's composite splash guard starts the balancing spin.

  • Balancing accuracy

    The KT-B750 spins at 180 rpm, measures in 7 seconds and balances to ±1g.

Product Overview

The KT-T835 Tire Changer

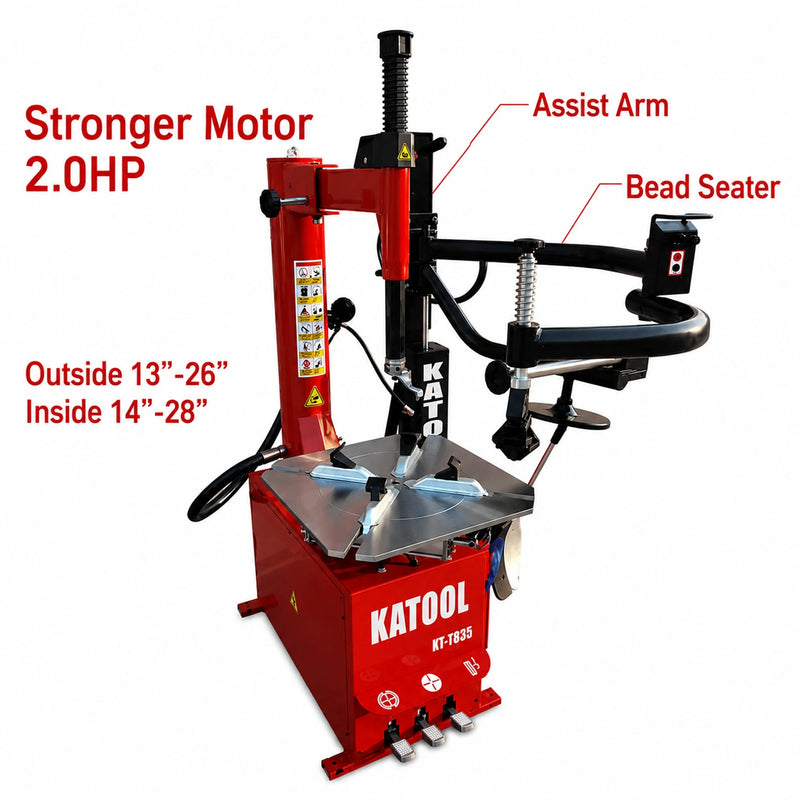

The KT-T835 is a wheel clamp tire changer with a single pneumatic assist arm, built for passenger vehicles and light trucks. The assist arm works with a bead roller, a bead assist tool and a tire support arm with a helper disc that lifts the tire to bring the lower bead up, and the machine handles both tube-type and tubeless tires. Four wheel clamps grip the rim from the outside (13"–26") or the inside (14"–28"); max wheel diameter is approx. 40.9" and max wheel width is approx. 13.8". Three foot pedals run the bead breaker, the jaw clamps and turntable rotation in both directions, and the turntable rotates at 6.8 r/min. The pneumatic bead breaker produces 5510 lbs (2500 kg) of pressing force at 10 bar, and maximum charge (inflation) pressure is 3.5 bar (50 PSI).

The KT-B750 Wheel Balancer

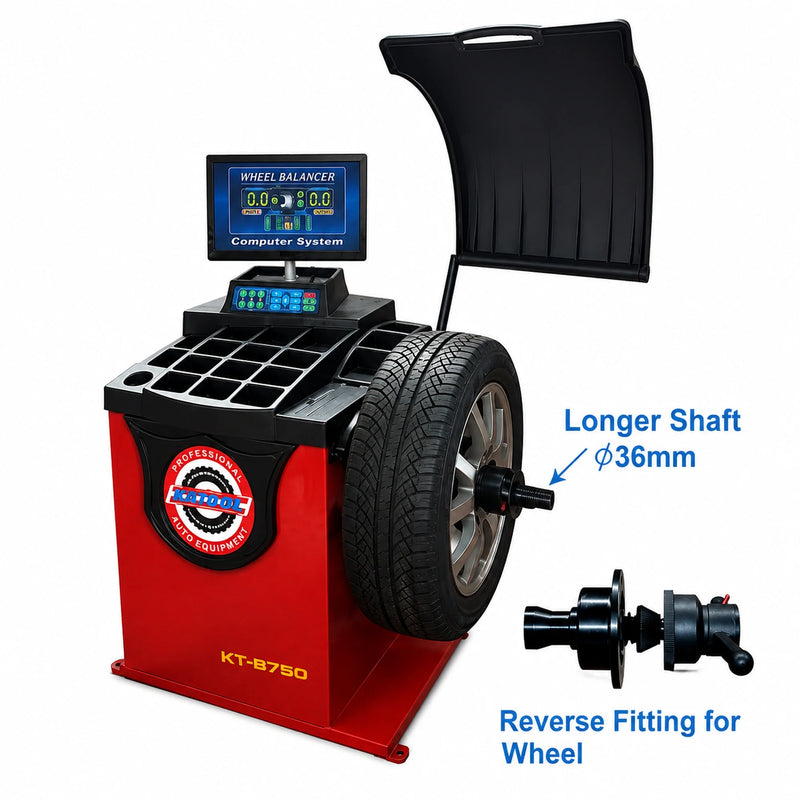

The KT-B750 is a computerized balancer whose automatic measurement ruler reads the A (distance) and D (diameter) readings straight into the machine. After the 180 rpm spin, the laser marker shows the weight placement position on the rim. A measuring cycle takes 7 seconds, and balancing accuracy is ±1g. It takes wheels under 65 kg (143 lbs) with an overall tire diameter under 880 mm (34.64"), and wheel width is 15". A composite splash guard (hood) comes with the machine, and closing it starts the spin. The body is 3 mm steel with 8 mm sensor supports, wheels mount on a hardened 36 mm threaded shaft, and fault diagnosis and two-side self-calibration are built in.

Setting Up Both Machines

The KT-T835 comes in 110V / 220V options, single phase, and plugs into a wall outlet (110V, 60 Hz); confirm the voltage configuration with Garage Lift Depot before ordering. It needs shop air at 0.8–1.0 MPa (116–145 PSI) connected to its regulator and tower accumulator. Install it on flat, stable ground, keep its back 0.6 m (600 mm minimum recommended clearance) from the wall, and leave room on both sides for the assist arm. The KT-B750 runs on 110V single phase, 60 Hz, from a grounded wall outlet; secure it to a flat, stable floor with concrete screws at 4 locations, keep its back panel 0.6 m from the wall, and allow room for the hood to swing. Amperage is not specified for either machine, so have a licensed electrician check each data plate.

Specifications

SpecificationValue
Tire changerKatool KT-T835
Wheel balancerKatool KT-B750
KT-T835 typeWheel clamp tire changer, single pneumatic assist arm
KT-T835 outside clamping range13"–26"
KT-T835 inside clamping range14"–28"
KT-T835 max wheel diameterApprox. 40.9"
KT-T835 max wheel widthApprox. 13.8"
KT-T835 power110V / 220V options, single phase
KT-T835 bead breaking force5510 lbs (2500 kg) at 10 bar
KT-T835 air pressure0.8–1.0 MPa (116–145 PSI)
KT-T835 motor0.75–1.1 kW
KT-T835 net weight529 lbs
KT-B750 power110V, single phase (1PH)
KT-B750 rim diameter<24"
KT-B750 wheel width15"
KT-B750 max tire diameter<880 mm / 34.64"
KT-B750 max wheel weight<65 kg / 143 lbs
KT-B750 balancing accuracy±1g
KT-B750 balancing speed180 rpm
KT-B750 measuring time7 s
KT-B750 threaded shaftHardened 36 mm

What's Included

  • Katool KT-T835 tire changer
  • Katool KT-B750 wheel balancer
  • KT-T835: machine base with turntable
  • KT-T835: tower and tower surge tank
  • KT-T835: swing arm with mount/demount shaft (hexagon shaft) and swing arm set knob
  • KT-T835: mounting/dismounting head
  • KT-T835: pneumatic bead assist control arm, auxiliary arm and auxiliary boom support
  • KT-T835: bead assist tool, bead roller and tire support arm with helper disc
  • KT-T835: bead breaker and bead breaker arm
  • KT-T835: Turbo Blast hose assembly
  • KT-T835: bead lifting tool

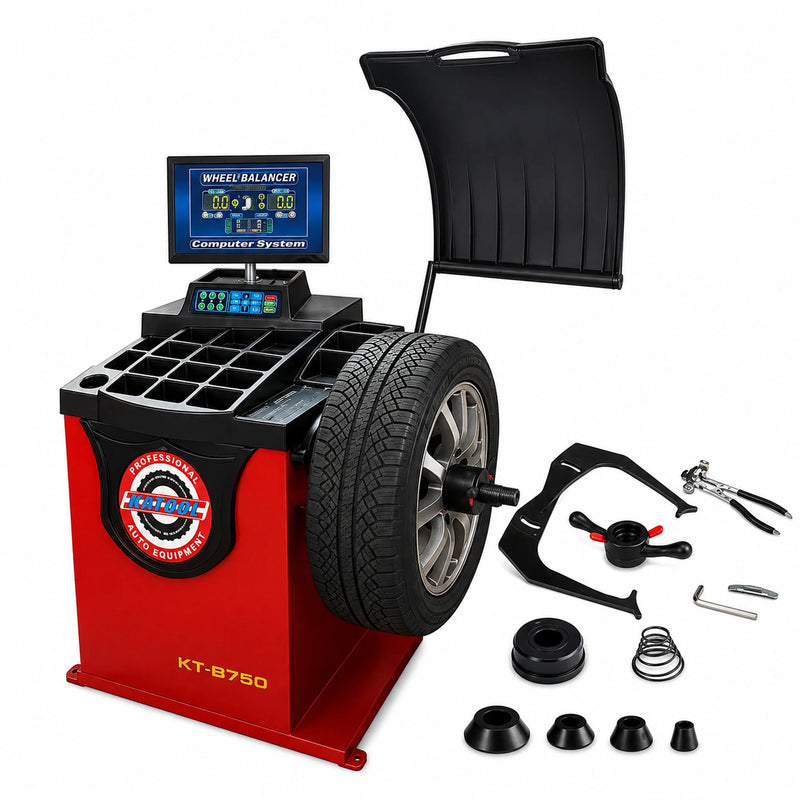

  • KT-B750: cones in 4 sizes: 5 7/16"–3 11/16", 4 1/8"–2 3/4", 3 1/8"–2 1/8", 2 3/8"–1 5/8"
  • KT-B750: composite splash guard (hood) with hood support arm
  • KT-B750: quick-lock hub nut with cap / pressure cup
  • KT-B750: display panel (installed on site)
  • KT-B750: 100-gram calibration weight

Best For

  • Automotive repair shops and service bays handling passenger vehicles and light trucks.
  • Tire centers that see a steady mix of low-profile and stiff-sidewall tires.
  • Shops that want automatic A and D entry, laser weight placement and a hood-type wheel guard.

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

KT-T835
Install on flat, stable ground (not on a wooden pallet); the machine must sit solidly on its feet.
KT-T835
Keep the back of the machine 0.6 m (600 mm minimum recommended clearance) from the wall, and leave room on both sides for the assist arm and for mounting and removing wheels.
KT-T835
Choose a well-lit area away from oil, grease and brake lathe chips, and away from heat sources, water taps, humidifiers and damp or wet environments. Never connect the machine to an explosive gas source.
KT-T835
The tower, assist arm, bead assist control arm, hoses, Turbo Blast hose, bead breaker arm and pad are assembled on site.
KT-T835
The oil-mist lubricator uses HG ISO VG32 oil (for example Esso Febis K32, Mobil Vacouline 1405 or Klüber 32). Re-tighten the clamp screws 20 days after first use.
KT-B750
Install on flat, stable ground with the balancer sitting solidly on its feet, not on a wooden pallet.
KT-B750
Secure the balancer to the floor with concrete screws at 4 locations.
KT-B750
Keep the back panel 0.6 m from the wall and leave room on both sides. Allow room for the hood to swing.
KT-B750
On site, secure the display panel, install the hood support arm (4 screws) and its two relay-switch connections, fit the bracket cover (2 screws), then slide the hood onto the arm and secure it (1 screw).
Electrical
110V / 220V options, single phase; the machine plugs into a wall outlet (110V, 60 Hz); confirm the voltage configuration with Garage Lift Depot before ordering (KT-T835).
Electrical
If an extension cord is used, its current rating must be equal to or more than that of the machine (KT-T835).
Air
Requires shop air at 0.8–1.0 MPa (116–145 PSI); the air line connects to the regulator and the tower accumulator (KT-T835).
Electrical
Amperage is not specified; have a licensed electrician check the data plate (KT-T835).
Air
The shop air consumption is not specified; confirm your compressor capacity with Garage Lift Depot (KT-T835).
Electrical
110V, single phase, 60 Hz; motor 0.25 kW; plugs into a grounded wall outlet (KT-B750).
Electrical
Amperage and plug type are not specified; have a licensed electrician check the data plate if you are unsure about your circuit (KT-B750).

Warranty

Katool covers each machine in this package with a 12-month warranty on all parts and product defects. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

One Katool KT-T835 single assist arm tire changer, including its Turbo Blast hose assembly and bead assist components, and one Katool KT-B750 wheel balancer with cones in 4 sizes, a composite splash guard (hood), a quick-lock hub nut with cap, its display panel and a 100-gram calibration weight.

The KT-T835 comes in 110V / 220V options, single phase, and needs shop air at 0.8–1.0 MPa (116–145 PSI); confirm the voltage configuration with Garage Lift Depot before ordering. The KT-B750 runs on 110V single phase, 60 Hz, from a grounded wall outlet with a 0.25 kW motor.

The KT-T835 clamps 13"–26" from the outside and 14"–28" from the inside, with a max wheel diameter of approx. 40.9" and max wheel width of approx. 13.8". The KT-B750 takes wheels under 65 kg (143 lbs) with an overall tire diameter under 880 mm (34.64"), and its wheel width is 15".

Yes. The KT-T835's tower, assist arm, bead assist control arm, hoses, Turbo Blast hose, bead breaker arm and pad are assembled on site. The KT-B750's display panel, hood support arm and hood are fitted on site, and the balancer is anchored with concrete screws at 4 locations.

Yes. The KT-T835 tire changer and the KT-B750 wheel balancer are both sold individually at Garage Lift Depot.
