Katool KT-T800 + KT-B750 Tire Changer and Wheel Balancer Combo

by Katool
Original price $1,999.00 - Original price $1,999.00
Original price
$1,999.00
$1,999.00 - $1,999.00
Current price $1,999.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

This package pairs the Katool KT-T800 rim clamp tire changer with the Katool KT-B750 computerized wheel balancer. The KT-T800 runs on 110V single-phase power, clamps rims from 12"–22" outside and 14"–24" inside, and takes wheels up to 41" (1040 mm) in diameter and 15" (380 mm) wide. The KT-B750 adds an automatic measurement ruler, a laser marker and a hood-type wheel guard, and balances to ±1g at 180 rpm on 110V single phase.

Shipping information

Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

Why Choose the Katool KT-T800 + KT-B750

  • Rim clamp changer on 110V

    The KT-T800 uses a 110V single-phase supply with a 2.0 HP / 1.5 kW motor.

  • Inside and outside clamping

    The KT-T800 turntable clamps rims from 12"–22" on the outside and 14"–24" on the inside.

  • Pneumatic bead breaker

    The KT-T800's air-operated bead breaker is built for stubborn and low-profile tires.

  • Automatic A and D input

    The KT-B750's automatic measurement ruler enters A and D for you, so you don't key them in by hand.

  • Laser weight marker

    A laser marker on the KT-B750 shows where the balance weight goes on the rim.

  • Hood-start wheel guard

    Closing the KT-B750's composite splash guard starts the balancing spin.

Product Overview

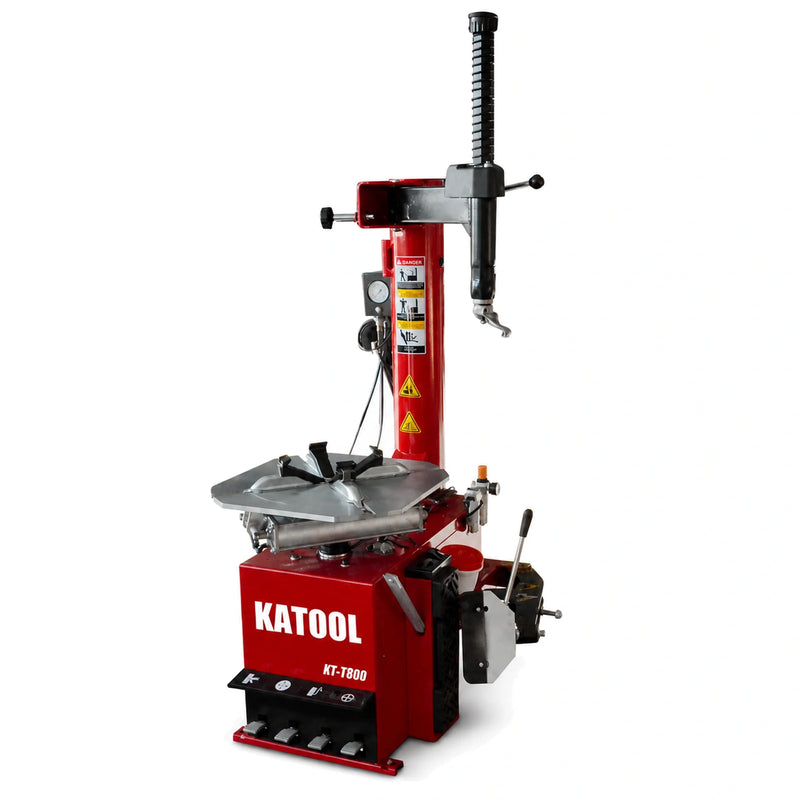

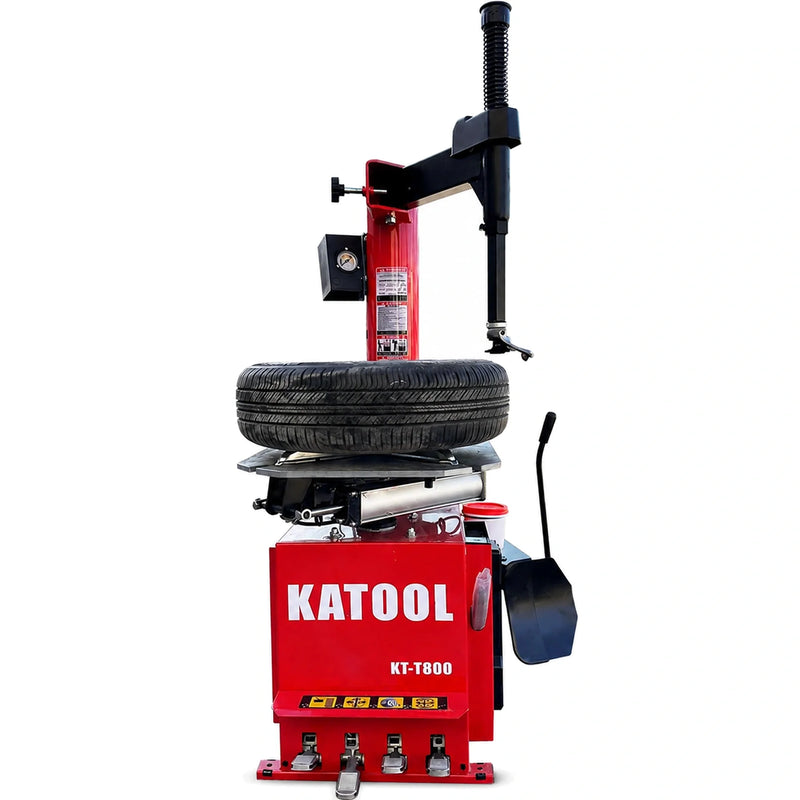

The KT-T800 Tire Changer

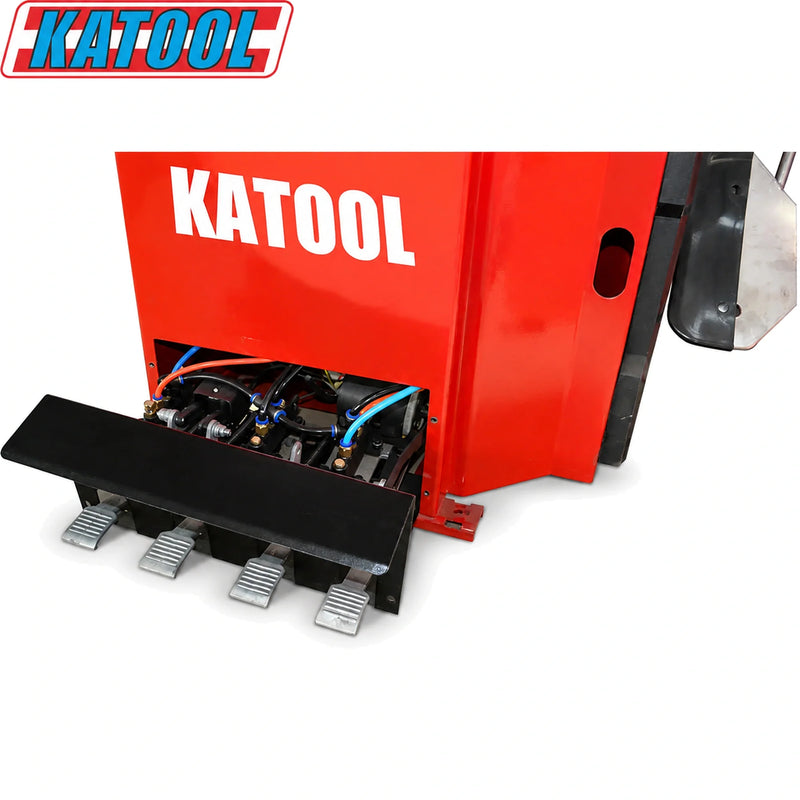

The KT-T800 is a wheel clamp (rim clamp) changer for passenger car, SUV and light truck wheels. Jaws on the turntable grip the rim from the outside for 12"–22" wheels or from the inside for 14"–24" wheels, and the machine takes wheels up to 41" (1040 mm) in diameter and 15" (380 mm) wide. A 2.0 HP / 1.5 kW motor drives the turntable at 6.8 r/min and powers bead breaking and wheel rotation. The pneumatic bead breaker is built for stubborn and low-profile tires, and the mount/demount head is designed to minimize damage to wheels and rims. Foot-operated pedals give hands-free control, a tool tray keeps valves and tools at hand, and the steel-frame machine weighs 410 lb (186 kg) net. It works with steel, alloy and performance wheels, including low-profile and run-flat tires. No assist arm is fitted, and a bead blaster is not part of the KT-T800 specification.

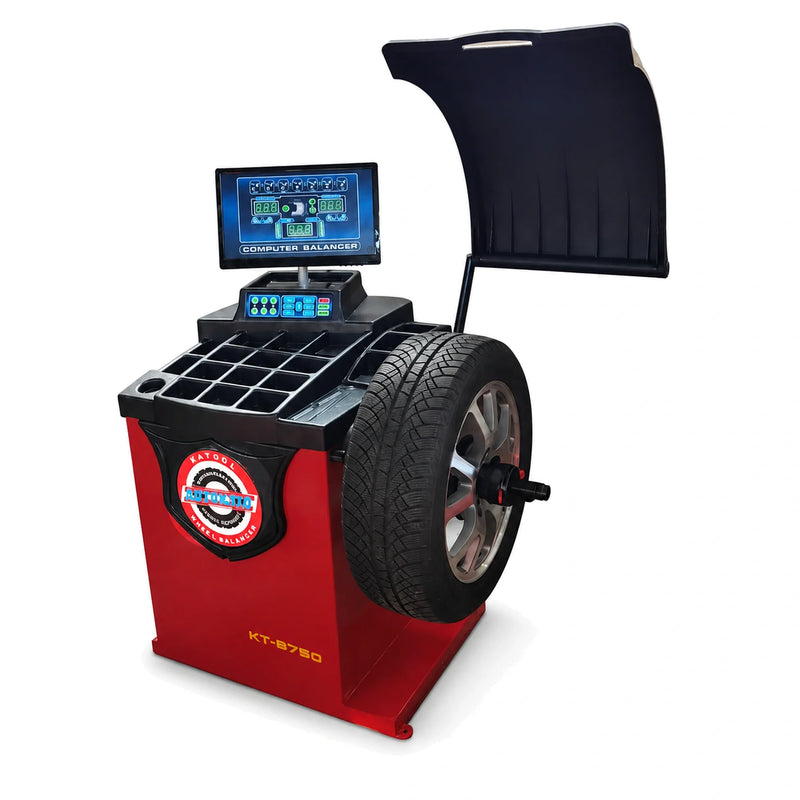

The KT-B750 Wheel Balancer

The KT-B750's automatic measurement ruler reads A (distance) and D (diameter) straight into the balancer, and after the 180 rpm spin the laser marker shows the weight placement position on the rim. A measuring cycle takes 7 seconds, and balancing accuracy is ±1g. Closing the composite splash guard (hood) starts the spin, and the display panel mounts on its own support with STD, ALU1–ALU5, STA and ALS modes, optimization (OPT) and a balance-weight split (hidden weight) function. A 3 mm steel body, 8 mm sensor supports and a hardened 36 mm threaded shaft help keep vibration down. The balancer takes wheels under 65 kg / 143 lbs with a tire diameter under 880 mm / 34.64", and fault diagnosis and two-side self-calibration are built in.

Setting Up Both Machines

The KT-T800 needs a 110V single-phase electrical supply and shop air at 0.8–1.0 MPa (116–145 PSI), so plan its spot near both. The KT-B750 runs on 110V single phase, 60 Hz, from a grounded wall outlet. It must sit on flat, stable ground (not on a wooden pallet), secured with concrete screws at 4 locations, with the back panel 0.6 m from the wall, room on both sides and room for the hood to swing. Amperage is not specified for either machine, so have a licensed electrician check each data plate, and confirm with Garage Lift Depot that your compressor can hold the KT-T800's required pressure.

Specifications

SpecificationValue
Tire changerKatool KT-T800
Wheel balancerKatool KT-B750
KT-T800 outside clamping range12"–22"
KT-T800 inside clamping range14"–24"
KT-T800 max wheel diameter41" (1040 mm)
KT-T800 max wheel width15" (380 mm)
KT-T800 power110V, single phase (1PH)
KT-T800 motor2.0 HP / 1.5 kW
KT-T800 air pressure0.8–1.0 MPa (116–145 PSI)
KT-T800 net weight410 lb (186 kg)
KT-B750 power110V, single phase (1PH)
KT-B750 wheel width15"
KT-B750 max tire diameter<880 mm / 34.64"
KT-B750 max wheel weight<65 kg / 143 lbs
KT-B750 balancing accuracy±1g
KT-B750 balancing speed180 rpm
KT-B750 measuring time7 s
KT-B750 rim diameter<24"

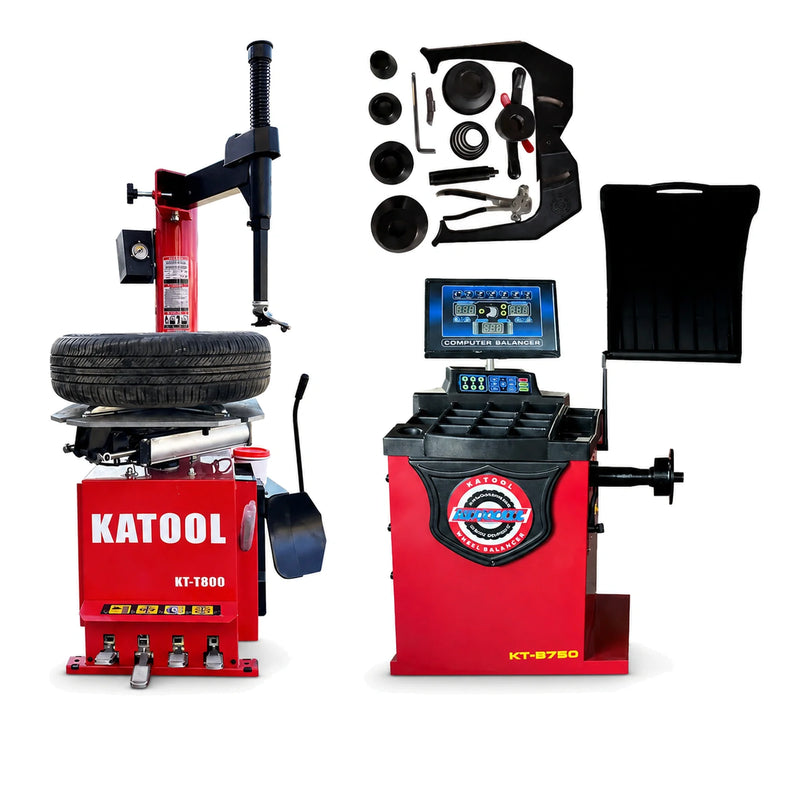

What's Included

  • Katool KT-T800 tire changer
  • Katool KT-B750 wheel balancer
  • KT-B750: cones in 4 sizes: 5 7/16"–3 11/16", 4 1/8"–2 3/4", 3 1/8"–2 1/8", 2 3/8"–1 5/8"
  • KT-B750: composite splash guard (hood) with hood support arm
  • KT-B750: quick-lock hub nut with cap / pressure cup
  • KT-B750: display panel (installed on site)
  • KT-B750: 100-gram calibration weight

Best For

  • Tire and wheel service centers and repair shops handling passenger car, SUV and light truck wheels.
  • Shops that want automatic A and D entry and laser weight placement at the balancer.
  • Home garages and enthusiasts adding tire mounting and wheel balancing for steel, alloy and performance wheels.

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

KT-T800
Install the machine near both its 110V electrical supply and a compressed-air supply, since it needs both to operate.
KT-B750
Install on flat, stable ground with the balancer sitting solidly on its feet, not on a wooden pallet.
KT-B750
Secure the balancer to the floor with concrete screws at 4 locations.
KT-B750
Keep the back panel 0.6 m from the wall, leave room on both sides and allow room for the hood to swing.
KT-B750
On site, secure the display panel, install the hood support arm (4 screws) and its two relay-switch connections, fit the bracket cover (2 screws), then slide the hood onto the arm and secure it (1 screw).
Electrical
Electrical: 110V, single phase (1PH) for the KT-T800.
Electrical
Motor: 2.0 HP / 1.5 kW (KT-T800).
Air
Requires shop air at 0.8–1.0 MPa (116–145 PSI) for the KT-T800.
Electrical
Amperage and circuit breaker size are not specified; have a licensed electrician check the data plate (KT-T800).
Air
Air consumption on the shop air line is not specified; confirm compressor capacity with Garage Lift Depot (KT-T800).
Electrical
110V, single phase, 60 Hz; motor 0.25 kW (KT-B750).
Electrical
Plugs into a wall outlet, which must be grounded (KT-B750).
Electrical
Amperage and plug type are not specified; have a licensed electrician check the data plate if you are unsure about your circuit (KT-B750).

Warranty

Katool covers each machine in this package with a 12-month warranty on all parts and product defects. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

The Katool KT-T800 tire changer and the Katool KT-B750 wheel balancer. The KT-B750 comes with cones in 4 sizes, a composite splash guard (hood) with hood support arm, a quick-lock hub nut with cap, its display panel and a 100-gram calibration weight.

The KT-T800 runs on 110V single phase with a 2.0 HP / 1.5 kW motor and needs shop air at 0.8–1.0 MPa (116–145 PSI). The KT-B750 runs on 110V single phase, 60 Hz, from a grounded wall outlet. Amperage is not specified for either machine, so have a licensed electrician check the data plates.

The KT-T800 clamps 12"–22" rims from the outside and 14"–24" rims from the inside, with a max wheel diameter of 41" (1040 mm) and max wheel width of 15" (380 mm). The KT-B750 handles rims under 24" and wheel widths up to 15", with wheels under 65 kg (143 lbs) and an overall tire diameter under 880 mm (34.64").

Katool covers each machine with a 12-month warranty on all parts and product defects. Contact Garage Lift Depot for warranty support.

Yes. The KT-T800 tire changer and the KT-B750 wheel balancer are both sold individually at Garage Lift Depot.
