How To Choose: Portable Car Lifts
What does "portable car lift" mean?
A portable lift can be rolled to a new position when it's empty, using caster arms, a caster kit or a wheeled power cart. It doesn't mean the lift moves with a vehicle on it. Portable refers to the lift's ability to be repositioned using its mobility system; these are still heavy automotive lifts that require proper setup, floor conditions and safe operating procedures.
Portable 4-post vs. portable scissor vs. 2-post lifts
| Portable 4-post lift | Portable mid-rise scissor lift | 2-post lift | |
|---|---|---|---|
| How it moves | Pin-on caster arms or a caster kit | Movable power cart | Normally anchored to the slab; not portable |
| Best for | Drive-on storage and maintenance | Tire, brake and body work at mid height | Open access to the whole underside |
| Moving and storing | Rolls within the bay when unloaded; footprint stays large | Smaller footprint; can be moved out of the way | Stays where it's installed |
| Examples in this collection | Olympic 4PML-9, 4PHR-9X, 4PXL-10, 4PXL-10B | Olympic MRSL-6, MRSL-75 | None; see our 2-post lifts |
| Browse the full range | 4-post lifts | Scissor lifts | 2-post lifts |
Which type is easier to move or store?
Among the portable options in this collection, mid-rise scissor lifts generally take up less floor space and can be easier to reposition or store than a four-post lift. The Olympic MRSL-6, for example, has a motor cart that doubles as a tow handle. A portable four-post lift can be rolled within the garage when it's empty, but it still needs a full bay's length wherever it sits.
Home garage vs. professional shop

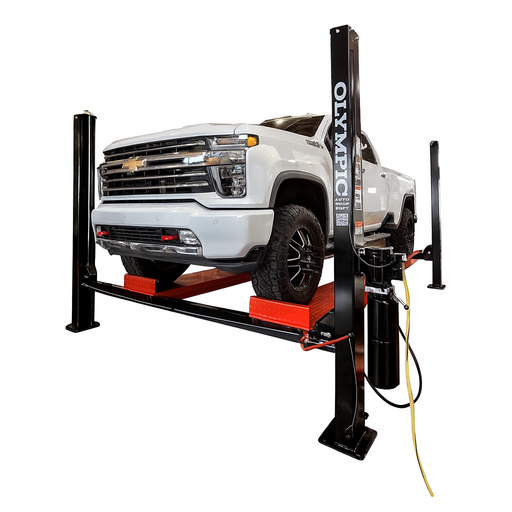

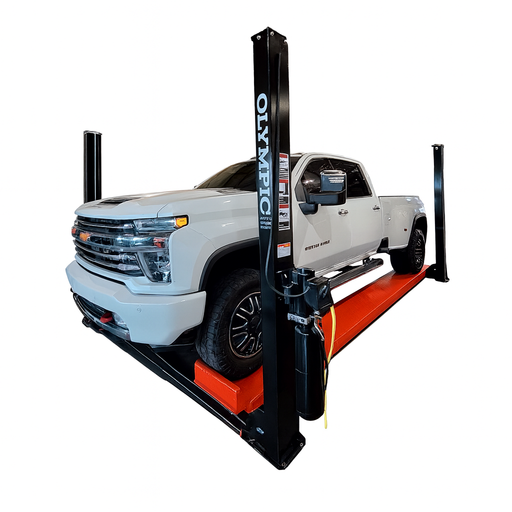

In a home garage, a portable four-post storage lift such as the Olympic 4PML-9 or 4PHR-9X lets you park a second car now and reposition the lift later. In a shop, a portable mid-rise lift can move between bays as the workload shifts. The wider Olympic 4PXL-10 and 4PXL-10B are built for dual-wheel trucks, service vehicles and wide vehicles. For more home-garage options, including fixed lifts, see car lifts for home garages.
Lifting capacity

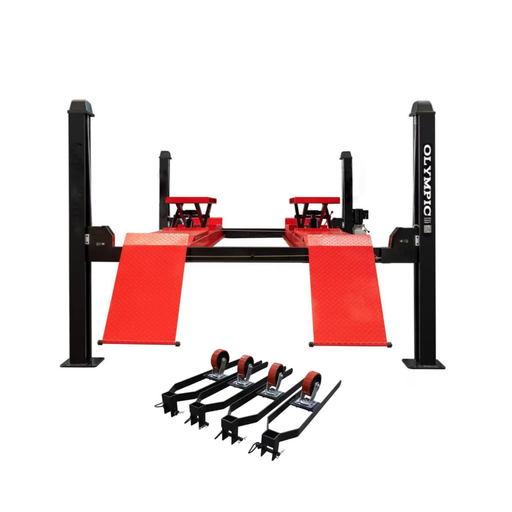

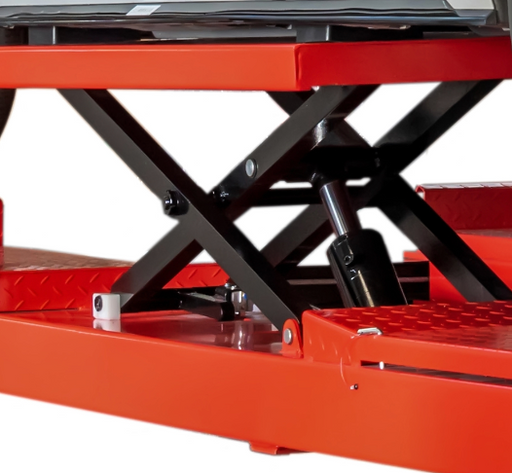

The lifts in this collection are rated from 6,000 lb (Olympic MRSL-6) to 10,000 lb (Olympic 4PXL-10 and 4PXL-10B). The 4PXL-10B also has built-in 6,500 lb scissor jacks on its runways. Check your vehicle's actual weight and wheelbase against the lift's capacity and runway or platform size.
Lowered height and ground clearance
For low cars, check the lift's minimum height. The Olympic MRSL-6 and MRSL-75 lower to 3.9 in. On the four-post lifts, the lifting range starts at 4.35 in on the 4PHR-9X and 4.72 in on the 4PML-9 and 4PXL-10. Check the ramp approach against your lowest vehicle too.
Ceiling height and floor space
For a four-post storage lift, your ceiling has to clear the lift's overall height plus the vehicle parked on top. The Olympic 4PML-9 is 87.32 in tall, the 4PHR-9X is 98.54 in, and the 4PXL-10 and 4PXL-10B are 105.20 in. For floor space, use the overall length with ramps and the overall width, then leave room to roll the lift to its new position.
Concrete and anchoring
Portable doesn't mean any floor will do. Slab, floor-level and anchoring requirements are set in each lift's installation manual, so check them for the exact model before installation.
Electrical requirements
The Olympic MRSL-6 and MRSL-75 run on 110V power units, and the 4PHR-9X ships with a 110V power unit. The 4PML-9 is available with 110V or 220V power, and the 4PXL-10B includes a 110V power unit with an optional 220V unit. The MRSL-75 also needs a compressed-air supply of 6 to 8 bar for its pump release.
When a portable lift still needs setup
Expect freight delivery, assembly, attaching the caster arms or caster kit, a level floor, a power circuit and, on some models, an air line. Once the lift is in position, follow the manual for setting it before use. Use a qualified installer if you're not sure.
Warranty and support
Warranty coverage comes from the manufacturer and differs by model. Ask us before you order and we'll confirm current coverage and where to go for parts and support.
Product details
Each product page lists the model's specifications and what's included.
Frequently Asked Questions
No. Portable lifts are designed to be repositioned only when empty. Follow the manual for moving and setting the lift.
The lifts in this collection include their caster arms, caster kit or movable power cart. On some other lifts, the caster or wheel kit is an optional extra, so check the product page before you order.
It depends on the model. The installation manual sets the slab, floor-level and anchoring requirements for each lift.
Two-post lifts are normally anchored to the slab, and we don't currently carry one designed to be moved. If you need open access to the underside, see our 2-post lifts.
Several lifts in this collection list 110V power units, and some offer a 220V option. Check the power unit on each product page and confirm your circuit with an electrician.
Among the lifts in this collection, the mid-rise scissor lifts take the least floor space. Portable four-post lifts still need a full bay's length.
Yes. Send us your vehicle, available space and how often you'll need to move or store the lift, and we'll help you compare models that fit.
