Katool KT-SB288 Truck Auto Body Puller and Frame Straightener, 50 kN Hand Pump

by Katool
Original price $1,199.00 - Original price $1,199.00
Original price
$1,199.00
$1,199.00 - $1,199.00
Current price $1,199.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

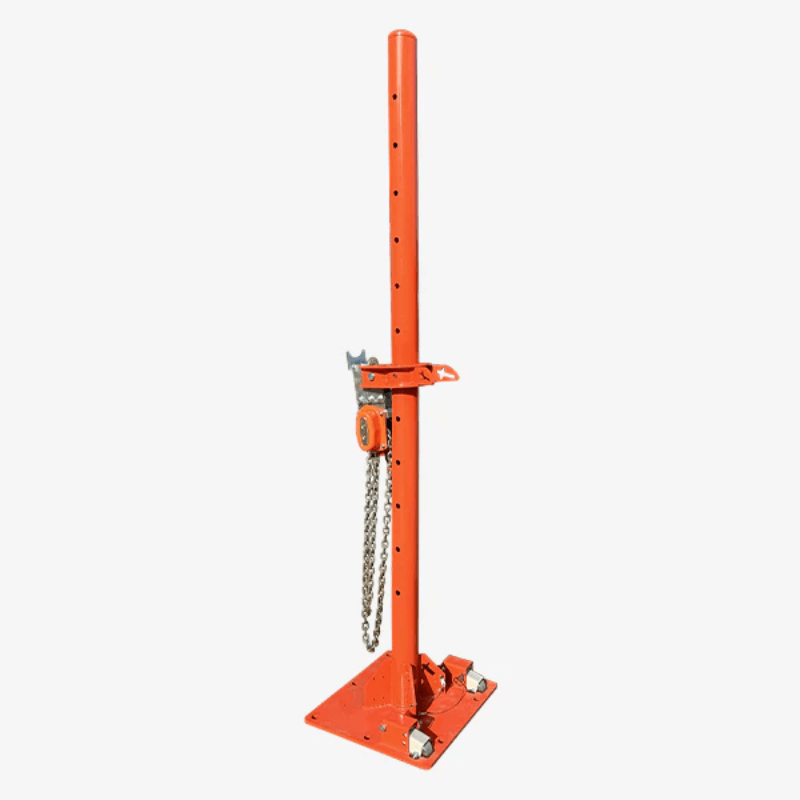

The Katool KT-SB288 is a compact, portable puller and frame straightener for truck and auto body pulling work. It delivers 50 kN of hydraulic pushing force from a manual hand pump and weighs 143.3 lbs / 65 kg, so one person can position and operate it.

Shipping information

Ships within 1-5 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Overall height
35.4 in
Overall width
25.6 in
Overall length
39.6 in

Why Choose the Katool KT-SB288

  • Hand pump operation

    The hydraulic system is driven by a manual hand pump, so the puller does not depend on a compressor or an outlet.

  • Rated pushing force

    The hydraulic ram produces 50 kN of pushing force for pulling and straightening jobs.

  • One-person setup

    The unit is sized and weighted for one technician to move, set up and operate.

  • Long pulling chain

    A 3.5 m chain with hook gives room to anchor and route the pull around the damaged area.

  • Truck and car work

    It is built for truck frame pulling, body straightening and general collision repair.

  • Compact footprint

    At 39.6 in long and 25.6 in wide, it takes up little floor space when stored or in use.

Product Overview

How the KT-SB288 Works

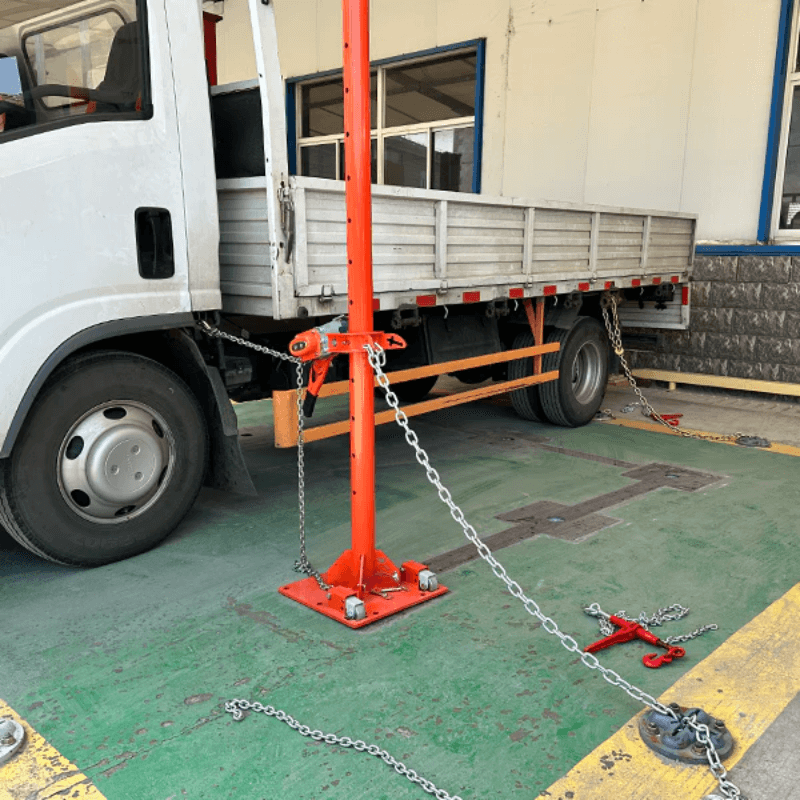

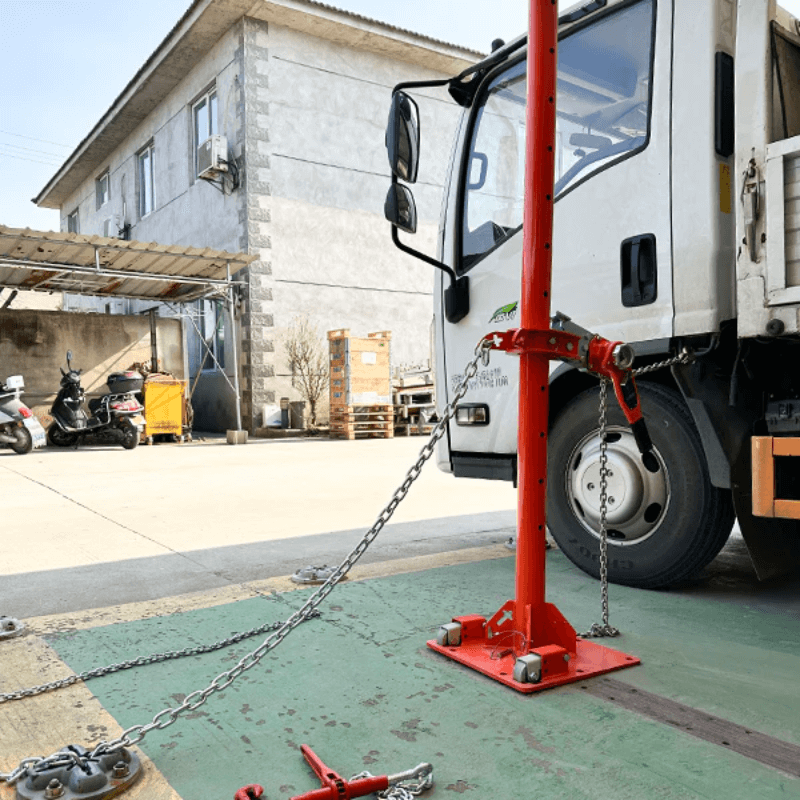

The KT-SB288 is a quick repair pulling tower paired with a hydraulic hand pump. You anchor the chain to the vehicle with the six-claw pulling hook or chain hook, then work the pump to extend the ram and apply a controlled pull. Because the force comes from the hand pump, you can build pressure in small increments and check the panel or frame section as you go.

Where It Fits in the Shop

This is a portable puller rather than a full bench or drive-on frame machine. It suits localized frame and body corrections on trucks and cars, such as pulling out a pushed-in section or relieving stress before panel work. For full-frame measuring and multi-point pulls, a frame machine with a platform is the better tool.

Portability and Handling

The tower stands 35.4 in tall and the complete unit weighs 143.3 lbs / 65 kg. That size lets you roll it to the vehicle instead of bringing the vehicle to a dedicated bay, which helps in smaller shops or when the frame machine is already occupied.

Specifications

SpecificationValue
ModelKT-SB288
Product typeTruck Auto Body Puller / Frame Straightener
Overall length39.6 in
Overall width25.6 in
Overall height35.4 in
Weight143.3 lbs / 65 kg
Hydraulic pushing force50 kN
Chain length3.5 m
Operation typeManual hydraulic / hand pump
ApplicationTruck frame pulling, body straightening, collision repair

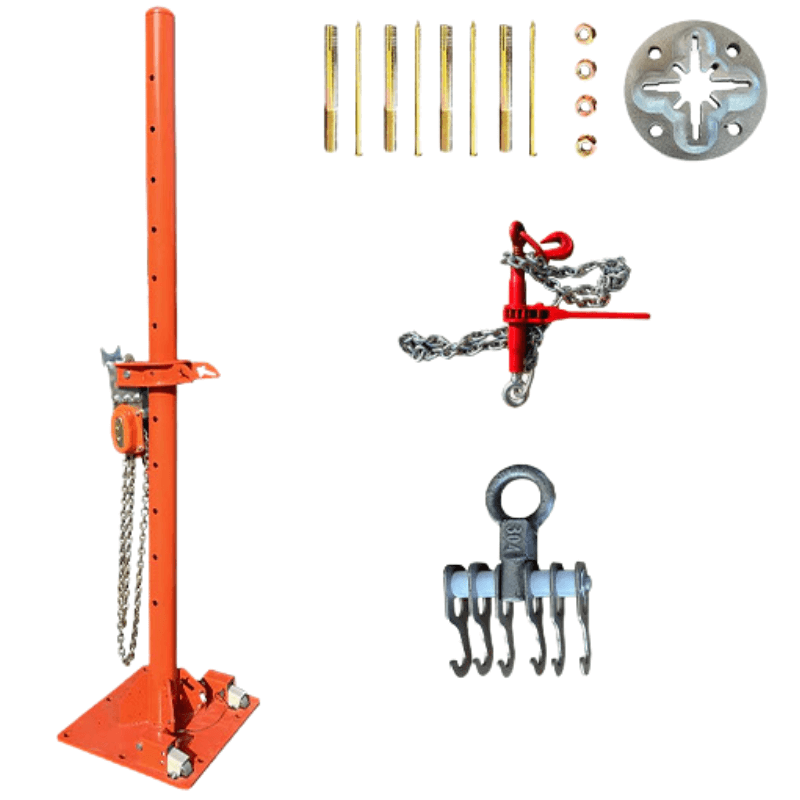

What's Included

  • Quick repair pulling tower
  • Hand pump
  • Chain with hook
  • Six-claw pulling hook

Best For

  • Collision and body shops that need a portable puller for truck and car frame corrections.
  • Shops that want a second pulling setup alongside a frame machine.
  • Technicians working in bays without a dedicated air or power drop.

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Hydraulic
Hydraulic force comes from the included manual hand pump.
Electrical
Power requirements are not specified; confirm them with Garage Lift Depot before ordering.

Warranty

Katool covers this machine with a 12-month warranty on all parts. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

No air or electrical supply is specified. The puller is operated with a manual hydraulic hand pump.

The hydraulic pushing force is 50 kN.

The chain length is 3.5 m, and it comes with a hook.

Yes. The puller is suitable for one-person operation and weighs 143.3 lbs / 65 kg.

A quick repair pulling tower, a hand pump, a chain with hook and a six-claw pulling hook.
