Katool KT-198L Auto Body Frame Machine, 100 kN Pull, 7700 lbs Max Load

by Katool
Original price $9,990.00 - Original price $9,990.00
Original price
$9,990.00
$9,990.00 - $9,990.00
Current price $9,990.00
Talk to a Lift Specialist Text or call us directly — no call centers, no hold music
Fast Order Processing Processing and transit times vary by product and manufacturer.
Tracked Shipping Tracking information is provided when your order ships.
Warehouse Pickup May Be Available Contact us to confirm pickup availability for your product and location.

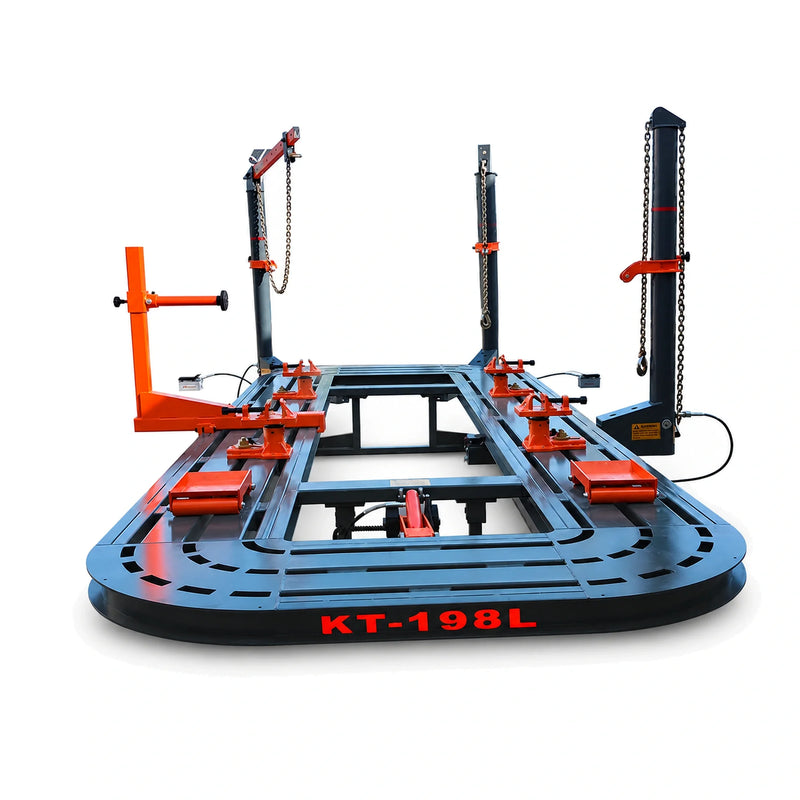

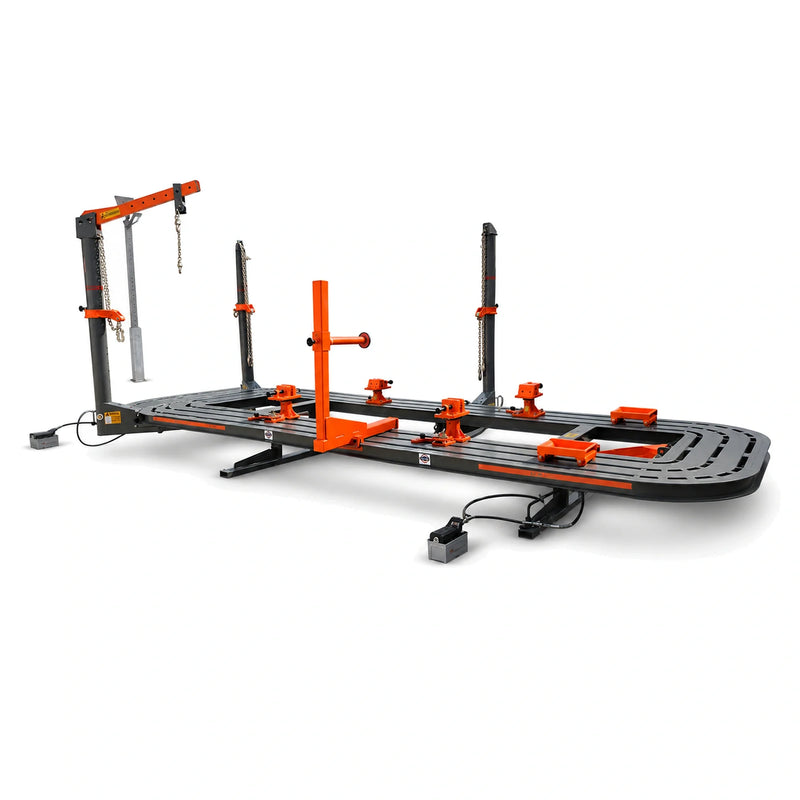

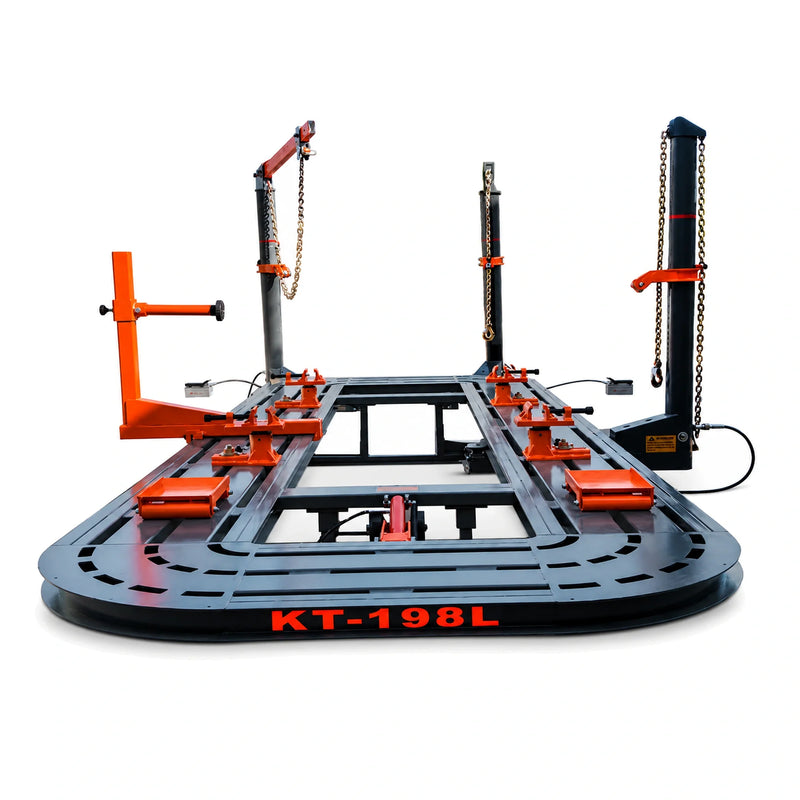

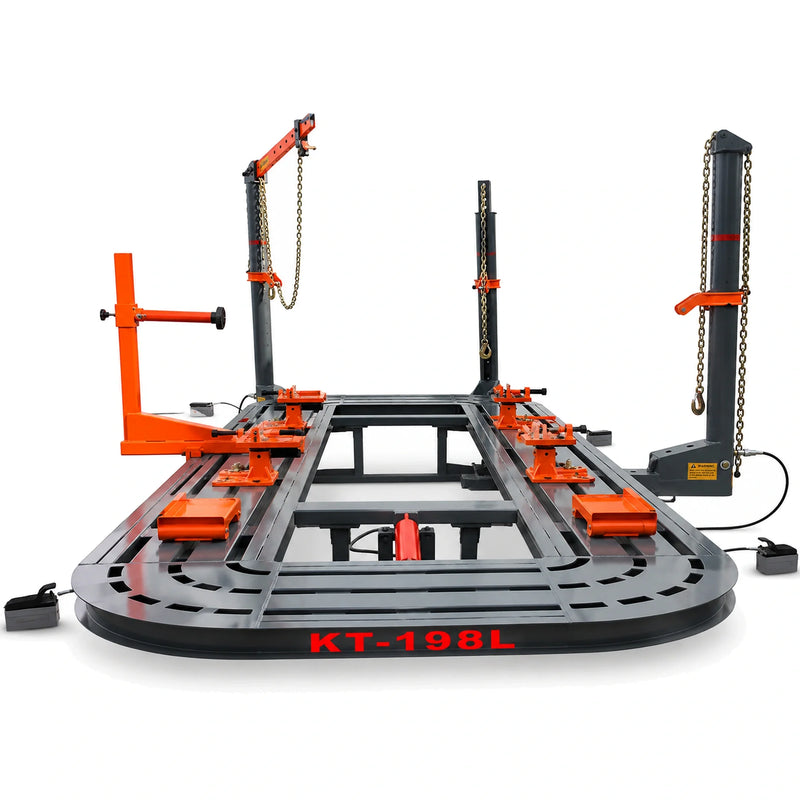

The Katool KT-198L is a drive-on auto body frame machine for collision repair shops that straighten unibody and frame damage. It offers 100 KN of pulling capacity with a 360-degree pulling radius, a 7700 lbs max load, and a tilting hydraulic lifting platform with drive-on ramps.

Shipping information

Residential delivery is not available for this machine.
Ships within 1-5 business days; freight transit is typically 5-10 business days.
Not currently available to Alaska, Hawaii, Iowa, Maine, or Rhode Island.

At a Glance

Overall width
84.3 Inch
Overall length
236.4 Inch

Why Choose the Katool KT-198L

  • Pulling capacity

    The machine delivers 100 KN of pulling capacity for structural collision repair.

  • Full pulling radius

    A 360-degree pulling radius lets you set up pulls from any side of the vehicle.

  • Tilting hydraulic platform

    The tilt hydraulic lifting platform is assembled with light, flexible support legs.

  • Quick-fix clamp jaws

    Clamp jaws tighten by screwing the shaft clockwise, which makes chassis clamping more efficient.

  • Multi-direction pulls

    The leading arm applies tensile force in multiple directions during repair.

  • Tower wheel movement

    A tower wheels movement device lets you reposition the pulling tower around the platform.

Product Overview

Platform and Loading

The KT-198L measures 236.4 Inch long and 84.3 Inch wide, with a height range of 4.3 to 67 Inch. Light, flexible ramps let you drive the vehicle on and off, and the tilt hydraulic lifting platform raises the car to a working height once it is in position. The max load is 7700 lbs.

Clamping the Chassis

Quick-fix clamp jaws close by screwing the shaft clockwise. That makes chassis clamping more efficient, so the vehicle is anchored to the platform before any pulling force is applied.

Pulling and Tower Movement

The pulling capacity is 100 KN with a 360-degree pulling radius. A tower wheels movement device lets you move the pulling tower to the pull point, and the leading arm supplies tensile force in multiple directions, so you can match the pull angle to the direction of the original impact.

Specifications

SpecificationValue
ModelKT-198L
Overall length236.4 Inch
Overall width84.3 Inch
Height4.3 to 67 Inch
Pulling capacity100 KN
Radius of pulling360 Degrees
Max load7700 lbs
Air supply required0.8 MPA
PlatformTilt hydraulic lifting platform with support legs
ClampsQuick-fix clamp jaws

What's Included

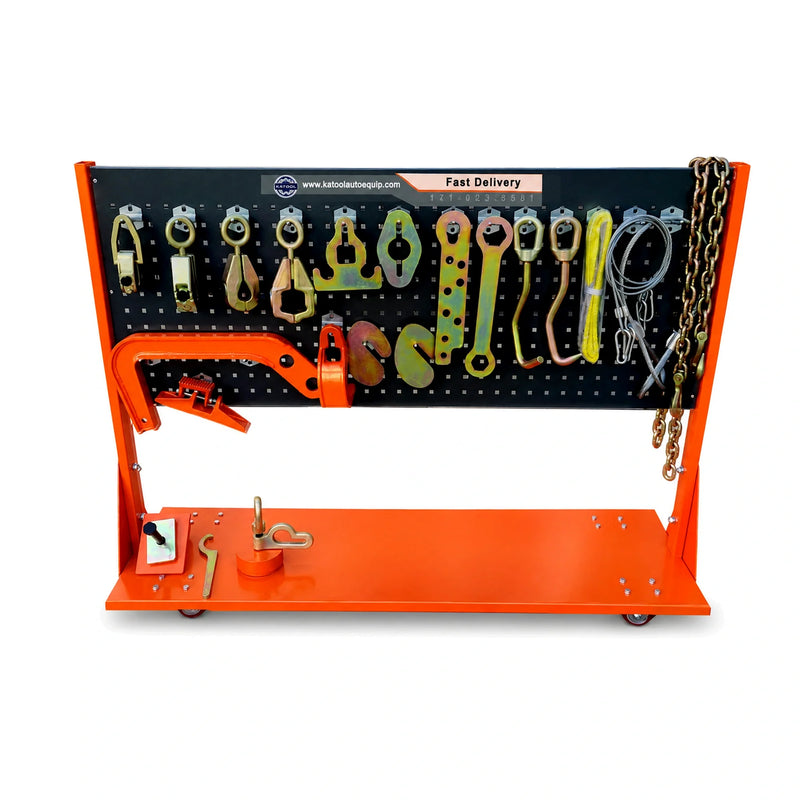

  • Complimentary accessories and tools for body collision repair (as per configuration)

Best For

  • Collision repair shops that need a drive-on frame machine for structural pulls.
  • Body shops moving up from portable pullers to a platform-based frame system.
  • Shops that want to set up pulls from any side of the vehicle.

Installation & Site Requirements

Confirm these before ordering. Concrete, ceiling and power affect whether this lift can be installed.

Air
Requires shop air at 0.8 MPA; the PSI value is not specified, so confirm your compressor output with Garage Lift Depot.
Electrical
Power requirements are not specified; confirm them with Garage Lift Depot before ordering.

Warranty

Katool covers this frame machine with a 12-month warranty on all parts. Contact Garage Lift Depot for warranty support.

Frequently Asked Questions

The KT-198L has a pulling capacity of 100 KN with a 360-degree pulling radius.

The max load is 7700 lbs.

It requires an air supply of 0.8 MPA. Electrical requirements are not specified; confirm them with Garage Lift Depot before ordering.

It is 236.4 Inch long and 84.3 Inch wide, with a height of 4.3 to 67 Inch.

The KT-198L has light, flexible ramps for driving on and off, and a tilt hydraulic lifting platform.
