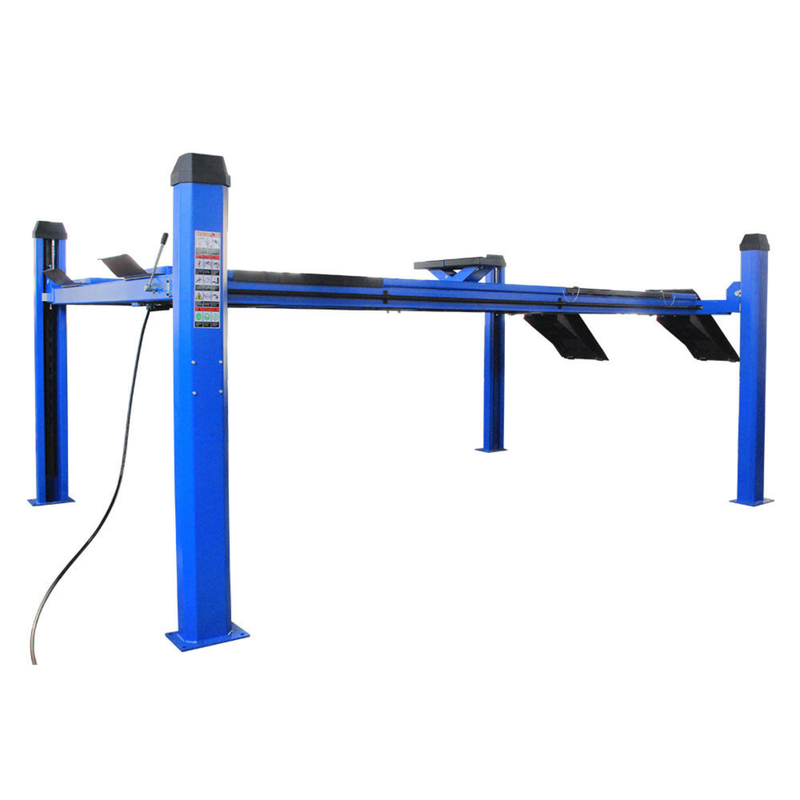

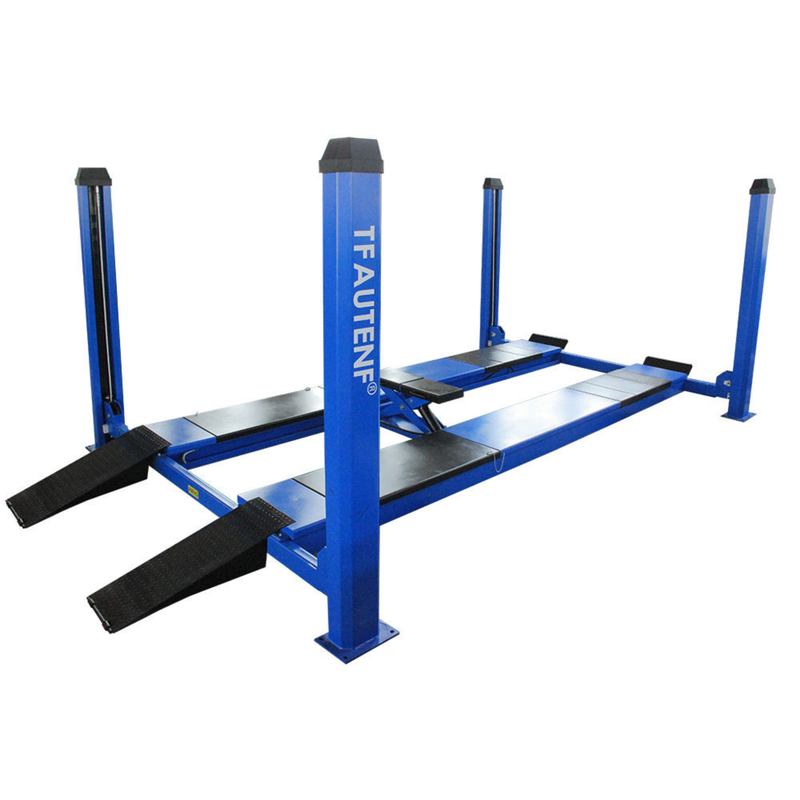

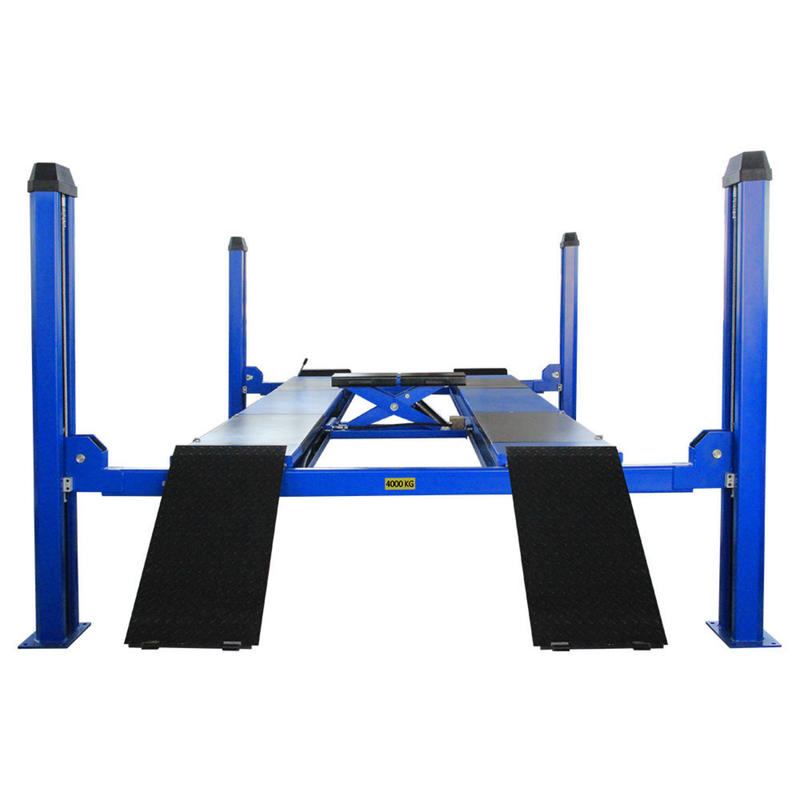

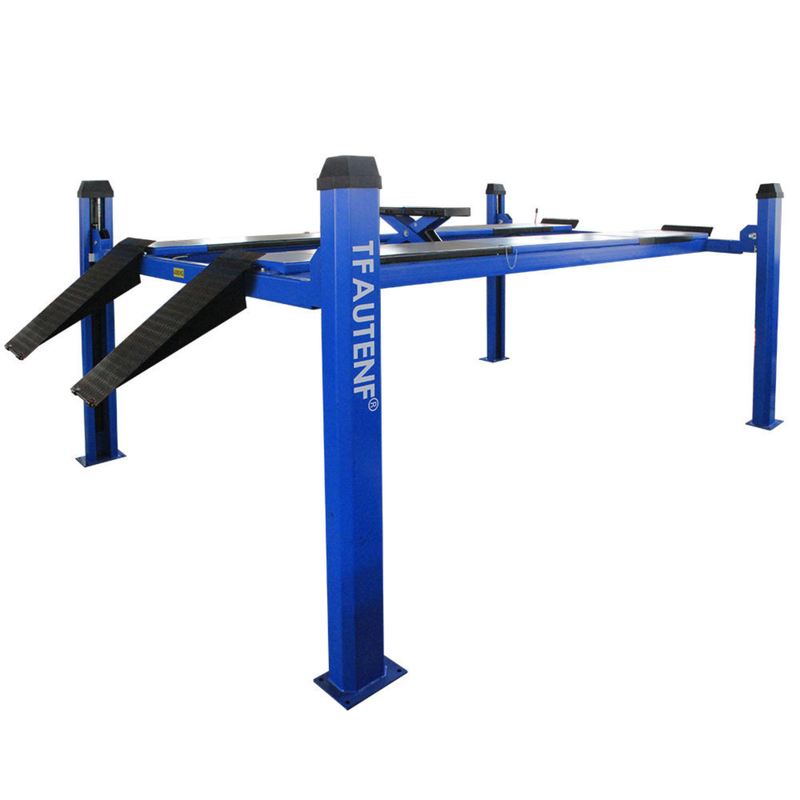

4-Post Alignment lift
Specifications
The 4-Post Alignment lift is available in 4-ton and 5-ton capacity options, this lift provides stable support for vehicle inspection, alignment, servicing, and repair work.
Built with a hydraulic four-post structure, manual lock release system, and durable runway platform, this hoist is suitable for handling a wide range of passenger vehicles and light-duty applications. The alignment-ready design, rolling jack compatibility, and secondary scissor lifting function make it a practical solution for workshops that need flexibility and strong lifting performance.
Key Features
- 4-ton / 5-ton lifting capacity
- Four-post hydraulic alignment hoist
- Double-cylinder hydraulic lift system
- Maximum lift height: 25–72.8 in / 635–1849 mm
- Manual lock release system
- Runway length: 4500 mm / customizable
- Runway width: 550 mm
- Overall width: 3260 mm
- Post height: 2016 mm
- Secondary lifting height: 450 mm
- Rolling jack and scissor lift support
- CE certified
- 12-month warranty
- Estimated service life: 10 years
Shipping information
Free standard curbside freight shipping is available on most orders within the contiguous United States. Most orders are processed within 1–5 business days, with typical transit times of 5–8 business days after shipment.
